Order this document by MRFIC1884PP/D
Product Preview
Dual-Band CDMA Upconverter
The MRFIC1884 is an integrated upmixer, RF AGC amplifier and driver
amplifier designed for dual–band, tri–mode CDMA/AMPS/PCS CDMA
cellular radios. The device incorporates a temperature compensated linear
gain control and an active bias control that reduces supply current at lower
output power. The design utilizes Motorola’s RF BiCMOS process and is
packaged in a small cost effective BCC32++ package.
MRFIC1884
DUAL–BAND
CDMA UPCONVERTER
•
•
•
Designed for Dual–Band, Tri–Mode Operation
Total Supply Current CDMA/PCS CDMA Mode = 60 mA (Typ)
Total Supply Current AMPS Mode = 42 mA (Typ)
High Output Power
6.0 dBm for CDMA
6.0 dBm for PCS CDMA
11 dBm for AMPS
Supply Voltage Range: 2.7 to 3.2 V
SEMICONDUCTOR
TECHNICAL DATA
(Scale 2:1)
PLASTIC PACKAGE
CASE 1261A
(BCC32++)
ORDERING INFORMATION
Device
MRFIC1884R2
Operating
Temp Range
TA = –40 to 85°C
Package
BCC32++

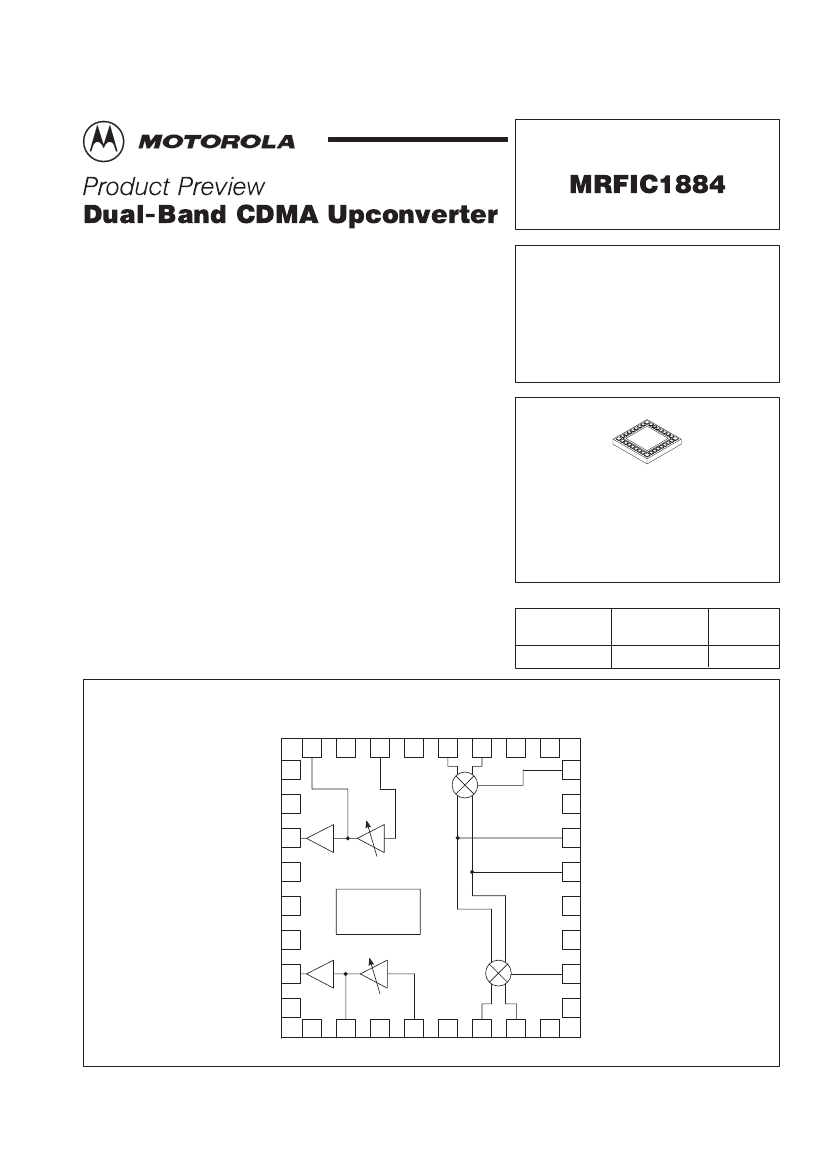

Simplified Block Diagram and Pin Connections
VCC8
32
Band
1
Cell
Mixer
Mode
Exc Out
Cell/VCC1
Gnd
2
Exciter
3
RF AGC
4
Bandgap
Temp Comp
& Buffering
21
IF In–
22
IF In+
23
VCC6
Gnd
31
Exc In
Cell
30
Gnd
29
Mx Out Mx Out
Cell–
Cell+
28
27
VCC7
26
Gnd
25
24
LO Cell
VCC2
Gnd
Exc Out
PCS/VCC3
Gnd
5
20
Vgc
Gnd
6
Exciter
7
RF AGC
9
Tx
Enable
10
VCC4
11
Gnd
12
Exc In
PCS
13
Gnd
14
15
16
VCC5
PCS
Mixer
19
18
LO PCS
Gnd
8
17
Mx Out Mx Out
PCS– PCS+
Bump Chip Carrier++ (BCC++) is a trademark of Fujitsu Microelectronics, Inc.
This document contains information on a product under development. Motorola reserves the
right to change or discontinue this product without notice.
©
Motorola, Inc. 2000
Rev 0
MOTOROLA WIRELESS SEMICONDUCTOR
SOLUTIONS – RF AND IF DEVICE DATA
1
MRFIC1884
PIN FUNCTION DESCRIPTION
Pin
1
2
3
Function
Band
Mode
Exciter Out
(Cellular)/
VCC1
Gnd
VCC2
Gnd
Exciter Out (PCS)/
VCC3
Gnd
Tx Enable
Description
Band Selection pin. A logic ”High” (>2.4 V) selects PCS
band and ”Low” (<0.4 V) selects Cellular band.
Mode selection pin. A logic ”High” (>2.4 V) selects CDMA
band and ”Low” (<0.4 V) selects AMPS band.
Cellular band RF Exciter output pin.
Voltage On (V)
2.4 to 3.2
2.4 to 3.2
2.7 to 3.2
Voltage Off (V)
0 to 0.4
0 to 0.4
4
5
6
7
8
9
Ground connection.
Supply Voltage.
Ground connection.
PCS band RF Exciter output pin.
Ground connection.
Tx Enable pin. A logic ”High” (>2.4 V) enables Tx path and
”Low” (<0.4 V) diables Tx path except LO Buffer and
bandgap reference (will disable the entire chip complete
with Band selection pin and Mode selection pin, refer to
Table ?).
Supply Voltage.
Ground connection.
PCS band RF Exciter input pin.
Ground connection.
PCS band Mixer RF output pin.
PCS band Mixer RF output pin.
Supply Voltage.
Ground connection.
PCS band Mixer LO input pin.
Ground connection.
RF AGC control pin. A 30 dB dynamic range can be
achieved by adjusting voltage from 0.1 V (low gain) to 1.7
V (high gain).
Mixer IF input pin.
Mixer IF input pin.
Supply Voltage.
Cellular band Mixer LO input pin.
Ground connection.
Supply Voltage.
Cellular band Mixer RF output pin.
Cellular band Mixer RF output pin.
Ground connection.
Cellular band RF Exciter input pin.
Ground connection.
Supply Voltage.
–
2.7 to 3.2
–
2.7 to 3.2
–
2.4 to 3.2
0 to 0.4
10
11
12
13
14
15
16
17
18
19
20
VCC4
Gnd
Exciter In (PCS)
Gnd
Mixer Out– (PCS)
Mixer Out+ (PCS)
VCC5
Gnd
LO (PCS)
Gnd
Vgc
2.7 to 3.2
–
–
–
2.7 to 3.2
2.7 to 3.2
2.7 to 3.2
–
–12 dBm (Typ)
–
0.1 to 1.7
21
22
23
24
25
26
27
28
29
30
31
32
IF In–
IF In+
VCC6
LO (Cellular)
Gnd
VCC7
Mixer Out+ (Cellular)
Mixer Out– (Cellular)
Gnd
Exciter In (Cellular)
Gnd
VCC8
–23 dBm (Typ)
–23 dBm (Typ)
2.7 to 3.2
–13 dBm (Typ)
–
2.7 to 3.2
2.7 to 3.2
2.7 to 3.2
–
–
–
2.7 to 3.2
2
MOTOROLA WIRELESS SEMICONDUCTOR
SOLUTIONS – RF AND IF DEVICE DATA
MRFIC1884

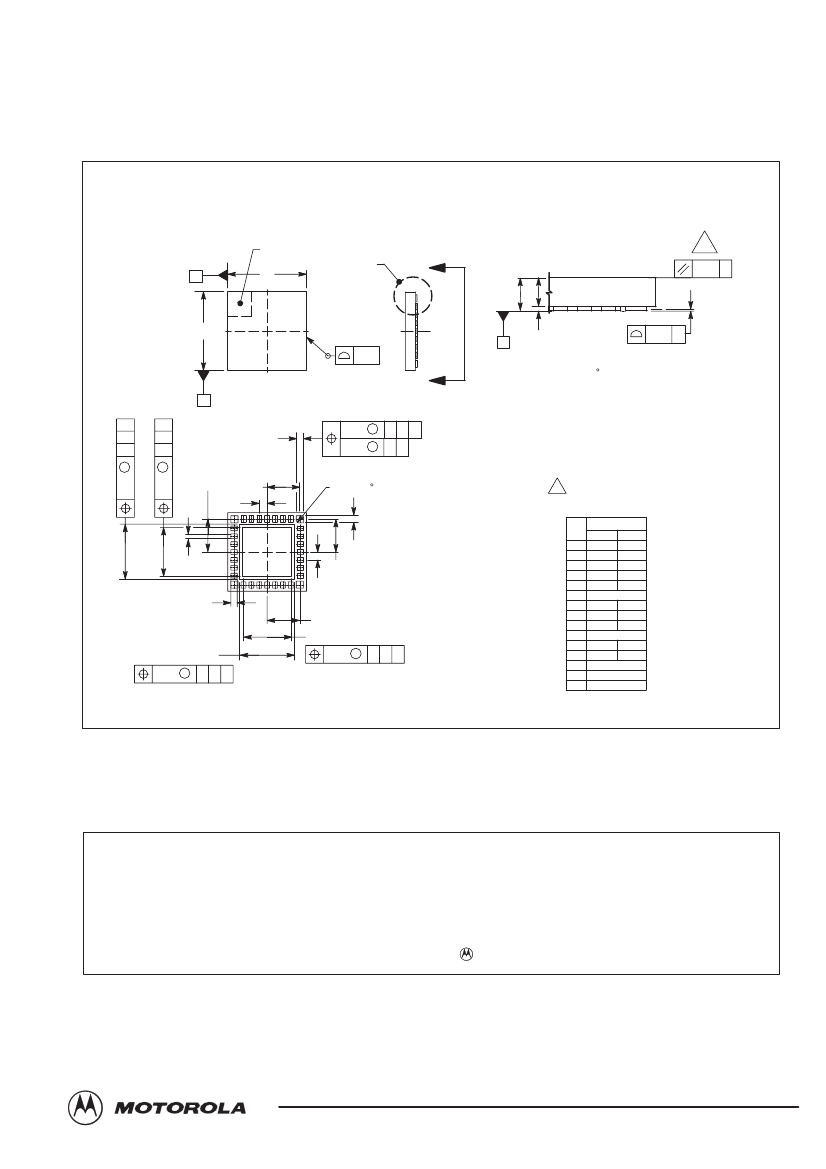

OUTLINE DIMENSIONS
PLASTIC PACKAGE
CASE 1261A–01
(BCC++–32EP)
ISSUE B
LASER MARK FOR PIN 1
IDENTIFICATION IN
THIS AREA
3
K
A2
A
0.20 C
A
D
DETAIL J
E
C
0.15
K
B
4X
A1
0.05 C
DETAIL J
ROTATED 90
_
CLOCKWISE
d
0.15
0.08
M
M
C A B
C A B
C A B
C A
NOTES:
1. DIMENSIONS ARE IN MILLIMETERS.
2. INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M, 1994.
3. PARALLELISM MEASUREMENT SHALL EXCLUDE
ANY EFFECTS OF MARK ON TOP SURFACE OF
PACKAGE.
MILLIMETERS
MIN
MAX
–––
0.80
0.07
0.10
0.60
0.70
0.20
0.40
0.30
0.50
5.00 BSC
3.40
3.60
3.00
3.20
0.35
0.55
5.00 BSC
3.40
3.60
3.00
3.20
0.50 BSC
2.10 BSC
2.075 BSC
0.08
0.08
b
2X
F
M
M
ALL TERMINALS
4X
G
28X
0.20 x 45
_
CHAMFER
E1
2X
2X
E2
12X
e
28X
c
2X
F
0.08
M
D2
D1
0.08
M
C A B
C A B
VIEW K–K
DIM
A
A1
A2
b
c
D
D1
D2
d
E
E1
E2
e
F
G
Motorola reserves the right to make changes without further notice to any products herein. Motorola makes no warranty, representation or guarantee regarding
the suitability of its products for any particular purpose, nor does Motorola assume any liability arising out of the application or use of any product or circuit, and
specifically disclaims any and all liability, including without limitation consequential or incidental damages. “Typical” parameters which may be provided in Motorola
data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals”
must be validated for each customer application by customer’s technical experts. Motorola does not convey any license under its patent rights nor the rights of
others. Motorola products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other
applications intended to support or sustain life, or for any other application in which the failure of the Motorola product could create a situation where personal injury
or death may occur. Should Buyer purchase or use Motorola products for any such unintended or unauthorized application, Buyer shall indemnify and hold Motorola
and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees
arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that
Motorola was negligent regarding the design or manufacture of the part. Motorola and
are registered trademarks of Motorola, Inc. Motorola, Inc. is an Equal
Opportunity/Affirmative Action Employer.
How to reach us:
USA / EUROPE / Locations Not Listed:
Motorola Literature Distribution;
P.O. Box 5405, Denver, Colorado 80217. 1–303–675–2140 or 1–800–441–2447
Technical Information Center: 1–800–521–6274
12X
4X
e
G
4X
d
JAPAN:
Motorola Japan Ltd.; SPS, Technical Information Center, 3–20–1,
Minami–Azabu. Minato–ku, Tokyo 106–8573 Japan. 81–3–3440–3569
ASIA / PACIFIC:
Motorola Semiconductors H.K. Ltd.; Silicon Harbour Centre,
2, Dai King Street, Tai Po Industrial Estate, Tai Po, N.T., Hong Kong.
852–26668334
HOME PAGE:
http://www.motorola.com/semiconductors/
4
◊
MOTOROLA WIRELESS SEMICONDUCTOR
SOLUTIONS – RF AND IF DEVICE DATA
MRFIC1884PP/D
