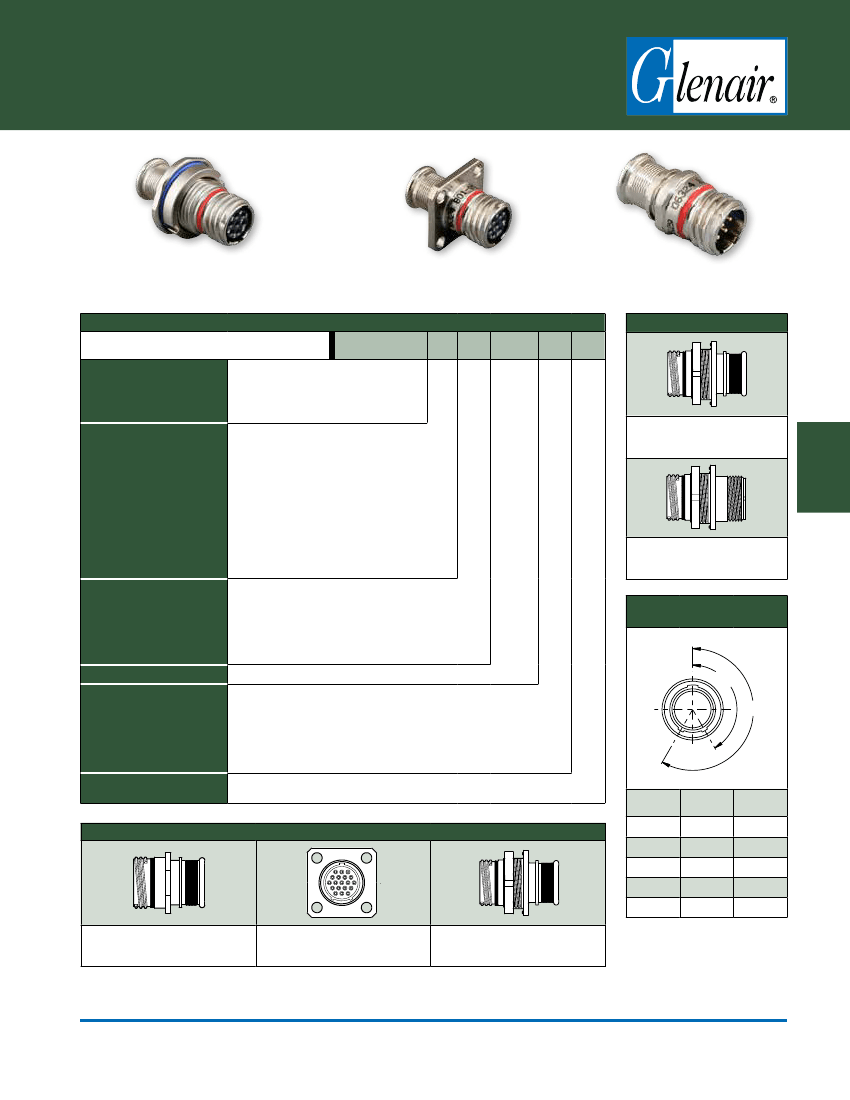

801-009 and 801-010 Ordering Information
Rear Panel Jam Nut Mount
Shell Style 07
Square Flange Mount
Shell Style 02/12/22
How To Order
In-Line
Shell Style 01
Table I: Series
Sample Part Number
Series
(See Table I)
801-010
801-009
= Receptacle with Banding
Platform
801-010
= Receptacle with Accessory
Thread
-02
Z1
16-55
S
A
Shell Style
(See Table III)
-01
= In-Line Receptacle for Free-Hanging
Cables
-02
= Thru Hole Square Flange Receptacle for
Front or Rear Panel Mounting
-12
= Square Flange Receptacle for Rear Panel
Mounting with “Non-Locking” Clinch Nuts
-22
= Square Flange Receptacle for Rear Panel
Mounting with “Locking” Clinch Nuts
-07
= Jam Nut Receptacle for Rear Panel
Mounting
M
= Aluminum / Electroless Nickel RoHS Compliant
MT
= Aluminum / Nickel-PTFE RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
Z1
= Stainless Steel / Passivated RoHS Compliant

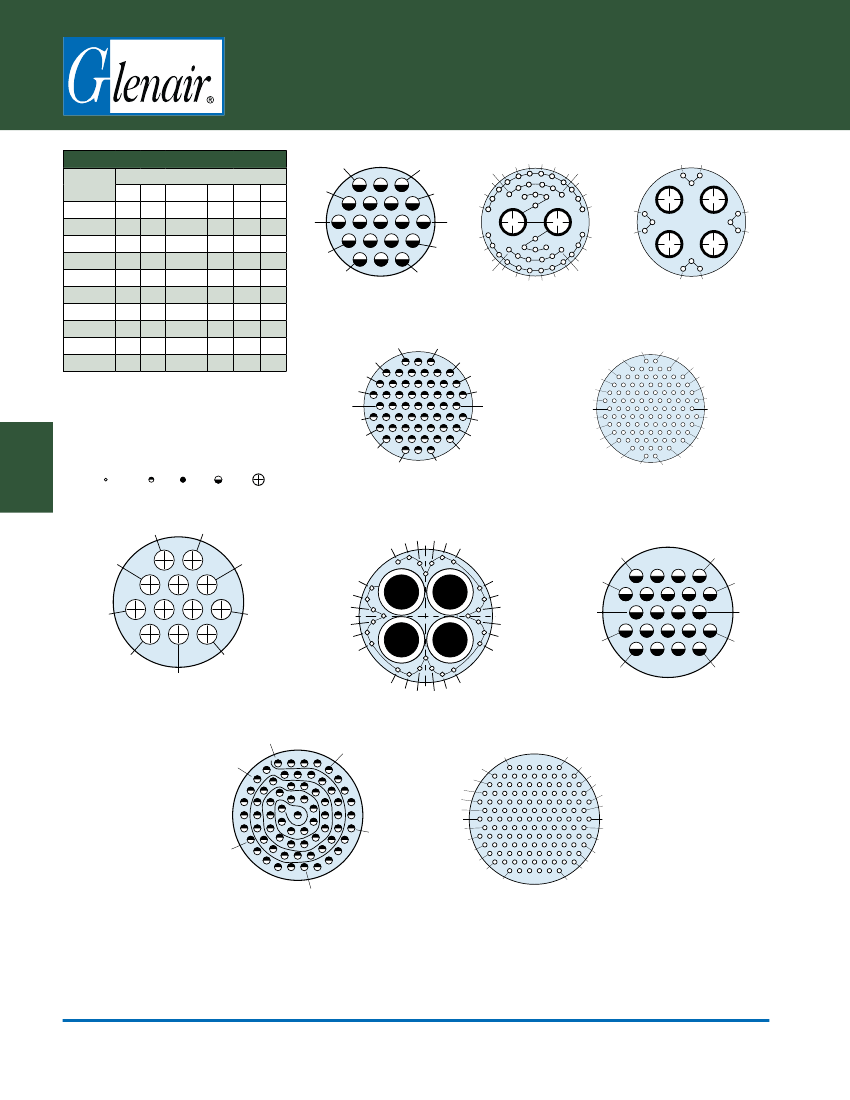

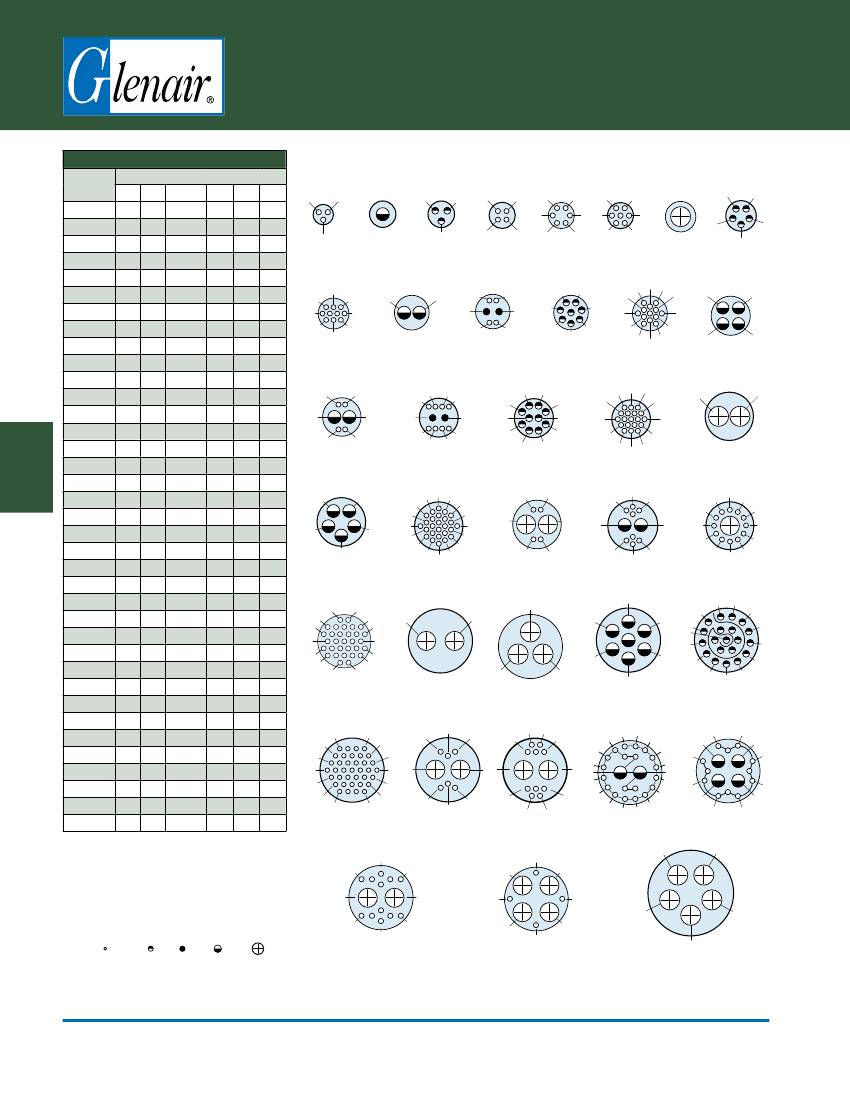

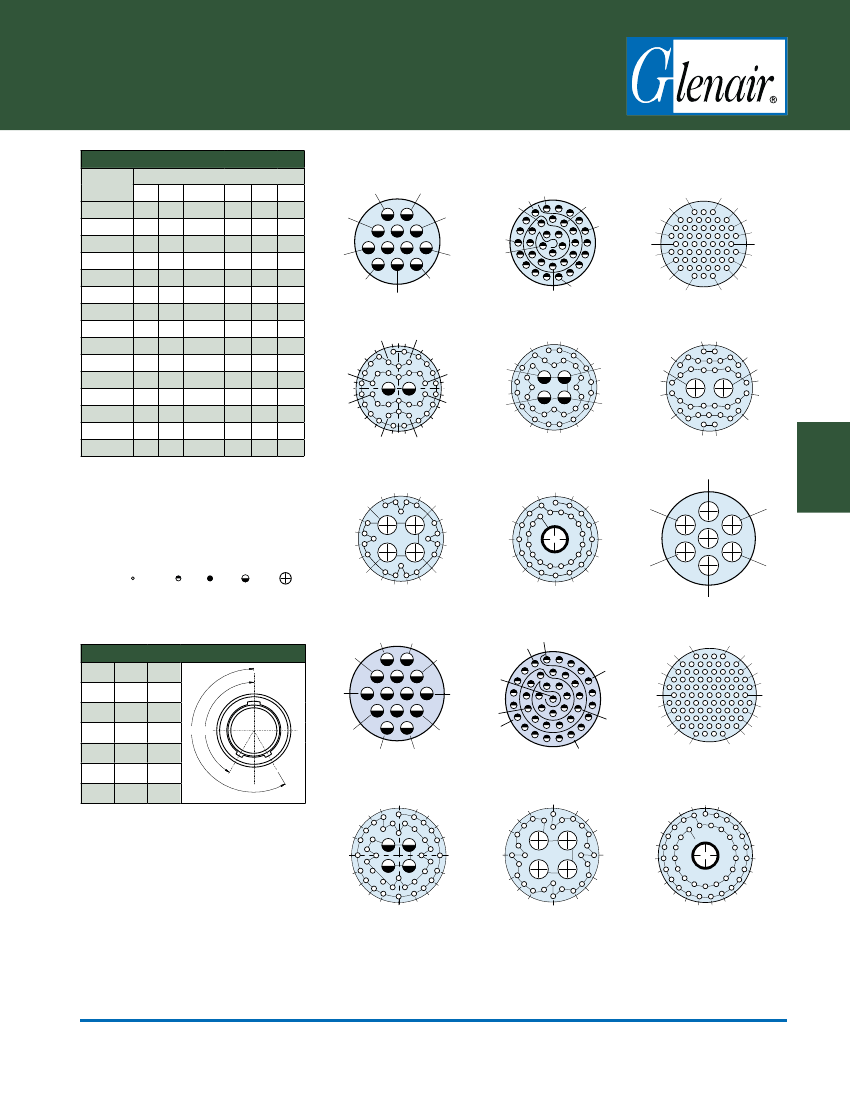

See Insert Arrangements page D-2
A
= Pin Connector, Less Contacts
B
= Socket Connector, Less Contacts
P
= Pin, Crimp
S
= Socket, Crimp
G
= #23 Pin with 30 AWG Crimp Barrel
H
= #23 Socket with 30 AWG Crimp Barrel
A
= Normal
B
= Pos. B
C
= Pos. C
D
= Pos. D
E
= Pos. F
F
= Pos. F
800-009
Banding Platform
801-010
Rear Accessory Thread
Table II: Alternate Keyway
Positions
Material and Finish
Shell Size - Insert Arr
A°
B°
Contact Type
Shell Key Positions
(See Table II)
A°
B°
210°
210°
230°
275°
275°
Table III: Shell Style
A
B
C
D
E
150°
75°
95°
140°
75°
Style -01
In-line
Style -02/-12/-22
Square Flange
Style -07
Jam Nut
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
D-15
