45985-4341

Description
Heavy Duty Power Connectors LPH Plug Assy RtAn 0 n 04 Pwr 24 Sig Pegs
CategoryThe connector    The connector
File Size60KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

45985-4341 Online Shopping

Suppliers Part Number Price MOQ In stock
45985-4341 - - View Buy Now

45985-4341 Overview

Heavy Duty Power Connectors LPH Plug Assy RtAn 0 n 04 Pwr 24 Sig Pegs

45985-4341 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.295 inch
subject depth0.64 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedTin (Sn) - with Nickel (Ni) barrier
Contact materialCOPPER ALLOY
Contact resistance15 mΩ
Contact styleHYBRID
Dielectric withstand voltage1500VDC V
Durability250 Cycles
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 codee3
Mixed contactsYES
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
Plating thickness30u inch
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Termination typeSOLDER

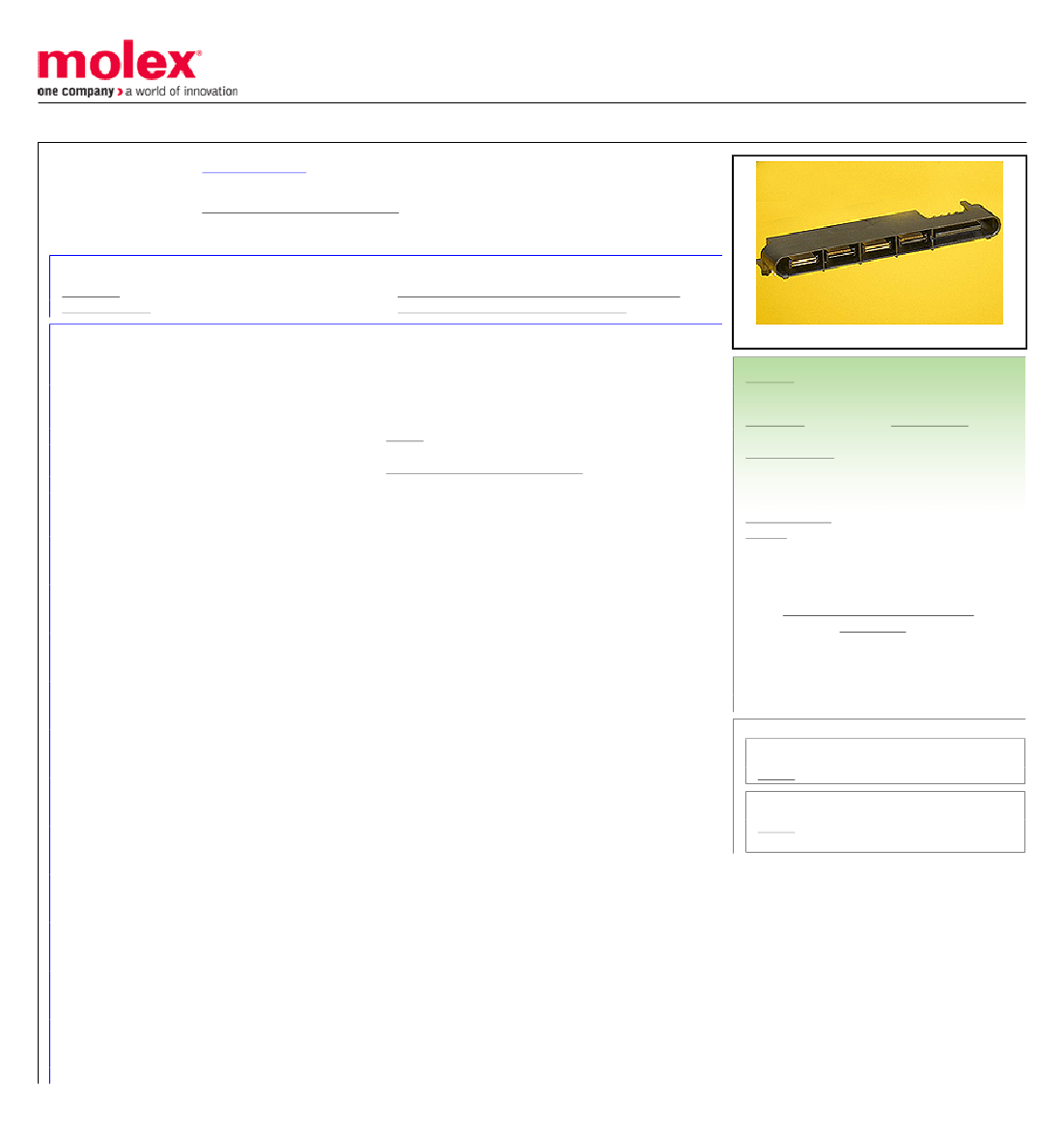

This document was generated on 05/16/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0459854341
Active
EXTreme LPHPower Connectors
EXTreme LPHPower Header, Right Angle, 4 Power Contacts, 24 Signal Contacts,
Select Gold (Au) Plating, for 3.18mm Thick PC Board, with Press-fit Plastic Pegs
Documents:
3D Model
Drawing (PDF)
Agency Certification
CSA
UL
General
Product Family
Series
Application
Overview
Product Name
UPC
Physical
(p)ower-(s)ignal Configuration
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Capable
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Product Specification PS-45984-001-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
LR19980
E29179
PCB Headers
45985
Board-to-Board, Power
EXTreme LPHPower Connectors
EXTreme LPHPower
822350777513
4p - 24s
No
28
28
Black
250
No
94V-0
No
No
None
No
High Performance Alloy (HPA)
Gold
Tin
High Temperature Thermoplastic
6.588/g
2
Right Angle
4.50mm
Yes
Yes
3.18mm
Tray
1.27mm, 12.00mm
0.762µm
3.810µm
Yes
Yes
Fully
No
Yes
-40°C to +105°C
Through Hole
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
45985 Series
Mates With
45984 EXTreme LPHPower PCB
Receptacles
