RN1907: DescriptionSwitching, Inverter Circuit, Interface Circuit And Driver Circuit Applications; CategoryDiscrete semiconductor The transistor; File Size167KB，6 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

RN1907 Overview

Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications

RN1907 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Toshiba Semiconductor
package instruction	,
Contacts	6
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum collector current (IC)	0.1 A
Collector-based maximum capacity	6 pF
Collector-emitter maximum voltage	50 V
Minimum DC current gain (hFE)	80
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal transition frequency (fT)	250 MHz
VCEsat-Max	0.3 V

Preview

Download Datasheet

View All

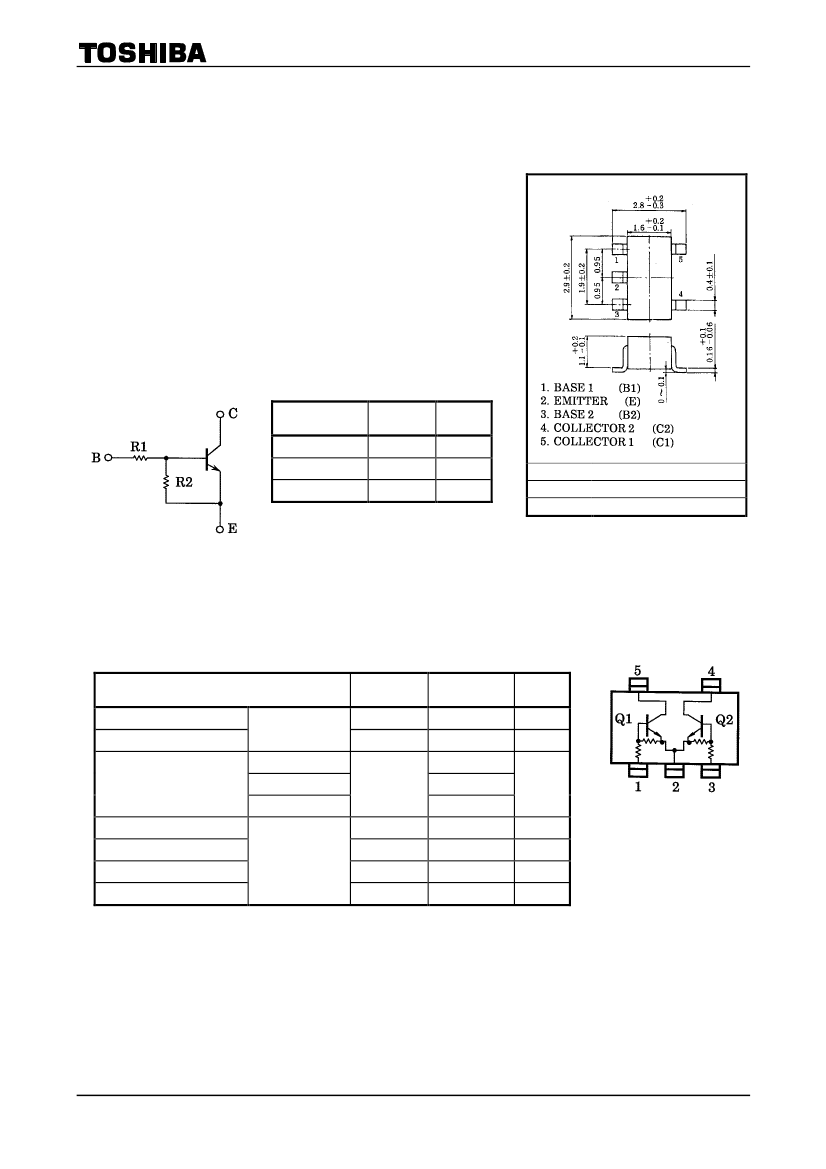

RN1507~RN1509

TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process)

RN1507,RN1508,RN1509

Unit: mm

Switching, Inverter Circuit, Interface Circuit

And Driver Circuit Applications

Including two devices in SMV

(super mini type with 5 leads)With built-in bias resistors

Simplify circuit design

Reduce a quantity of parts and manufacturing process

Complementary to RN2507~RN2509

Equivalent Circuit and Bias Resister Values

Type No.

RN1907

RN1908

RN1909

R1 (kΩ)

R2 (kΩ)

JEDEC

EIAJ

TOSHIBA

Weight: 0.014g

―

2-3L1A

Equivalent Circuit

(Top View)

Maximum Ratings

(Ta = 25°C) (Q1, Q2 Common)

Characteristic

Collector-base voltage

Collector-emitter voltage

RN1507~1509

RN1507

Emitter-base voltage

RN1508

RN1509

Collector current

Collector power dissipation

Junction temperature

Storage temperature range

RN1507~1509

stg

EBO

Symbol

CBO

CEO

Rating

100

300

150

−55~150

°C

Unit

: Total rating

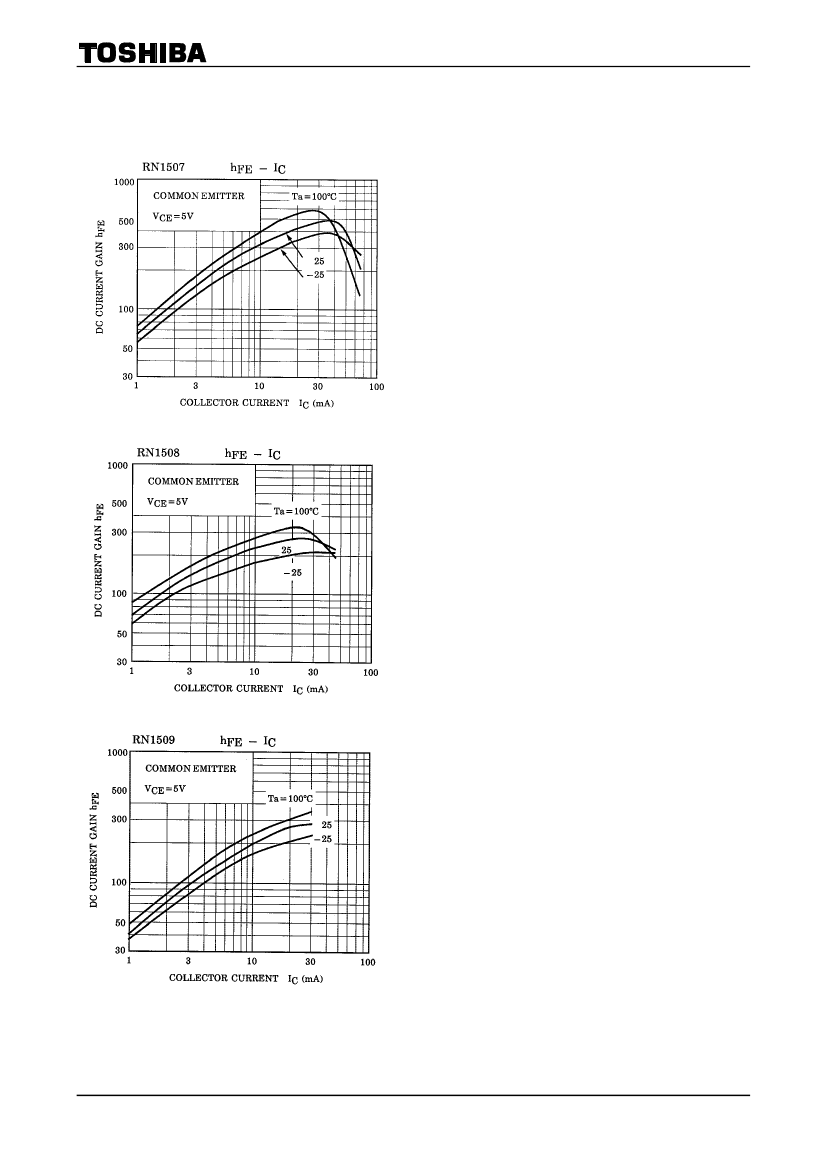

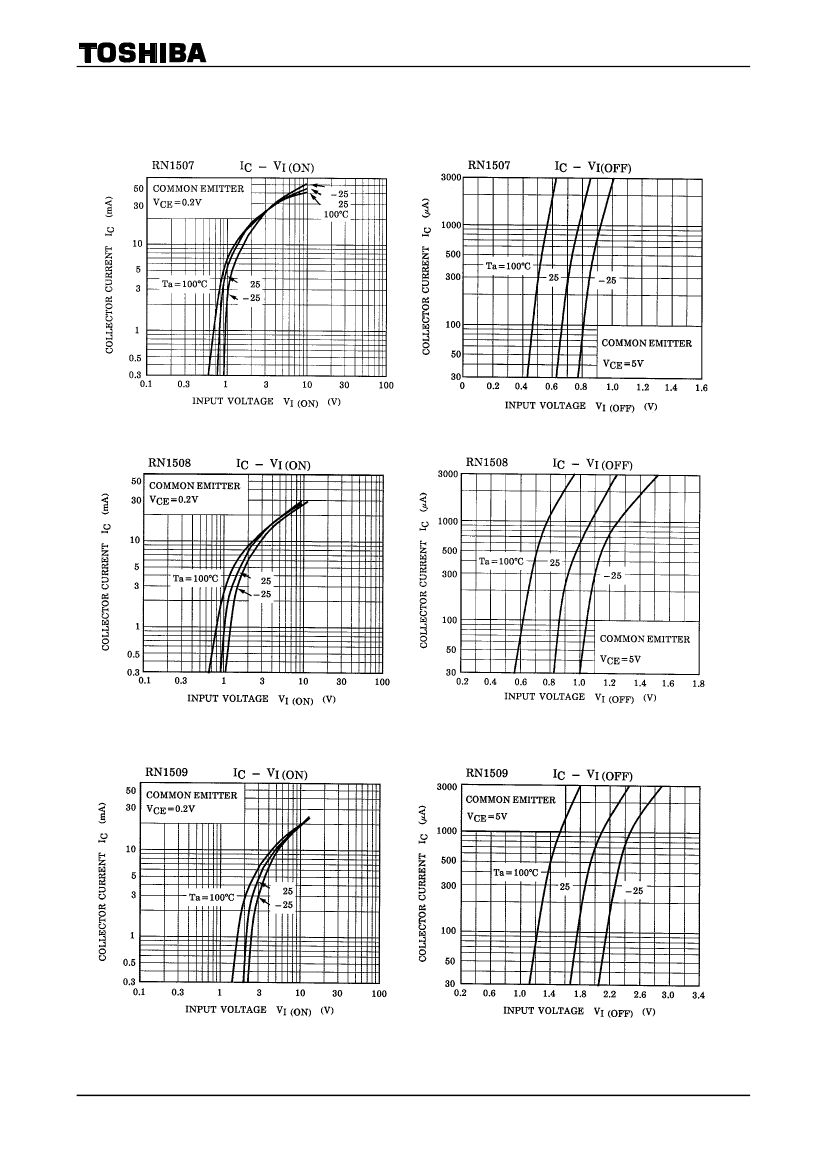

2001-06-07

RN1907 Related Products

	RN1907	RN1507	RN1908	RN1909
Description	Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications	Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications	Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications	Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	conform to	conform to	conform to	conform to
Contacts	6	5	6	6
Reach Compliance Code	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.1 A	0.1 A	0.1 A	0.1 A
Collector-based maximum capacity	6 pF	6 pF	6 pF	6 pF
Collector-emitter maximum voltage	50 V	50 V	50 V	50 V
Minimum DC current gain (hFE)	80	80	80	70
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Nominal transition frequency (fT)	250 MHz	250 MHz	250 MHz	250 MHz
VCEsat-Max	0.3 V	0.3 V	0.3 V	0.3 V
Maker	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	-
