B1019

Description
Audio Transformers / Signal Transformers HDSL2 Xfmr 1760uH .6Ohms
CategoryPassive components
File Size62KB,1 Pages
ManufacturerPulse
Download Datasheet Parametric View All

B1019 Online Shopping

Suppliers Part Number Price MOQ In stock
B1019 - - View Buy Now

B1019 Overview

Audio Transformers / Signal Transformers HDSL2 Xfmr 1760uH .6Ohms

B1019 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerPulse
Product CategoryAudio Transformers / Signal Transformers
RoHSN
Minimum Operating Temperature- 40 C
Maximum Operating Temperature+ 85 C
Length26.67 mm
ShieldingUnshielded
Factory Pack Quantity45

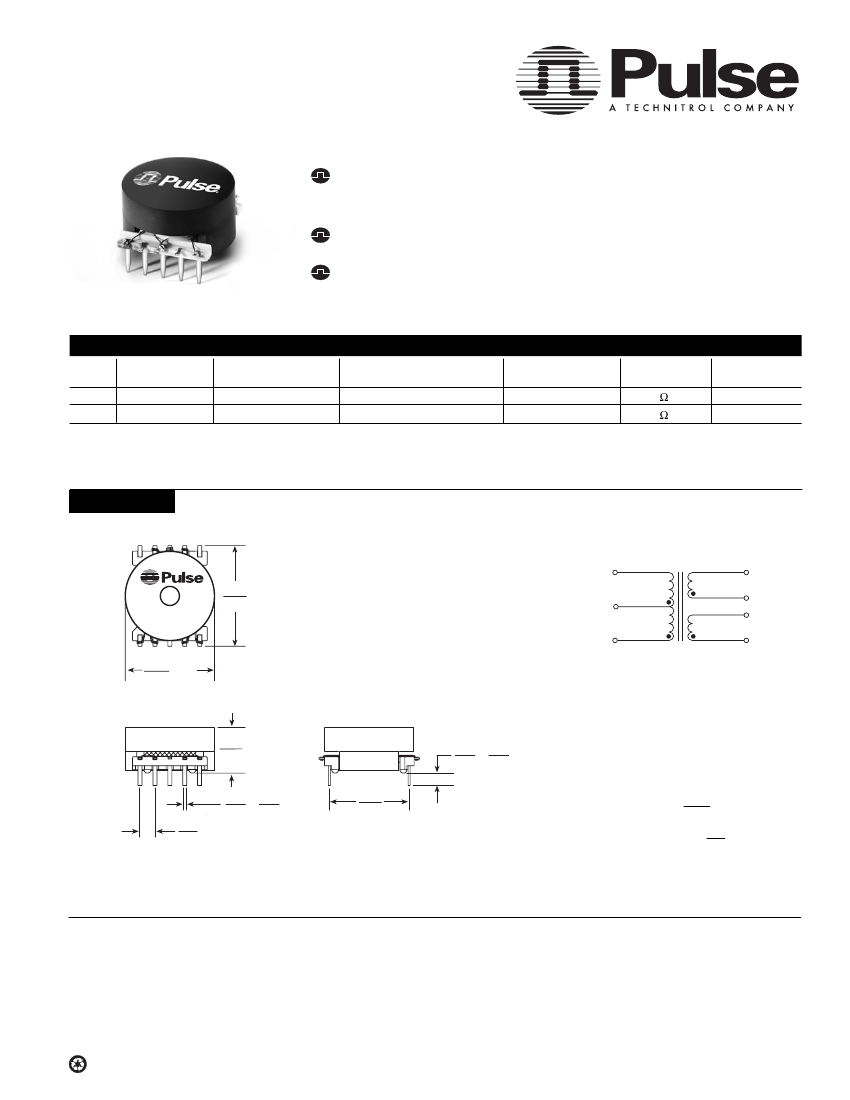

HDSL2 TRANSFORMER
For Level One Chipset
Matched to Level One SK70740/SK70741/SK70742
HDSL2 Chipset
Excellent THD performance
Maximum height .500" (12,70 mm)
Electrical Specifications @ 25°C — Operating Temperature -40°C to +85°C
Part
Number
B1019
B1042
Turns Ratio
Chip-Line (±2%)
1:2
1:2.3
OCL @ 10 KHz, 100 mV
(1-5) with (2-4) shorted
1.76 mH (±10%)
1.76 mH (±10%)
Longitudinal
Balance
>50 dB @ 20 KHz to 600 KHz
>43 dB @ 20 KHz to 400 KHz
THD
(10 KHz @ 4.95 Vrms)
77 dB MIN
77 dB MIN
DC Resistance
(7-9), (4-1), (5-2)
0.60
Isolation Voltage
(Vrms)
2000
2000
Mechanical
B1019/B1042
10
6
Schematic
7
B10XX
1.05 MAX
26,67
Chip
8
9
DATE CODE
1
.950
MAX
24,13
5
.500 MAX
12,70
.042 x .015 TYP
1,07 0,38
.800
20,32
.130 ± .015
3,30 0,38
Weight.............14.0
grams
Tray
.......................45/tray
Dimensions:
Inches
mm
Unless otherwise specified,
all tolerances are ± .010
0,25
.150 TYP
3,81
For More Information :
UNITED STATES
(Worldwide)
12220 World Trade Drive
San Diego, CA 92128
U.S.A.
http://www.pulseeng.com
TEL: 858 674 8100
FAX: 858 674 8262
UNITED KINGDOM
(Northern Europe)
1 & 2 Huxley Road
The Surrey Research Park
Guildford, Surrey GU2 5RE
United Kingdom
TEL: 44 1483 401700
FAX: 44 1483 401701
FRANCE
(Southern Europe)
Zone Industrielle
F-39270
Orgelet
France
TEL: 33 3 84 35 04 04
FAX: 33 3 84 25 46 41
SINGAPORE
(Southern Asia)
150 Kampong Ampat
#07-01/02
KA Centre
Singapore 368324
TEL: 65 287 8998
FAX:65 280 0080
TAIWAN, R.O.C.
(Northern Asia)
3F-4, No. 81, Sec. 1
HsinTai Wu Road
Hsi-Chih, Taipei Hsien
Taiwan, R.O.C.
Tel: 886 2 2698 0228
FAX: 886 2 2698 0948
Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product
names mentioned herein may be trademarks or registered trademarks of their respective owners.
Printed on recycled paper. ©2000, Pulse Engineering, Inc.
PRELIMINARY B921.P (6/00)
