855817
1960 MHz SAW Filter
Applications
Wireless Infrastructure
AMPS, CDMA and TDMA
General Purpose RF Filter
4G, Multi-Standard
Band 2 Downlink
Repeaters
SMP-12, 3.00 x 3.00 x 1.22 mm
Product Features
60 MHz Bandwidth
High Attenuation
Single-ended Operation
50 Ohm Impedance
Small Size: 3.00 x 3.00 x 1.22 mm
Ceramic Surface Mount Package (SMP)
Hermetically Sealed
RoHS Compliant, Pb-Free
Pb
Hermetically sealed

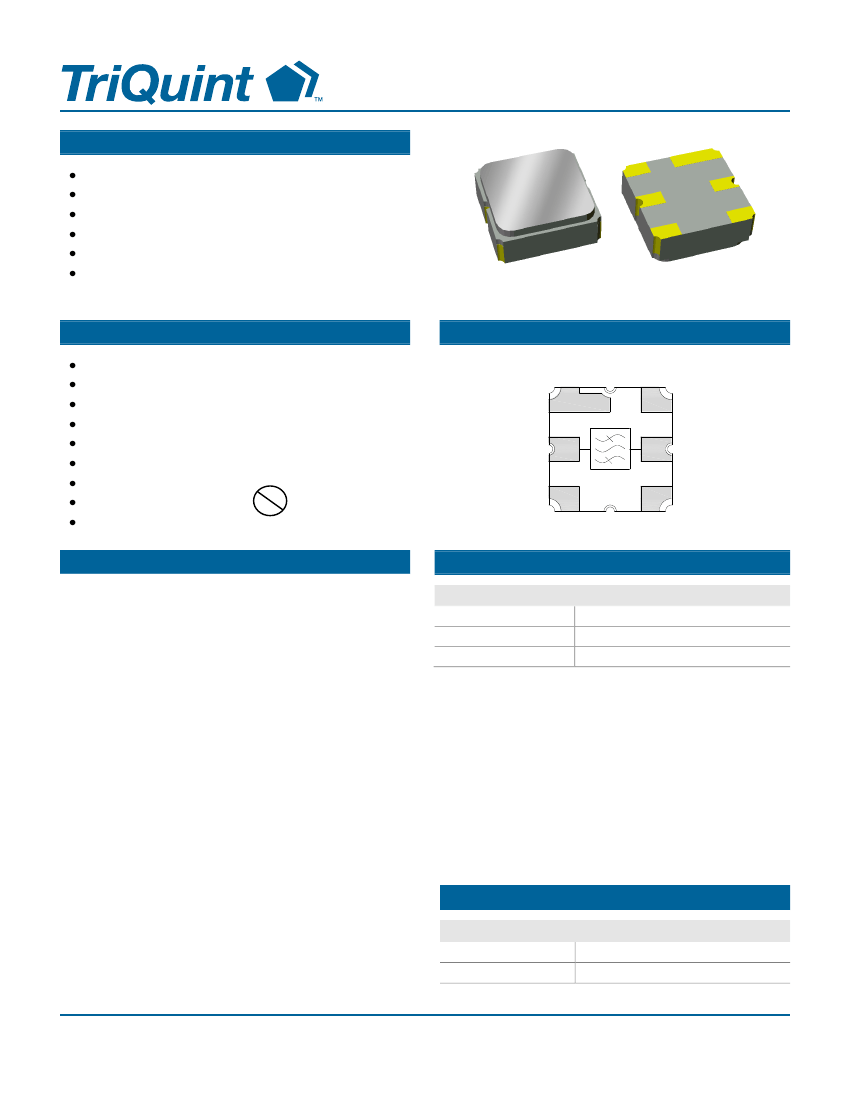

Functional Block Diagram
Top View
Gnd
1
6
Gnd
Input
2
5
Output
Gnd
3
4
Gnd
General Description
The 855817 is a Surface Acoustic Wave (SAW) based filter
suitable for LTE Band 2 Downlink.
855817 is specifically designed to meet the high
performance expectations of insertion loss and rejection for
LTE downlink systems under all operating conditions.
This filter is housed in a compact, industry standard 3x3 mm
footprint.
Low insertion loss, coupled with high attenuation makes this
filter an ideal choice for Base Station Applications.
This filter is part of TriQuint’s wide portfolio of RF filters.
Pin Configuration - Single Ended
Pin No.
2
5
1.3,4,6
Label
Input
Output
Ground
Ordering Information
Part No.
855817
855817-EVB
Description
1960 MHz SAW Filter
Evaluation board
Standard T/R size = 5000 units/reel
Data Sheet: Rev D 03-05-2014
© 2014 TriQuint
-
1 of 6
-
Disclaimer: Subject to change without notice
www.triquint.com
855817
1960 MHz SAW Filter
Absolute Maximum Ratings
Parameter
Storage Temperature
(2)
Operable Temperature
(1)
Rating
−40 to +85 °C
−40 to +85 °C
Notes:
1. Operation of this device outside the parameter ranges
given may cause permanent damage.
2. Specifications are not guaranteed over all operable
conditions.
Electrical Specifications
(1,2,3)
Test conditions unless otherwise noted:
(2)
Temp= −40 °C to +85 °C
Parameter
Insertion Loss
(3)
Conditions
1930 – 1990 MHz, +25 °C
1930 – 1990 MHz
1930 – 1990 MHz, +25 °C
1930 – 1990 MHz
10 – 1850 MHz
1850 – 1910 MHz, −30 °C to +85 °C
1850 – 1910 MHz
2040 – 2100 MHz
2150 – 2210 MHz
2210 – 4000 MHz
1930 – 1990 MHz
single-ended
single-ended
Min
-
-
-
-
-
20
12
10.3
25
20
15
7.4
-
-
Typ
(4)
1960
2.1
2.1
1.0
1.6
22
27
27
26
24
25
11
50
50
Max
-
3.3
4.5
1.6
2.2
-
-
-
-
-
-
-
-
Units
MHz
dB
dB p-p
Center Frequency
Passband Ripple
Stopband Attenuation
(relative to zero dB)
dB
Input/Output Return Loss
Source Impedance
Load Impedance
(4)
(4)
dB
Ohms
Ohms
Notes:
1. All specifications are based on the test circuit shown below.
2. Production test is performed at room temp. to a guard-banded specification to ensure electrical compliance over temperature.
3. Electrical margin has been built into the design to account for variation due to temperature drift and manufacturing tolerances.
4. This is the optimum impedance in order to achieve the performance shown.
Data Sheet: Rev D 03-05-2014
© 2014 TriQuint
-
2 of 6
-
Disclaimer: Subject to change without notice
www.triquint.com
855817
1960 MHz SAW Filter

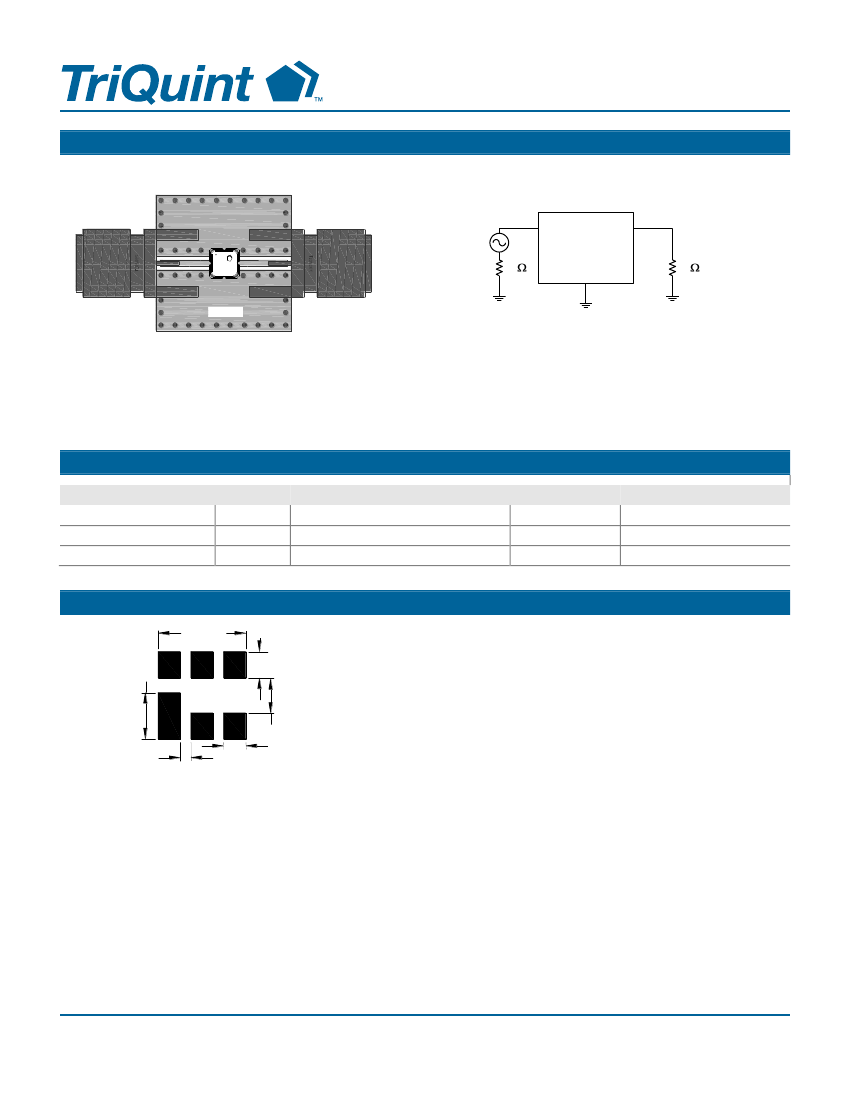

Evaluation Board
Matching Schematics
2
JJJYM
5
50
50
960700
Notes:
1. No impedance matching required.
2. PCB:Top, middle & bottom layers: 1 oz copper, Substrates:FR4 dielectric, 031” thick Finish plating: Nickel: 3-8µm thick,
Gold: .03-.2µm thick Hole plating: Copper min .0008µm thick
Bill of Material – 855817-EVB
Reference Des.
DUT
SMA
PCB
PCB Mounting Pattern
3.20 SQ
.96
XX
1,3,4,6
Value
-
-
-
Description
1960 MHz SAW filter
SMA connector
3-Layer
Manuf.
Part Number
TriQuint
855817
Radiall USA Inc. 9602-1111-018
Multiple
960700
1.70
Notes:
1. All dimensions are in millimeters. Angles are in degrees.
2. This drawing specifies the mounting pattern used on the TriQuint evaluation
board for this product. Some modification may be necessary to suit end
user assembly materials and processes.
1.27
.81
.38
Data Sheet: Rev D 03-05-2014
© 2014 TriQuint
-
3 of 6
-
Disclaimer: Subject to change without notice
www.triquint.com
855817
1960 MHz SAW Filter

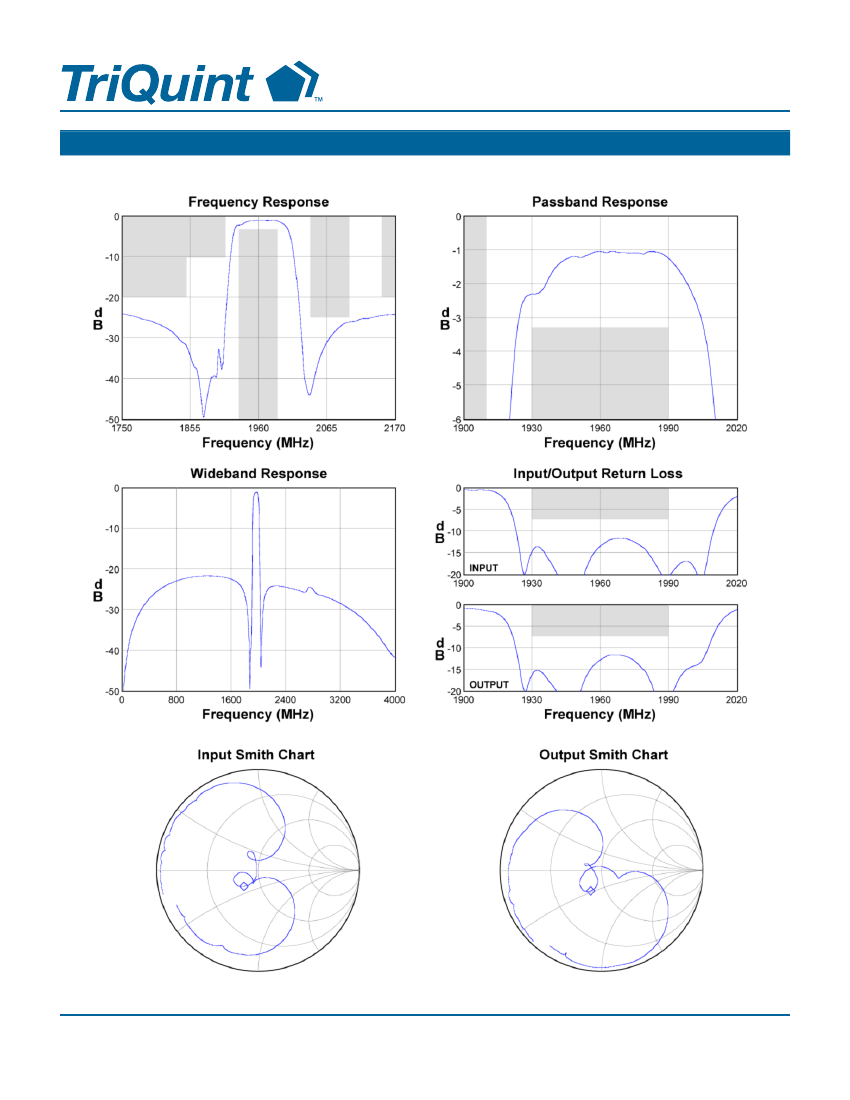

Performance Plots
Test conditions unless otherwise noted: Temp= +25°C
Data Sheet: Rev D 03-05-2014
© 2014 TriQuint
-
4 of 6
-
Disclaimer: Subject to change without notice
www.triquint.com
855817
1960 MHz SAW Filter

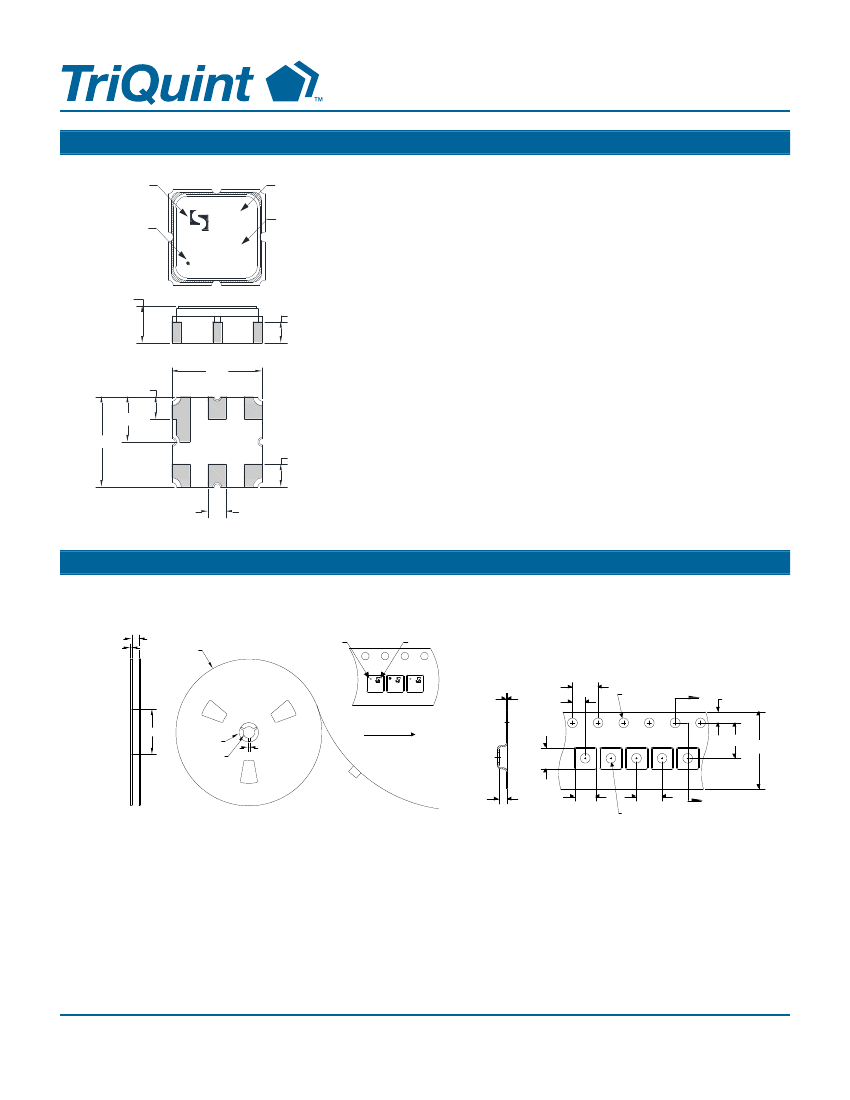

Package Information, Marking and Dimensions
Sawtek
logo
Marking
code
Package Style: SMP-12A
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0μm, over a 2-6μm
Ni
plating
The date code consists of JJJ =Julian day, Y = last digit of the year,
and M = manufacturing site code
ID dot
H
JJJYM
Date code
1.22 NOM.
1.32 MAX.
0.69
3.00
0.75
1.50
3.00
0.75
Notes:
1. All dimensions shown are typical in millimeters
2. All tolerances are ±0.15mm except overall length and width ±0.10mm
3. An asterisk (*) in front of the marking code indicates prototype.
0.60
Tape and Reel information
Standard T/R size = 5000 units/reel. All dimensions are in millimeters
Sawtek
logo
12.8
2.7
Ø330
ID dot
Section A-A
4.0
0.21
2.0
Ø1.5
A
1.75
Ø102
Ø20.2
Ø13.0
2.0
Direction of travel
3.25
5.5
12.0
1.4 3.25
4.0
Ø1.5
A
Data Sheet: Rev D 03-05-2014
© 2014 TriQuint
-
5 of 6
-
Disclaimer: Subject to change without notice
www.triquint.com
