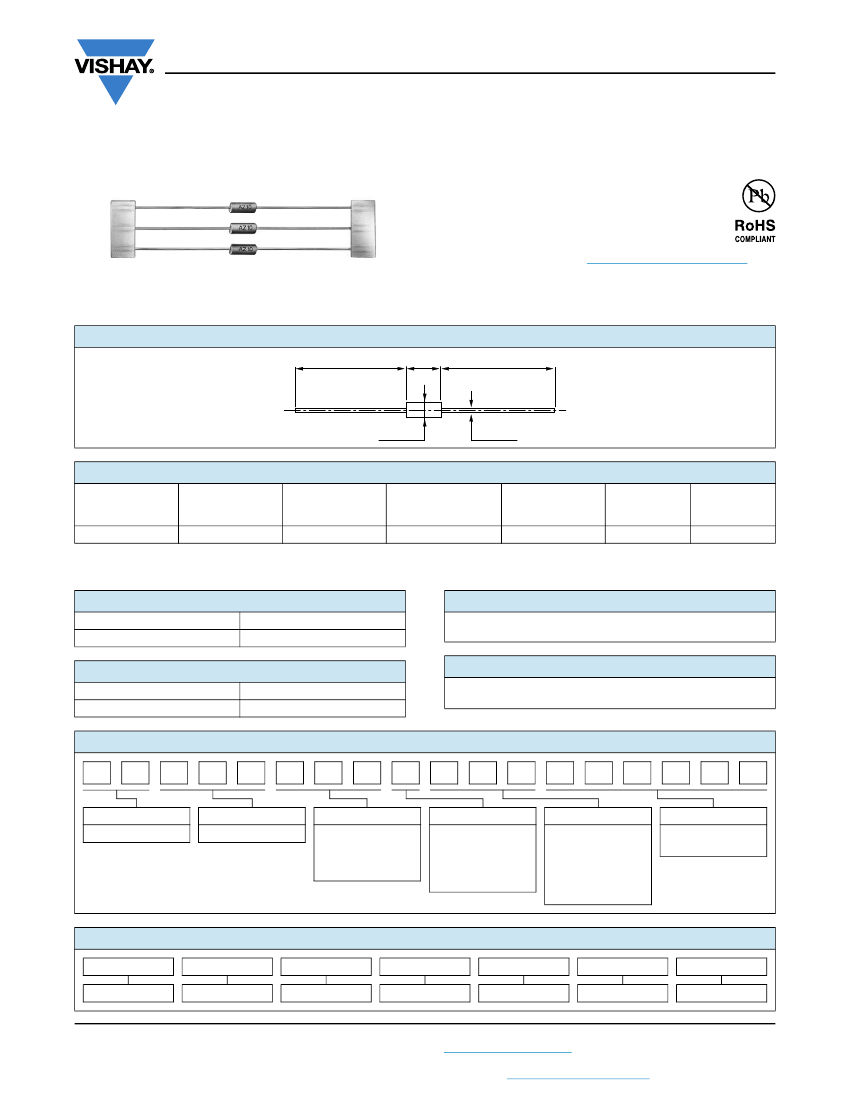

TR021
www.vishay.com
Vishay Sfernice
Molded Inductors, Axial Leads,
High Frequency and Noise Suppression Applications
FEATURES
• Accurate dimensions
• Superior moisture protection
• Material categorization: for definitions of
compliance please see
www.vishay.com/doc?99912
The inductors have copper winding on magnetic core
structure.
DIMENSIONS
in millimeters (± 0.5)
25 min.
7.35
25 min.
Ø 2.42
Ø 0.5
STANDARD ELECTRICAL SPECIFICATIONS
MODEL
TR021
INDUCTANCE
RANGE
μH
0.022 to 1500
RATED POWER
P
70 °C
W
0.180
LIMITING ELEMENT
VOLTAGE
V
RMS
500
TOLERANCE
(1)
±%
10
Q RANGE
15 to 40
I
RANGE
mA
45 to 2530
Note
(1)
± 10 % for 0.022 μH < L
1500 μH . On request: ± 5 % and ± 2 % for 1 μH < L
1000 μH
MECHANICAL SPECIFICATIONS
Coating
Weight
Molded epoxy
0.5 g
PACKAGING
Standard: in tape and reel of 1000 pieces, code R15 (R)
On request: 250 pieces tape in box “ammopack”, code A15 (B)
ENVIRONMENTAL SPECIFICATIONS
Operating temperature range
Temperature limits
0 °C to +70 °C
-55 °C to +125 °C
MARKING
Standard:
print marked-manufacturer, inductance value, tolerance
ORDERING INFORMATION
(part number)
T
R
0
2
1
6
R
8
K
R
1
5
MODEL
TR
STYLE
021
VALUE
From 0.022 μH
to 1500 μH
6R8
= 6.8 μH
TOLERANCE
K:
± 10 %
On request:
G:
± 2 %
J:
± 5 %
PACKAGING
R15
=
reel 1000 pieces
On request:
A15
= ammopack
250 pieces
SPECIAL
Special code
given by Vishay
PART NUMBER DESCRIPTION
(for information only)
TR
MODEL
021
STYLE
6μH8
VALUE
10 %
TOLERANCE
R
PACKAGING
SPECIAL
e1
LEAD (Pb)-FREE
Revision: 28-Apr-16
Document Number: 59007
