Subminiature PCB Telecom Relay
FEATURES
Low profile and light weight
Highly reliable performance
DIL configuration as IC and for use with DIP socket
Single side stable and magnetic latching version
available
CONTACT RATING
Form
Rated Load
Max. Switching Current
Max. Switching Voltage
Max. Switching Power
2 Form C (2Z)
2A, 30VDC; 1A, 125VAC
5A
220VDC/250VAC
60W/125VA
HG4516
TYPICAL APPLICATIONS
Telecommunications
Office machine
Instruments
Computer
Industrial process control
Remote control
CONTACT DATA
Material
Initial Contact Resistance
Mechanical
Service Life
Electrical
Ag alloy + Au clad
50 mΩ max. at 0.01A, 6VDC
10
8
ops.
10
5
ops at 2A, 30VDC;
5 x 10
5
ops at 1A, 30VDC
COIL DATA
SINGLE SIDE STABLE
Nominal
Voltage
(VDC)
5
6
9
12
15
24
5
6
9
12
15
24
48
Resistance (Ω) ±10%
Power Consumption
167
240
540
960
1500
3840
125
180
405
720
1125
2880
11520
Must Operate
Voltage max.
(VDC)
4.0
4.8
7.2
9.6
12.0
19.2
3.5
4.2
6.3
8.4
10.5
16.8
36.0
Allowable Operate
Voltage Range.
(VDC)
11.5
13.8
20.8
27.7
34.6
55.4
10.0
12.0
18.0
24.0
30.0
48.0
96.0
Must Release
Voltage min.
(VDC)
0.5
0.6
0.9
1.2
1.5
2.4
0.5
0.6
0.9
1.2
1.5
2.4
4.8
Designation
005-AL
006-AL
009-AL
012-AL
015-AL
024-AL
005-AH
006-AH
009-AH
012-AH
015-AH
024-AH
048-AH
0.15W
0.2W
SINGLE COIL LATCHING
Designation
005-BJ
006-BJ
009-BJ
012-BJ
015-BJ
024-BJ
005-BM
006-BM
009-BM
012-BM
015-BM
024-BM
DUAL COIL LATCHING
Designation
005-CL
006-CL
009-CL
012-CL
015-CL
024-CL
005-CH
006-CH
009-CH
012-CH
015-CH
024-CH
Nominal Voltage
(VDC)
5
6
9
12
15
24
5
6
9
12
15
24
Resistance (Ω) ±10%
Power Consumption
167
240
540
0.15W
960
1500
3840
125
180
405
0.2W
720
1125
2040
Set and Reset
Voltage max.
(VDC)
4.00
4.80
7.20
9.60
12.00
19.20
3.75
4.50
6.75
9.00
11.25
18.00
Allowable
Voltage
(VDC)
11.5
13.8
20.8
27.7
34.6
55.4
10.0
12.0
18.0
24.0
30.0
48.0
HG4516
1/2
Nominal Voltage
(VDC)
5
6
9
12
15
24
5
6
9
12
15
24
Resistance (Ω) ±10%
Power Consumption
330
480
1080
0.075W
1920
3000
7680
250
360
810
0.1W
1440
2220
4000
Set and Reset
Voltage max.
(VDC)
4.00
4.80
7.20
9.60
12.00
19.00
3.75
4.50
6.75
9.00
11.25
18.00
Allowable
Voltage
(VDC)
16
19
29
39
43
78
14
17
25
34
42
56
HG4516
CHARACTERISTICS
Operate Time
Release Time
Insulation Resistance
Dielectric Strength
Surge Strength
Shock Resistance
Vibration Resistance
Power Consumption
Ambient Temperature
Weight
4 ms.
3 ms.
1000 MΩ at 500VDC
1500 Vrms, 1 min. between coil and contacts
1000 Vrms, 1 min. between open contacts
1500 V
5 g, 11ms. functional; 10 g, 11ms. destructive
2g
Standard 0.15 - 0.2W, Sensitive 0.075 - 0.1W
-40 - 85 C operating
8 g, approx.
ORDERING DESIGNATION
Example:
Model
Coil Voltage Code
Version
1: Sealed
A: Single Side Stable
B: Single Coil Latching; C: Dual Coil Latching
Coil Sensitivity
L: 0.15W; H: 0.2W
J: Sensitive 0.075W; M: Sensitive 0.1W*
* Sensitive versions J and M are for single coil latching version only
HG4516 /
012 -
1
A
H

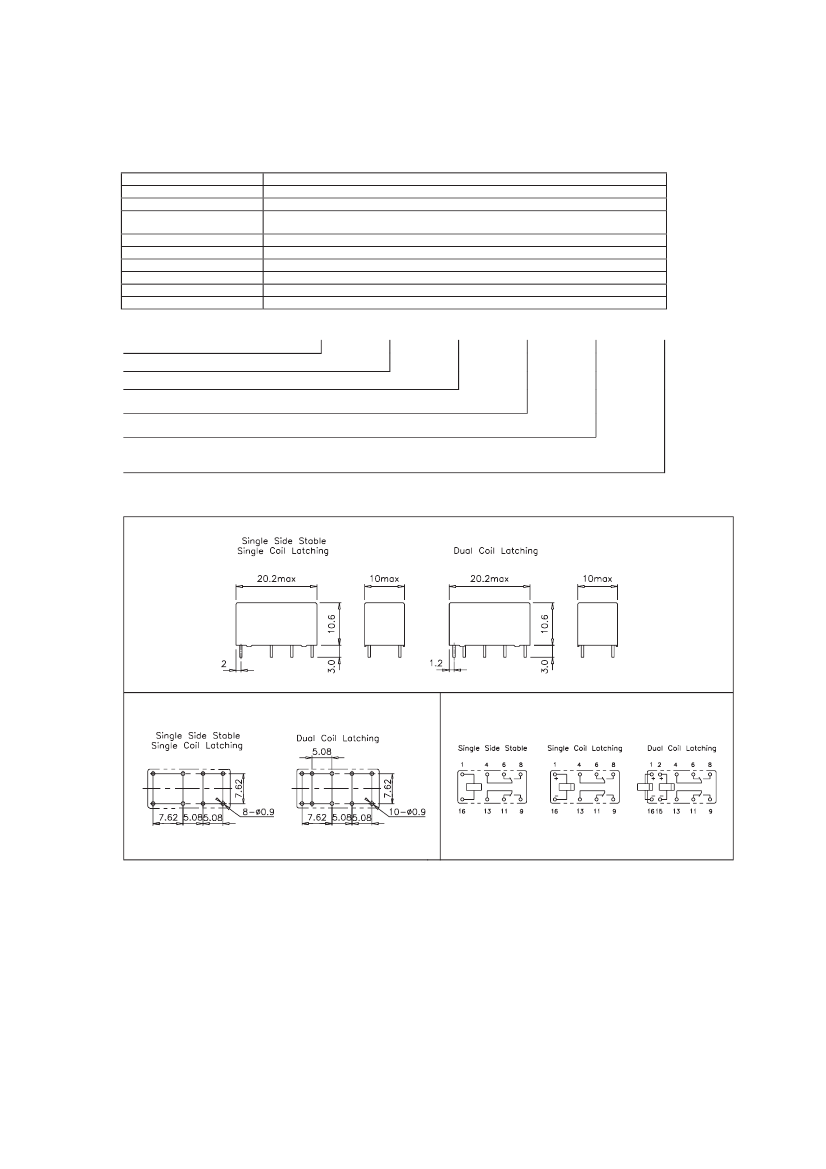

OVERALL DIMENSIONS, MOUNTING HOLES AND WIRING DIAGRAMS (mm)
Overall Dimensions
Mounting Holes (Bottom View)
Wiring Diagrams (Bottom View)
NOTES
1.
2.
3.
4.
5.
All parameters, unless otherwise specified, are measured at ambient temperature 20ºC.
For single coil latching version the wiring diagram show reset position. Energize terminal 1 and 16 to set and reverse energize the
terminal 1 and 16 to reset.
For dual coil latching version the wiring diagram show reset position. Energize terminal 1 and 16 to set and energize the terminal
2 and 15 to reset.
Custom-made services available with operational quantity. Please let us know your special requirements.
Specifications subject to change without prior notice.
HG4516
2/2
