FDUE0640-H-KR15M=P3 datasheet, PDF

Datasheet> All Categories > Passive components> FDUE0640-H-KR15M=P3

FDUE0640-H-KR15M=P3: DescriptionFixed Inductors 0.15uH 0.61mOhms 25A +/-20%; CategoryPassive components; File Size229KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

FDUE0640-H-KR15M=P3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FDUE0640-H-KR15M=P3	-	-	View	Buy Now

FDUE0640-H-KR15M=P3 Overview

Fixed Inductors 0.15uH 0.61mOhms 25A +/-20%

FDUE0640-H-KR15M=P3 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Murata
Product Category	Fixed Inductors
RoHS	Details
Termination Style	SMD/SMT
Shielding	Shielded
Inductance	150 nH
Tolerance	20 %
Maximum DC Current	25 A
Maximum DC Resistance	610 uOhms
Q Minimum	-
Test Frequency	100 kHz
Termination	-
Mounting Style	PCB Mount
Package / Case	-
Length	6.7 mm
Width	7.6 mm
Height	4 mm
Diameter	-
Application	Power
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Core Material	Metal Alloy
Operating Temperature Range	-
Product	Fixed Inductors
Self Resonant Frequency	-
Lead Diameter	-
Lead Spacing	-
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

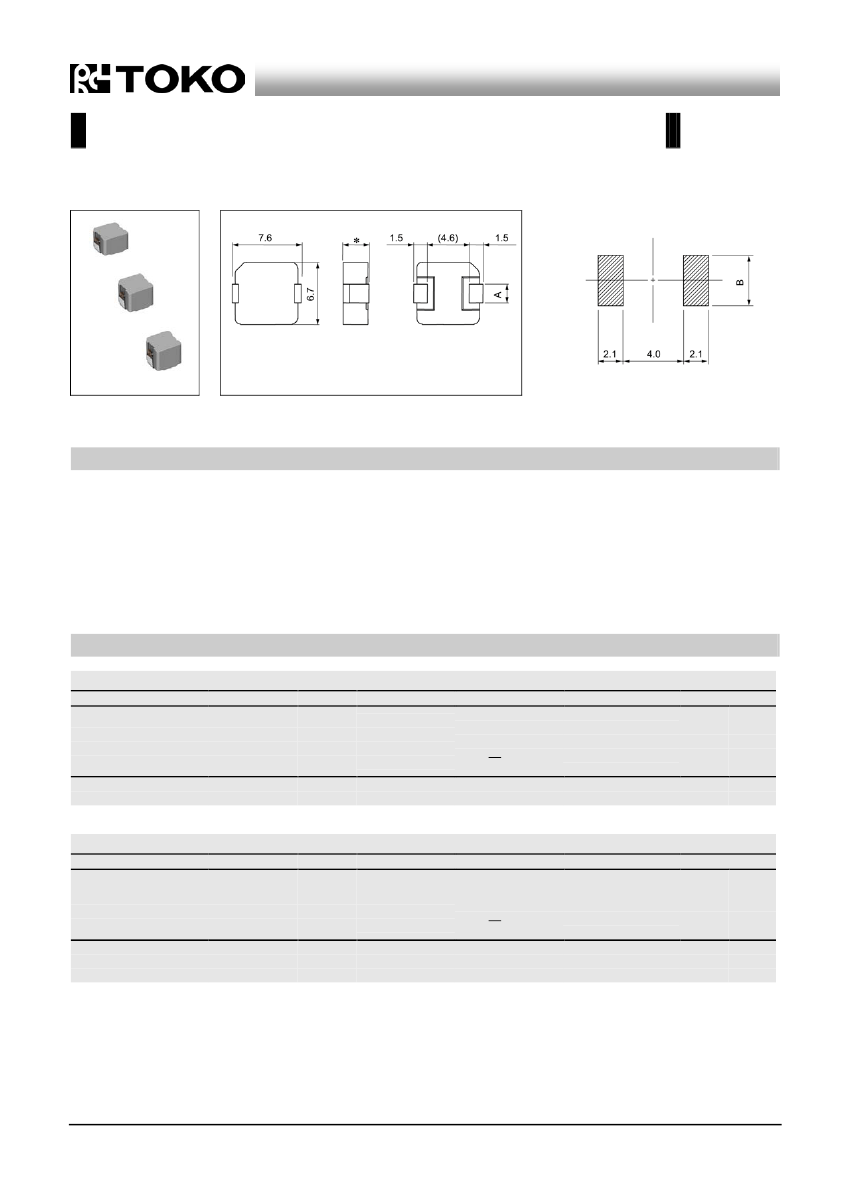

Metal Alloy Inductors

メタルアロイ

インダクタ

FDUE0630 / FDUE0640 / FDUE0650

Inductance Range:

0.12µH~0.24uH (FDUE0630), 0.15µH~0.42uH (FDUE0640), 0.6µH~1.0uH (FDUE0650)

Recommended patterns

推奨パターン図

FDUE0630

FDUE0640

FDUE0650

FDUE0630: 3.0mm Max.

FDUE0640: 4.0mm Max.

FDUE0650: 5.0mm Max.

Tolerance：±0.3

(Unit: mm)

FEATURES

特長

•

6.7

7.6mm

角、高さ3.0,

4.0

または

5.0 mm Max.

閉磁路構造、½直流抵抗

磁性材に鉄系磁性粉を用いた大電流対応

½コア鳴きノイズ

DC-DC

コンバータ用インダクタに最適

RoHS指令対応,ハロゲンフリー

•

6.7

7.6mm square and 3.0 or 4.0 or 5.0mm Max. height.

•

Magnetically shielded construction, low DC resistance.

•

The use of magnetic iron powder ensures capability for

large current.

•

Low audible core noise.

•

Ideal for DC-DC converter applications in hand held

personal computer and etc.

•

RoHS compliant. Halogen Free.

STANDARD PART NUMBERS

標準品一覧

TYPE FDUE0630 (Quantity/reel; 1000 PCS)

品番

Part

Number

FDUE0630-H-R12M=P3

FDUE0630-H-R24M=P3

インダクタンス

(1)

Inductance

(1)

(µH)

0.12

0.24

許容差

Tolerance

(%)

直流抵抗

(2)

Resistance

(2)

(mΩ)

Tolerance ±7%

0.58

1.12

直流重畳許容電流

(3)

Inductance

Decrease Current

(3)

(A) Max. (Typ.)

∆L

=30%

（43）

（30）

温度上昇許容電流

(4)

Temperature

Rise Current

(4)

∆T=40°C

(A) Max. (Typ.)

36 (42)

27 (32)

Dimensions (mm)

2.0

2.5

TYPE FDUE0640 (Quantity/reel; 1000 PCS)

品番

Part

Number

FDUE0640-H-KR15M=P3

FDUE0640-H-R24M=P3

FDUE0640-H-R42M=P3

インダクタンス

(1)

Inductance

(1)

(µH)

0.15

0.24

0.42

許容差

Tolerance

(%)

直流抵抗

(2)

Resistance

(2)

(mΩ)

Tolerance ±7%

0.61

0.89

1.48

直流重畳許容電流

(3)

Inductance

Decrease Current

(3)

(A) Max. (Typ.)

∆L

=20%

25 (33)

19 (25)

15 (20)

温度上昇許容電流

(4)

Temperature

Rise Current

(4)

∆T=40°C

(A) Max. (Typ.)

33 (39)

27 (34)

22 (28)

Dimensions (mm)

2.0

2.5

continued on next page

次頁へ続く

FDUE0640-H-KR15M=P3 Related Products

	FDUE0640-H-KR15M=P3	FDUE0630-H-R24M=P3	FDUE0650-H-1R0M=P3	FDUE0630-H-R12M=P3	FDUE0650-H-R60M=P3	FDUE0640-H-R42M=P3	FDUE0640-H-R24M=P3
Description	Fixed Inductors 0.15uH 0.61mOhms 25A +/-20%	Fixed Inductors 0.24uH 1.12mOhms 23A +/-20%	Fixed Inductors 1.0uH 3.45mOhms 9.8A +/-20%	Fixed Inductors 0.12uH 0.58mOhms 33A +/-20%	Fixed Inductors 0.6uH 2.35mOhms 12A +/-20%	Fixed Inductors 0.42uH 1.48mOhms 15A +/-20%	Fixed Inductors 0.24uH 0.89mOhms 19A +/-20%
Manufacturer	Murata	Murata	Murata	Murata	Murata	Murata	Murata
Product Category	Fixed Inductors	Fixed Inductors	Fixed Inductors	Fixed Inductors	Fixed Inductors	Fixed Inductors	Fixed Inductors
RoHS	Details	Details	Details	Details	Details	Details	Details
Termination Style	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT
Shielding	Shielded	Shielded	Shielded	Shielded	Shielded	Shielded	Shielded
Inductance	150 nH	0.24 uH	1 uH	0.12 uH	600 nH	420 nH	240 nH
Tolerance	20 %	20 %	20 %	20 %	20 %	20 %	20 %
Maximum DC Current	25 A	23 A	9.8 A	33 A	12 A	15 A	19 A
Maximum DC Resistance	610 uOhms	1.12 mOhms	3.45 mOhms	0.58 mOhms	2.35 mOhms	1.48 mOhms	890 uOhms
Test Frequency	100 kHz	100 kHz	100 kHz	100 kHz	100 kHz	100 kHz	100 kHz
Mounting Style	PCB Mount	SMD/SMT	SMD/SMT	SMD/SMT	PCB Mount	PCB Mount	PCB Mount
Length	6.7 mm	6.7 mm	6.7 mm	6.7 mm	6.7 mm	6.7 mm	6.7 mm
Width	7.6 mm	7.6 mm	7.6 mm	7.6 mm	7.6 mm	7.6 mm	7.6 mm
Height	4 mm	3 mm	5 mm	3 mm	5 mm	4 mm	4 mm
Core Material	Metal Alloy	Metal Alloy	Metal Alloy	Metal Alloy	Metal Alloy	Metal Alloy	Metal Alloy
Product	Fixed Inductors	Power Inductors	Power Inductors	Power Inductors	Fixed Inductors	Fixed Inductors	Fixed Inductors
Factory Pack Quantity	1000	1000	1000	1000	1000	1000	1000
Product Attribute	Attribute Value	-	-	-	Attribute Value	Attribute Value	Attribute Value
Application	Power	-	-	-	Power	Power	Power
Packaging	Reel	Cut Tape	Cut Tape	Cut Tape	Reel	Reel	Reel

Recommended Resources
