Description
Ferrite Cores & Accessories 98 Pot Core P36/22 Ind 8500 nH 25% TOL
CategoryPassive components
File Size510KB,1 Pages
ManufacturerFair Rite
Environmental Compliance
Download Datasheet Parametric View All

5698362321 Online Shopping

Suppliers Part Number Price MOQ In stock
5698362321 - - View Buy Now

5698362321 Overview

Ferrite Cores & Accessories 98 Pot Core P36/22 Ind 8500 nH 25% TOL

5698362321 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerFair Rite
Product CategoryFerrite Cores & Accessories
RoHSDetails
ProductFerrite Cores
CoreP Core
Core Size36 x 22
Inductance8.5 uH
Tolerance25 %
Core Material98
PackagingBulk
Inside Diameter29.5 mm
Outside Diameter35.6 mm
Outside Height10.9 mm
Factory Pack Quantity144
Unit Weight0.141096 oz

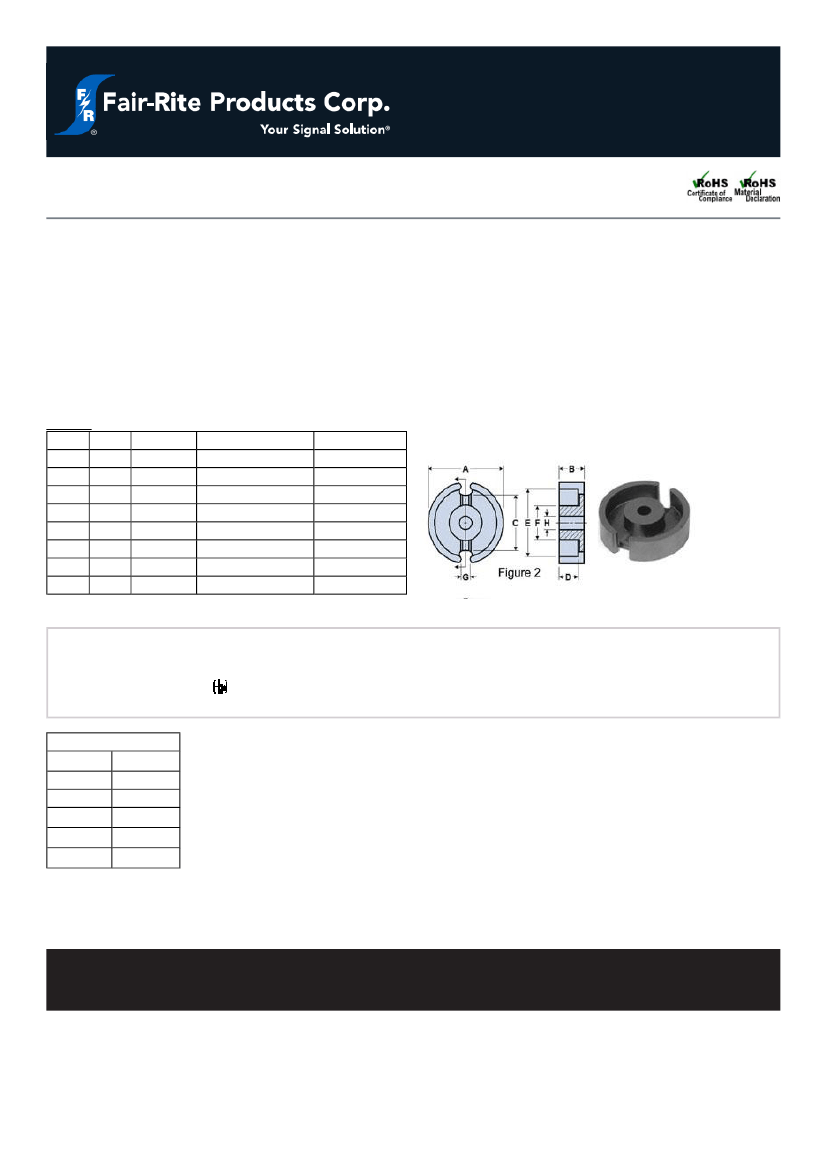

Pot Cores (5698362321)
Part Number: 5698362321
98 POT CORE SET
Pot cores have found application in all types of inductive devices. The core configuration provides a high degree of self-
shielding. It also facilitates gapping to enhance utility for a variety of magnetic designs.
•Pot cores can be supplied with the center post gapped to a mechanical dimension or an A
L
value.
Weight indicated is per pair or set.
Weight: 54.000 (g)
Dim mm mm tol
A
35.6 ±0.60
B
10.9 ±0.20
C
26.2 ±0.60
D
7.6
±0.30
E
29.5 min
F
15.9 ±0.30
G
5.15 ±0.40
H
5.45 ±0.25
nominal inch
1.402
0.429
1.031
0.299
1.161
0.626
0.203
0.215
inch misc.
_
_
_
_
min
_
_
_
Chart Legend
Σl/ A  :  Core Constant,    l
e
 :  Effective Path Length,    A
e
 :  Effective Cross- Sectional Area,    V
e
 :
 Effective Core Volume
A
L
 :  Inductance Factor
Explanation of Part Numbers: Digits 1 & 2 = product class and 3 & 4 = material grade.
Electrical Properties
A
L
(nH)
8500 ±25%
2
Ae(cm ) 1.84
-1
Σl/ A(cm ) 2.9
l
e
(cm)
5.53
3
V
e
(cm )
9.78
2
A
min
(cm ) 1.64
A
L
value is measured at 1 kHz, B < 10 gauss.
Fair- Rite Products Corp.
  One Commercial Row, Wallkill, New York 12589-0288
888-324-7748   •   845-895-2055   •   Fax: 845-895-2629   •   ferrites@fair- rite.com   •   www.fair- rite.com
