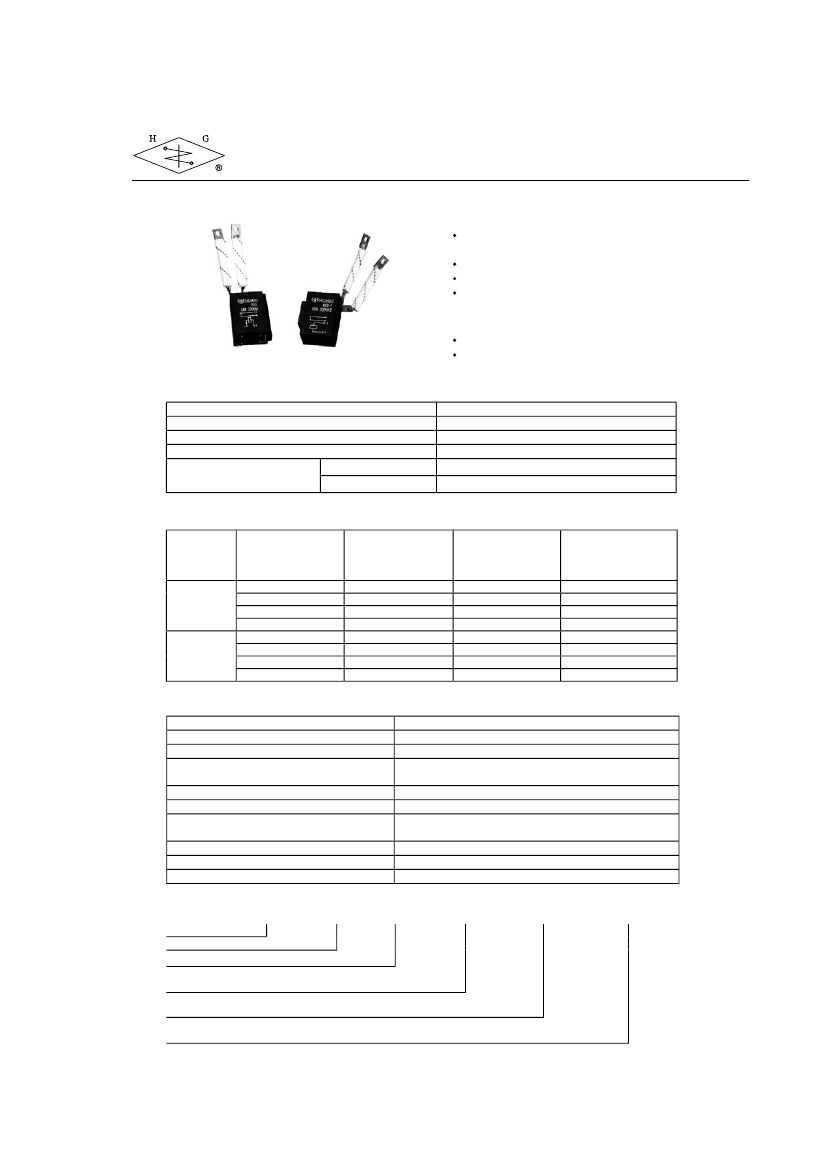

Heavy Duty Magnetic Latching Relay
HG4502
FEATURES
Energy-conscious design, one pulse will
be enough to complete switching
Compact structure
Single, dual coil version available
Contact status indicator version available
TYPICAL APPLICATIONS
Prepaid card electric meter
Others
CONTACT DATA
Form
Material
Rated Load
Initial Contact Resistance
Service Life
Mechanical
Electrical
1 Form B (D), 1 Form A (H)
AgCdO
60A, 220VAC
5 mΩ, max. at 0.1A, 6VDC
10
5
ops.
10
4
ops.
COIL DATA
Type
Coil Voltage Code
005
009
012
024
005
009
012
024
Nominal Voltage
( VDC)
5
9
12
24
5
9
12
24
Resistance
(Ω) ±10%
25
80
145
575
13
40
73
288
Operate Voltage
(VDC)
2.0
3.6
4.8
9.6
2.0
3.6
4.8
9.6
- 3.5
- 6.0
- 8.5
- 16.8
- 3.5
- 6.0
- 8.5
- 16.8
Single
Dual
CHARACTERISTICS
Operate Time
Release Time
Insulation Resistance
Dielectric Strength
Shock Resistance
Vibration Resistance
Power Consumption
Temperature Rise
Ambient
Weight
8 ms. typical
8 ms. typical
1000 MΩ, at 500 VDC, 50%RH
4000 Vrms, 1 min. between coil and contacts
2000 Vrms, 1 min. between open contacts
10 g, 11ms.
DA 1.5 mm; 20 - 200Hz
Single Coil: 1W, pulse width: 30 ms.
Dual Coil: 2W, pulse width: 30 ms.
Cover: 26ºC; Terminals: 36ºC, approx.
-40ºC to 70ºC
46 g, approx.
ORDERING DESIGNATION
Example:
HG4502 /
Model
Coil Voltage Code
Coil Form
Nil: Single Coil; S: Dual Coil
Status Indicator
Nil: Nil; D: With Indicator
Mounting Type
Nil: Vertical; 1: Flat; 2: Lateral
012 -
S
D
1
HG4502
1/2
HG4502

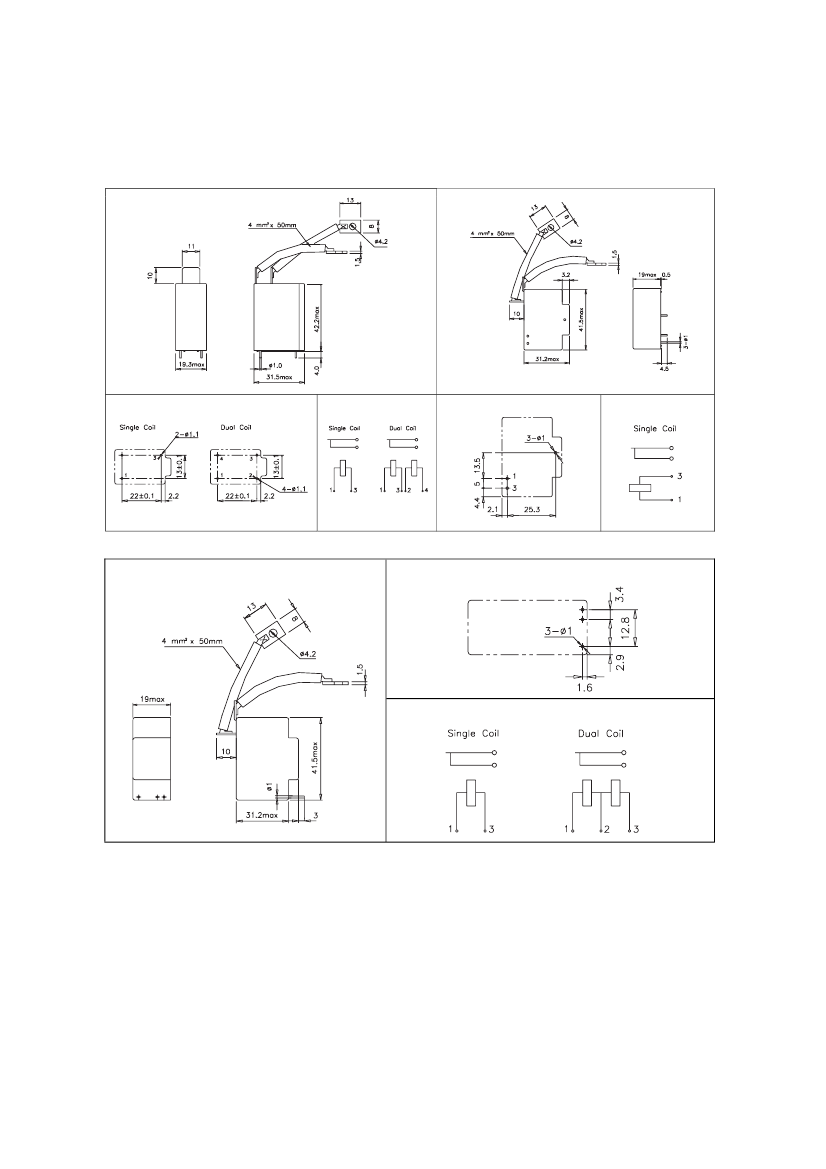

OVERALL DIMENSIONS, MOUNTING HOLES AND WIRING DIAGRAMS (mm)
Vertical Type
Flat Type
Overall Dimensions
Overall Dimensions
Mounting Holes (Bottom View)
Wiring Diagrams
Mounting Holes (Bottom View)
Wiring Diagram
Lateral Type
Overall Dimensions
Mounting Holes (Bottom View)
Wiring Diagrams
NOTES
1.
2.
3.
4.
5.
6.
All parameters, unless otherwise specified, are measured at ambient temperature 23ºC.
Factory set contacts to close.
For single coil type, send positive pulse from coil terminal No.1 to make contacts break, then send negative pulse make
contacts make.
For dual coil type, send positive pulse from coil terminal No. 1 to make contacts break, then send negative pulse from terminal
No. 2 make contacts make (negative pulse from No. 2 to No. 3 for lateral type)
Custom-made services available with operational quantity. Please let us know your special requirements.
Specifications subject to change without prior notice.
HG4502
2/2
