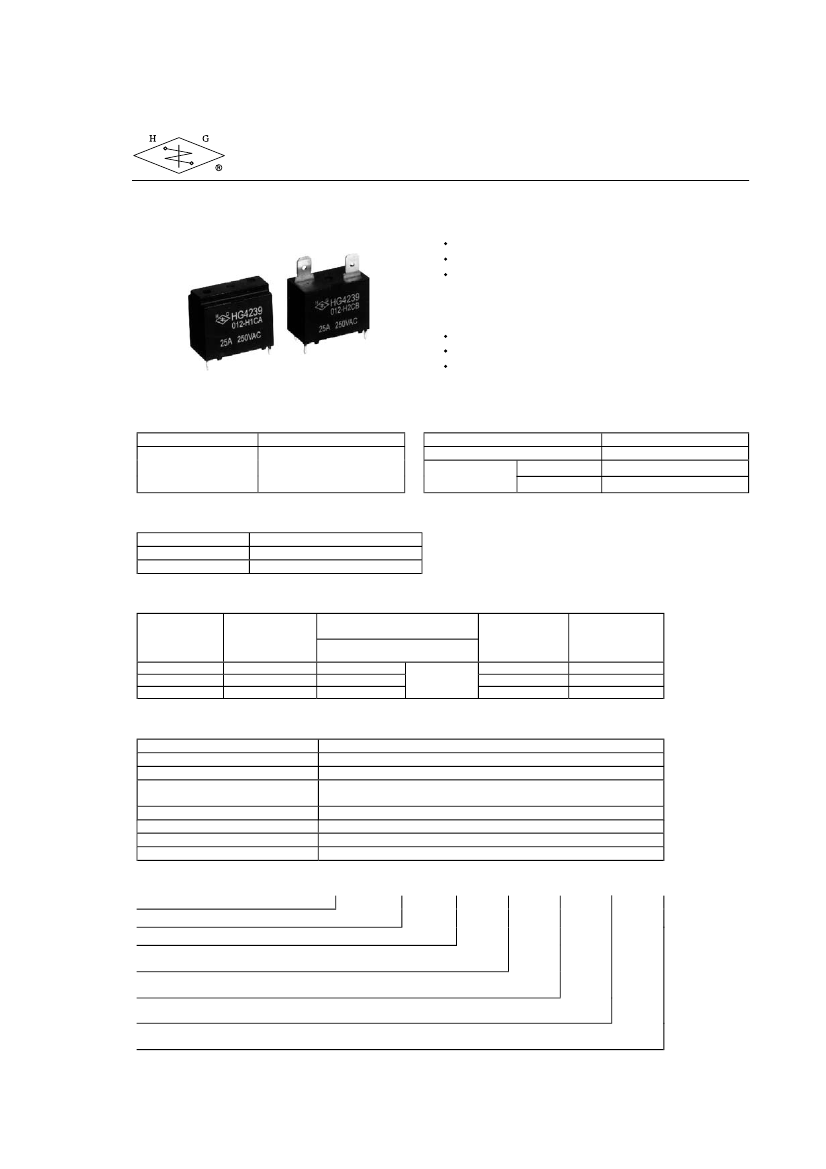

Miniature PCB Power Relay
HG4239
FEATURES
20A continous current capacity
Quick connect, PCB terminal, for choice
Ideal for motor switching applications
TYPICAL APPLICATIONS
Air conditioners
Heaters and refrigeration control
Microwave oven
CONTACT RATING
Form
Resistive
1 Form A (H)
20A, 250VAC/30VDC
1HP, 250VAC
CONTACT DATA
Material
Initial Contact Resistance
Mechanical
Service Life
Electrical
AgCdO
30 mΩ max. at 0.1A, 6VDC
5 x 10
5
ops.
10
5
ops.
UL/CSA RATING (PENDING)
Form
Resistive
Motor
1 Form A (H)
20A, 250VAC/30VDC
1HP, 250VAC
COIL DATA
Coil Voltage
Code
005
012
024
Nominal
Voltage
(VDC)
5
12
24
Resistance (Ω) ±10%
Power Consumption
28
160
640
0.9W
Must Operate
Voltage max.
( VDC)
3.5
8.4
16.8
Must Release
Voltage min.
(VDC)
0.5
1.2
2.4
CHARACTERISTICS
Operate Time
Release Time
Insulation Resistance
Dielectric Strength
Shock Resistance
Vibration Resistance
Ambient Temperature
Weight
20 ms. max.
10 ms. max.
1000 MΩ, at 500 VDC, 50%RH
4500 Vrms, 1 min. between coil and contacts
1000 Vrms, 1 min. between open contacts
20 g, 11ms. functional; 100g, destructive
DA 1.5mm, 10 - 55 Hz
-25ºC to 55ºC
23g, approx.
ORDERING DESIGNATION
Example:
Model
Coil Voltage Code
Contact Form
H: 1 Form A
Version
1: Sealed; 2: Flux Free
Contact Material
C: AgCdO; S: AgSnOInO
Mounting Version
A: PCB; B: Quick Connect + PCB
HG4239 /
012 -
H
1
C
A
HG4239
1/2
HG4239
REFERENCE CURVE

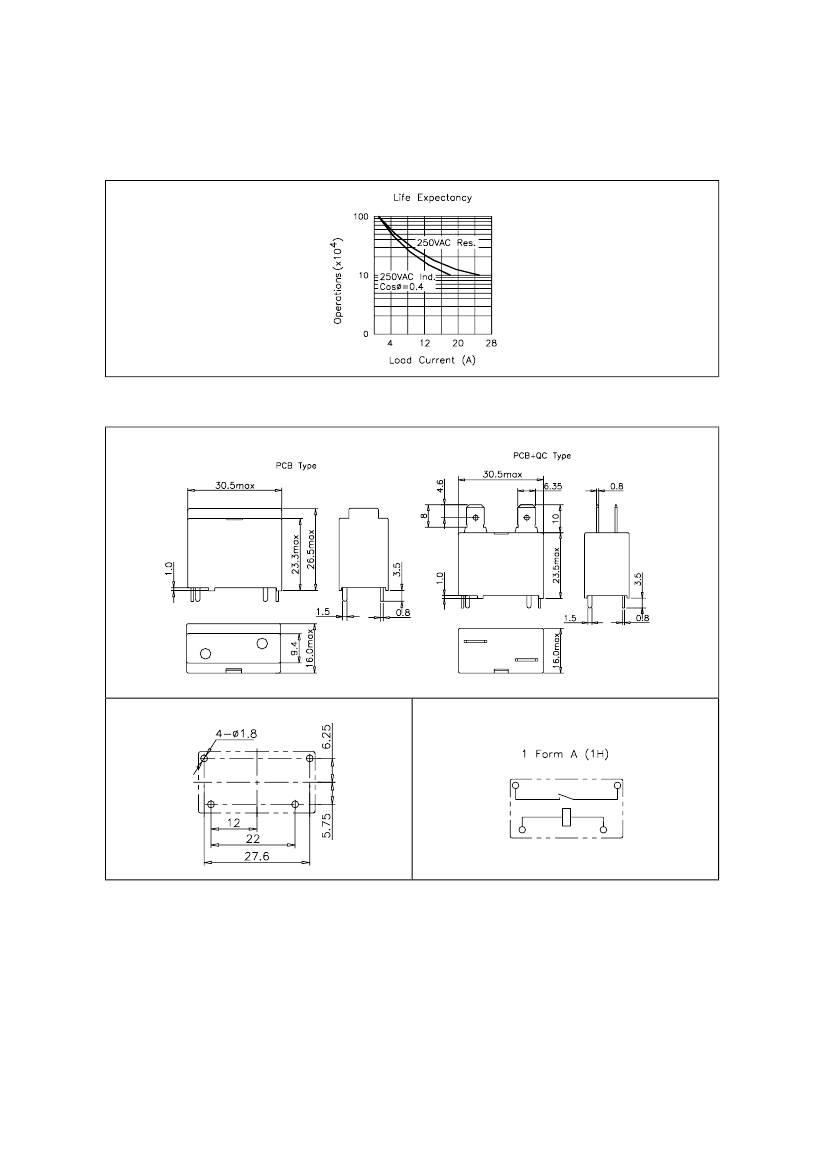

OVERALL DIMENSIONS, MOUNTING HOLES AND WIRING DIAGRAM (mm)
Overall Dimensions
Mounting Holes (Bottom View)
Wiring Diagram (Bottom View)
NOTES
1.
2.
3.
All parameters, unless otherwise specified, are measured at ambient temperature 23ºC.
Custom-made services available with operational quantity. Please let us know your special requirements.
Specifications subject to change without prior notice.
HG4239
2/2
