Subminiature PCB Power Relay
Automotive Subminiature PCB Power Relay
HG4232
HG4232A
FEATURES
Continuous current capacity up to
20A, 14VDC and 12A, 120VAC
Most popular package and footprint
Class B insulation for automotive applications
Various contact materials for choice
TYPICAL APPLICATIONS
Business machine
Audio equipment
Home appliances
Air conditioner
Automotive control
CONTACT RATING
Type
Resistive
HG4232
12A, 120VAC
12A, 28VDC
7A, 240VAC
HG4232A
20A, 14VDC
UL /CSA RATING
Type
Resistive
TV
AgCdO
100 mΩ max. at 0.1A 6VDC
10
7
ops.
10
5
ops.
HG4232
10A, 120VAC
10A, 28VDC
5A, 240VAC
35LRA/6FLA, 120VAC(NO)
5A, 120VAC (NO)
CONTACT DATA
Material
Initial Contact Resistance
Mechanical
Service Life
Electrical
COIL DATA
Type
Coil Voltage
Code
003
005
006
009
012
024
048
006
012
024
Nominal
Voltage
( VDC)
3
5
6
9
12
24
48
6
12
24
Resistance
(Ω) ±10%
Power Consumption
25
70
100
0.36W
225
400
1600
6400
45
180
0.8W
720
Must Operate
Voltage max.
(VDC)
2.1
3.5
4.2
6.3
8.4
16.8
33.6
3.2
6.3
12.6
Must Release
Voltage min.
(VDC)
0.3
0.5
0.6
0.9
1.2
2.4
4.8
0.6
1.2
2.4
HG4232
HG4232A
CHARACTERISTICS
Operate Time
Release Time
Insulation Resistance
Dielectric Strength
Shock Resistance
Vibration Resistance
Drop Resistance
Power Consumption
Ambient Temperature
Weight
10 ms. max.
5 ms. max.
100 MΩ, at 500VDC, 50%RH
1500 Vrms, 1 min. between coil and contacts
1000 Vrms, 1 min. between open contacts
10 g, 11ms.
DA 1.5mm, 10 - 55 Hz, functional
1 M height drop on concrete in final enclosure
HG4232: 0.36W; HG4232A: 0.8W
HG4232: -40ºC to 85ºC operating; -40ºC to 130ºC storage
HG4232A: -40ºC to 105ºC operating; -40ºC to 155ºC storage
10 g, approx.
HG4232 / HG4232A
1/2
HG4232
HG4232A
ORDERING DESIGNATION
Example:
HG4232
A/
012 -
Z
1
C
Model
Type
Nil: General Purpose
A: Automotive
Coil Voltage Code
Contact Form
H: 1 Form A; Z: 1 Form C
Version
1: Sealed; 2: Flux Free; 3: Dust Cover
Contact Material
Nil: AgNi10; A: AgNi0.15; C: AgCdO; S: AgSnOInO

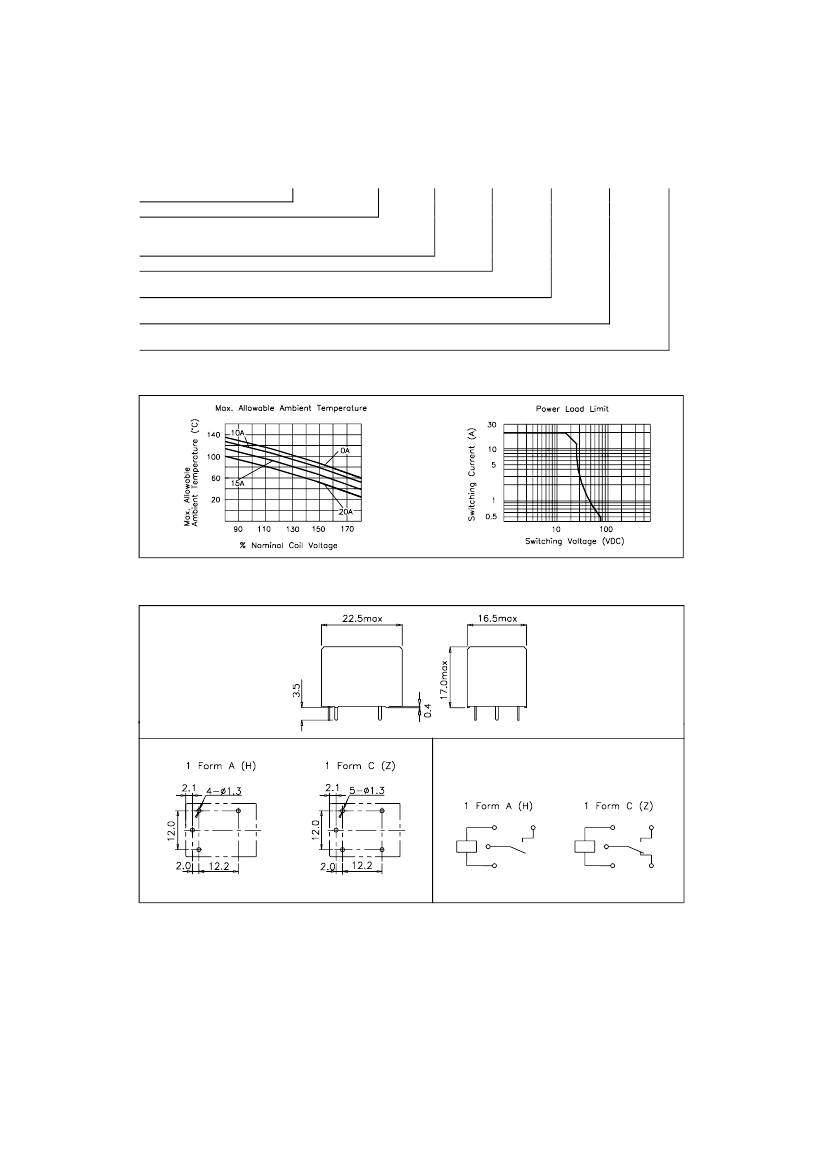

REFERENCE CURVES
OVERALL DIMENSIONS, MOUNTING HOLES AND WIRING DIAGRAMS (mm)
Overall Dimensions
Mounting Holes (Bottom View)
Wiring Diagrams (Bottom View)
NOTES
1.
2.
3.
All parameters, unless otherwise specified, are measured at ambient temperature 23ºC.
Custom-made services available with operational quantity. Please let us know your special requirements.
Specifications subject to change without prior notice.
HG4232 / HG4232A
2/2
