Subminiature PCB Power Relay
HG4230
FEATURES
Subminiature type, compact design
Heavy duty, contact capacity up to
12A, 120VAC
Low cost PCB relay
TYPICAL APPLICATIONS
Office machine
Home appliances
Audio equipment
Automotive control
CONTACT RATING
Type
Resistive
TV
HG4230
12A, 120VAC
12A, 28VDC
7A, 240VAC
5A, 120VAC
AgCdO, AgSnOInO
100 mΩ max. at 0.1A, 6VDC
10
7
ops.
10
5
ops.
UL/CSA/TUV RATING
Type
Resistive
HG4230
12A, 120VAC (UL /CSA)
12A, 28VDC (UL/CSA)
6A, 240VAC (TUV)
10A, 28VDC (TUV)
CONTACT DATA
Material
Initial Contact Resistance
Mechanical
Service Life
Electrical
COIL DATA
Type
Coil Voltage
Code
003
006
009
012
024
048
Nominal Voltage
(VDC)
3
6
9
12
24
48
Resistance
(Ω) ± 10%
Power Consumption
Standard
Sensitive
20
25
80
100
180
225
0.45W
0.36W
320
400
1280
1600
4500
6400
Must Operate
Voltage max.
( VDC)
2.25
4.5
6.75
9.0
18.0
36.0
Must Release
Voltage min.
( VDC)
0.3
0.6
0.9
1.2
2.4
4.8
HG4230
CHARACTERISTICS
Operate Time
Release Time
Insulation Resistance
Dielectric Strength
Shock Resistance
Vibration Resistance
Power Consumption
Ambient Temperature
Weight
15 ms. typical
5 ms. typical
100 MΩ, at 500 VDC, 50%RH
1500 Vrms, 1 min. between coil and contacts
1000 Vrms, 1 min. between open contacts
10 g, 11ms. functional; 100g, destructive
DA 1.5mm, 10 - 55 Hz, functional
Standard: 0.45W
Sensitive: 0.36W
-30ºC to 55ºC
12 g, approx.
ORDERING DESIGNATION
Example:
Model
Coil Voltage Code
Contact Form
H: 1 Form A; D: 1 Form B; Z: 1 Form C
Version
1: Sealed; 2: Flux Free; 3: Dust Cover
Contact Material
Nil: AgNi10; A: AgNi0.15; C: AgCdO; S: AgSnOInO
Coil Sensitivity
Nil: Standard 0.45W; L: Sensitive 0.36W
HG4230
012-
Z
1
C
L
HG4230
1/2
HG4230
ORDERING DESIGNATION
Example:
Model
Coil Voltage Code
Contact Form
H: 1 Form A; D: 1 Form B; Z: 1 Form C
Version
1: Sealed; 2: Flux Free; 3: Dust Cover
Contact Material
Nil: AgNi10; A: AgNi0.15; C: AgCdO; S: AgSnOInO
Coil Sensitivity
Nil: Standard 0.45W; L: Sensitive 0.36W
HG4230
012-
Z
1
C
L

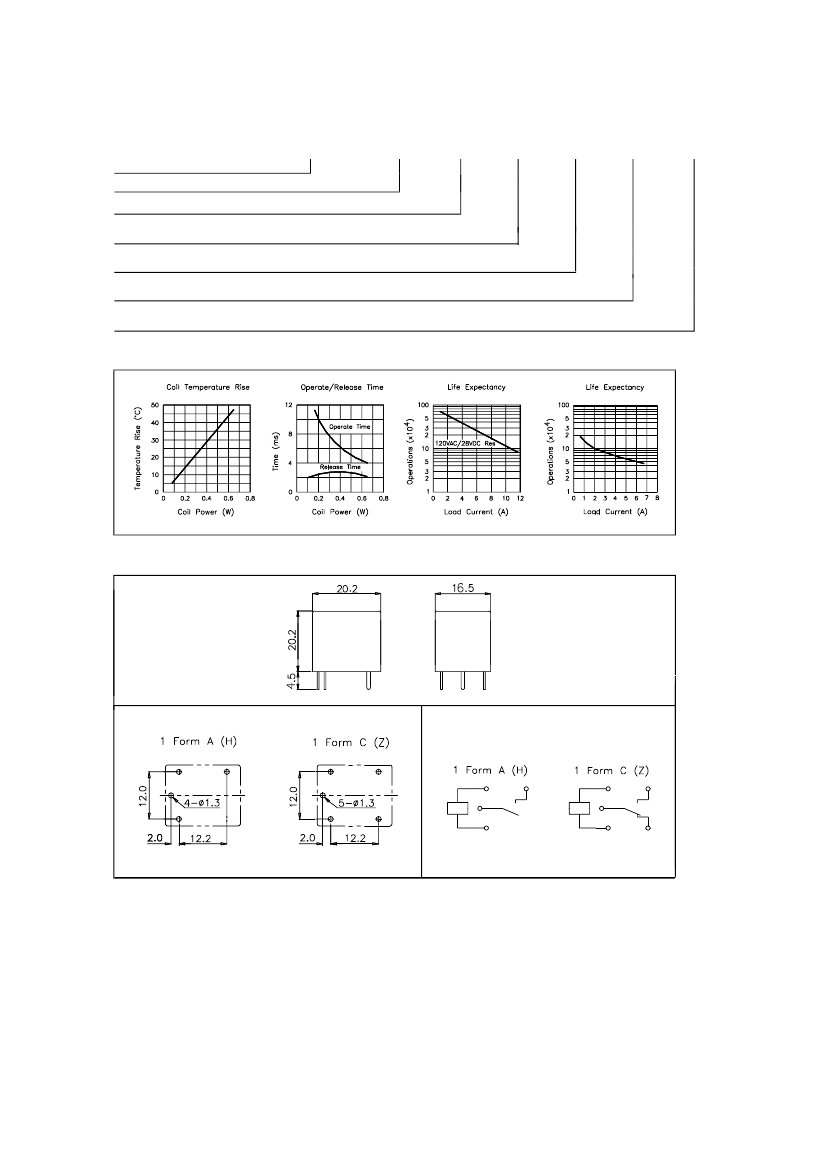

REFERENCE CURVES
OVERALL DIMENSIONS, MOUNTING HOLES AND WIRING DIAGRAMS (mm)
Overall Dimentions
Mounting Holes (Bottom View)
Wiring Diagrams (Bottom View)
NOTES
1.
2.
3.
All parameters, unless otherwise specified, are measured at ambient temperature 23ºC.
Custom-made services available with operational quantity. Please let us know your special requirements.
Specifications subject to change without prior notice.
HG4230
2/2
