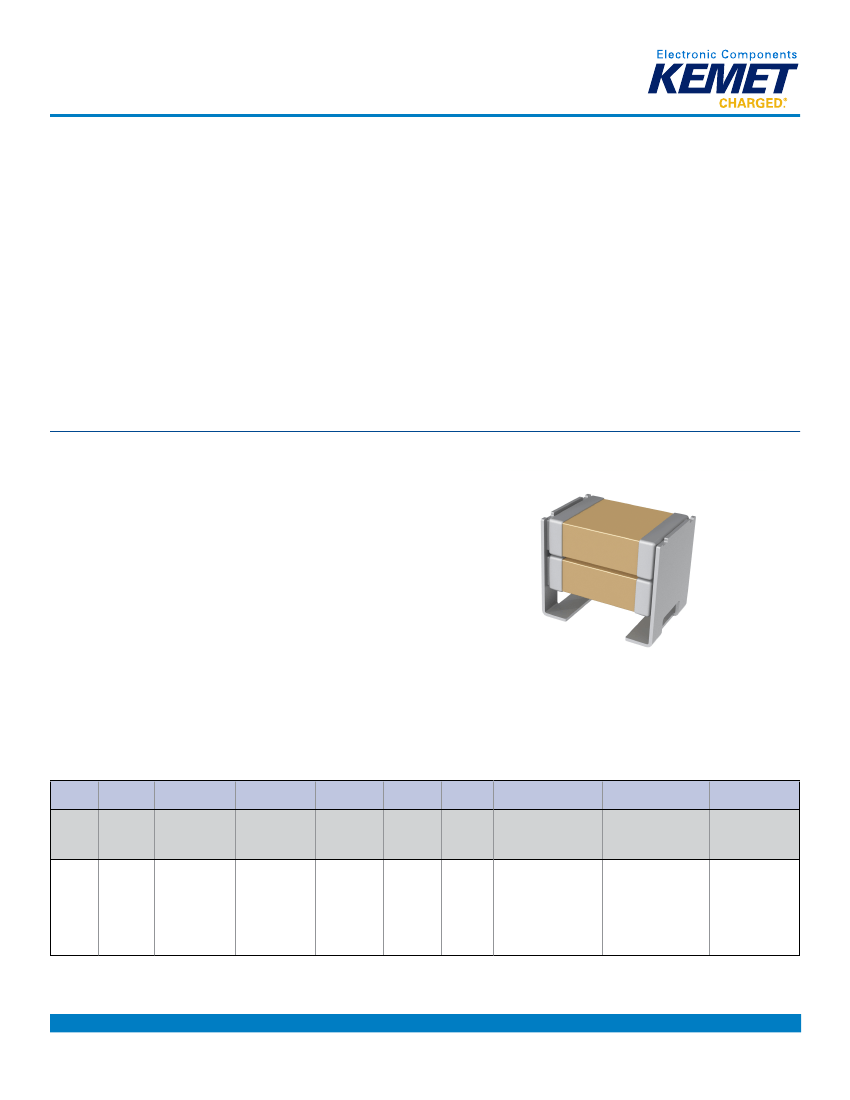

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
KPS Series, X7R Dielectric, 10 – 250 VDC (Commercial Grade)
Overview
KEMET Power Solutions (KPS) Commercial Series stacked
capacitors utilize a proprietary lead-frame technology
to vertically stack one or two multilayer ceramic chip
capacitors into a single compact surface mount package.
The attached lead-frame mechanically isolates the
capacitor/s from the printed circuit board, therefore offering
advanced mechanical and thermal stress performance.
Isolation also addresses concerns for audible, microphonic
noise that may occur when a bias voltage is applied. A
two chip stack offers up to double the capacitance in
the same or smaller design footprint when compared to
traditional surface mount MLCCs devices. Providing up
to 10 mm of board flex capability, KPS Series capacitors
are environmentally friendly and in compliance with RoHS
legislation. Available in X7R dielectric, these devices are
capable of Pb-Free reflow profiles and provide lower ESR, ESL
and higher ripple current capability when compared to other
dielectric solutions.
Combined with the stability of an X7R dielectric, KEMET’s
KPS Series devices exhibit a predictable change in
capacitance with respect to time and voltage and boast a
minimal change in capacitance with reference to ambient
temperature. Capacitance change is limited to ±15% from
−55°C to +125°C.
Benefits
•
•
•
•
•
•
•
•
−55°C to +125°C operating temperature range
Reliable and robust termination system
EIA 1210, 1812, and 2220 case sizes
DC voltage ratings of 10 V, 16 V, 25 V, 50 V, 100 V,
and 250 V
Capacitance offerings ranging from 0.1 μF up to 47 μF
Available capacitance tolerances of ±10% and ±20%
Higher capacitance in the same footprint
Potential board space savings
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Ordering Information
C
2220
C
106
M
5
R
2
C
Leadframe Finish
2
7186
Packaging/
Grade
(C-Spec)
See
“Packaging
C-Spec
Ordering
Options Table”
below
Case Size
Specification/
Ceramic
(L" x W")
Series
1210
1812
2220
C = Standard
Rated
Capacitance Capacitance
Voltage Dielectric Failure Rate/Design
Code (pF)
Tolerance
1
(VDC)
Two
significant
digits +
number of
zeros
K = ±10%
M = ±20%
8 = 10
4 = 16
3 = 25
5 = 50
1 = 100
A = 250
R = X7R
1 = KPS Single
Chip Stack
2 = KPS Double
Chip Stack
C = 100% Matte Sn
Double chip stacks ("2" in the 13th character position of the ordering code) are only available in M (±20%) capacitance tolerance. Single chip stacks
("1" in the 13th character position of the ordering code) are available in K (±10%) or M (±20%) tolerances.
2
Additional leadframe finish options may be available. Contact KEMET for details.
1
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1020_X7R_KPS_SMD • 8/11/2016
1
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
KPS Series, X7R Dielectric, 10 – 250 VDC (Commercial Grade)
Packaging C-Spec Ordering Options Table
Packaging Type
1
7" Reel (Embossed Plastic Tape)/Unmarked
13" Reel (Embossed Plastic Tape)/Unmarked
1
Packaging/Grade
Ordering Code (C-Spec)
2
7186
7289
The terms "Marked" and "Unmarked" pertain to laser marking option of capacitors. All packaging options labeled as "Unmarked" will contain capacitors
that have not been laser marked. The option to laser mark is not available on these devices. For more information see "Capacitor Marking".
Benefits cont'd
• Advanced protection against thermal
and mechanical stress
• Provides up to 10 mm of board flex capability
• Reduces audible, microphonic noise
• Extremely low ESR and ESL
•
•
•
•
Lead (Pb)-free, RoHS and REACH compliant
Capable of Pb-free reflow profiles
Non-polar device, minimizing installation concerns
Tantalum and electrolytic alternative
Applications
Typical applications include smoothing circuits, DC/DC converters, power supplies (input/output filters), noise reduction
(piezoelectric/mechanical), circuits with a direct battery or power source connection, critical and safety relevant circuits
without (integrated) current limitation and any application that is subject to high levels of board flexure or temperature
cycling. Markets include industrial, military, automotive and telecom.
Qualification/Certification
Commercial Grade products are subject to internal qualification. Details regarding test methods and conditions are
referenced in Table 4, Performance & Reliability.
Environmental Compliance
Lead (Pb)-free, RoHS, and REACH compliant without exemptions.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1020_X7R_KPS_SMD • 8/11/2016
2
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
KPS Series, X7R Dielectric, 10 – 250 VDC (Commercial Grade)
Dimensions – Millimeters (Inches)
TOP VIEW
Single or Double Chip Stack
Double Chip Stack
PROFILE VIEW
Single Chip Stack
L
L
W
H
H
LW
LW
Number
of Chips
EIA
Size Code
1210
Metric
Size Code
3225
4532
5650
3225
4532
5650
L Length
3.50 (0.138)
±0.30 (.012)
5.00 (0.197)
±0.50 (.020)
6.00 (0.236)
±0.50 (.020)
3.50 (0.138)
±0.30 (0.012)
5.00 (0.197)
±0.50 (0.020)
6.00 (0.236)
±0.50 (.020)
W Width
2.60 (0.102)
±0.30 (.012)
3.50 (0.138)
±0.50 (.020)
5.00 (0.197)
±0.50 (.020)
2.60 (0.102)
±0.30 (.012)
3.50 (0.138)
±0.50 (0.020)
5.00 (0.197)
±0.50 (0.020)
H Height
3.35 (0.132)
±0.10 (.004)
2.65 (0.104)
±0.35 (0.014)
3.50 (0.138)
±0.30 (0.012)
6.15 (0.242)
±0.15 (0.006)
5.00 (0.197)
±0.50 (0.020)
5.00 (0.197)
±0.50 (0.020)
LW Lead Width
0.80 (0.032)
±0.15 (0.006)
1.10 (0.043)
±0.30 (0.012)
1.60 (0.063)
±0.30 (0.012)
0.80 (0.031)
±0.15 (0.006)
1.10 (0.043)
±0.30 (0.012)
1.60 (0.063)
±0.30 (0.012)
Mounting
Technique
Single
1812
2220
1210
Solder Reflow
Only
Double
1812
2220
Electrical Parameters/Characteristics
Item
Operating Temperature Range
Capacitance Change with Reference to
+25°C and 0 Vdc Applied (TCC)
1
Parameters/Characteristics
−55°C to +125°C
±15%
3.0%
250% of rated voltage
(5±1 seconds and charge/discharge not exceeding 50mA)
5%(10V), 3.5%(16V & 25V) and 2.5%(50V to 250V)
See Insulation Resistance Limit Table
(Rated voltage applied for 120±5 seconds at 25°C)
Aging Rate (Maximum % Capacitance Loss/Decade Hour)
2
Dielectric Withstanding Voltage (DWV)
3
Dissipation Factor (DF) Maximum Limit at 25°C
4
Insulation Resistance (IR) Minimum Limit at 25°C
Regarding Aging Rate: Capacitance measurements (including tolerance) are indexed to a referee time of 48 or 1,000 hours. Please refer to a part
number specific datasheet for referee time details.
2
DWV is the voltage a capacitor can withstand (survive) for a short period of time. It exceeds the nominal and continuous working voltage of the
capacitor.
3
Capacitance and dissipation factor (DF) measured under the following conditions:
1 kHz ±50 Hz and 1.0 ±0.2 Vrms if capacitance ≤ 10 µF
120 Hz ±10 Hz and 0.5 ±0.1 Vrms if capacitance > 10 µF
4
To obtain IR limit, divide MΩ-µF value by the capacitance and compare to GΩ limit. Select the lower of the two limits.
Note: When measuring capacitance it is important to ensure the set voltage level is held constant. The HP4284 and Agilent E4980 have a feature known
as Automatic Level Control (ALC). The ALC feature should be switched to "ON."
1
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1020_X7R_KPS_SMD • 8/11/2016
3
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
KPS Series, X7R Dielectric, 10 – 250 VDC (Commercial Grade)
Post Environmental Limits
High Temperature Life, Biased Humidity, Moisture Resistance
Dielectric
Rated DC
Voltage
> 25
X7R
16/25
< 16
All
Capacitance
Value
Dissipation Factor
(Maximum %)
3.0
5.0
7.5
±20%
10% of Initial
Limit
Capacitance
Shift
Insulation
Resistance
Insulation Resistance Limit Table
EIA Case Size
1210
1812
2220
1,000 Megohm
Microfarads or 100 GΩ
< 0.39 µF
< 2.2 µF
< 10 µF
500 Megohm
Microfarads or 10 GΩ
≥ 0.39 µF
≥ 2.2 µF
≥ 10 µF

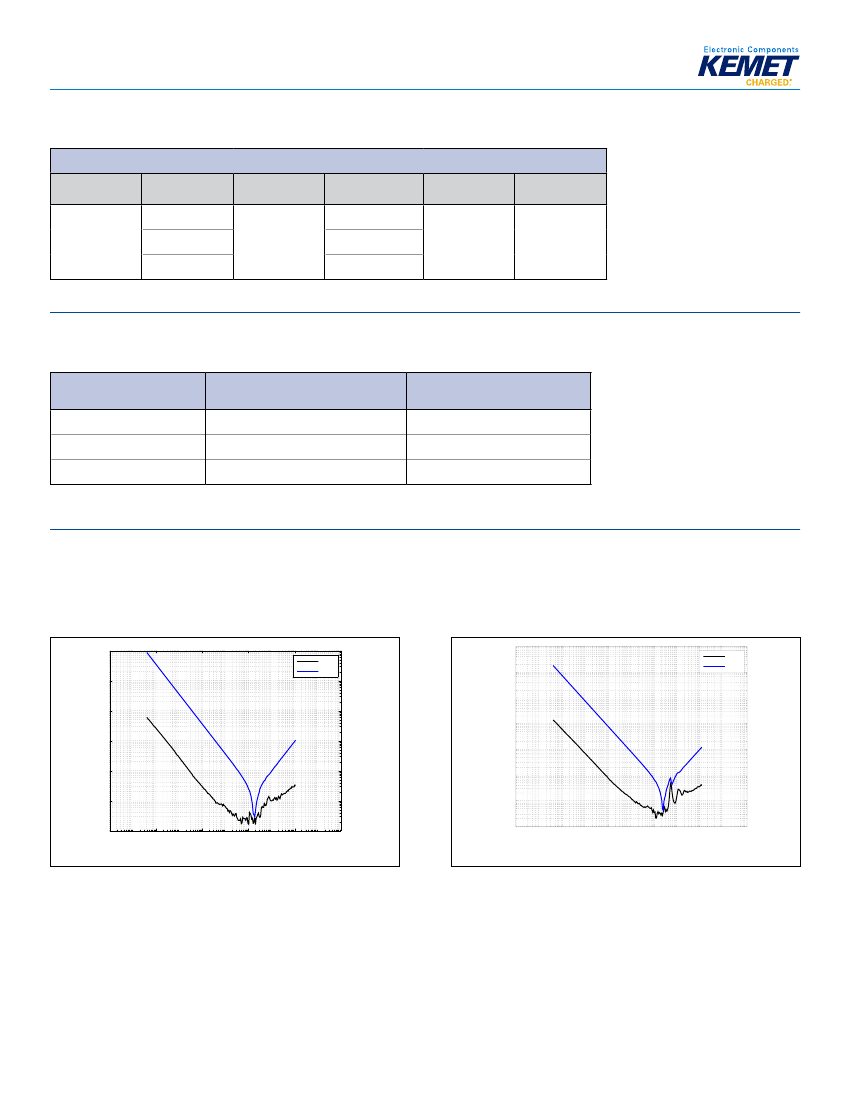

Electrical Characteristics
Z and
C1210C475M5R1C Z and ESR
ESR C1210C475M5R1C
10
3
Z and ESR C2220C225MAR2C
10
ESR
Z
4
ESR
10
3
Z
10
2
10
2
Magnitude Ohms
Magnitude Ohms
10
1
1
10
10
0
10
0
10
-1
10
-1
10
-2
10
-2
10
-3
10
10
0
-3
10
2
10
4
10
6
10
8
10
10
10
0
10
2
10
4
10
6
10
8
10
10
Frequency (Hz)
Frequency (Hz)
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
C1020_X7R_KPS_SMD • 8/11/2016
4
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
KPS Series, X7R Dielectric, 10 – 250 VDC (Commercial Grade)
Electrical Characteristics cont'd

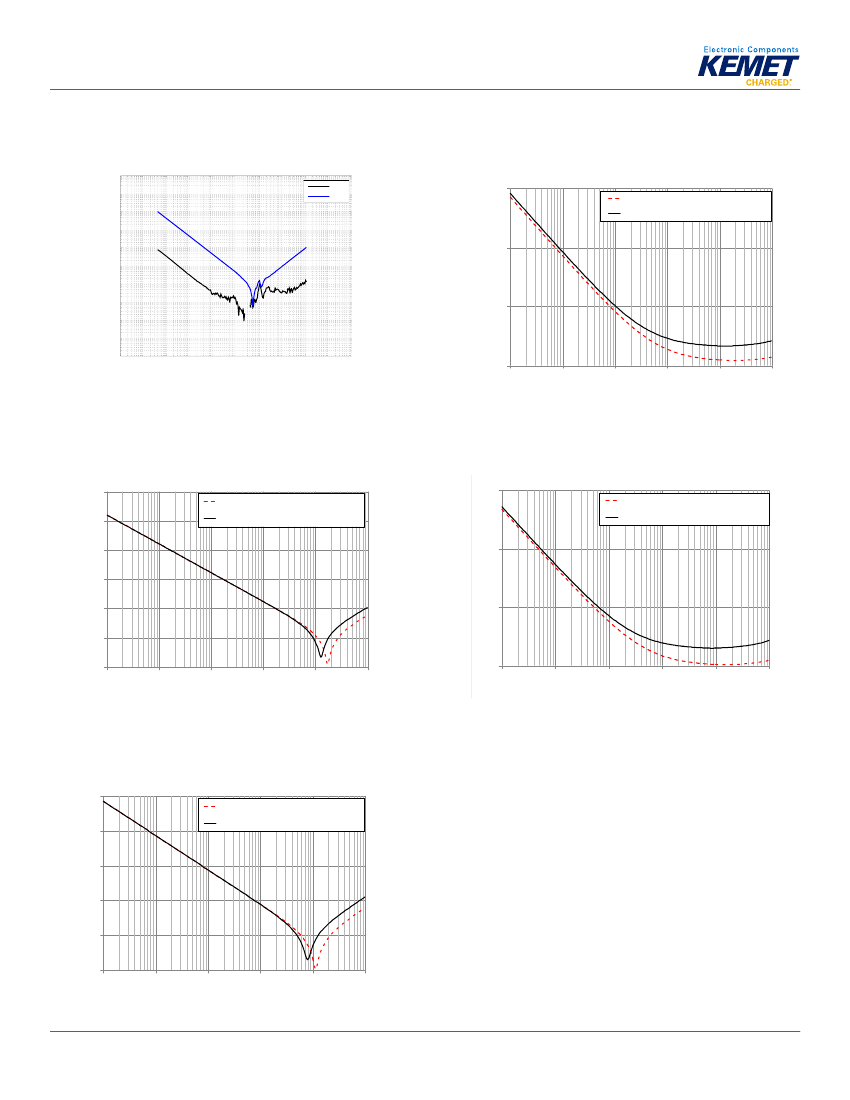

Z and ESR C2220C476M3R2C
10
4
ESR – 1812, .10 µF, 50 V X7R
ESR
Z
10
ESR vs. Frequency
C1812C104K5R2C (2 Chip Stack)
C1812C104K5R1C (1 Chip Stack)
10
2
Magnitude Ohms
10
0
1
10
-2
10
-4
10
-6
10
0
10
2
10
4
10
6
10
8
10
10
ESR (Ohms)
0.1
0.01
1.E+03
Frequency (Hz)
1.E+04
1.E+05
1.E+06
Frequency (Hz)
1.E+07
1.E+08
Impedance – 1812, .10 µF, 50 V X7R
10000
1000
ESR – 1210, .22 µF, 50 V X7R
10
Impedance vs. Frequency
C1812C104K5R2C (2 Chip Stack)
C1812C104K5R1C (1 Chip Stack)
ESR vs. Frequency
C1210C224K5R2C (2 Chip Stack)
C1210C224K5R1C (1 Chip Stack)
Impedance (Ohms)
10
1
0.1
0.01
1.E+03
ESR (Ohms)
100
1
0.1
1.E+04
1.E+05
1.E+06
Frequency (Hz)
1.E+07
1.E+08
0.01
1.E+03
1.E+04
1.E+05
1.E+06
1.E+07
1.E+08
Frequency (Hz)
Impedance – 1210, .22 µF, 50 V X7R
1000
100
Impedance vs. Frequency
C1210C224K5R2C (2 Chip Stack)
C1210C224K5R1C (1 Chip Stack)
Impedance (Ohms)
10
1
0.1
0.01
1.E+03
1.E+04
1.E+05
1.E+06
Frequency (Hz)
1.E+07
1.E+08
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1020_X7R_KPS_SMD • 8/11/2016
5
