2039-5-14-1: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Locking, Plug; CategoryThe connector The connector; File Size198KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2039-5-14-1 Overview

Board Connector, 14 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Locking, Plug

2039-5-14-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
body width	0.165 inch
subject depth	0.213 inch
body length	0.756 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	50 Cycles
maximum insertion force	2.9468 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	2039
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	14
Evacuation force-minimum value	.3892 N
Base Number Matches	1

Preview

Download Datasheet

View All

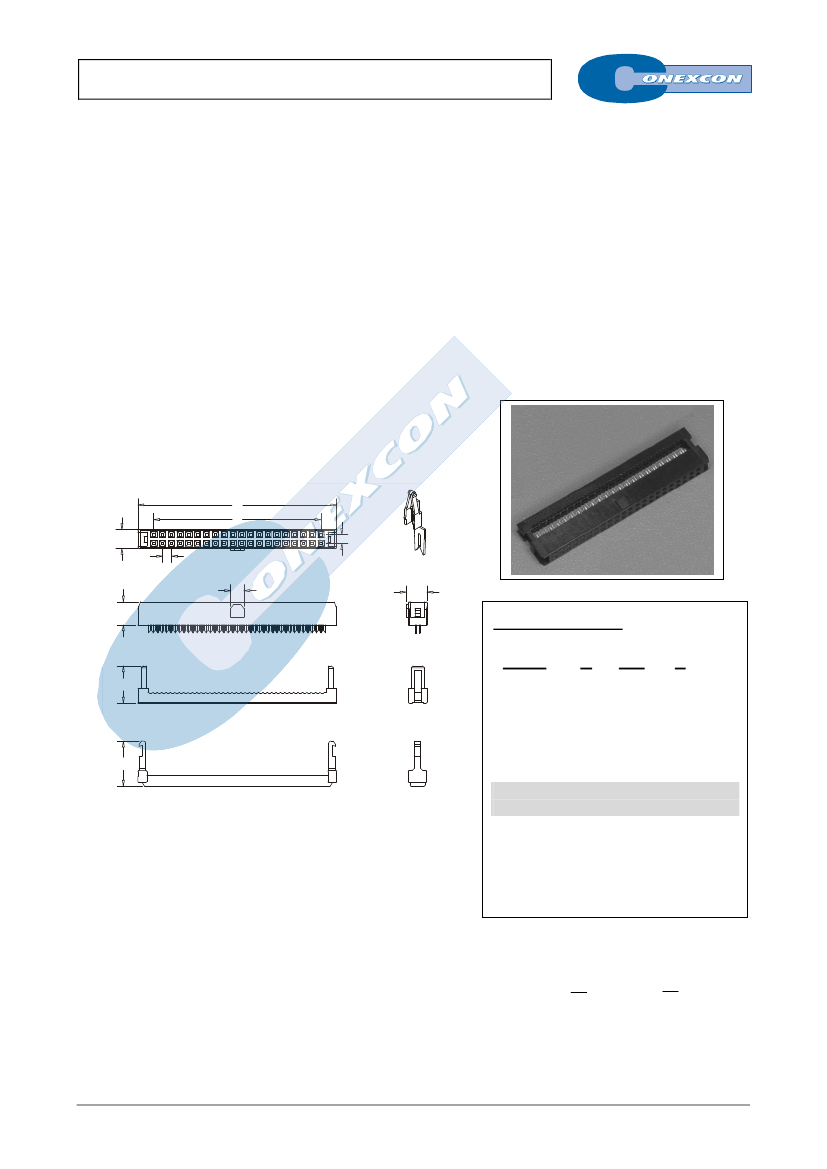

FLAT CABLE IDC SOCKET

2039 SERIES.

2.00 x 2.00 mm. (0.079 x 0.079”) pitch.

General Features

Electrical Features



Available in 8, 10, 12, 14, 16, 20, 22, 24, 26, 30, 34, 40,

44, 50 and 68 circuits

Mates with 2.00 mm pitch pin headers and connectors

4444, 4446, 4447, 4443, 4439, 4440, 4449, 4441, 4442, 4448,

4451, 4452 and 4453 series



Voltage rating: < 250V

Current rating: < 1 A

Contact resistance: < 30 mΩ

Dielectric withstanding Voltage: 500 V AC/minute

Insulation resistance: >1000 MΩ



Use flat cable 1.00 mm pitch 9100 series

Dual beam contact

Mechanical Features

Materials

Insulator: PBT, glass reinforced, rated UL 94V-0

Terminal: Phosphor bronze

Operating temperature. -25ºC to +85ºC

RoHS compliant



Insertion force to header: < 0.30 Kgf/pin

Withdrawal force from header: < 0.04 Kgf/pin

Durability: 50 Cycles

Dimension Information

B

A

4.2

2.0

3.0

5.4

4.7

Ordering Information:

2039 -

8.5

T-

2

XX-

3

1

4

1

1. Connector Series

2. (T) Contact Plating

10.4



Optional: Strain relief (2039

– 00XX)

XX

= Nº of circuits

T =

2.

Tin plated

T =

3.

Gold flash over nickel

Recommended Finish

T =

5.

15µ” gold over nickel

T =

6.

30µ” gold over nickel



3. (XX) Number of circuits

Available in 8 through 80 circuits

Dimensions:

(In mm.)



XX





A

½

2.00



2



1









XX





B

½

2.00



2

 

5.20





(XX) = Number of circuits

A-XX
