IMC1008ERR39J

Description
Fixed Inductors 390nH 5%
CategoryPassive components    inductor
File Size100KB,3 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

IMC1008ERR39J Online Shopping

Suppliers Part Number Price MOQ In stock
IMC1008ERR39J - - View Buy Now

IMC1008ERR39J Overview

Fixed Inductors 390nH 5%

IMC1008ERR39J Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerVishay
package instruction1008
Reach Compliance Codeunknown
ECCN codeEAR99
uppercase and lowercase codes1008
structureChip
core materialCERAMIC
DC Resistance1.06 Ω
Nominal inductance(L)0.39 µH
Inductor ApplicationsRF INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee3
Manufacturer's serial numberIMC-1008
Number of functions1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package height1.6 mm
Package length2.5 mm
Package formSMT
Package width2 mm
method of packingTR, 7 Inch
Minimum quality factor (at nominal inductance)45
Maximum rated current0.47 A
self resonant frequency530 MHz
seriesIMC-1008
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
special characteristicsQ MEASURED AT 100 MHZ
surface mountYES
Terminal surfaceTin (Sn) - with Nickel (Ni) barrier
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency25 MHz
Tolerance5%

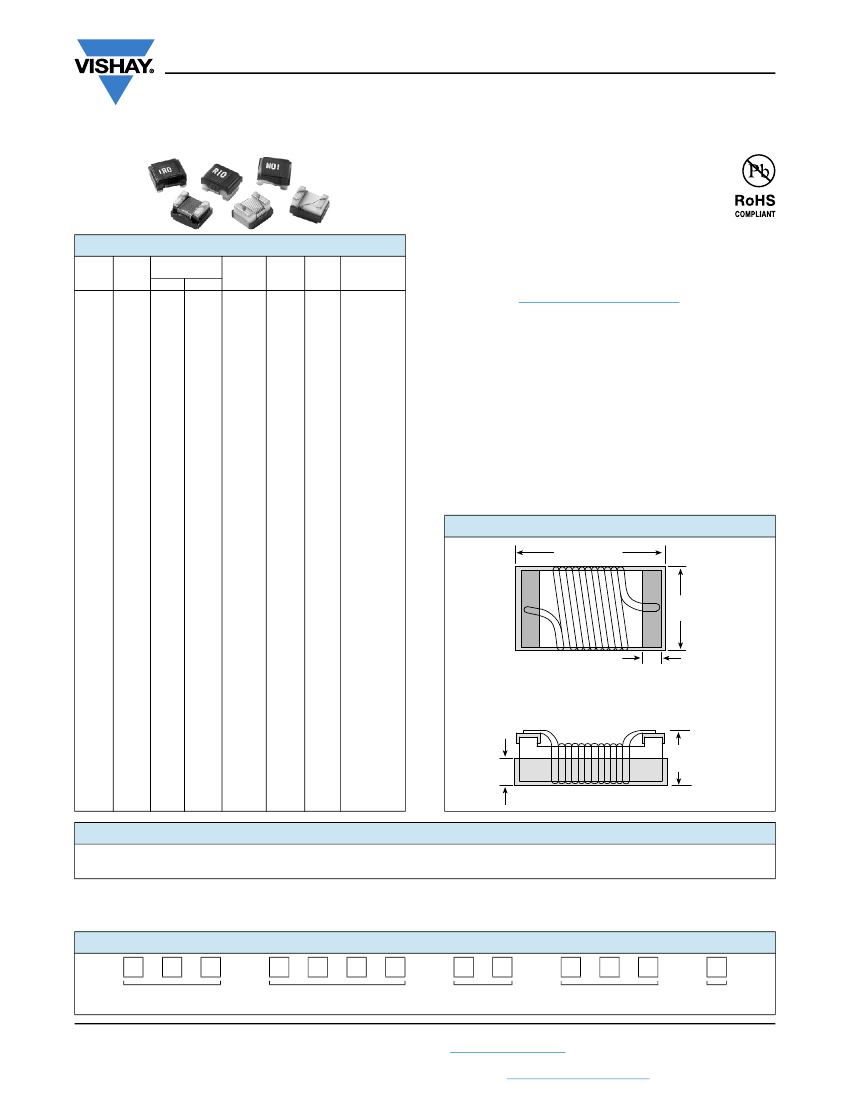

IMC-1008
www.vishay.com
Vishay Dale
High Frequency, Surface Mount Inductors
FEATURES
High self-resonant frequency values
High Q values at higher frequencies
Wirewound construction
Compatible with vapor phase and infrared reflow
soldering
• Tape and reel packaging for automatic handling, 2000/reel
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
STANDARD ELECTRICAL SPECIFICATIONS
TEST FREQ.
(MHz)
Q MIN.
L
Q
3.3 0.3 nH 100 1000
50
6.8
5 % 100 1000
50
8.2
5 % 100 1000
50
10
5 % 100 1000
50
12
5 % 100
500
60
15
5 % 100
500
60
18
5 % 100
350
60
22
5 % 100
350
60
27
5 % 100
350
60
33
5 % 100
350
60
39
5 % 100
350
60
47
5 % 100
350
60
56
5 % 100
350
60
68
5 % 100
350
60
82
5 % 100
350
60
100
5 % 100
350
60
120
5%
25
100
45
150
5%
25
100
45
180
5%
25
100
45
220
5%
25
100
45
270
5%
25
100
45
330
5%
25
100
45
390
5%
25
100
45
470
5%
25
100
45
560
5%
25
100
45
680
5%
25
100
45
750
5%
25
100
45
820
5%
25
100
45
910
5%
25
100
45
1000 5 %
25
50
35
1200 5 % 7.96 7.96
20
1500 5 % 7.96 7.96
20
1800 5 % 7.96 7.96
20
2200 5 % 7.96 7.96
20
2700 5 % 7.96 7.96
20
3300 5 % 7.96 7.96
20
3900 5 % 7.96 7.96
20
4700 5 % 7.96 7.96
20
5600 5 % 7.96 7.96
20
6800 5 % 7.96 7.96
20
8200 5 % 7.96 7.96
20
10 000 5 % 2.52 2.52
15
12 000 5 % 2.52 2.52
15
15 000 5 % 2.52 2.52
15
18 000 5 % 2.52 2.52
15
22 000 5 % 2.52 2.52
15
27 000 5 % 2.52 2.52
15
33 000 5 % 2.52 2.52
15
39 000 5 % 2.52 2.52
15
47 000 5 % 2.52 2.52
15
IND.
(nH)
TOL.
SRF DCR RATED DC
MIN. MAX. CURRENT
(mA)
(MHz)
)
6000 0.06
1000
5500 0.06
1000
5500 0.06
1000
4300 0.08
1000
3600 0.08
1000
2700 0.08
1000
2700 0.10
1000
2500 0.10
1000
1800 0.10
1000
1700 0.10
1000
1500 0.10
1000
1500 0.10
1000
1350 0.12
1000
1300 0.15
1000
1100 0.18
1000
1100 0.18
1000
950
0.20
800
880
0.22
800
800
0.33
800
730
0.45
800
650
0.75
600
570
0.90
500
530
1.06
470
480
1.17
420
430
1.50
310
380
2.06
230
360
2.20
200
350
2.30
180
330
3.18
150
310
3.30
120
280
1.30
230
250
1.65
220
200
2.20
210
160
2.35
200
130
2.60
195
80
2.85
185
50
4.00
180
45
4.30
175
42
2.60
170
39
2.80
165
36
3.05
160
33
3.50
150
30
3.60
140
26
4.00
130
24
4.50
120
22
5.00
110
21
6.00
95
20
6.50
85
18
8.50
60
17
14.00
45
ELECTRICAL SPECIFICATIONS
Inductance Range:
3.3 nH to 47 000 nH
Inductance and Tolerance:
0.3 nH for 3.3 nH
± 5 % for 6.8 nH to 47 000 nH
Operating Temperature:
-40 °C to +125 °C
Core Material:
Ceramic from 3.3 nH to 1000 nH
Ferrite from 1200 nH to 47 000 nH
TEST EQUIPMENT
• Inductance and Q measured on HP4286A
• SRF measured on HP8753D
DIMENSIONS
in inches [millimeters]
0.098 ± 0.012
[2.50 ± 0.3]
0.079 ± 0.012
[2.00 ± 0.3]
0.020 ± 0.008
[0.50 ± 0.2]
0.02
[0.5]
0.063 ± 0.012
[1.60 ± 0.3]
DESCRIPTION
IMC-1008
MODEL
10 nH
INDUCTANCE VALUE
±5%
INDUCTANCE TOLERANCE
ER
PACKAGE CODE
e4
(1)
JEDEC
®
LEAD (Pb)-FREE STANDARD
Note
(1)
For parts within 3.3 nH to 910 nH please use e4 for JEDEC lead (Pb)-free standard. For parts within 1000 nH to 47 000 nH please use e3 for
JEDEC lead (Pb)-free standard.
GLOBAL PART NUMBER
I
M
PRODUCT
FAMILY
Revision: 08-Jan-15
C
1
0
SIZE
0
8
E
R
1
0
N
J
TOL.
PACKAGE
CODE
INDUCTANCE
VALUE
Document Number: 34041
1
For technical questions, contact:
magnetics@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
