MHI0402C3N3ST-T datasheet, PDF

Datasheet> All Categories > Passive components> inductor> MHI0402C3N3ST-T

MHI0402C3N3ST-T: DescriptionFixed Inductors 0402 Package 3.3 nH; CategoryPassive components inductor; File Size494KB，4 Pages; ManufacturerAEM [ American Electronic Materials]; Environmental Compliance

Download Datasheet Parametric View All

MHI0402C3N3ST-T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MHI0402C3N3ST-T	-	-	View	Buy Now

MHI0402C3N3ST-T Overview

Fixed Inductors 0402 Package 3.3 nH

MHI0402C3N3ST-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AEM [ American Electronic Materials]
package instruction	0402
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	0402
structure	Multilayer Chip
core material	Ceramic
DC Resistance	0.22 Ω
Nominal inductance(L)	0.0033 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	0.5 mm
Package length	1 mm
Package form	SMT
Package width	0.5 mm
method of packing	TR
Minimum quality factor (at nominal inductance)	8
Maximum rated current	0.3 A
self resonant frequency	6000 MHz
series	MHI
Base Number Matches	1

Preview

Download Datasheet

View All

AEM Components Co., Ltd

Multilayer Ceramic Inductors

Features



Monolithic structure with high reliability

Standard EIA/EIAJ chip sizes such as 0402/1005 and 0603/1608

High quality ceramic material and unique manufacturing processes

providing high Q at high frequencies and high self-resonant

frequencies

Superior termination bonding strength

Nickel barrier with solder overplated termination offering excellent

solderability and solder leach resistance, suitable for both wave

and reflow soldering processes

Operating Temperature

-40º — +125º

Product Identification

MHI 0603 C 1N8 S T - T

(1) (2) (3) (4) (5) (6) (7)

(1)

(2)

(3)

(4)

Series code :

MHI: Multilayer Ceramic Inductor

Dimensions: L x W inches

The first two digits: L (length)

The last two digits: W (width)

Characteristic code: C

Value code: Inductance

N — decimal point for nH

Example: 1N8 = 1.8 nH

R — decimal point for µH (1000 nH)

Example: R12 = 0.12 µH = 120 nH

Tolerance code:

J =±

K =±

10%

S = ± nH

0.3

Package code:

T = Tape & Reel

B = Bulk

Termination plating code:

T = 100% Sn plating Terminations

(Sn/Pb plating no longer available)

Applications



High frequency equipment including cellular phones, pagers, radar

detectors, computer communications, etc

(5)

Recommended PC Board Land Patterns

CHIP SIZE

EIA/EIAJ

0402(1005)

0603(1608)

INCH (mm)

0.063 (1.60)

0.102 (2.60)

INCH (mm)

0.016 (0.40)

0.022 (0.55)

INCH (mm)

0.024 (0.60)

0.037 (0.94)

(6)

(7)

Shape and Dimensions

SILVER

METALLIZATION

SOLDER

NICKEL

ELECTRODE

SIZE

EIA/EIAJ

0402/1005

0603/1608

LENGTH (L)

INCH (mm)

0.039 ± 0.004

(1.00 ± 0.10)

0.063 ± 0.006

(1.60 ± 0.15)

WIDTH (W)

INCH (mm)

0.020 ± 0.004

(0.50 ± 0.10)

0.031 ± 0.006

(0.80 ± 0.15)

THICKNESS (T)

INCH (mm)

0.020 ± 0.004

(0.50 ± 0.10)

0.031 ± 0.006

(0.80 ± 0.15)

TERMINATION (BW)

INCH (mm)

0.010± 0.004

(0.25 ± 0.10)

0.014 ± 0.006

(0.36 ± 0.15)

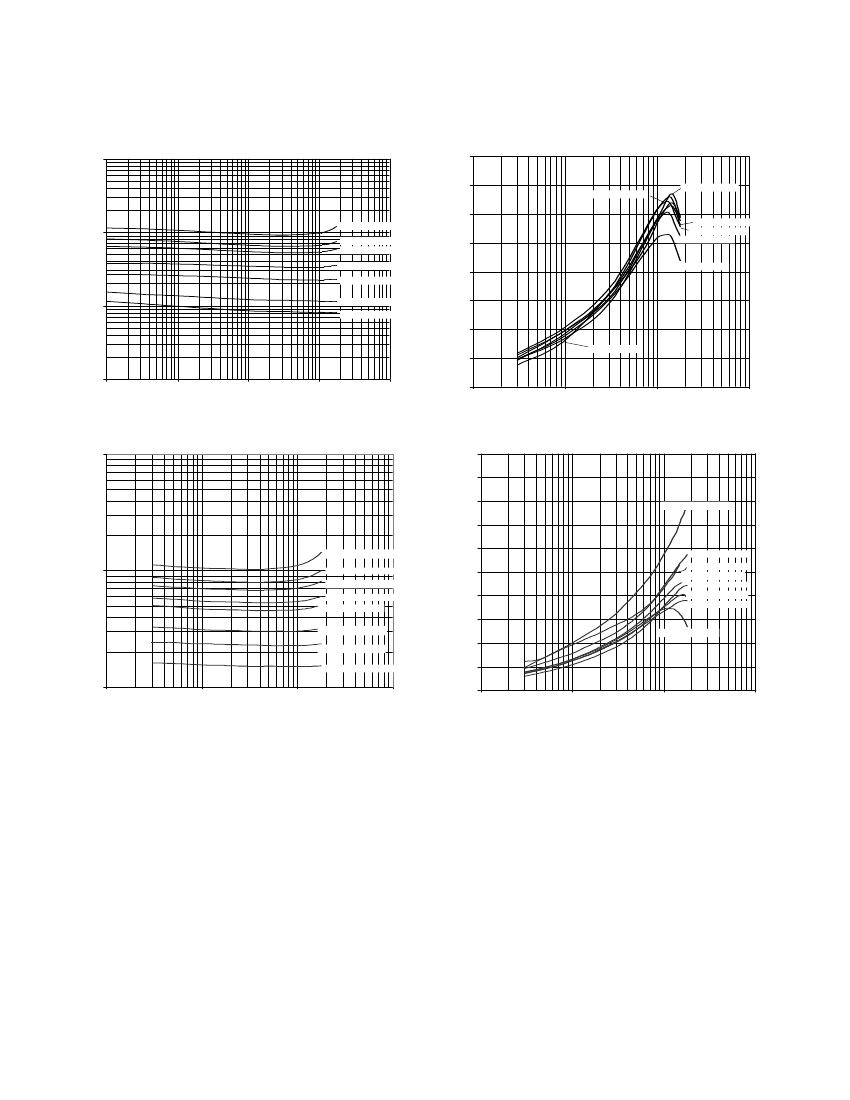

458 Shenhu Road, Suzhou Industrial Park Jiangsu, P.R. China

www.aemchina.com

Phone: 86-512-62580028, Fax: 86-512-62580018
