Miniature PCB / QC Power Relay
HG4138B
TYPICAL APPLICATIONS
Power supply device
Industrial control
Home appliances
Heating, refrigeration, ventilation
FEATURES
30A switching capacity
PCB + QC termination
Meets UL508 and UL873
spacing requirements
CONTACT RATING
Form
240VAC
Rated Load
28VDC
Max. Switching Current
Max. Switching Voltage
Max. Continuous Current
Max. Switching Power
Min. Load
1 Form A (1H)
30A
30A
30A
30A
8.31KVA
900W
1 Form B (1D)
1 Form C (1Z)
NC
10A
10A
10A
10A
2.77KVA
300W
NO
15A
20A
20A
10A
20A
15A
277VAC/30VDC
15A
20A
4.155KVA
5.54KVA
450W
600W
1A, 5VDC/12VAC
UL/CSA RATING
Load Type
General Purpose
Resistive
Motor
LRA/FLA
Tungsten
Ballast
Voltage
240VAC
240VAC
28VDC
240VAC
120VAC
240VAC
120VAC
120VAC
277VAC
1 Form A (1H)
30A
30A
20A
2HP
1HP
80A /30A
98A /22A
TV5
10A
1 Form B (1D)
15A
15A
10A
0.5HP
0.25HP
30A/10A
TV3
3A
1 Form C (1Z)
NO
NC
20A
10A
10A
20A
20A
10A
2HP
0.5HP
0.25HP
1HP
50A /20A
TV5
10A
20A/7A
TV3
3A
CONTACT DATA
Material
Initial Contact Resistance
Service Life
Mechanical
Electrical
AgCdO, AgSnOInO
50 mΩ, max. at 0.1A, 6VDC
10
7
ops.
10
5
ops.
COIL DATA
Coil Voltage
Code
005
006
009
012
024
048
110
Nominal Voltage
(VDC)
5
6
9
12
24
48
110
Resistance
(Ω) ±10%
27
40
97
155
660
2560
10330
Must Operate
Voltage max.
(VDC)
3.75
4.50
6.75
9.00
18.00
36.00
82.50
Must Release
Voltage min.
(VDC)
0.5
0.6
0.9
1.2
2.4
4.8
11.0
CHARACTERISTICS
Operate Time
Release Time
Insulation Resistance
Dielectric Strength
Shock Resistance
Vibration Resistance
Power Consumption
Ambient Temperature
Weight
15 ms. typical
10 ms. typical
1000 MΩ, at 500VDC, 50%RH
1500 Vrms, 1 min. between open contacts
2500 Vrms, 1 min. between coil and contacts
10 g, 11ms, functional; 100 g, destructive
DA 1.5mm. 10 - 55 Hz
0.9W, approx.
-55 to 85ºC operating, -40 to 130ºC storage
30 g, approx.
HG4138B
1/2
HG4138B
ORDERING DESIGNATION
Example:
HG4138B /
012 -
1Z
0
1
F
Model
Coil Voltage Code
Contact Form
1H: 1 Form A; 1D: 1 Form B; 1Z: 1 Form C
Mounting Version
0: PCB Mount
Version
1: Sealed; 2: Dust Cover
Thermal Class
Nil: UL Class B; F: UL Class F

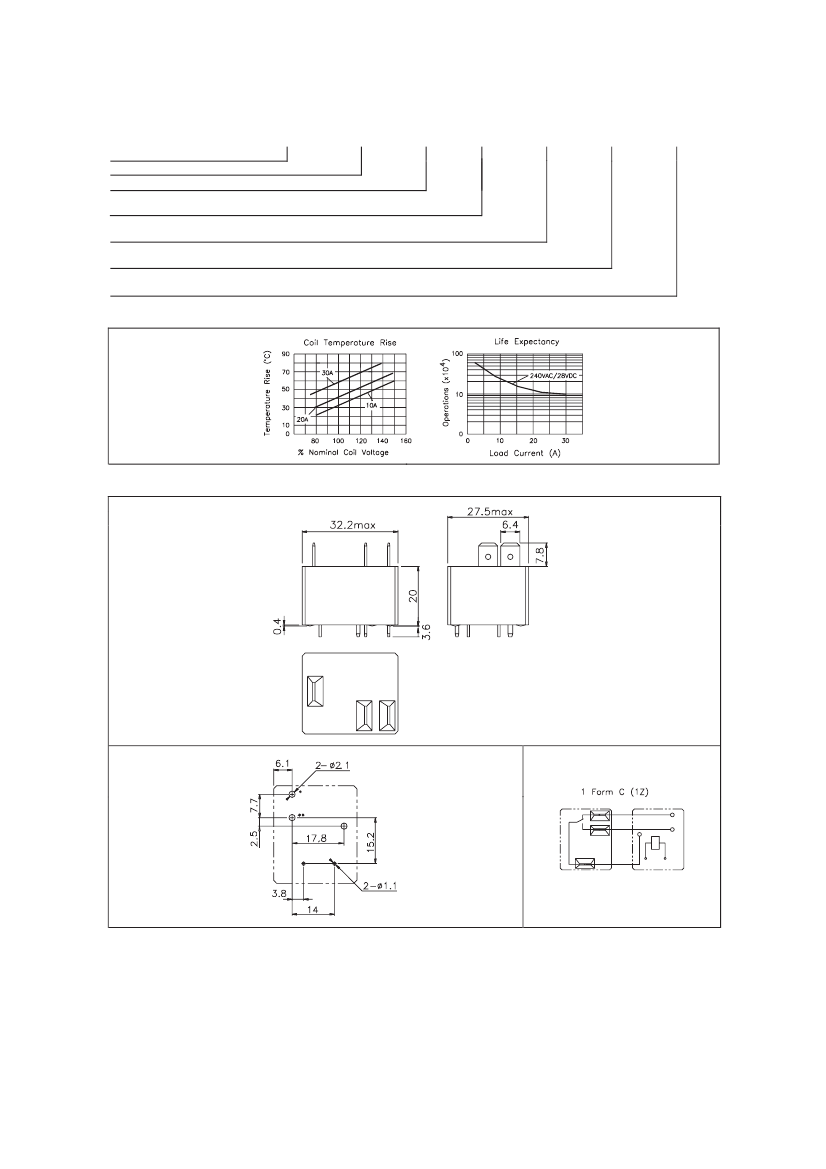

REFERENCE CURVES
OVERALL DIMENSIONS, MOUNTING HOLES AND WIRING DIAGRAM (mm)
Overall Dimensions
COM
NO
NC
Mounting Holes (Bottom View)
Wiring Diagram (Top View)
NOTES
1.
2.
3.
4.
5.
All parameters, unless otherwise specified, are measured at ambient temperature 23ºC.
In mounting holes drawing, the * holes is not needed for 1 Form A, the ** hole is not needed for 1 Form B.
To exert optimum electrical life, please remove the tape of sealed version after cleaning process.
Custom-made services available with operational quantity. Please let us know your special requirements.
Specifications subject to change without prior notice.
HG4138B
2/2
