HG4100/006-1HS: DescriptionSubminiature PCB Telecom Relay; File Size52KB，2 Pages; ManufacturerDBLECTRO; Websitehttp://www.dblectro.com

Download Datasheet View All

HG4100/006-1HS Overview

Subminiature PCB Telecom Relay

HG4100/006-1HS Preview

Subminiature PCB Telecom Relay

FEATURES

HG4100

Small size, light weight

DIL pitch PCB mounting

3 coil sensitivity type for choice

High performance/cost ratio

TYPICAL APPLICATIONS

Computer peripherals

Data exchange systems

Home appliances

Acoustic control toys

CONTACT RATING

Form

Resistive

Max. Switching Current

Min. Load

1 Form C (Z)

1A, 120VAC/24VDC

5A, 120VAC/24VDC (S)

5A (S)

1 mA, 1 VDC

CONTACT DATA

Material

Initial Contact Resistance

Mechanical

Service Life

Electrical

Ag, Au plated Ag

100 mΩ max. at 0.1A 6VDC

ops.

UL/CSA RATING

Form

Resistive

1 Form C (Z)

1A, 120VAC/24VDC

5A, 120VAC/24VDC (Pending)

COIL DATA

Coil Voltage

Code

Nominal

Voltage

(VDC)

Sensitivity B

003

005

006

009

012

024

180

320

1280

Resistance (Ω) ±10%

Power Consumption

Standard

100

220

400

1600

Sensitivity H

120

180

440

700

2800

Must Operate

Voltage max.

(VDC)

2.25

3.75

4.50

6.75

9.00

18.00

Must Release

Voltage min.

(VDC)

0.3

0.5

0.6

0.9

1.2

2.4

0.45W

0.36W

0.2W

CHARACTERISTICS

Operate Time

Release Time

Insulation Resistance

Dielectric Strength

Surge Resistance

Shock Resistance

Vibration Resistance

Ambient Temperature

Weight

5 ms. max.

100 MΩ, at 500 VDC, 50%RH

1250 Vrms, 1 min. between coil and contacts

500 Vrms, 1 min. between open contacts; 750 Vrms, 1 min for S version

1500 V, between coil and contacts (FCC Part 68)

10g, 11ms. functional; 100g, destructive

DA 1.5mm, 10 - 55Hz

-25ºC to 55ºC

4g, approx.

ORDERING DESIGNATION

Example:

Model

Footprint

HG4100: Regular

HG4100B: Special

Coil Voltage Code

Version

1: Sealed ; 2: Flux Free

Coil Sensitivity

Nil: Standard 0.36W; B: 0.45W; H: 0.2W

Duty Version

Nil: 2A; S: 5A

HG4100

012 -

HG4100

1/2

HG4100

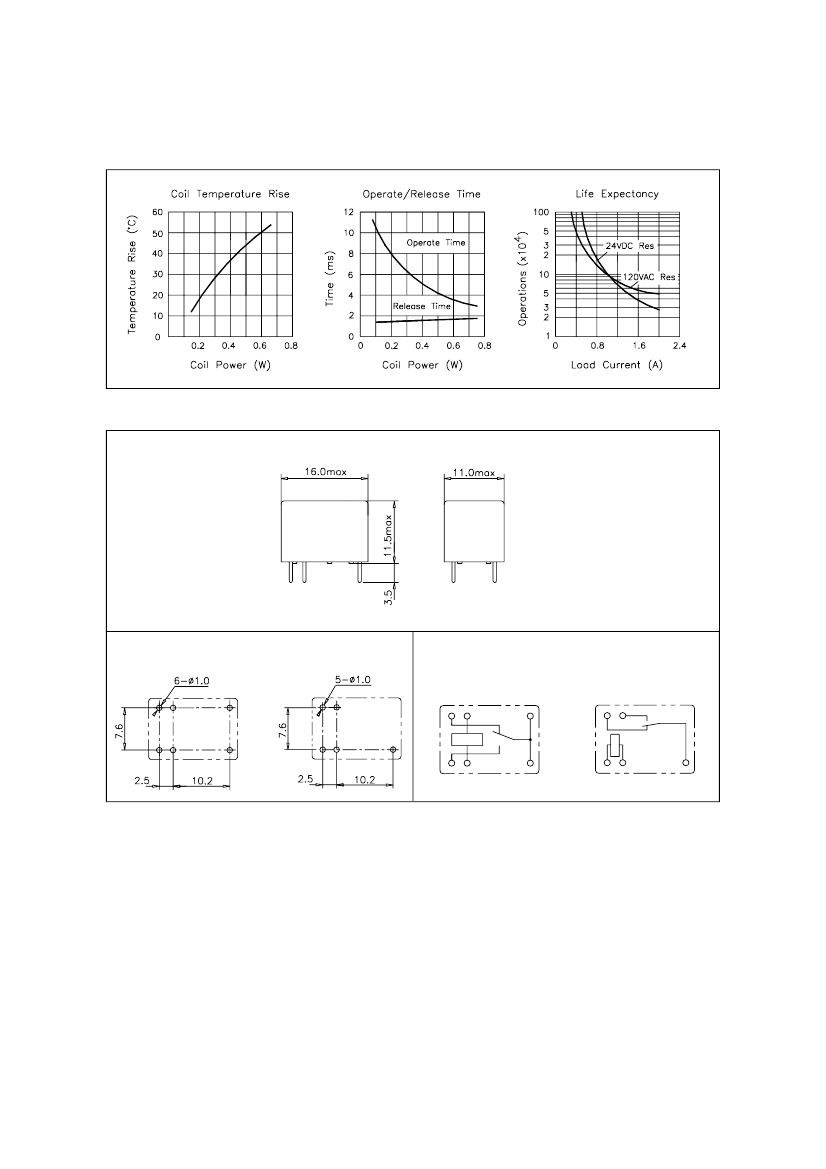

REFERENCE CURVES

OVERALL DIMENSIONS, MOUNTING HOLES AND WIRING DIAGRAMS (mm)

Overall Dimensions

Mounting Holes (Bottom View)

Wiring Diagrams (Bottom View)

HG4100

HG4100B

HG4100

HG4100B

NOTES

All parameters, unless otherwise specified, are measured at ambient temperature 23ºC.

Custom-made services available with operational quantity. Please let us know your special requirements.

Specifications subject to change without prior notice.

HG4100

2/2

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
