ULTRA LOW PROFILE UNSHIELDED SMD CHIP POWER INDUCTOR
ASPI-0309
FEATURES:
• Ideal for design development
• Low DCR
• High reliability to mechanical stress
• Suitable for RoHS reflow profile
Pb
RoHS
Compliant
3.0 x 3.0 x 0.8mm
APPLICATIONS:
• Mobile phones
• MP3 & 4 and other portable
communication equipment
• Digital cameras
• Engineering tests
ELECTRICAL SPECIFICATIONS:
Abracon P/N:
Operating Temperature & Humidity
Storage Temperature
& Humidity:
:
ASPI-0309 Series
-30°C to +100°C, 5% to
85%
RH. Please avoid moisture
due
to the
humidity.
-20°C to +60°C, 5% to
85%
RH. Please avoid moisture
due
to the
humidity.
Part Number
Units
Symbol
ASPI-0309-2R2M
ASPI-0309-3R3M
ASPI-0309-4R7M
ASPI-0309-100M
ASPI-0309-220M
ASPI-0309-330M
ASPI-0309-470M
Inductance
μH±20%
L
2.2
3.3
4.7
10
22
33
47
DCR
mΩ±20%
DCR
170
260
340
640
1930
2600
3300
Saturation
Current
A
Isat*
0.98
0.78
0.65
0.43
0.30
0.25
0.21
Temperature
Rise Current
A
Irms*
1.00
0.82
0.72
0.55
0.29
0.25
0.22
Marking
-
-
E
G
H
M
P
Q
R
*The rated current is subject
to
change depending upon the temperature cooling condition.
Test Conditions
Inductance:
DCR:
Isat:
Irms:
100kHz,0.3V, Ta=20°C
Ta=20°C
∆L/L (initial) ≥ -30%
∆T ≤ 40°C
OPTIONS AND PART IDENTIFICATION
ASPI- 0309
-
Inductance Code
Please refer
to
the
table above
-
Packaging
T: Tape and Reel
(1kpcs / reel)
T4:
Tape and Reel
(4kpcs / reel)
ABRACON IS
ISO9001:2008
CE
RTIFIED
、
Revised: 03.24.11
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit
www.abracon.com
for Terms & Conditions of Sale
ULTRA LOW PROFILE UNSHIELDED SMD CHIP POWER INDUCTOR
ASPI-0309

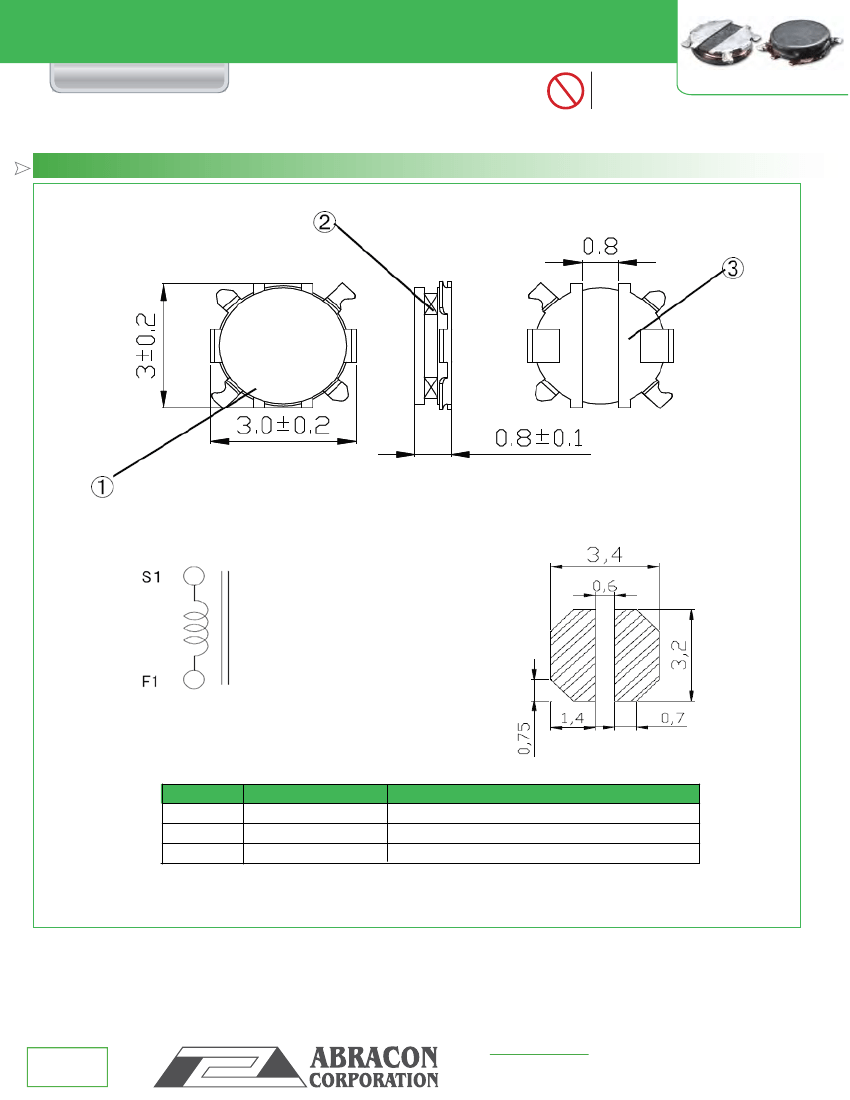

OUTLINE DRAWING:
Mechanical Dimensions
Pb
RoHS
Compliant
3.0 x 3.0 x 0.8mm
XXX
Circuit Schematic
Recommended Land Pattern
No
1
2
3
Part Name
Drum core
Coil
Terminals/Solder
Material
Ni-Zn Ferrite
Cu/Class H Polyurethane Enameled
Copper Alloy/Pb free solder +
Dimension: mm
ABRACON IS
ISO9001:2008
CE RTIFIED
、
Revised: 03.24.11
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit
www.abracon.com
for Terms & Conditions of Sale
ULTRA LOW PROFILE UNSHIELDED SMD CHIP POWER INDUCTOR
ASPI-0309

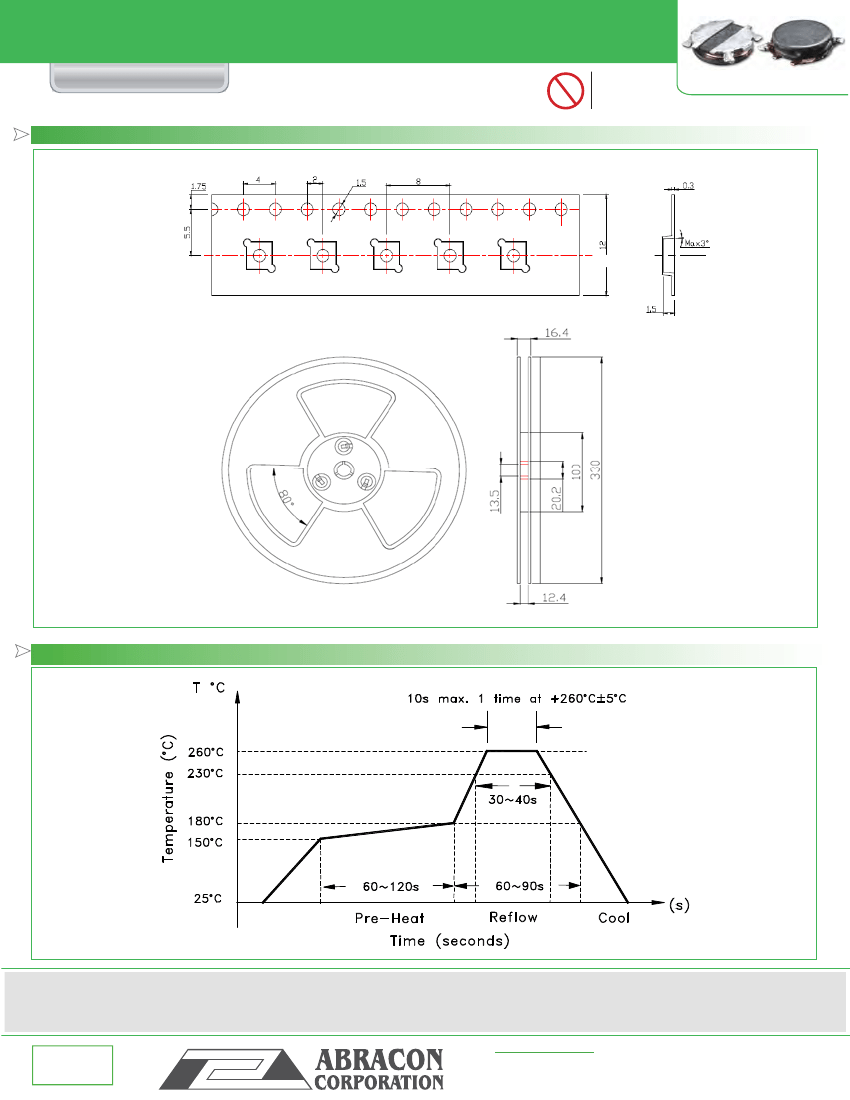

TAPE & REEL:
T: 1,000pcs / reel
T4: 4,000pcs / reel
Pb
RoHS
Compliant
3.0 x 3.0 x 0.8mm
Dimension: mm
REFLOW PROFILE:
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automo-
tive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requir-
ing high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme
operating environment, written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.
