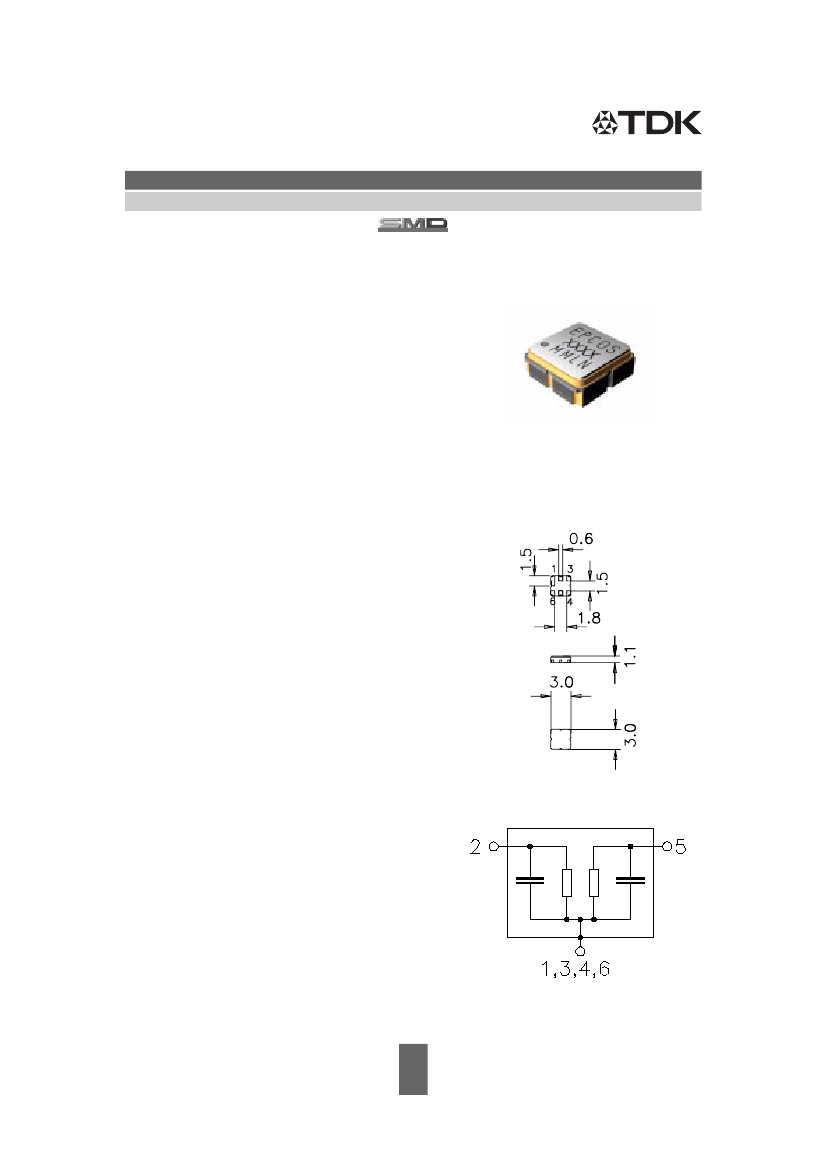

SAW Components
SAW RF filter
Data sheet
Application
s
s
s
s
B5159
1747.5 MHz
RF filter for LTE base station
Usable passband 75 MHz
High rejection in upper stopband
Unbalanced operation
Features
s
s
s
s
s
s
s
s
s
Package size 3.0 x 3.0 x 1.10 mm
3
Package code DCC6C
RoHS compatible
Approximate weight 0.037 g
Ceramic Package for
Surface Mount Technology
(SMT)
Ni, gold-plated terminals
Electrostatic Sensitive Device
(ESD)
Filter surface passivated
Moisture Sensitivity Level 1
Pin configuration
s
2
s
5
s
1, 3, 4, 6
Input
Output
To be grounded
Please read
cautions and warnings and
important notes
at the end of this document.
2
February 15, 2012
SAW Components
SAW RF filter
Data sheet
Characteristics
Temperature range for specification:
Terminating source impedance:
Terminating load impedance:
B5159
1747.5 MHz
T = –33 ˚C to +100 ˚C
Z
S
=
50
Ω
unbalanced and matching network
Z
L
=
50
Ω
unbalanced and matching network
min.
typ.
@ 25 ˚C
1747.5
2.2
max.
—
3.3
MHz
dB
Nominal frequency
Maximum insertion attenuation
(including matching network)
Amplitude ripple
(p-p)
1710 ... 1785 MHz
1710 ... 1785 MHz
(in any contiguous 5MHz band)
Group delay ripple
(p-p)
1710 ... 1785 MHz
Phase ripple
(p-p)
1710 ... 1785 MHz
Error vector magnitude
1)
1710 ... 1785 MHz
Absolute group delay
1710 ... 1785 MHz
Relative attenuation
(relative to
α
max
)
70 ... 110 MHz
300 ... 400 MHz
852 ... 1291 MHz
1205 ... 1250 MHz
1372 ... 1603 MHz
1603 ... 1681 MHz
1885 ... 1960 MHz
2110 ... 2170 MHz
2422 ... 2507 MHz
3775 ... 3915 MHz
4295 ... 4942 MHz
f
N
α
max
∆α
—
—
—
—
∆τ
—
∆ϕ
—
EVM
—
τ
—
α
rel
30
30
25
30
25
10
20
25
45
25
15
0.3
0.1
1.2
0.8
dB
dB
6
20
ns
12
—
°
0.2
1.0
2)
%
13
20
ns
78
61
44
45
34
17
31
48
52
66
50
—
—
—
—
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
