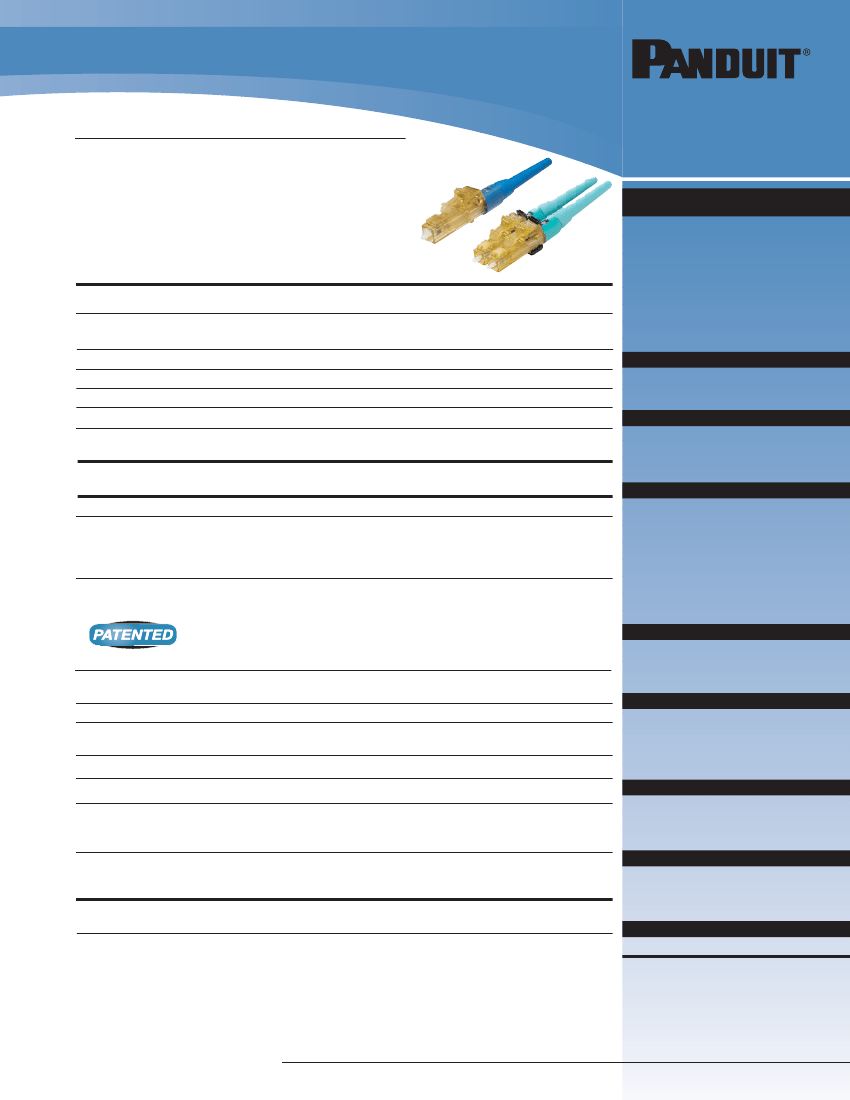

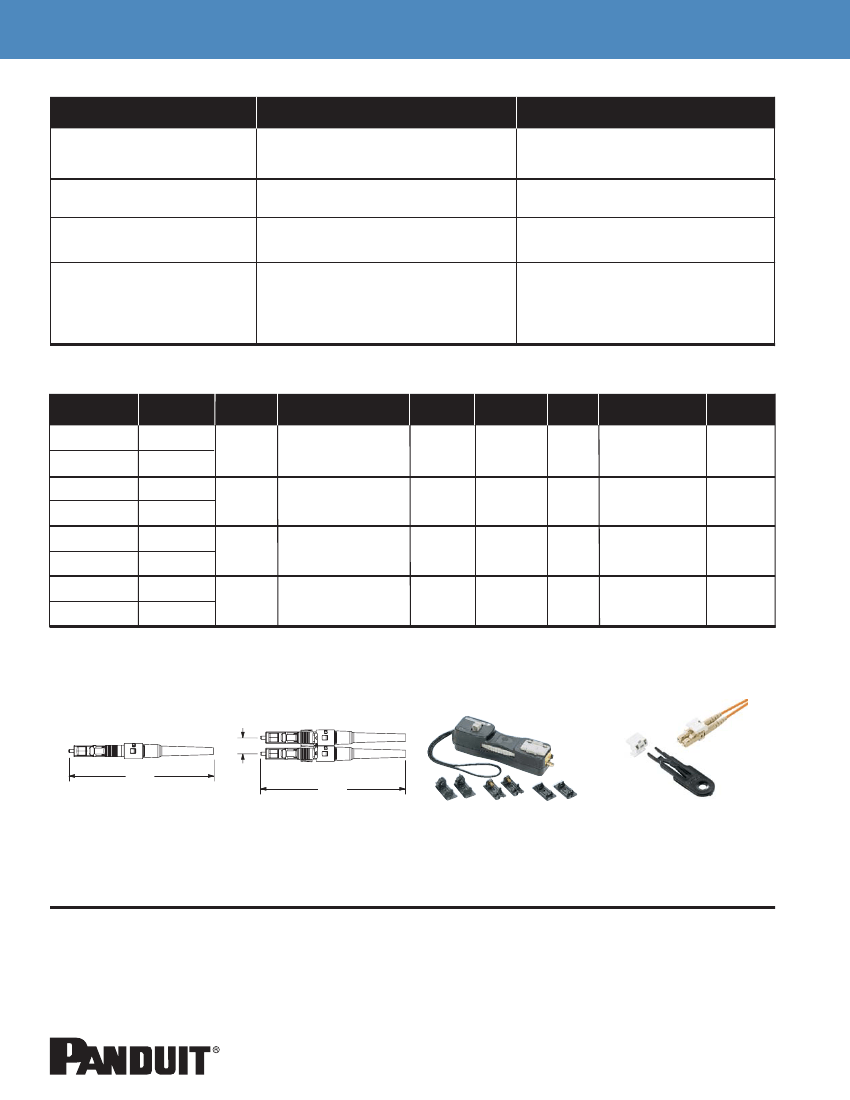

LC OptiCam
®
Pre-Polished Fiber Optic Connectors
SPECIFICATION SHEET
specifications
LC small form factor (SFF) pre-polished connectors with rear pivot
latch shall be TIA/EIA-604 FOCIS-10 compatible and contain a
factory-terminated fiber, eliminating field polishing and adhesive.
LC pre-polished connectors shall have an average insertion loss
of 0.3dB per mated pair for multimode and singlemode fiber.
LC pre-polished connectors shall captivate fiber and buffer in one
action allowing for up to two re-terminations with no degradation
in performance.
technical information
Standards requirements:
Fiber compatibility:
Fiber cable type:
Fiber cable size:
Ferrule type:
Insertion loss:
Return loss:
TIA/EIA-604 FOCIS-10 compatible; exceeds
TIA/EIA-568-B.3 requirements
62.5/125µm OM1, 50/125µm OM2, 10Gig
™
50/125µm
laser optimized OM3/OM4 and 9/125µm OS1/OS2
900µm tight-buffered cable only
1.6mm – 2.0mm and 3.0mm jacketed cable with optional boots
Zirconia ceramic with a pre-polished fiber stub
Ceramic: 0.3dB average (multimode and singlemode)
Ceramic: >20dB (multimode), >26dB (10Gig
™
multimode),
>50dB (singlemode)
LC OptiCam
®
Pre-Polished Connectors
with Zirconia Ceramic Ferrules
10Gig
™
50/125µm (laser
optimized) simplex:
FLCSMCXAQY
▲
10Gig
™
50/125µm (laser
optimized) duplex:
FLCDMCXAQY
50/125µm simplex:
FLCSMC5BLY
▲
50/125µm duplex:
FLCDMC5BLY
62.5/125µm simplex:
FLCSMC6BLY
▲
62.5/125µm duplex:
FLCDMC6BLY
9/125µm simplex:
FLCSSCBUY
▲
9/125µm duplex:
FLCDSCBUY
OptiCam
®
1.6/2.0mm Boots
10Gig
™
multimode (aqua):
FMCBT2AQ-X*
Multimode (black):
FMCBT2BL-X
Singlemode (blue):
FSCBT2BU-X
OptiCam
®
3.0mm Boots
10Gig
™
multimode (aqua):
FMCBT3AQ-X*
Multimode (black):
FMCBT3BL-X
Singlemode (blue):
FSCBT3BU-X
*X = Bag of 10 Boots; 100 per carton.
key features and benefits
LC OptiCam
®
Connectors
Factory pre-polished fiber
stub endface
Eliminates inconsistent and time-consuming field polishing to deliver
required optical performance; reduces termination time (less than
half the time of field polish connectors) and the number of
installation tools required
Secures both the fiber and the buffer during the camming step to
facilitate consistent termination results; reduces the termination time
compared to conventional termination methods
Allows up to two re-terminations to achieve optimum termination
results; reduces the number of rejected connectors and terminations
to provide yield rates approaching 100% for lower installed costs
Dual cam design with
fiber and buffer clamps
OptiCam
®
Termination Tooling
OptiCam
®
Termination Kit:
FCAMKIT
OptiCam
®
Conversion Kit
(upgrades Opti-Crimp
®
Kit to also terminate
OptiCam
®
Connectors):
FPPKIT-CVY
Field Polish Kit Upgrade
(upgrades Field Polish
Kit to also terminate
OptiCam
®
Connectors):
FIELDKITUPG
LC cradles (2 per pkg.):
FLCC
LC Fiber Optic Adapters
10Gig
™
multimode:
FADJLCAQ-L*
Multimode:
FADJLCEI-L
Singlemode:
FADJLCZBU-L
*L = Bag of 50 adapters; 100 per carton.
Translucent
housing assembly
Non-optical disconnect
Facilitates inspection of the fiber termination quality; results in rapid
installations, improved termination yields, and lower installed costs
Maintains data transmission under tensile loads for jacketed cable
Mechanical cable retention
Consistently provides higher than industry standard cable retention;
requires no adhesive, speeding installation
Zirconia ceramic ferrules
Provide the highest durability for repeated matings
Mini-Com
®
LC Adapter Modules
10Gig
™
multimode:
CMDJAQLC**
Multimode:
CMDJEILC**
Singlemode:
CMDJLCZBU
**Substitute for module color: EI = Electric Ivory,
BU = Blue, BL = Black, IW = Off White,
AW = Arctic White
OptiCam
®
Termination Tool
Universal termination tool
Secures both fiber and buffer in one action for all OptiCam
®
Connectors with connector specific cradles (included); ensures
fast, consistent, and optimal terminations
Opticom
®
LC Fiber Adapter Panels
6 duplex MM adapters:
FAP6WEIDLC
6 duplex SM adapters:
FAP6WBUDLCZ
12 duplex MM adapters:
FAP12WEIDLC
12 simplex SM adapters:
FAP12WBULCZ
Opti-Core
®
LC Patch Cords
Duplex LC to LC:
F^E10-10M‡Y
Simplex LC to LC:
F^F10-10M‡Y
Duplex SC to LC:
F^E3-10M‡Y
Simplex SC to LC:
F^F3-10M‡Y
LC Lock-in Duplex Clip
LC lock-in duplex clip:
FLCCLIW-X
▲
Add -C to simplex connector part numbers
for bulk packs of 100 connectors.
^Substitute for fiber type: 6 = 62.5/125µm OM1,
5 = 50/125µm OM2, X = 10Gig
™
50/125µm
OM3/OM4 or 9 = 9/125µm OS1/OS2.
‡Substitute for length in meters: 1, 2, 3, 5 or 10.
Contact Customer Service for other available lengths.
Integrated visual
Offers visual indication of proper termination after the cam step
termination indicator (VTI)
has been completed; virtually eliminates operator error to deliver
a lower installed cost
applications
LC fiber optic connectors are widely used in fiber
optic backbone and horizontal applications for
high-speed data transmission. Typical
applications for LC OptiCam
®
Connectors
include maintenance or emergency restoration of
fiber networks and retrofit/initial install in both
behind-the-wall (BTW) and in the permanent side
of panelized interconnect and cross-connect.
LC OptiCam
®
Connectors eliminate the need for
end face polishing and adhesive providing easier,
faster installation, especially in remote areas
and confined spaces. The hand-held OptiCam
®
Termination Tool gives installers the flexibility
to terminate in very close proximity to the
application without having to switch tools
or find benchtop space.
w w w. p a n d u i t . c o m
LC OptiCam
®
Pre-Polished Fiber Optic Connectors
performance information
Test Parameter
Qualification test suite
(TIA/EIA-568-B.3 requirements)
Description
Complete testing protocol per TIA/EIA-568-B.3
using TIA/EIA FOTPs that include mechanical,
environmental, and optical test sequences
Dimensional and material compliance to
TIA/EIA standards
500 mate/unmate cycles
Max. insertion loss: 0.75dB
Min. return loss: 20dB
TIA/EIA-568-B.3 requirement:
0.5 lbs. load applied with <0.5dB increase in
insertion loss after test
11.24 lbs. load applied with <0.5dB increase in
insertion loss after test
Result
Exceeds TIA/EIA-568-B.3 requirements
Connector intermatability
Repeated mating
All connectors are FOCIS compatible with
TIA/EIA-604-10
Exceeds TIA/EIA-568-B.3 test requirements:
<0.1dB additional insertion loss
Exceeds TIA/EIA-568-B.3 requirements:
1.0 lbs. avg. load applied with <0.2dB
increase in insertion loss after test
11.24 lbs. load applied with <0.1dB increase
in insertion loss after test*
Cable retention (straight pull):
900µm tight-buffered fiber
Jacketed cable
*Jacketed cable retention tensile load may vary based on specific manufacturer's jacketed cable diameter and aramid yarn count.
selection information
Part Number
FLCSMCXAQY
FLCDMCXAQY
FLCSMC5BLY
FLCDMC5BLY
FLCSMC6BLY
FLCDMC6BLY
FLCSSCBUY
FLCDSCBUY
Connector
Type
Simplex
Duplex
Simplex
Duplex
Simplex
Duplex
Simplex
Duplex
Ferrule
Material
Zirconia
Ceramic
Fiber
10 GbE 50/125µm
(laser optimized)
OM3/OM4
50/125µm OM2
Ferrule
Finish
SPC
Backbone
Color
Aqua
Boot
Color
Aqua
Average
Insertion Loss**
0.3dB
Return
Loss
>26dB
Zirconia
Ceramic
SPC
Black
Black
0.3dB
>20dB
Zirconia
Ceramic
62.5/125µm OM1
SPC
Electric
Ivory
Black
0.3dB
>20dB
Zirconia
Ceramic
9/125µm OS1/OS2
UPC
Blue
Blue
0.3dB
>50dB
**All connector insertion loss values calculated from tests taken with precision launch jumper assemblies per TIA/EIA-FOTP-171.
LC OptiCam
®
Pre-Polished
Simplex Connector
LC OptiCam
®
Pre-Polished
Duplex Connector
OptiCam
®
Termination Tool
LC Lock-In Duplex Clip
.25
[6.35]
2.23
2.23
[56.6]
(56.6)
.25
(6.35)
2.23
2.23
[56.6]
(56.6)
FLCSMC***Y
FLCDMC***Y
OCTT
(Patch cords available separately
or in termination kits)
FLCCLIW-X
***Substitute for fiber type: For multimode, insert XAQ for 10Gig
™
50/125µm, 5BL for 50/125µm, 6BL for 62.5/125µm. For singlemode, insert BU for 9/125µm, and replace M with S.
Dimensions are in inches [Dimensions in brackets are in millimeters]
WORLDWIDE SUBSIDIARIES AND SALES OFFICES
PANDUIT CANADA
Markham, Ontario
cs-cdn@panduit.com
Phone: 800.777.3300
PANDUIT EUROPE LTD.
London, UK
cs-emea@panduit.com
Phone: 44.20.8601.7200
PANDUIT SINGAPORE PTE. LTD.
Republic of Singapore
cs-ap@panduit.com
Phone: 65.6305.7575
PANDUIT JAPAN
Tokyo, Japan
cs-japan@panduit.com
Phone: 81.3.6863.6000
PANDUIT LATIN AMERICA
Jalisco, Mexico
cs-la@panduit.com
Phone: 52.33.3777.6000
PANDUIT AUSTRALIA PTY. LTD.
Victoria, Australia
cs-aus@panduit.com
Phone: 61.3.9794.9020
For a copy of Panduit product warranties, log on to www.panduit.com/warranty
For more information
Visit us at www.panduit.com
Contact Customer Service by email: cs@panduit.com
or by phone: 800-777-3300 and reference FBSP19
©2009 Panduit Corp.
ALL RIGHTS RESERVED.
WW-FBSP19
9/2009
