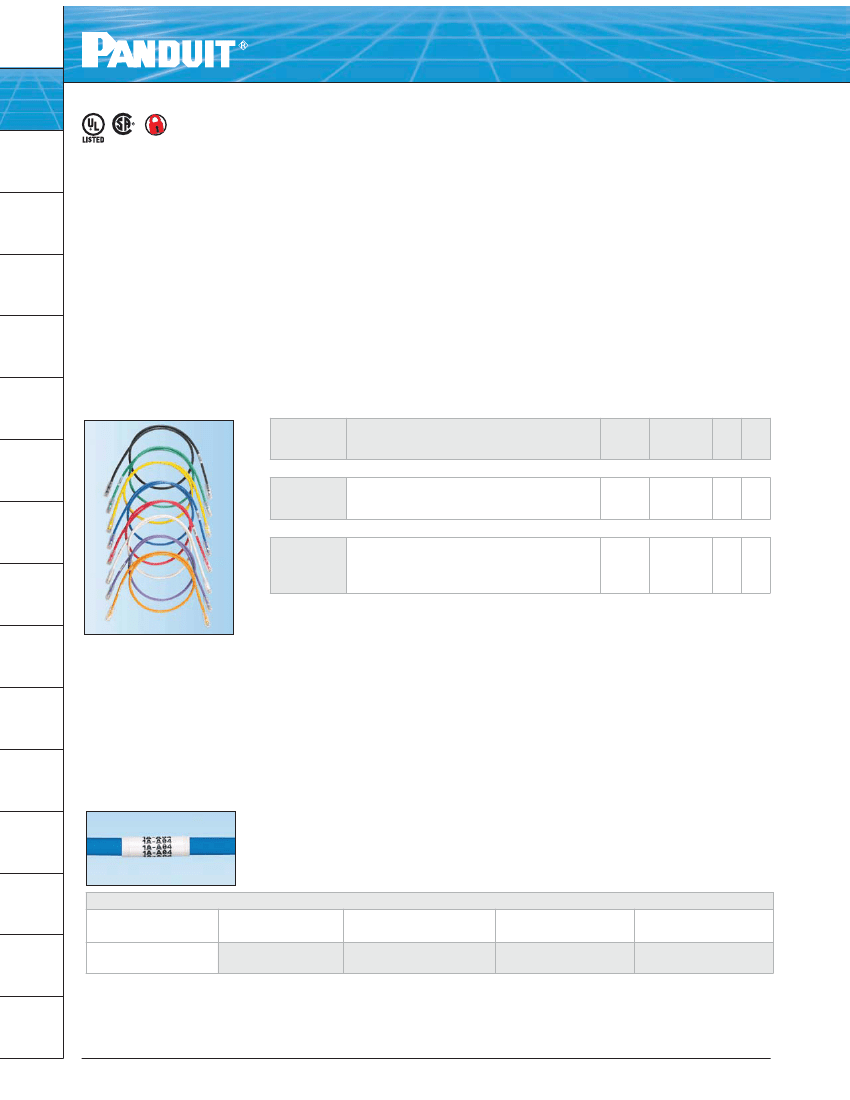

A.
System
Overview
PHYSICAL INFRASTRUCTURE SYSTEMS
TX6
™
PLUS UTP Patch Cords
B.
Copper
Systems
C.
Fiber
Optic
Systems
D.
Power
over
Ethernet
E.
Zone
Cabling
F.
Wireless
G.
Outlets
• Exceed ANSI/TIA-568-C.2 Category 6 and ISO 11801
Class E standards
• Meet requirements of IEEE 802.3af and IEEE 802.3at for
PoE applications
• Each patch cord is 100% performance tested and
wired T568B
• Color-coded, keyed modular plugs mechanically and
visually distinguish connections to prevent unintentional
mating with unlike keyed or non-keyed jack modules
accommodating more discrete networks
• Constructed of Category 6, 24 AWG UTP stranded cable
and TX6
™
PLUS Modular Plugs; plug contacts plated with
50 microinches of gold for superior performance
• Plug meets all applicable ANSI/TIA/EIA-968-A
requirements and exceeds IEC 60603-7 specifications
• Slender strain relief boot provides easy access in high
density applications
• Plug uses an integral pair manager to optimize
performance and consistency by reducing untwisting of
conductors within the plug
• Perform in center of TIA/EIA component range, ensuring
interoperability and excellent performance
• Labels on patch cords provide identification of
performance level, length, and quality control number
• Patented tangle-free latch prevents snags and provides
easy release, saving time on frequent moves, adds,
and changes
• Optional patch cord color bands snap on and off individual
patch cables offering endless color-coding options
• Optional RJ45 plug lock-in device blocks unauthorized
removal of cable, IP phone, other networking equipment,
or critical connection
• Third party tested for Category 6 component compliance
H.
Media
Distribution
I.
Physical
Infrastructure
Management
J.
Overhead &
Underfloor
Routing
K.
Surface
Raceway
L.
Cabinets,
Racks &
Cable
Management
M.
Grounding &
Bonding
Part Number
Part Description
Category 6, UTP patch cord with TX6
™
PLUS
Modular Plugs on each end.
Length
(Ft.)
3
Cable
Color
Off White
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
10
Non-Keyed Patch Cord
UTPSP3Y‡
Keyed Patch Cord
UTPKSP3BL*
Keyed, Category 6, UTP patch cord with TX6
™
PLUS Keyed Modular Plug on one end and
TX6
™
PLUS Non-Keyed Modular Plug on the
other end.
3
Black
1
10
‡For lengths 1 to 20 feet (increments of one foot) and 25, 30, 35, 40 feet change the length designation in the part
number to the desired length. For standard cable colors other than Off White, add suffix BL (Black), BU (Blue), GR
(Green), RD (Red), YL (Yellow), OR (Orange), or VL (Violet) before Y at the end of the part number. For example,
the part number for a blue 15-foot patch cord is UTPSP15BUY.
*For lengths other than 3 feet (5, 7, 10, 14 feet) change the length designation in the part number to the desired
length. For standard cable colors other than Black, replace suffix BL (Black) with BU (Blue), RD (Red), YL (Yellow),
GR (Green), or OR (Orange), each color representing a different keyed configuration.
Contact customer service for universal reference patch cords.
Patch cord color bands available on page B.91
of SA-NCCB51.
RJ45 plug lock-in device available on page B.89
of SA-NCCB51.
To ensure optimal performance, Panduit recommends use with other Panduit TX6
™
PLUS components.
Labels for TX6
™
PLUS UTP Patch Cords
N.
Industrial
O.
Labeling &
Identification
P.
Cable
Management
Accessories
Suggested Label Solutions for TIA/EIA-606-A Compliance
Patch Cord
Part Number
All Patch Cords
Laser/Ink Jet Desktop TDP43ME Thermal Transfer
PanTher
™
LS8E
Printer Label
Desktop Printer Label
Hand-Held Printer Label
S100X150YAJ
S100X150VATY
S100X150VAC
Cougar
™
LS9
Hand-Held Printer Label
T100X000CBC-BK
For complete labeling solutions and product information, reference charts on pages O.1 – O.22
of SA-NCCB51.
Q.
Index
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in
BOLD.
