Amphenol sine systems has the ability to offer many Factory Automation solutions to YoU, the consumer. With our GLoBAL
design and manufacturing presence, we are able to provide quick-turn services, no matter the project or location. With such
a large GLoBAL footprint, you can rest assured that Amphenol sine systems will be able to provide you the most cost-effective
and economical solutions for your needs.
the products in this catalog were developed in response to the need for a robust, streamlined and scalable product for
use in all robotic and material handling systems, such as: conveyors, sorting, automated storage and retrieval, packaging,
overhead transport, palletizing and any other options imaginable.
the
miniBOSS™
system is offered in 2, 3, 4, 5 and 6 position configurations. This system allows for cost-effective power and
signal distribution, utilizing UL stooW/CsA type st cable, as well as High Flex tPe jacketed UL Listed tC-eR cable.
the
microBOSS™ M12
system is offered in 3, 4, and 5 pin configurations that deliver signal to a wide variety of devices, utilizing
both UL AWM-style 2661 and CsA AWM I/II A/B cable, as well as Flex and High Flex cable options.
DeviceNet™
cables are available in static, thick and thin sizes, set to cover the many different demands in the field, utilizing
UL type CL2 or PLtC and CsA AWM I/II A/B Ft4 cable, as well as Flex and High Flex cable options.
the
PowerBOSSlite™ M35
power distribution system was developed in response to a need for a simplified and standardized
design with modular plug and play set-up, utilizing dual-rated TC-ER/STOOW cables. One of the benefits is that excessive parts
and labor costs have been eliminated, in terms of installation and maintenance, in the system. In addition,
PowerBOSSlite™
M35
system was designed to fit with other industry products of the same nature, allowing you the flexibility of choice. No lon-
ger are you tied down to one specific provider of parts.
Lastly, our
ControlPower™
line, specifically developed as a 6 pin/5 use option to support the Rockwell ArmorStart system, is
now available thru us without having to purchase directly from Rockwell Automation. this system utilizes UL Dual-rated tC-eR
stooW and CsA stooW cable.
Changes to the NFPA 79 Code
the nFPA 79 Code was changed in 2002 to state that although conductors must be run from terminal to terminal without
splices, factory applied connectors molded to cables shall be permitted and not considered splices. this reduces the chance
of mis-wiring, allows for quick replacement of cables and the use of tees for easy addition of drop cable assemblies.
It also states that conductors and their connections external to the control panel shall be totally enclosed in suitable raceways
or enclosures. But, exposed cables installed along the structure of the equipment or chassis of the machinery shall be permitted
as long as they are installed closely to follow the surface and structural members of the machinery. this permits the use
of cable assemblies to replace conduit and raceways allowing faster and more cost effective installation. Amphenol sine
Systems provides Tray Rated Exposed Run cable to you so that you benefit from this increased architectural flexibility.
the nFPA 79 code was changed in 2007 to state that single conductor and multi-conductor AWM are no longer permitted for
use on industrial machinery, unless the entire assembly is UL listed. Many reasons lead to the restriction of AWM’s use: a wide
degree of flame ratings, incorrect application, a wide degree of mechanical characteristics and NEC does not recognize it as
acceptable for wiring installation. to comply with nFPA 79 code Amphenol sine systems offers the following options: Machine
tool Wire (MtW) and tray Rated Cable (UL type tC, tC-eR and PLtC) For pre-listed machinery we offer AWM, etc.
RoHS Compliant
RoHS
All materials in our products meet the requirements of the european Directive 2002/95/eC, Issue 13.2.2003.
miniBoss
™
system ........................................................................................................................................................... 1 - 5
microBoss
™
M12 system................................................................................................................................................ 6 - 9
Devicenet
™
system .................................................................................................................................................... 10 - 13
PowerBosslite
™
M35 system ..................................................................................................................................... 14 - 18
ControlPower
™
system ............................................................................................................................................... 19 - 22
Armorstart is a trademark of Rockwell Automation Inc. All rights reserved. / Devicenet™ is a trademark of oDVA. All rights reserved.
www.sineco.com
2

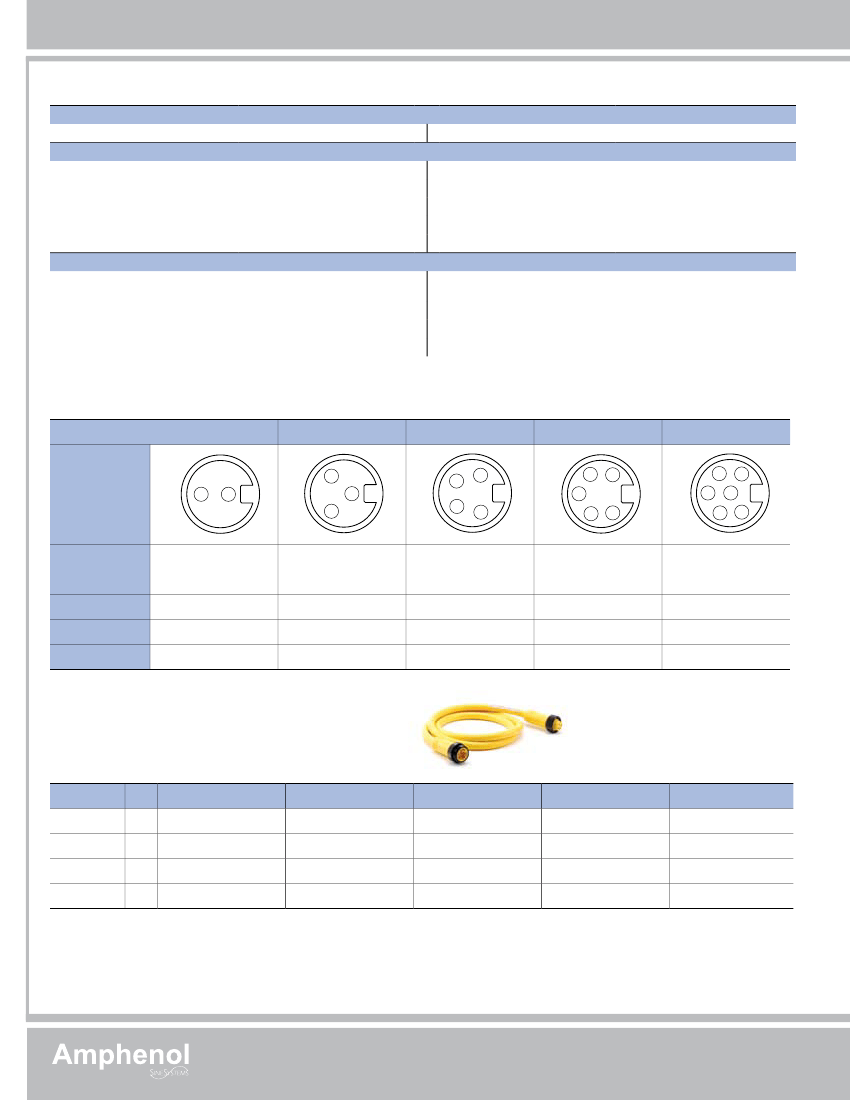

miniBOSS
™
Single-Ended Cordsets - MALE
with 16AWG 600V Plugs, STOOW Cable
All Dimensions in: Inch [mm]
Male
Straight
90°
FIG*
2
4
2P
MN23AC01Mxxx
MN23BC01Mxxx
3P
MN33AC01Mxxx
MN33BC01Mxxx
4P
MN43AC01Mxxx
MN43BC01Mxxx
5P
MN53AC01Mxxx
MN53BC01Mxxx
6P
MN63AC01Mxxx
MN63BC01Mxxx
FIG*:
Reference Dimensions below.
I
Mxxx = length in meters.
I
Standard lengths offerred: 1, 3, 6, 10, 15 (meters)
miniBOSS
™
Single-Ended Cordsets - FEMALE
with 16AWG 600V Plugs, STOOW Cable
Female
Straight
90°
FIG*
2
4
2P
MN24AC01Mxxx
MN24BC01Mxxx
3P
MN34AC01Mxxx
MN34BC01Mxxx
4P
MN44AC01Mxxx
MN44BC01Mxxx
5P
MN54AC01Mxxx
MN54BC01Mxxx
6P
MN64AC01Mxxx
MN64BC01Mxxx
FIG*:
Reference Dimensions below.
I
Mxxx = length in meters.
I
Standard lengths offerred: 1, 3, 6, 10, 15 (meters)

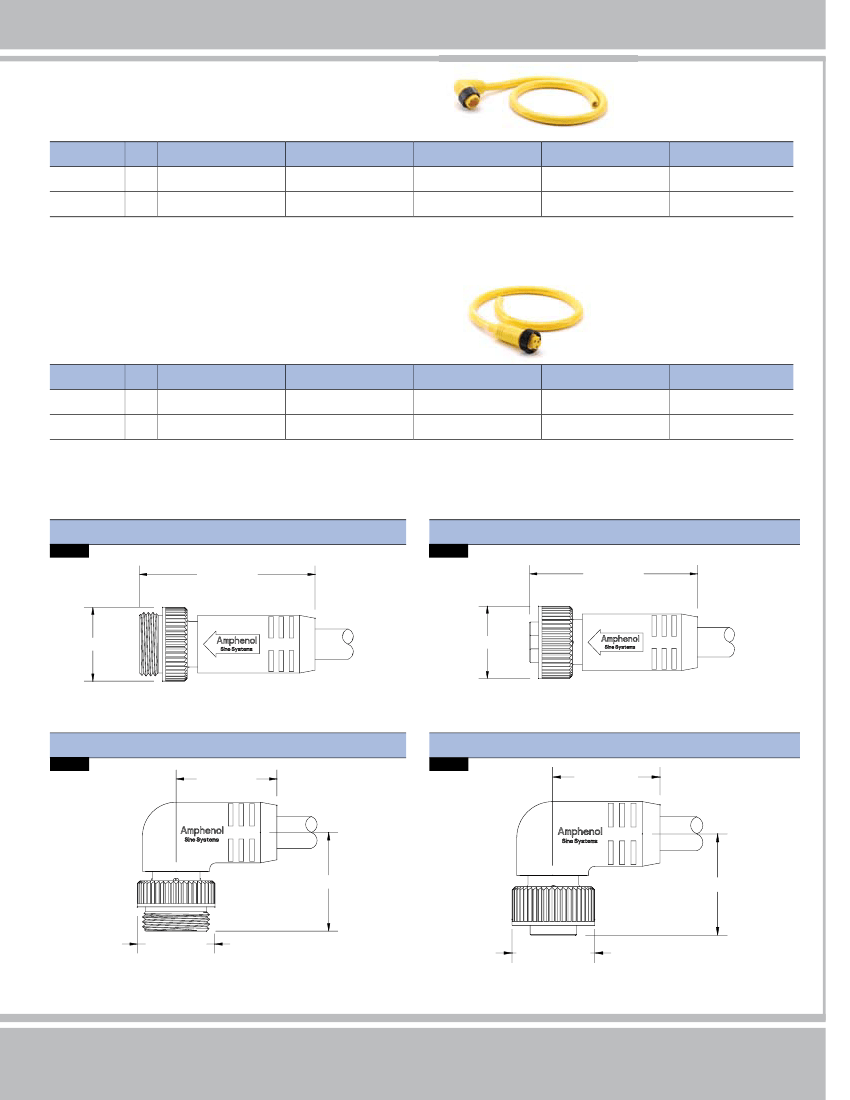

DIMENSIONS - Male Straight (Exterior Thread)
FIG 1
2.38 [60.39]
DIMENSIONS - Female Straight / Male Straight
FIG 2
2.32 [58.84]
1.00 [25.40]
1.00 [25.40]
DIMENSIONS - Male 90° (Exterior Thread)
FIG 3
1.30 [33.00]
DIMENSIONS - Female 90° / Male 90°
FIG 4
1.30 [33.00mm]
1.27 [32.28]
1.27 [32.28]
1.00 [25.40]
1.00 [25.40]
Custom Options:
Contact your Sales Representative.
Coupler Options:
Stainless Steel, Plastic
