6
5
4
3
2
1
L
Label, lot code + part numbers (X2)
D
D
Cable Fitting (x 2)
Plastic Version
Plug protective cover (x 2)
Plastic Version
PG9 Cable Gland (x 2)
Plastic Version
Plug Housing (x 2)
Plastic Version
Coupling Ring (x 2)
Plastic Version
Fiber optic cable: multi mode
62.5/125um, OM1, OFNR I/O
Jacket color: black
C
Cable Length
L
[Inches]
Meters
1m
± 0.05m
[39.37"
± 1.97"
]
2m
± 0.05m
[78.74"
± 1.97"
]
3m
± 0.05m
[118.11"
± 1.97"
]
4m
± 0.08m
[157.48"
± 3.15"
]
5m
± 0.08m
[196.85"
± 3.15"
]
6m
± 0.08m
[236.22"
± 3.15"
]
7m
± 0.08m
[275.59"
± 3.15"
]
8m
± 0.15m
[314.96"
± 5.91"
]
9m
± 0.15m
[354.33"
± 5.91"
]
10m
± 0.15m
[393.70"
± 5.91"
]
11m
± 0.15m
[433.07"
± 5.91"
]
12m
± 0.15m
[472.44"
± 5.91"
]
13m
± 0.15m
[511.81"
± 5.91"
]
14m
± 0.15m
[551.18"
± 5.91"
]
15m
± 0.15m
[590.55"
± 5.91"
]
16m
± 0.30m
[629.92"
± 11.81"
]
17m
± 0.30m
[669.29"
± 11.81"
]
18m
± 0.30m
[708.66"
± 11.81"
]
19m
± 0.30m
[748.03"
± 11.81"
]
20m
± 0.30m
[787.40"
± 11.81"
]
Part Number Max. IL
17-300860-01 0.50 dB
17-300860-02 0.51 dB
17-300860-03 0.51 dB
17-300860-04 0.51 dB
17-300860-05 0.52 dB
17-300860-06
17-300860-07
0.52 dB
0.52 dB
17-300860-08 0.53 dB
17-300860-09 0.53 dB
17-300860-10 0.54 dB
17-300860-11 0.54 dB
17-300860-12 0.54 dB
17-300860-13 0.55 dB
17-300860-14 0.55 dB
17-300860-15 0.55 dB
17-300860-16 0.56 dB
17-300860-17 0.56 dB
17-300860-18 0.56 dB
17-300860-19 0.57 dB
17-300860-20 0.57 dB
Cable Length
L
[Inches]
Meters
21m
± 0.30m
[826.77"
± 11.81"
]
22m
± 0.30m
[866.14"
± 11.81"
]
23m
± 0.30m
[905.51"
± 11.81"
]
24m
± 0.30m
[944.88"
± 11.81"
]
25m
± 0.30m
[984.25"
± 11.81"
]
26m
± 0.30m
[1023.62"
± 11.81"
]
27m
± 0.30m
[1062.99"
± 11.81"
]
28m
± 0.30m
[1102.36"
± 11.81"
]
29m
± 0.30m
[1141.73"
± 11.81"
]
30m
± 0.30m
[1181.10"
± 11.81"
]
31m
± 0.30m
[1220.47"
± 11.81"
]
32m
± 0.30m
[1259.84"
± 11.81"
]
33m
± 0.30m
[1299.21"
± 11.81"
]
34m
± 0.30m
[1338.58"
± 11.81"
]
35m
± 0.35m
[1377.95"
± 13.78"
]
36m
± 0.35m
[1417.32"
± 13.78"
]
37m
± 0.35m
[1456.69"
± 13.78"
]
38m
± 0.35m
[1496.06"
± 13.78"
]
39m
± 0.35m
[1535.43"
± 13.78"
]
40m
± 0.40m
[1574.80"
± 15.75"
]
Part Number Max. IL
17-300860-21 0.57 dB
17-300860-22 0.58 dB
17-300860-23 0.58 dB
17-300860-24 0.58 dB
17-300860-25 0.59 dB
17-300860-26 0.59 dB
17-300860-27
17-300860-28
17-300860-29
17-300860-30
17-300860-31
0.59 dB
0.60 dB
0.60 dB
0.61 dB
0.61 dB
Cable Length
L
[Inches]
Meters
41m
± 0.40m
[1614.17"
± 15.75"
]
42m
± 0.40m
[1653.54"
± 15.75"
]
43m
± 0.40m
[1692.91"
± 15.75"
]
44m
± 0.40m
[1732.28"
± 15.75"
]
45m
± 0.40m
[1771.65"
± 15.75"
]
46m
± 0.40m
[1811.02"
± 15.75"
]
47m
± 0.40m
[1850.39"
± 15.75"
]
48m
± 0.40m
[1889.76"
± 15.75"
]
49m
± 0.40m
[1929.13"
± 15.75"
]
50m
± 0.50m
[1968.50"
± 19.69"
]
51m
± 0.50m
[2007.87"
± 19.69"
]
52m
± 0.50m
[2047.24"
± 19.69"
]
53m
± 0.50m
[2208.33"
± 19.69"
]
54m
± 0.50m
[2125.98"
± 19.69"
]
55m
± 0.50m
[2165.35"
± 19.69"
]
56m
± 0.50m
[2204.72"
± 19.69"
]
57m
± 0.50m
[2244.09"
58m
± 0.50m
[2283.46"
59m
± 0.50m
[2322.83"
60m
± 0.60m
± 19.69"
]
± 19.69"
]
± 19.69"
]
± 23.62"
]
C
Part Number Max. IL
17-300860-41
17-300860-42
17-300860-43
17-300860-44
17-300860-45
17-300860-46
17-300860-47
17-300860-48
17-300860-49
17-300860-50
17-300860-51
17-300860-52
17-300860-53
17-300860-54
17-300860-55
17-300860-56
17-300860-57
17-300860-58
17-300860-59
17-300860-60
0.64 dB
0.65 dB
0.65 dB
0.65 dB
0.66 dB
0.66 dB
0.66 dB
0.67 dB
0.67 dB
0.68 dB
0.68 dB
0.68 dB
0.69 dB
0.69 dB
0.69 dB
0.70 dB
0.70 dB
0.70 dB
0.71 dB
0.71 dB
Tolerance
Cable Length
L
[Inches]
Meters
61m
± 0.60m
[2401.57"
± 23.62"
]
62m
± 0.60m
[2440.95"
± 23.62"
]
63m
± 0.60m
[2480.31"
± 23.62"
]
64m
± 0.60m
[2519.68"
± 23.62"
]
65m
± 0.60m
[2559.05"
± 23.62"
]
66m
67m
68m
± 0.60m
± 0.60m
± 0.60m
Part Number Max. IL
17-300860-61 0.71 dB
17-300860-62 0.72 dB
17-300860-63 0.72 dB
17-300860-64 0.72 dB
17-300860-65 0.73 dB
17-300860-66 0.73 dB
17-300860-67 0.74 dB
17-300860-68 0.74 dB
17-300860-69 0.74 dB
17-300860-70 0.75 dB
17-300860-71 0.75 dB
17-300860-72
17-300860-73
17-300860-74
17-300860-75
17-300860-76
17-300860-77
17-300860-78
17-300860-79
17-300860-80
0.75 dB
0.76 dB
0.76 dB
0.76 dB
0.77 dB
0.77 dB
0.77 dB
0.78 dB
0.78 dB
[2598.42"
[2637.80"
[2677.16"
± 23.62"
]
± 23.62"
]
± 23.62"
]
B
17-300860-32 0.61 dB
17-300860-33 0.62 dB
17-300860-34 0.62 dB
17-300860-35 0.62 dB
17-300860-36 0.63 dB
17-300860-37 0.63 dB
17-300860-38 0.63 dB
17-300860-39 0.64 dB
17-300860-40 0.64 dB
69m
± 0.60m
[2716.53"
± 23.62"
]
70m
± 0.70m
[2755.91"
± 27.56"
]
71m
± 0.70m
[2795.28"
± 27.56"
]
72m
± 0.70m
[2834.65"
± 27.56"
]
73m
± 0.70m
[2874.02"
± 27.56"
]
74m
± 0.70m
[2913.39"
± 27.56"
]
75m
± 0.70m
[2952.76"
± 27.56"
]
76m
± 0.70m
[2992.13"
± 27.56"
]
77m
± 0.70m
[3031.50"
± 27.56"
]
78m
± 0.70m
[3070.87"
± 27.56"
]
79m
± 0.70m
[3110.24"
± 27.56"
]
80m
± 0.80m
[3149.61"
± 31.50"
]
B
[2362.21"
DOT NOT ALTER CAD DRAWING BY HAND
Customer:
THIS DRAWING MAY NOT BE COPIED OR REPRODUCED
IN ANY WAY, AND MAY NOT BE PASSED ON TO A THIRD
PARTY WITHOUT WRITTEN PERMISSION.
OWNERSHIP AND COPYRIGHT OF CONEC CORPORATION
Preliminary Drawing
NOTES:
A
1. MAXIMUM CONNECTOR INSERTION LOSS (IL): 0.5dB,
PLUS CABLE ATTENUATION OF 3.5dB PER 1.5km AT 850nm
2. TEST DATA PROVIDED WITH EACH ASSEMBLY
Directive 2002/95/EC RoHS Compliant
Unless otherwise specified
Scale: NTS
Autodesk
Inventor
Dim. in m [inches]
Name
Title
Approval Date
2012
Draw.
Appd.
Norm
D-old
Date
Jul. 23
Jul. 23
A
B
FIBER PATH DETAIL
B
A
Material:
Title:
Name
Vincent Ke
J. Chaudry

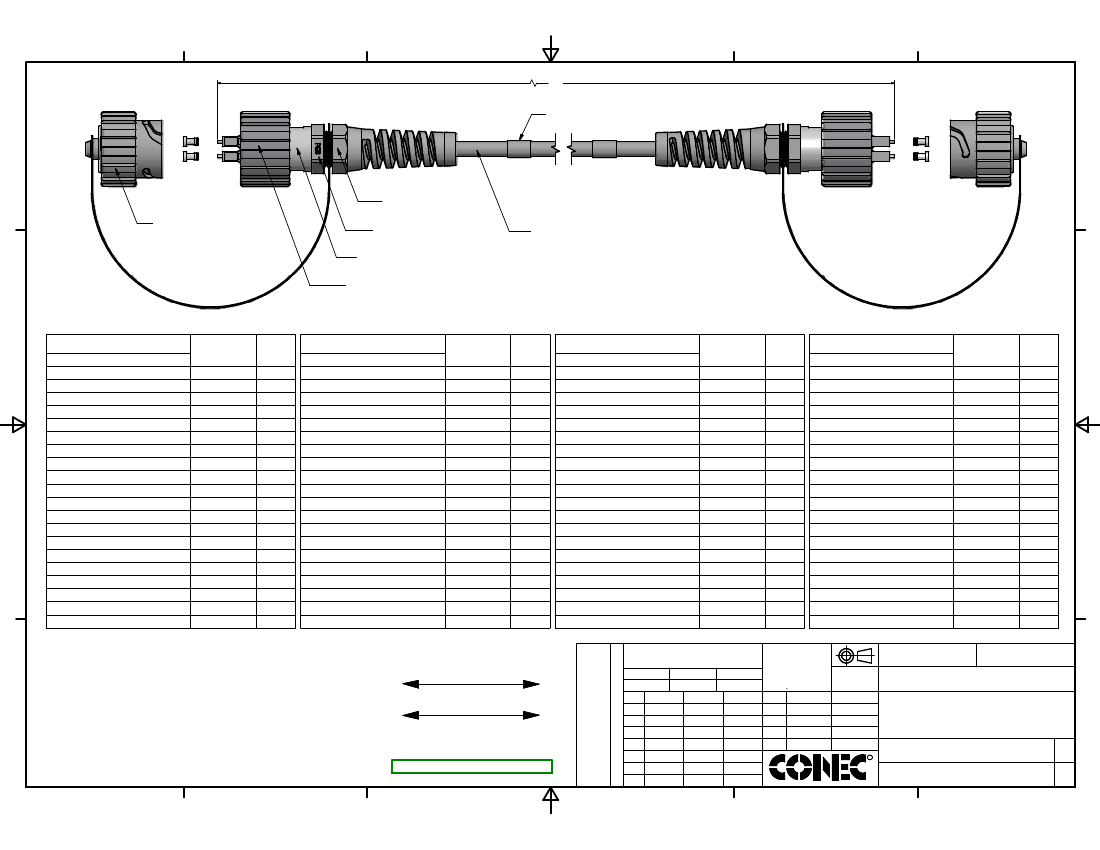

IP67 Industrial Duplex LC (ODVA)
MM Fiber Optic Patch Cords (62.5/125um)
Plastic Version
A
R
Drawing No.: 17K1A343
Part No.: SEE TABLE
DIN
A3
Sheet
a
Rev.
original
Changes
Date
Name
1/1
6
5
4
3
2
1
