Standard Buccaneer - Ethernet

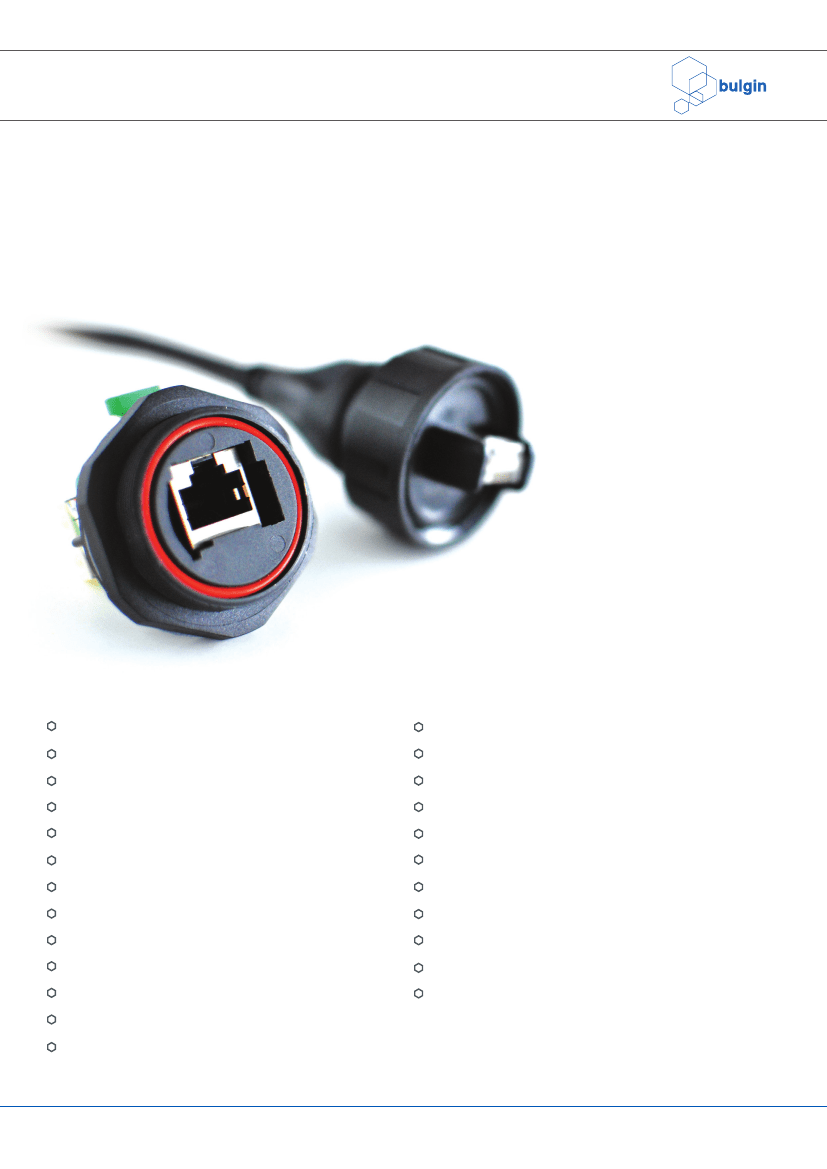

BUCCANEER FOR DATA
IP68 rated
IP69K, Tested in accordance with DIN 40050/Part 9 IP6k9k
Cat 5e or Cat 6a compliant
PUR / PVC jacket on cable
Shielded system
Cat 5e or Cat 6a shielded coupler
Shroud on RJ45
Screw coupling
Rewireable flex connector
PCB mounted panel connector
IDC termination panel connector
Earth lead version of panel adaptor
EN60068-2-52 Test Kb Salt Mist (Cyclic)
Marine Severity Level 1
Dust and waterproof sealing when mated
Data rate up to 100MHz
Good chemical resistance, flame retardant
High noise immunity and EMI protection
Maintains shielding
Protection from abuse and mis-mating
Secure, proven locking system
Ability to ‘field’ terminate
Direct PCB mount panel connector
Simple termination
Continuous screening of panel mount
connector
64 Buccaneer for Data
Standard Buccaneer - Ethernet

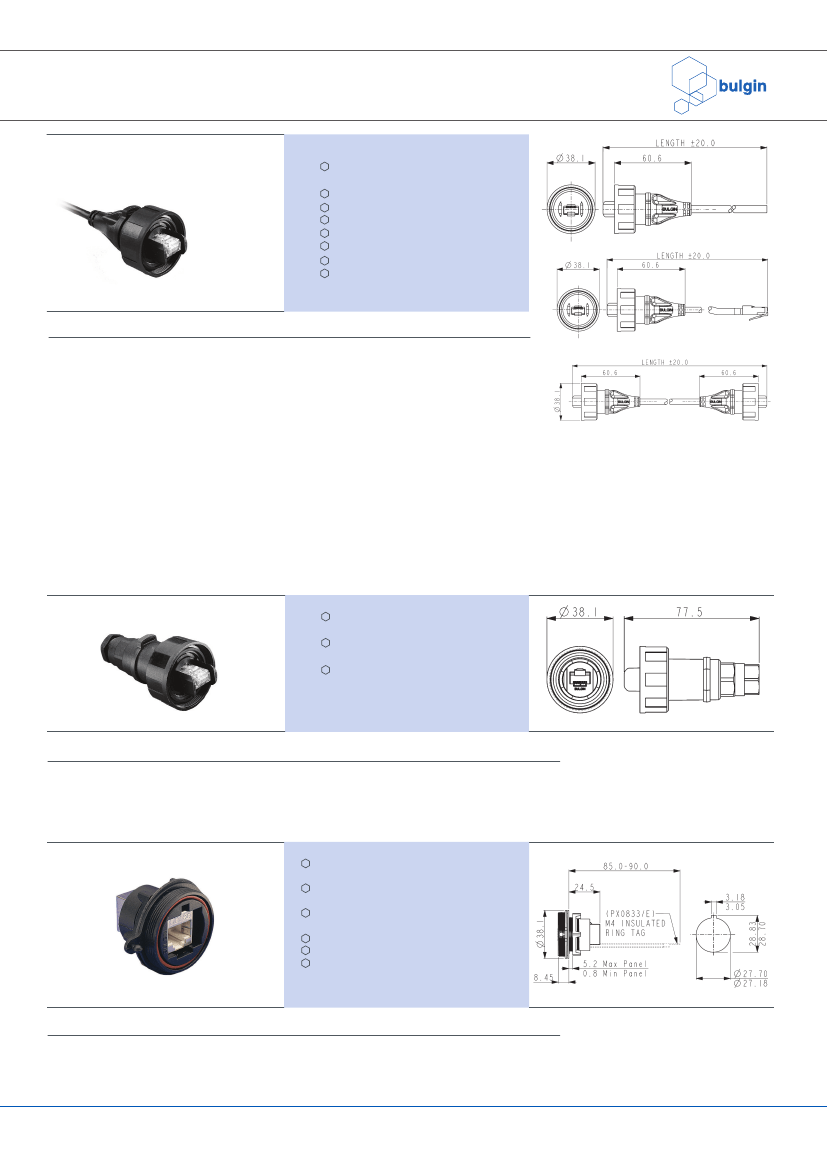

Patch Cord Flex Connector - PUR Jacket
Mates with all panel mounting
connectors
Patchcords with IP68 connector
Supplied with shielded RJ45 plug
Single or double end terminated
Standard lengths: 2m, 3m & 5m
S-FTP cable construction
PUR / PVC jacket cable
Wiring configuration to 568-B
PX0836
BUCCANEER FOR DATA
Part no.
PX0836/2M00
PX0836/3M00
PX0836/5M00
PX0837/2M00
PX0837/3M00
PX0837/5M00
PX0838/2M00
PX0838/3M00
PX0838/5M00
PX0896/2M00
PX0896/3M00
PX0896/5M00
PX0897/2M00
PX0897/3M00
PX0897/5M00
PX0898/2M00
PX0898/3M00
PX0898/5M00
Type
Wire end
Wire end
Wire end
Single ended
Single ended
Single ended
Double ended
Double ended
Double ended
Wire end
Wire end
Wire end
Single ended
Single ended
Single ended
Double ended
Double ended
Double ended
Length Description
2m
3m
5m
2m
3m
5m
2m
3m
5m
2m
3m
5m
2m
3m
5m
2m
3m
5m
Cat 5e IP68 RJ45 Buccaneer to bare end
Cat 5e IP68 RJ45 Buccaneer to bare end
Cat 5e IP68 RJ45 Buccaneer to bare end
Cat 5e IP68 RJ45 Buccaneer to Shielded RJ45
Cat 5e IP68 RJ45 Buccaneer to Shielded RJ45
Cat 5e IP68 RJ45 Buccaneer to Shielded RJ45
Cat 5e IP68 RJ45 Buccaneer to IP68 RJ45 Buccaneer
Cat 5e IP68 RJ45 Buccaneer to IP68 RJ45 Buccaneer
Cat 5e IP68 RJ45 Buccaneer to IP68 RJ45 Buccaneer
Cat 6a IP68 RJ45 Buccaneer to bare end
Cat 6a IP68 RJ45 Buccaneer to bare end
Cat 6a IP68 RJ45 Buccaneer to bare end
Cat 6a IP68 RJ45 Buccaneer to Shielded RJ45
Cat 6a IP68 RJ45 Buccaneer to Shielded RJ45
Cat 6a IP68 RJ45 Buccaneer to Shielded RJ45
Cat 6a IP68 RJ45 Buccaneer to IP68 RJ45 Buccaneer
Cat 6a IP68 RJ45 Buccaneer to IP68 RJ45 Buccaneer
Cat 6a IP68 RJ45 Buccaneer to IP68 RJ45 Buccaneer
Mates with all panel mounting
connectors
Supplied with shielded RJ45
plug
Two versions:
PUR / PVC jacket cable (Cat 5e / 6a)
for other cable sizes from
3.5 to 8mm dia.
Re wireable Flex Connector
PX0834
Part no.
PX0834/A
PX0834/B
PX0894/A
PX0894/B
Description
Cat 5e Cable glands optimised for PUR jacket cable to maintain Cat 5e performance
Cat 5e Suitable for use with cables from 3.5 to 8mm diameter
Cat 6a Cable glands optimised for PVC jacket cable to maintain Cat 6a performance
Cat 6a Suitable for use with cables from 3.5 to 8mm diameter
Panel Mounting Connector
Cat 5e mates with PX0836, PX0837,
PX0838 & PX0834 flex connectors
Cat 6a mates with PX0896, PX0897,
PX0898 & PX0894 flex connectors
Standard RJ45 patchcord can be
plugged into rear
Version with earth wire available
Single hole fixing
Complete with panel sealing gasket
PX0833
Part no.
PX0833
PX0833/E
PX0893
PX0893/E
Description
Cat 5e coupler
Cat 5e coupler + earth wire
Cat 6a coupler
Cat 6a coupler + earth wire
Fixing
Front panel mounted
Front panel mounted
Front panel mounted
Front panel mounted
Buccaneer for Data 65
Standard Buccaneer - Ethernet

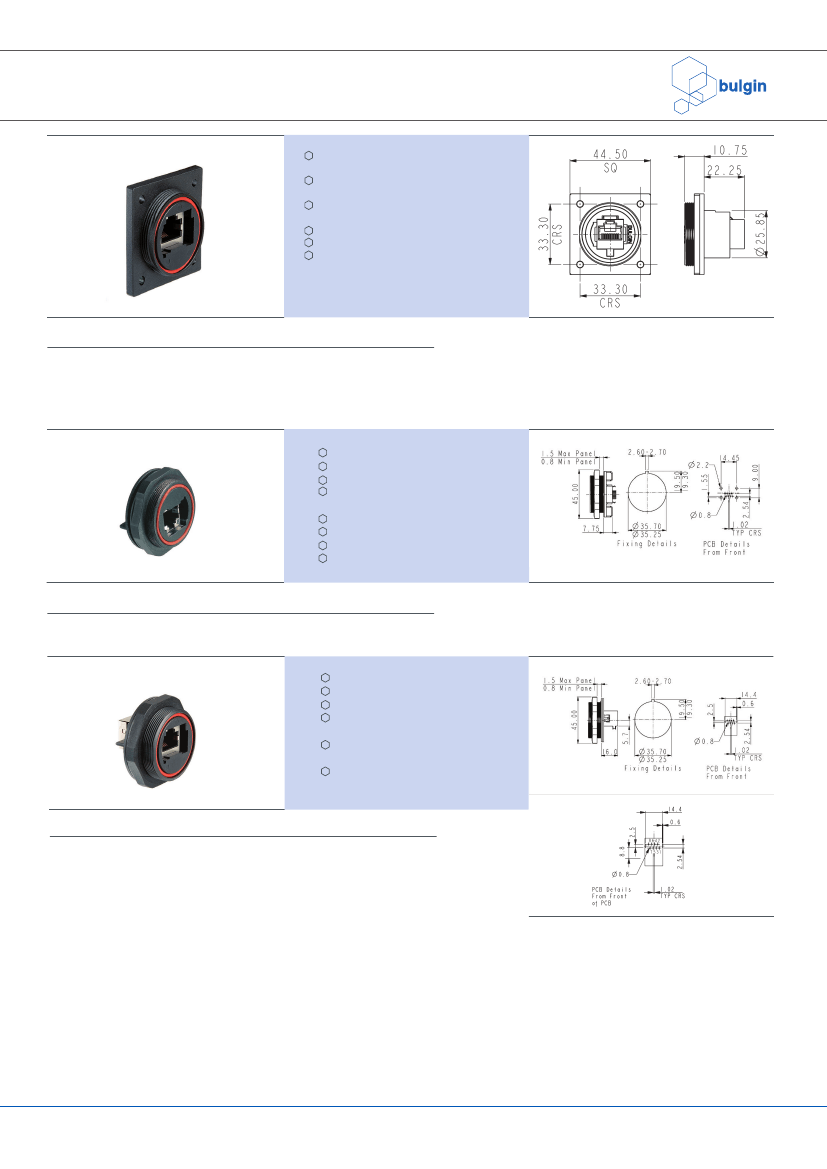

Flanged Mounting Connector
Cat 5e mates with PX0836, PX0837,
PX0838 & PX0834 flex connectors
Cat 6a mates with PX0896, PX0897,
PX0898 & PX0894 flex connectors
Standard RJ45 patchcord can be
plugged into rear
Version with earth wire available
Flange fixing
Complete with panel sealing gasket
BUCCANEER FOR DATA
PX0870
Part no.
PX0870
PX0870/E
PX0890
PX0890/E
Description
Cat 5e coupler
Cat 5e coupler + earth wire
Cat 6a coupler
Cat 6a coupler + earth wire
Fixing
Flange mounting
Flange mounting
Flange mounting
Flange mounting
PCB Mounting Connector
PX0839/PC
Cat 5e shielded RJ45 interface
Rear of panel mounted
Mates with PX0836, PX0837,
PX0838 and PX0834 flex
connectors
For direct vertical mounting to
PCB, straight pins
Complete with panel sealing
PX0839/PC gasket
Part no.
PX0839/PC
Description
Cat 5e connector - PC
Fixing
Rear panel mounted

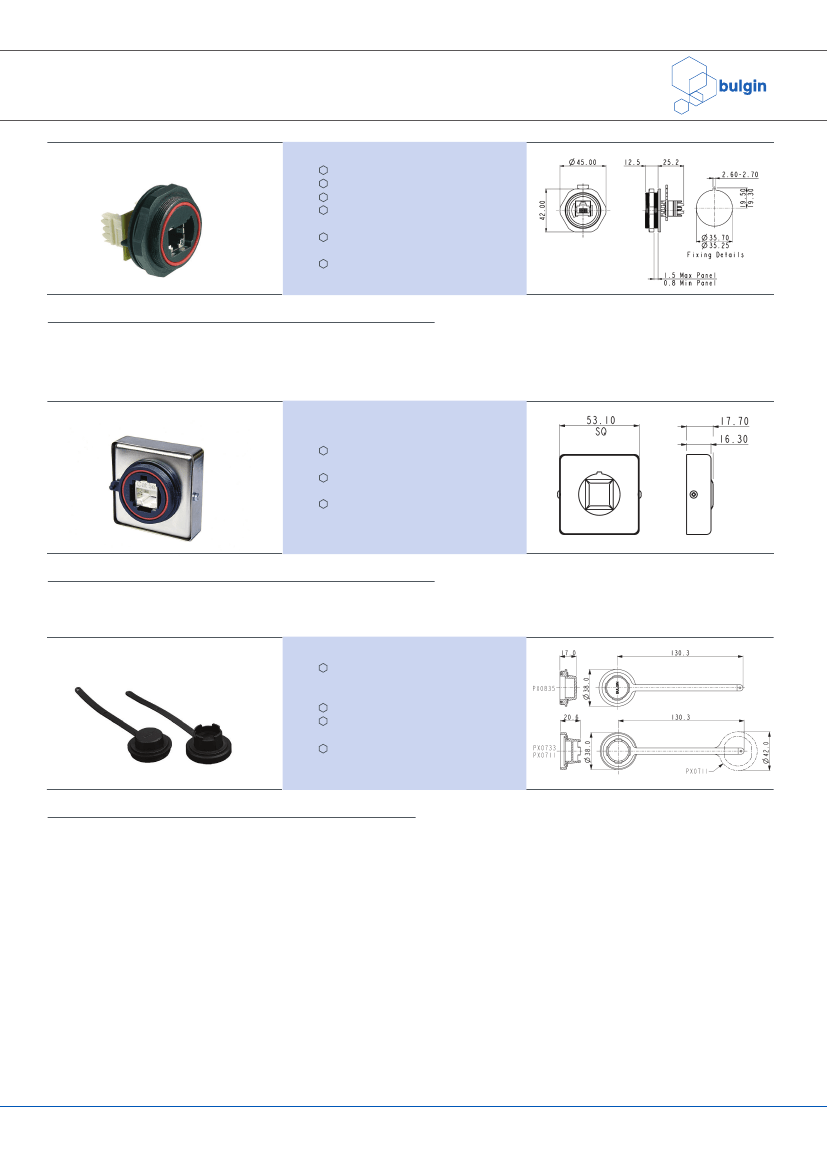

PCB Mounting Connector
PX0839/90
Cat 5e shielded RJ45 interface
Rear of panel mounted
Mates with PX0836, PX0837,
PX0838 and PX0834 flex
connectors
For direct horizontal mounting
to PCB, 90º pins
Complete with panel sealing
PX0839/90 gasket
Part no.
PX0839/90
Description
Cat 5e connector - PC
Fixing
Rear panel mounted
66 Buccaneer for Data
Standard Buccaneer - Ethernet
Panel Mounting Connector
Cat 5e shielded RJ45 interface
Rear of panel mounted
Mates with PX0836, PX0837,
PX0838 and PX0834 flex
connectors
Two IDC blocks for discrete
termination
Complete with panel sealing
PX0839/IDC
BUCCANEER FOR DATA
Part no.
PX0839/IDC
Description
Cat 5e coupler
Fixing
Rear panel mounted
Shield Back Shell Accessory
Maintains RJ45 coupler
screening directly to panel
Shielding can is fixed to rear
of panel mount connector
For use on PX0833
PX0888
Part no.
PX0888
Description
Shielding backshell accessory
Accessories
Sealing caps to maintain IP68
rating when connectors are
not in use
Replacement shielded RJ45s
Hand crimp tool for shielded
RJ45
Patch cord cable available in
50m reels
Sealing Caps
Part no.
PX0835
PX0733
PX0711
14151
14199
14150
15241
Description
Sealing Cap for flex connectors (PX0834, PX0836-838, PX0894, PX0896-898)
Sealing Cap for panel mounting connector (PX0833, PX0870, PX0893, PX0890)
Sealing Cap for rear panel mounting connector (PX0839)
Cat 5e & Cat 6a Hand crimp tooling + die set
Cat 5e PUR Jacket Cable - 50m reel
Cat 5e Replacement shielded RJ45
Cat 6a PVC Jacket Cable - 50m reel
Buccaneer for Data 67
Standard Buccaneer - Ethernet
Connectors
Sealing
IP69K, Tested in accordance with
DIN 40050/Part 9 IP6k9k
IP68, EN60529:1992+A2:2013
Operating Temperature
Materials - Overmoulded
Overmould material
Flammability rating
Salt Mist
(10m depth for 2 weeks)
BUCCANEER FOR DATA
–20°C to +70°C
PVC (black)
UL94V-0
EN60068-2-52 Test Kb Salt Mist
(Cyclic) Marine Severity Level 1
Materials - Re-wireable and Panel Connectors
Connector body & locking ring
Panel connector
Flammability rating
‘O’ rings
Panel Gasket - round
Panel Gasket - flange
RoHS
Polyester
Nylon 6
UL94V-0
Silicone
Silicone
Neoprene
Compliant
Conductors
Insulation
Pair
Core
Screen
Braid
Sheath
Op Temperature
Diameter
Flame Test
Electrical @ 20°C
Characteristic:
Impedance
Capacitance
Conductor Loop
Resistance
Skew
TIA/EIA Rating
Mechanical Characteristics
Minimum Tensile Strength of Jacket (kgf/mm
2
)
Maximum Length for Strip of Jacket (mm)
Cables
24AWG (7/0.2mm) bare copper
HD-PE
2 of the above cores twisted
4 of the above cores
1 layer mylar and aluminium tape,
0.12mm tinned copper braid
PUR Jacket Black
–25°C to +85°C
6.1mm nominal
Cat 5e
26AWG (7/0.16mm) bare copper
PE (Skin - Foam - Skin)
2 of the above cores twisted
4 of the above cores
Aluminium & Polyester
Tinned Copper Braid
PVC Jacket Black
–25°C to +75°C
6.0 mm nominal
FT4
Cat 6a
100 Ω ±15 Ω @ 100MHz
330pF/km
29/Ω100m maximum
45 nsec/100m @ 100MHz
Cat 5e
26Ω /km
Cat 6A
1.05
40
Cable construction - PX0836, PX0837, PX0838 and 14199
24 AWG
7/0.20mm conductor
Braiding
7/0.12mm
Jacket
6.10mm dia
Mylar Tape
Insulation - HD - PE
Aluminium/ PEPT tape
Drain Wire
Cable construction - PX0896, PX0897, PX0898 and 15241
Twisted Pair
4P
4P
1P
1P
2P
2P
3P
Braid Shield
Jacket
Aluminum Polyester
3P
Polyurethane (PUR) Jacket
Polyvinyl Chloride (PVC) Jacket
68 Buccaneer for Data
