LC OptiCam

Pre-Polished Fiber Optic Connectors

SPECIFICATION SHEET

specifications

LC small form factor (SFF) pre-polished connectors with rear pivot

latch shall be TIA/EIA-604 FOCIS-10 compatible and contain a

factory-terminated fiber, eliminating field polishing and adhesive.

LC pre-polished connectors shall have an average insertion loss

of 0.3dB per mated pair for multimode and singlemode fiber.

LC pre-polished connectors shall captivate fiber and buffer in one

action allowing for up to two re-terminations with no degradation

in performance.

technical information

Standards requirements:

Fiber compatibility:

Fiber cable type:

Fiber cable size:

Ferrule type:

Insertion loss:

Return loss:

TIA/EIA-604 FOCIS-10 compatible; exceeds

TIA/EIA-568-B.3 requirements

62.5/125µm OM1, 50/125µm OM2, 10Gig

™

50/125µm

laser optimized OM3/OM4 and 9/125µm OS1/OS2

900µm tight-buffered cable only

1.6mm – 2.0mm and 3.0mm jacketed cable with optional boots

Zirconia ceramic with a pre-polished fiber stub

Ceramic: 0.3dB average (multimode and singlemode)

Ceramic: >20dB (multimode), >26dB (10Gig

™

multimode),

>50dB (singlemode)

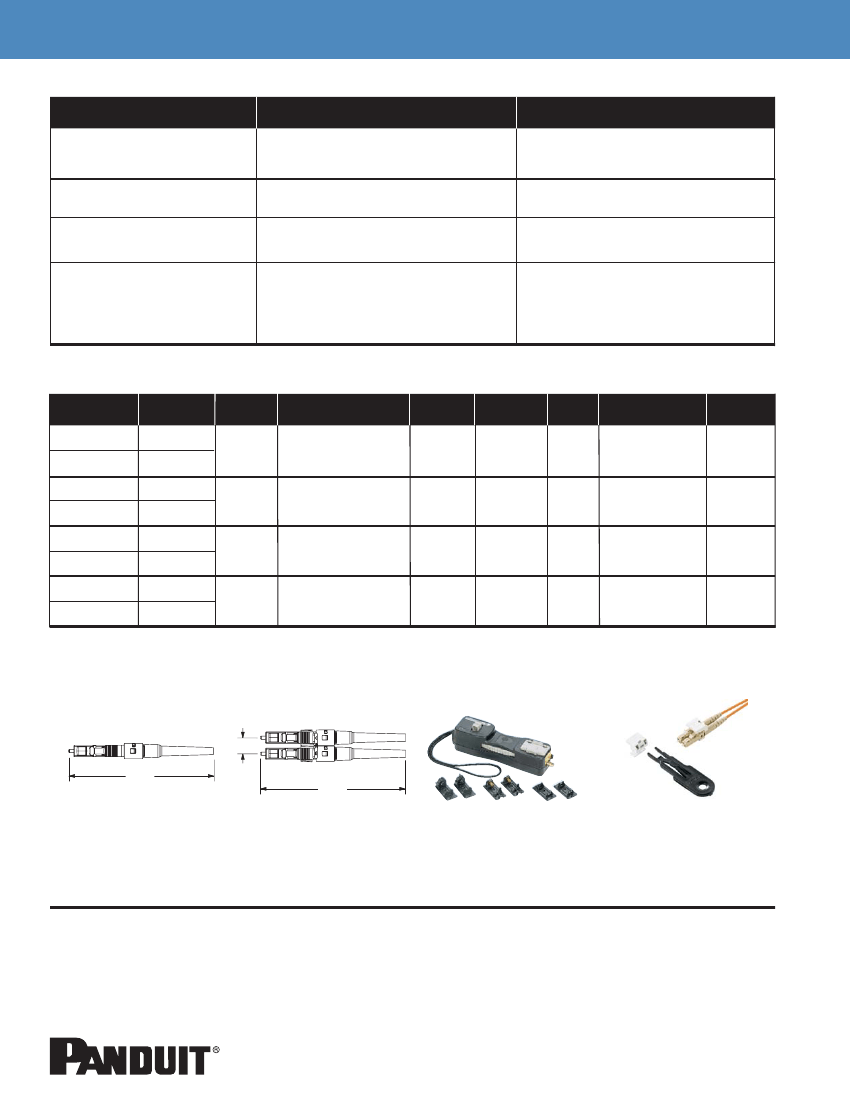

LC OptiCam

Pre-Polished Connectors

with Zirconia Ceramic Ferrules

10Gig

™

50/125µm (laser

optimized) simplex:

FLCSMCXAQY

▲

10Gig

™

50/125µm (laser

optimized) duplex:

FLCDMCXAQY

50/125µm simplex:

FLCSMC5BLY

▲

50/125µm duplex:

FLCDMC5BLY

62.5/125µm simplex:

FLCSMC6BLY

▲

62.5/125µm duplex:

FLCDMC6BLY

9/125µm simplex:

FLCSSCBUY

▲

9/125µm duplex:

FLCDSCBUY

OptiCam

1.6/2.0mm Boots

10Gig

™

multimode (aqua):

FMCBT2AQ-X*

Multimode (black):

FMCBT2BL-X

Singlemode (blue):

FSCBT2BU-X

OptiCam

3.0mm Boots

10Gig

™

multimode (aqua):

FMCBT3AQ-X*

Multimode (black):

FMCBT3BL-X

Singlemode (blue):

FSCBT3BU-X

*X = Bag of 10 Boots; 100 per carton.

key features and benefits

LC OptiCam

Connectors

Factory pre-polished fiber

stub endface

Eliminates inconsistent and time-consuming field polishing to deliver

required optical performance; reduces termination time (less than

half the time of field polish connectors) and the number of

installation tools required

Secures both the fiber and the buffer during the camming step to

facilitate consistent termination results; reduces the termination time

compared to conventional termination methods

Allows up to two re-terminations to achieve optimum termination

results; reduces the number of rejected connectors and terminations

to provide yield rates approaching 100% for lower installed costs

Dual cam design with

fiber and buffer clamps

OptiCam

Termination Tooling

OptiCam

Termination Kit:

FCAMKIT

OptiCam

Conversion Kit

(upgrades Opti-Crimp

Kit to also terminate

OptiCam

Connectors):

FPPKIT-CVY

Field Polish Kit Upgrade

(upgrades Field Polish

Kit to also terminate

OptiCam

Connectors):

FIELDKITUPG

LC cradles (2 per pkg.):

FLCC

LC Fiber Optic Adapters

10Gig

™

multimode:

FADJLCAQ-L*

Multimode:

FADJLCEI-L

Singlemode:

FADJLCZBU-L

*L = Bag of 50 adapters; 100 per carton.

Translucent

housing assembly

Non-optical disconnect

Facilitates inspection of the fiber termination quality; results in rapid

installations, improved termination yields, and lower installed costs

Maintains data transmission under tensile loads for jacketed cable

Mechanical cable retention

Consistently provides higher than industry standard cable retention;

requires no adhesive, speeding installation

Zirconia ceramic ferrules

Provide the highest durability for repeated matings

Mini-Com

LC Adapter Modules

10Gig

™

multimode:

CMDJAQLC**

Multimode:

CMDJEILC**

Singlemode:

CMDJLCZBU

**Substitute for module color: EI = Electric Ivory,

BU = Blue, BL = Black, IW = Off White,

AW = Arctic White

OptiCam

Termination Tool

Universal termination tool

Secures both fiber and buffer in one action for all OptiCam

Connectors with connector specific cradles (included); ensures

fast, consistent, and optimal terminations

Opticom

LC Fiber Adapter Panels

6 duplex MM adapters:

FAP6WEIDLC

6 duplex SM adapters:

FAP6WBUDLCZ

12 duplex MM adapters:

FAP12WEIDLC

12 simplex SM adapters:

FAP12WBULCZ

Opti-Core

LC Patch Cords

Duplex LC to LC:

F^E10-10M‡Y

Simplex LC to LC:

F^F10-10M‡Y

Duplex SC to LC:

F^E3-10M‡Y

Simplex SC to LC:

F^F3-10M‡Y

LC Lock-in Duplex Clip

LC lock-in duplex clip:

FLCCLIW-X

▲

Add -C to simplex connector part numbers

for bulk packs of 100 connectors.

^Substitute for fiber type: 6 = 62.5/125µm OM1,

5 = 50/125µm OM2, X = 10Gig

™

50/125µm

OM3/OM4 or 9 = 9/125µm OS1/OS2.

‡Substitute for length in meters: 1, 2, 3, 5 or 10.

Contact Customer Service for other available lengths.

Integrated visual

Offers visual indication of proper termination after the cam step

termination indicator (VTI)

has been completed; virtually eliminates operator error to deliver

a lower installed cost

applications

LC fiber optic connectors are widely used in fiber

optic backbone and horizontal applications for

high-speed data transmission. Typical

applications for LC OptiCam

Connectors

include maintenance or emergency restoration of

fiber networks and retrofit/initial install in both

behind-the-wall (BTW) and in the permanent side

of panelized interconnect and cross-connect.

LC OptiCam

Connectors eliminate the need for

end face polishing and adhesive providing easier,

faster installation, especially in remote areas

and confined spaces. The hand-held OptiCam

Termination Tool gives installers the flexibility

to terminate in very close proximity to the

application without having to switch tools

or find benchtop space.
