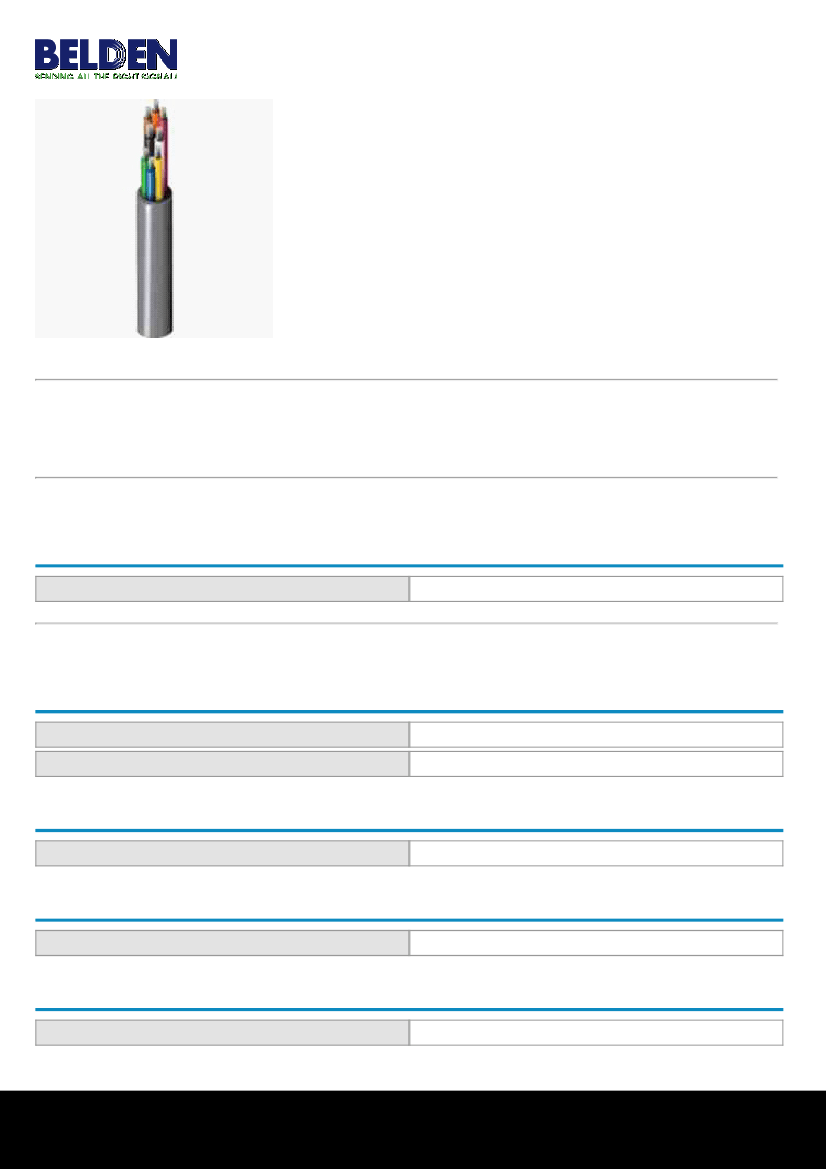

Part Number:
8446
Audio/Control/Communication/Instrumentation, (4) 22 AWG
(7x30) TC, (2) 18 AWG (19x30) TC, PVC/PVC, CMG
Product Description
Four 22 AWG stranded (7x30) and two 18 AWG stranded (19x30) tinned copper conductors, conductors cabled, PVC insulation, PVC
jacket.
Product Specifications
AG.Filter Attributes
Total Number of Conductors:
6
Technical Specifications
AG_0401
UL Flammability:
CSA Flammability:
UL1685 FT4 Loading
FT4
APAC Standard
MII Order #39 (China RoHS):
Yes
Applicable Patents
Patent:
http://www.belden.com/p
Bend Radius
Min Bend Radius/Minor Axis:
2.5 in
Part # 8446 | Page 1 of 4 | August 28, 2017
CCB-Sub-Part Number
Plenum (Y/N):
No
Contact Information
PHONE_NUM:
1-800-Belden1
EU Directive
EU Directive Compliance:
EU CE Mark:
EU Directive 2003/11/EC (BFR)
Yes
North American Standard
CA Prop 65 (CJ for Wire & Cable):
CEC/C(UL) Specification:
NEC/(UL) Specification:
UL AWM Style:
Yes
CMG
CMG
UL Style 2576 (150 V 80°C)
Use
Max Recommended Pulling Tension:
78 lbs
Conductor DCR:
Element
Nominal Conductor DCR
22 AWG
18 AWG
15.5 Ohm/1000ft
6.8 Ohm/1000ft
Color Chart 1:
Number
Color
22
22
22
22
18
18
White
Black
Green
Brown
Blue
Red
Voltage:
Part # 8446 | Page 2 of 4 | August 28, 2017
UL Description
UL Voltage Rating
UL AWM Style 2576
CMG
300 V RMS
150 V RMS V
Current:
Element
Max. Recommended Current [A]
22 AWG
18 AWG
2.5 Amps per conductor @ 25°C
5.6 Amps per conductor @ 25°C
Capacitance:
Nom. Capacitance Conductor to Conductor
Nom. Capacitance Conductor to Other Conductor to Ground
30 pF/ft
54 pF/ft
Insulation:
Element
Material
Nominal Wall Thickness
22
18
PVC - Polyvinyl Chloride
PVC - Polyvinyl Chloride
0.011 in
0.019 in
Outerjacket 1:
Material
Nominal Diameter
Nominal Wall Thickness
PVC - Polyvinyl Chloride
0.236 in
0.032 in
Conductor:
AWG
Stranding
Material
No. of Conductors
22
18
7x30
19x30
TC - Tinned Copper
TC - Tinned Copper
4
2
Outershield 1:
Material
Unshielded
Part # 8446 | Page 3 of 4 | August 28, 2017
Product Variants
Part Number
8446
8446
8446 0601000
8446
8446
8446 060100
8446
8446 060500
8446
8446
8446 060U1000
8446
8446
8446 060U500
8446
8446
8446
© 2017 Belden, Inc
All Rights Reserved.
Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described herein are subject to error or omission and to change without notice, and
the listing of such information and specifications does not ensure product availability.
Belden provides the information and specifications herein on an "AS IS" basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for any damages (including
consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract, negligence or any other
theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein.
All sales of Belden products are subject to Belden's standard terms and conditions of sale.
Belden believes this product to be in compliance with EU RoHS (Directive 2002/95/EC, 27-Jan-2003). Material manufactured prior to the compliance date may be in stock at Belden facilities and in our Distributor?s
inventory. The information provided in this Product Disclosure, and the identification of materials listed as reportable or restricted within the Product Disclosure, is correct to the best of Belden?s knowledge, information,
and belief at the date of its publication. The information provided in this Product Disclosure is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it
becomes a part of. This Product Disclosure is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the
applicability of legislation and regulations based on their individual usage of the product.
Belden declares this product to be in compliance with EU LVD (Low Voltage Directive 73/23/EEC), as amended by directive 93/68/EEC.
Color
Put-Up Type
Length
CHROME
CHROME
Reel
Reel
305 m
1000 ft
CHROME
CHROME
Reel-in-Box
Reel
30 m
100 ft
CHROME
Reel
500 ft
CHROME
CHROME
UnReel
UnReel
305 m
1000 ft
CHROME
CHROME
UnReel
UnReel
152 m
500 ft
Part # 8446 | Page 4 of 4 | August 28, 2017
