CAS761KS07984 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> CAS761KS07984

CAS761KS07984: DescriptionSpecialized Cables Sld DC PWR Cbl Assy 0.080" Cen Pin STRT; CategoryWire/cable; File Size179KB，1 Pages; ManufacturerSwitchcraft; Environmental Compliance

Download Datasheet Parametric Compare View All

CAS761KS07984 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CAS761KS07984	-	-	View	Buy Now

CAS761KS07984 Overview

Specialized Cables Sld DC PWR Cbl Assy 0.080" Cen Pin STRT

CAS761KS07984 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Switchcraft
Product Category	Specialized Cables
RoHS	Details
Type	DC Power Cord
Connector End A	2 mm DC Plug
Connector End A Pin Count	1 Position
Connector End B	No Connector
Connector End B Pin Count	0 Position
Length	2 m
Gender	Male
Number of Conductors	1 Conductor
Wire Gauge - AWG	20 AWG
Color	Black
Jacket Material	Polyvinyl Chloride (PVC)
Factory Pack Quantity	1

Preview

Download Datasheet

View All

2.18

0.56

0.474

REF

0.50±0.06

79.0±3.0

1.44

0.25±0.06

7/16-32 THREAD

FLOATING

LOCK RING

0.218

REF

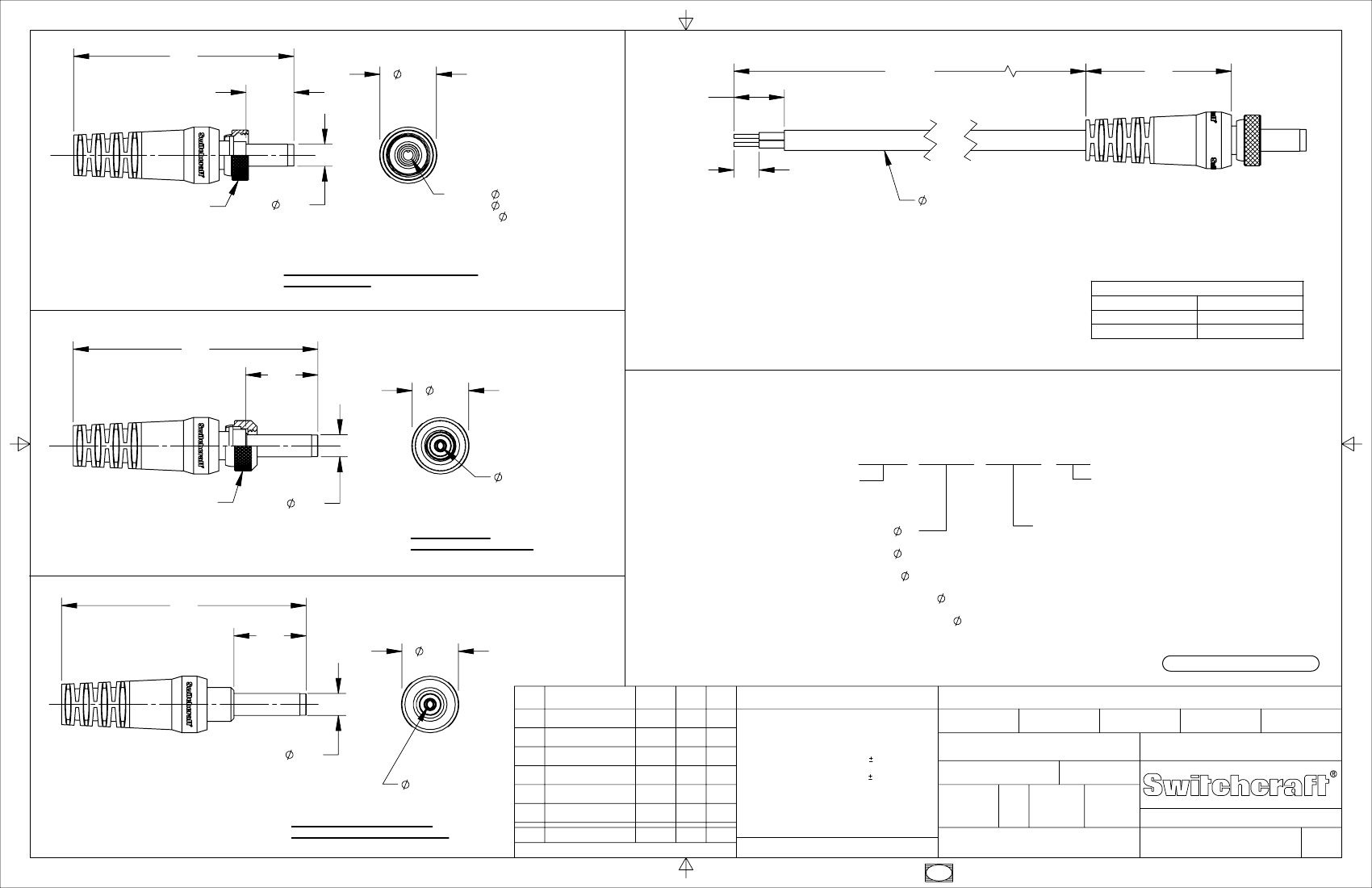

761KS - 0.100 (2.5MM) REF

767KS - 0.084 (2.1MM) REF

S761KS - 0.080 (2.0MM) REF

STRIP AND TIN

0.20

CABLE UNSHIELDED

BLACK PVC JACKET

761KS, 767KS, AND S761KS SERIES

SEALED PLUGS

WIRING TABLE

POWER PLUG

WIRE COLOR

TIP

RED

SLEEVE

BLACK

2.43

0.716

REF

0.56

5/16-32 THREAD

FLOATING

LOCKING RING

0.218

REF

0.080 (2.0MM)

REF

CABLE ASSEMBLY

S10KS SERIES

SEALED HI-AMP PLUG

761KS

- SEALED 0.100 (2.5MM)

767KS

- SEALED 0.084 (2.1MM)

S761KS

- SEALED 0.080 (2.0MM)

2.43

0.716

REF

079 84

STRIP AND TIN

1/2 INCH BY 1/4 INCH

79 INCHES (2 METERS) OF CABLE

--------

SEALED PLUGS - 2 CONDUCTOR 20 AWG

HI - AMP PLUGS - 2 CONDCUTOR 16 AWG

S10KS-

HI AMP - SEALED 0.080(2.0MM)

S10

- HI AMP NON-SEALED - 0.080(2.0MM)

NON-LOCKING

0.56

CUSTOMER DRAWING

THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED

BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.

UNLESS OTHERWISE SPECIFIED

1. ALL DIMENSIONS IN INCHES

SIZE

FINISH

WIDTH

MULT

LBS/M

MATERIAL

SPEC No.

TEMPER

0.218

REF

0.080 (2.0MM)

REF

S10 SERIES NON-SEALED

NON-LOCKING HI-AMP PLUG

REV

- TWO PLACE DECIMALS

- THREE PLACE DECIMALS

27615

27477

ECO NUMBER

0.02

0.005

SPEC No.

FIRST USED ON

DATE DRAWN

CHKD

1.25:1

3/19/15

TJK

4/2/15

PART No.

APVD

SCALE

11-30-15

4/2/15

DATE

TJK

APVD

3/19/15

SHEET

REV

REVISIONS

DO NOT SCALE DRAWING

NAME

CABLE ASSEMBLY - MOLDED

STRAIGHT POWER PLUGS, RoHS

CA____07984

SolidWorks CAD File

CAS761KS07984 Related Products

	CAS761KS07984	CAS10KS07984	CAS1007984	CA761KS07984
Description	Specialized Cables Sld DC PWR Cbl Assy 0.080" Cen Pin STRT	Specialized Cables High-Amp Sealed DC PWR Cbl Assy STRT	Specialized Cables High-Amp DC PWR Cbl Assy STRT	Specialized Cables Sld DC PWR Cbl Assy 0.100" Cen Pin STRT
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Switchcraft	Switchcraft	Switchcraft	Switchcraft
Product Category	Specialized Cables	Specialized Cables	Specialized Cables	Specialized Cables
RoHS	Details	Details	Details	Details
Type	DC Power Cord	DC Power Cord	DC Power Cord	DC Power Cord
Connector End A	2 mm DC Plug	2 mm DC Plug	2 mm DC Plug	2.5 mm DC Plug
Connector End A Pin Count	1 Position	1 Position	1 Position	1 Position
Connector End B	No Connector	No Connector	No Connector	No Connector
Connector End B Pin Count	0 Position	0 Position	0 Position	0 Position
Length	2 m	2 m	2 m	2 m
Gender	Male	Male	Male	Male
Number of Conductors	1 Conductor	1 Conductor	1 Conductor	1 Conductor
Wire Gauge - AWG	20 AWG	16 AWG	16 AWG	20 AWG
Color	Black	Black	Black	Black
Jacket Material	Polyvinyl Chloride (PVC)	Polyvinyl Chloride (PVC)	Polyvinyl Chloride (PVC)	Polyvinyl Chloride (PVC)
Factory Pack Quantity	1	25	25	25
