NOTES:
1. MATERIALS AND FINISHES:
BNC CRIMP PLUG - P/N: 112132
CABLE -
RG-316 COAXIAL CABLE
2. ELECTRICAL:
A. IMPEDANCE:
50 OHM, NOMINAL
B. FREQUENCY RANGE: DC-4.0 GHz
3. PACKAGING:
A. QUANTITY:
B. BAG TO BE MARKED:
SINGLE PACK
AMPHENOL RF, 115101-01-XX.XX, AND DATE CODE
115101-01-XX.XX
DRAWING NO.
THIRD ANGLE PROJ.
REVISIONS
REV
A
B
RELEASE TO MFG.
SEE SHEET 1
DESCRIPTION
11-Nov-10
DATE
ECO
04-Mar-14
2705
--
APPR
MB/BCG
KR
SCALE
0.625
LENGTH AND TOLERANCE (SEE TABLES)
RG-316 COAXIAL CABLE
BNC CRIMP PLUG
TYP. (2x)
ORDERING INFORMATION
PART NUMBER
(METRIC)
-
-
-
HEAT SHRINK TUBING
TYP. (2x)
PART NUMBER
(IMPERIAL)
115101-01-06.00
115101-01-12.00
115101-01-18.00
115101-01-24.00
115101-01-36.00
-
-
-
-
-
115101-01-M0.10
115101-01-M0.25
LENGTH IN INCHES *
[METERS]
3.94 [0.100]
9.84 [0.250]
6.00 [0.152]
12.00 [0.305]
18.00 [0.457]
19.69 [0.500]
24.00 [0.610]
29.53 [0.750]
36.00 [0.914]
39.37 [1.000]
48.00 [1.219]
TOLERANCE TABLE
LENGTH IN INCHES/FT [METERS]
0" - 23.90" [0 - 0.607]
24.00" - 59.00" [0.610 - 1.499]
5.0' - 24.9' [1.524 - 7.617]
25.0' & UP [7.620
& UP]
TOLERANCE
#
0.25" [0.006]
#
0.50" [0.013]
#
2.5%
#
5.0%
115101-01-M0.50
115101-01-M0.75
115101-01-M1.00
-
DESIGN REQUIREMENTS:
X
FREQUENCY:
DC TO 4.0 GHz
X
CONTINUITY
X
HI-POT : 500 VRMS
OTHER
MATERIAL
115101-01-48.00
VSWR ____________ : 1 MAX
INS. LOSS ____________ dB MAX
* ADDITIONAL LENGTHS CAN BE PROVIDED, CONTACT AMPHENOL RF MARKETING FOR QUOTE
UNLESS OTHERWISE SPECIFIED, TOLERANCES ARE AS FOLLOWS:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
#.015 (0,381 mm)
#.005 (0,127 mm)
# 1$
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
DRAWN
SEE NOTES
REFERENCE
MOHAN
28-Feb-14
28-Feb-14
04-Mar-14
DATE
DATE
DATE

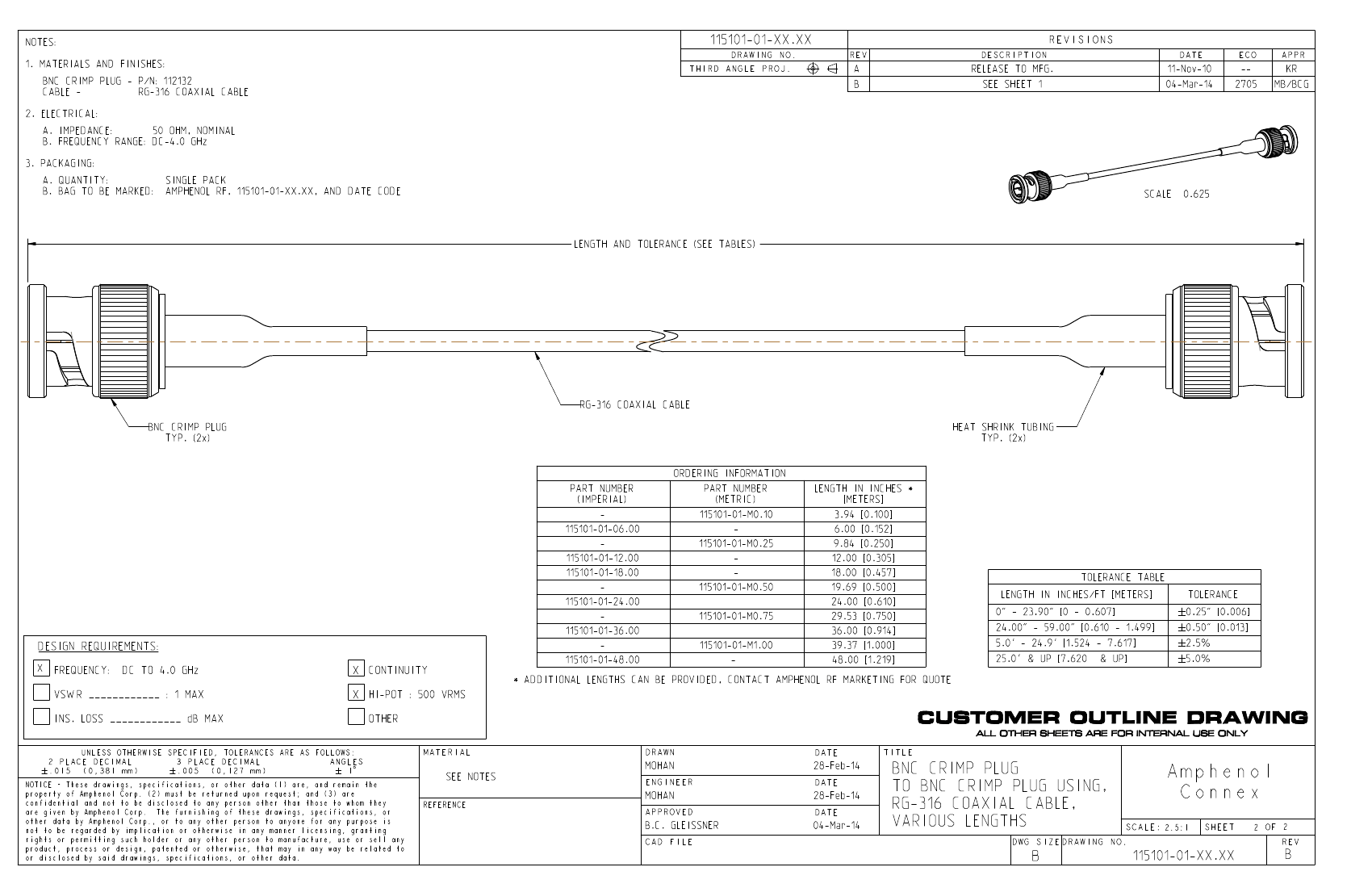

TITLE
ENGINEER
MOHAN
APPROVED
CAD FILE
B.C. GLEISSNER
BNC CRIMP PLUG
TO BNC CRIMP PLUG USING,
RG-316 COAXIAL CABLE,
VARIOUS LENGTHS
B
Amphenol
Connex
SCALE: 2.5:1
SHEET
2 OF 2
REV
DWG SIZE DRAWING NO.
115101-01-XX.XX
B
