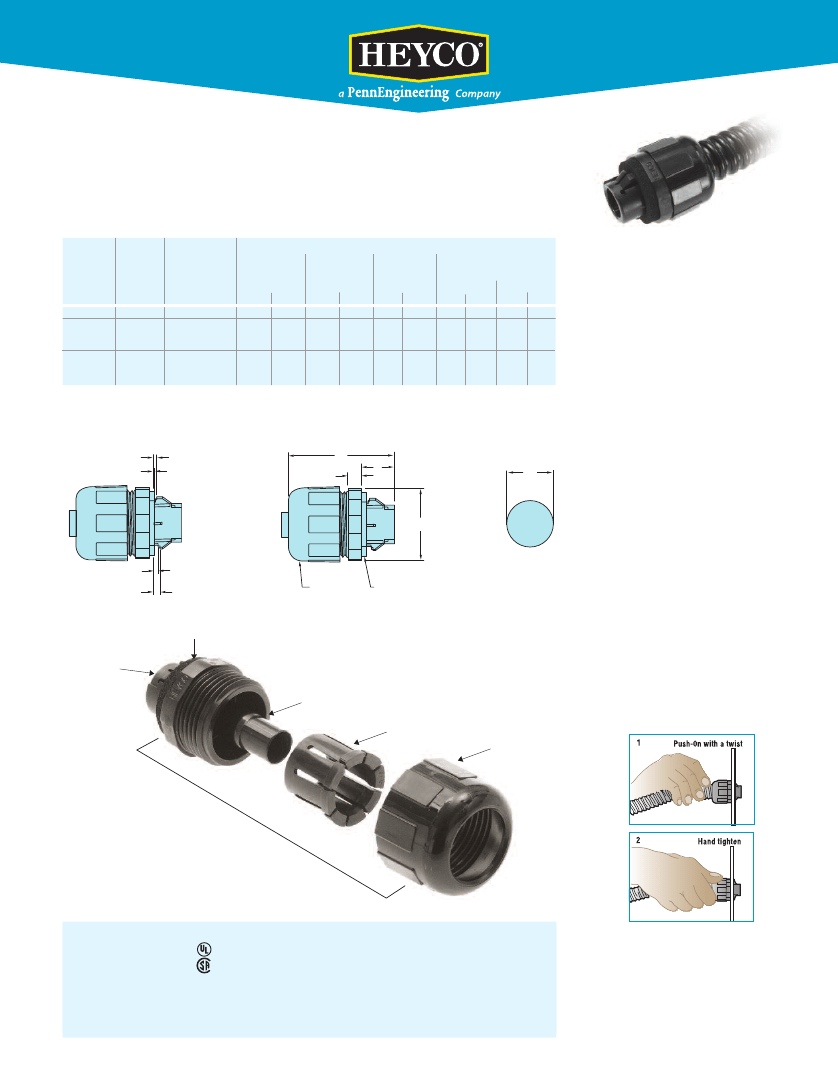

Heyco-Flex Liquid Tight Conduit Fittings
™
For Flexible, Nonmetallic Liquid Tight Heyco-Flex
™
I Conduit and Heyco-Flex
™
II Tubing
Straight-Thru, Snap-In Hubs
FITS
PART NO. DESCRIPTION
CONDUIT/
TUBING
Black
TRADE
SIZE
1/4
3/8
1/2
3/4
1
8382
8384
8386
8388
8390
HFC 1/4-S
HFC 3/8-S
HFC 1/2-S
HFC 3/4-S
HFC 1-S
A
Mounting
Hole Dia.
in.
mm.
PART DIMENSIONS
B
C
D
E
Max O.A.
Body
Wrenching
Length
Length
Nut Thk.
Flat Size
in.
mm.
in.
mm.
in.
mm.
in.
mm.
.500
.875
1.090
1.375
12,7
22,2
27,7
34,9
1.50
2.00
2.03
2.25
38,1
50,8
51,6
57,1
.45
.63
.63
.78
11,3
15,9
15,9
19,8
.22
.25
.25
.25
5,6
.88
22,2
33,7
39,7
46,0
6,3 1.33
6,3 1.56
6,3 1.81
Standard color black.
.062 (1,6mm)
.032 (0,8mm)
B
C
D
A
PANEL
THICKNESS RANGE
E
MOUNTING HOLE
.093 (2,4mm)
.125 (3,2mm)
DOMED
SEALING NUT
FOAM
SEALING WASHER
(INCLUDED)
Foam Sealing
Washer
Locking Fingers
on Body
Accommodate
Wide Range of
Panel Thicknesses
•
Assembly friendly! The installer
simply pushes the conduit or tubing
onto the ferrule, then tightens the
domed sealing nut. This completed
assembly can then be snapped into
the panel with fingertip pressure.
•
Convex ferrule ensures liquid tight seal.
•
No threading of the conduit or tubing
required to install. This eliminates the
possibility of cutting the conduit and
creating leak paths.
•
Complete conduit/fitting system is
reusable. Conduit will not wind tight
onto the connector during assembly
and can be easily removed by pulling
while turning in a clockwise direction.
•
Multiple sizes for use with
Heyco-Flex Conduit and Tubing.
See pages 2-7 and 2-8.
•
Suitable for indoor/outdoor use; for
original equipment manufacturers or
field installers.
•
Resist salt water, weak acids,
gasoline, alcohol, oil, grease, and
common solvents. (This feature is
not assessed by UL certification
or testing.)
•
Foam sealing washer
included.
Convex Ferrule
Provides Easy
Insertion and
Liquid Tight Seal
Special Clip
Provides
Maximum
Pull Out
Resistance
Domed
Sealing Nut
Designed
for Easy
Hand Tightening
NO
DIS
AS
SE
MB
LY
RE
QU
IRE
D
Material
Certifications
Flammability Rating
Temperature Range
IP Rating
Nylon 6/6
Listed under Underwriters’ Laboratories File E28430
Certified by Canadian Standards Association
File 84579 and 81067
94V-2
-22°F (-30°C) to 221°F (105°C)
IP 68 up to 70 psi (5 bar) water pressure
Quick
Specs
2-10
