2
2X .15 DIA
3.8
PANDUIT P/N
CB**-2G
1
THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
WEIGHT
.592 LB/10 PCS.
(269.0 g/10 PCS.)
B
2X
2.69
68.2
3.28
83.3
NOTES:
**1. SEE CURRENT CATALOG FOR ADDITIONAL
PART NUMBER SUFFIXES TO INDICATE COLOR
AND OR PACKAGE QUANTITY.
2. FOUR (4) #6-32 X 1.00" SLOTTED OVAL HEAD
4.50
SCREWS ARE INCLUDED WITH PARTS.
114.3
3. DIMENSIONS IN PARENTHESES ARE IN METRIC.
4. PART ACCEPTS FLAT, SLOPED, SLOPED RECESSED,
AND BLANK INSERTS.
E
B
1.81
46.0
2X 1.58
40.0
4.50 114.3
PART NUMBER
PRODUCT SPEC/PKG SPEC
CB**-2G
.36 9.2
I.I. NUMBER
WORK INSTRUCTION
N/A
N/A
B
C
CUSTOMER DRAWING
D
TITLE
N/A
A
A
5

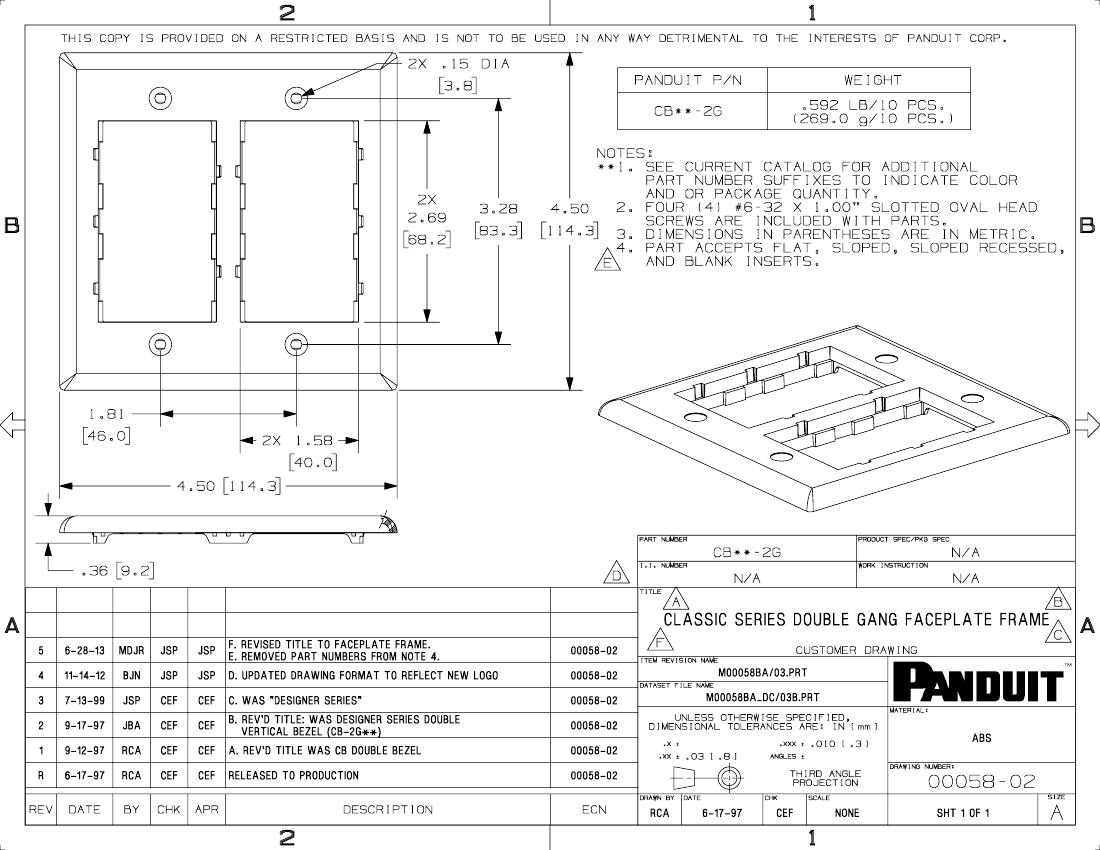

CLASSIC
SERIES
DOUBLE
GANG
FACEPLATE
FRAME
6-28-13
11-14-12
MDJR
A
JSP
JSP
CEF
CEF
CEF
CEF
JSP
JSP
CEF
CEF
CEF
CEF
F.
REVISED
TITLE
TO
FACEPLATE
FRAME.
E.
REMOVED
PART
NUMBERS
FROM
NOTE
4.
D.
UPDATED
DRAWING
FORMAT
TO
REFLECT
NEW
LOGO
C.
WAS
"DESIGNER
SERIES"
00058-02
00058-02
F
ITEM REVISION NAME
4
3
2
1
BJN
M00058BA/03.PRT
DATASET FILE NAME
7-13-99
9-17-97
9-12-97
6-17-97
DATE
JSP
00058-02
00058-02
00058-02
00058-02
DRAWN BY
DATE
M00058BA_DC/03B.PRT
MATERIAL:
JBA
RCA
RCA
B.
REV'D
TITLE:
WAS
DESIGNER
SERIES
DOUBLE
VERTICAL
BEZEL
(CB-2G**)
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
.X
.XX
.XXX
A.
REV'D
TITLE
WAS
CB
DOUBLE
BEZEL
RELEASED
TO
PRODUCTION
.010 [.3]
DRAWING NUMBER:
ABS
.03 [.8]
ANGLES
R
THIRD ANGLE
PROJECTION
CHK
SCALE
00058-02
SIZE
REV
BY
CHK
APR
DESCRIPTION
ECN
RCA
6-17-97
CEF
NONE
SHT
1
OF
1
A
2
1
