Bus system cable - SAC-5P-M12MS/3,0-920/M12FSSHNC - 1400907
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

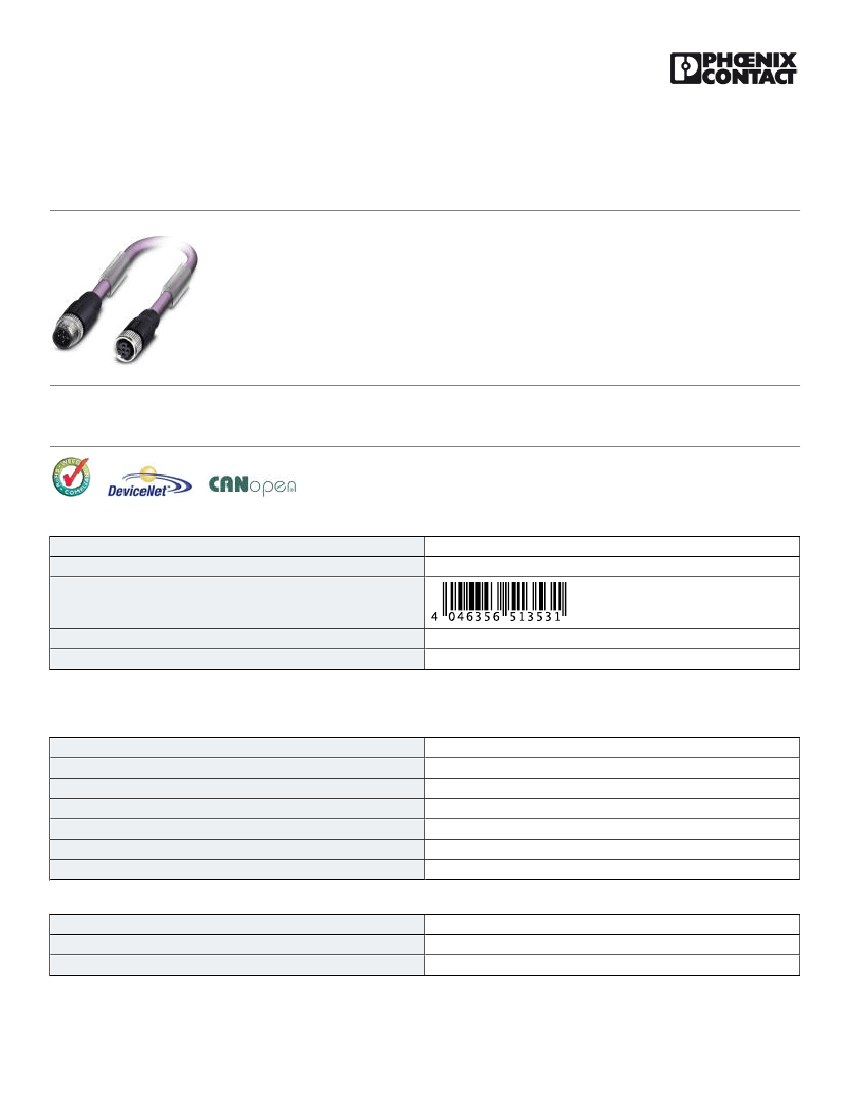

Bus system cable, CANopen /DeviceNet™, 5-position, PUR halogen-free, Violet, RAL 4001, shielded, Plug
straight M12, A-coded, on Socket straight M12, A-coded, Cable length: 3 m, Shield not connected to knurl
®
Product description
Shield not plugged
Packing unit
Minimum order quantity
GTIN
Custom tariff number
Country of origin
1 PCE
50 PCE
Key commercial data
85444290
POLAND
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27060306
27060306
27061801
27061801
27061801
27061801
27061801
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001855
EC001855
EC001855
08.10.2013 Page 1 / 3
https://www.phoenixcontact.com/us/products/1400907
Bus system cable - SAC-5P-M12MS/3,0-920/M12FSSHNC - 1400907
Classifications
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31251501
31251501
31251501
31251501
31251501

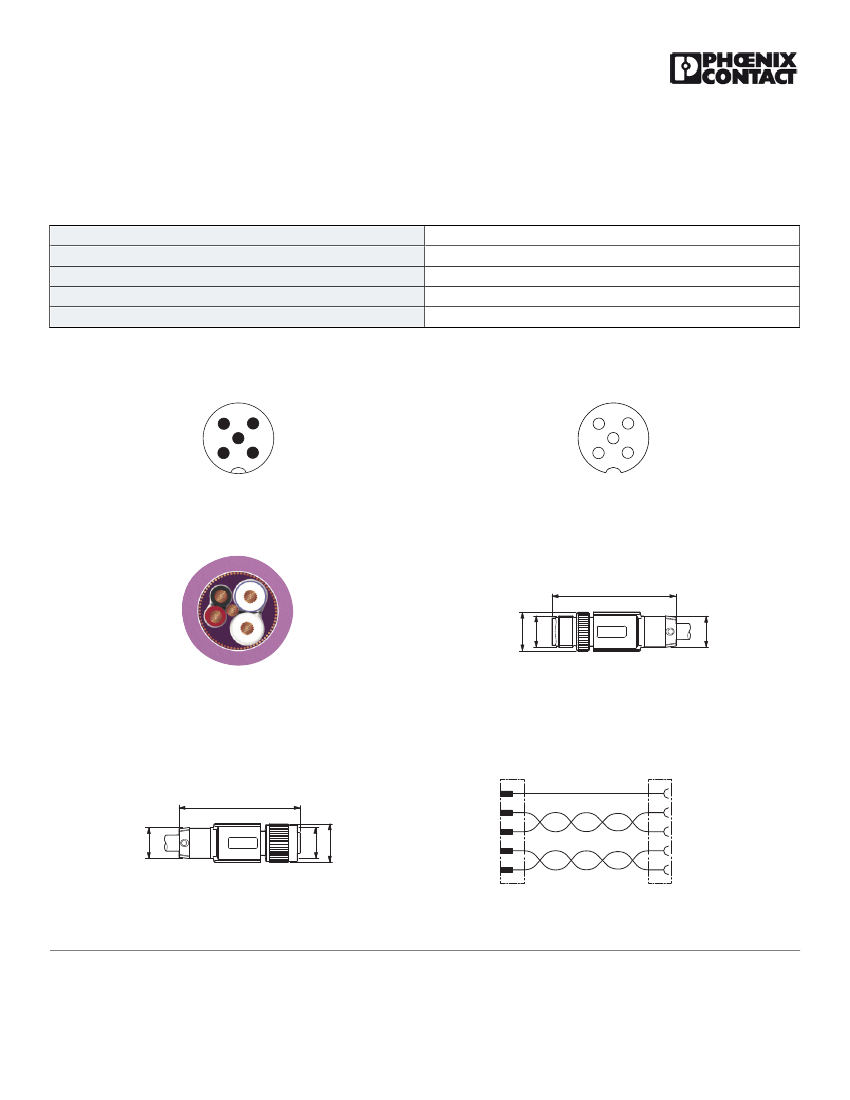

Drawings
Schematic diagram
4
5
3
Schematic diagram
3
5
4
1
2
2
1
Pin assignment M12 male connector, 5-pos., A-coded, male side
Pin assignment M12 socket, 5-pos., A-coded, socket side view
Cable cross section
Dimensioned drawing
47,3
Ø14,8
M12
CAN Bus/DeviceNet [920]
Plug, M12 x 1, straight, shielded
Dimensioned drawing
Circuit diagram
1
44,5
2
1 --- (Drain)
2 RD (V+)
3 BK (V-)
4 WH (CAN_H)
5 BU (CAN_L)
M12
Ø12
Ø15
3
4
5
M12 x 1 socket, straight, shielded
Contact assignment of the M12 connector and the M12 socket
08.10.2013 Page 2 / 3
Ø12
https://www.phoenixcontact.com/us/products/1400907
© Phoenix Contact 2013 - all rights reserved
http://www.phoenixcontact.com
