Sensor/Actuator cable - SAC-4P-M12FS/ 3,0-PUR/M12FS T - 1574645
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/Actuator cable, 4-position, PUR halogen-free, black-gray RAL 7021, Socket straight M12, A-coded, on
Socket straight M12, A-coded, Cable length: 3 m
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
Note
4046356432139
85444290
Made to Order (non-returnable)
50 STK
50 STK
Technical data
Dimensions
Length of cable
3m
Ambient conditions
Degree of protection
IP65
IP67
IP68
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
Status display
Overvoltage category
Degree of pollution
Insertion/withdrawal cycles
4A
250 V
4
≥ 100 MΩ
A - standard
No
II
3
≥ 100
Material
Flammability rating according to UL 94
Contact material
HB
CuSn
11/13/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/1574645
Sensor/Actuator cable - SAC-4P-M12FS/ 3,0-PUR/M12FS T - 1574645
Technical data
Material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
Standards and Regulations
Flammability rating according to UL 94
HB
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
External sheath, color
Outer sheath thickness
External cable diameter D
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Number of bending cycles
Bending radius
Minimum bending radius, drag chain applications
Traversing path
Traversing rate
Acceleration
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
PUR halogen-free black
PUR
Li9Y11Y-HF
20549 / 10493 (80°C/300 V)
4x 0.34 mm²
22
42x 0.10 mm
1.27 mm ±0.02 mm
≥ 0.21 mm
brown, white, blue, black
4 wires, twisted
black-gray RAL 7021
approx. 0.8 mm
4.7 mm ±0.15 mm
23.5 mm
47 mm
5xD
10 x D
4000000
47 mm
10 x D
10 m
3 m/s
10 m/s²
30 kg/km
PUR
PP
Bare Cu litz wires
≥ 1 GΩ*km
≤ 58 Ω/km
≤ 300 V
≥ 3000 V
11/13/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/1574645
Sensor/Actuator cable - SAC-4P-M12FS/ 3,0-PUR/M12FS T - 1574645
Technical data
Cable
Special properties
Flexible cable conduit capable
Silicone-free
Free of substances which would hinder coating with paint or varnish
Flexible
Flame resistance
Halogen-free
Resistance to oil
Other resistance
according to UL 758/1581 (horizontal)
in accordance with UL 758/1581 FT2
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
in accordance with DIN EN 60811-2-1
Highly resistant to acids, alkaline solutions and solvents
hydrolysis and microbe resistant
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Low adhesion
abrasion-resistant
Ambient temperature (operation)
-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)

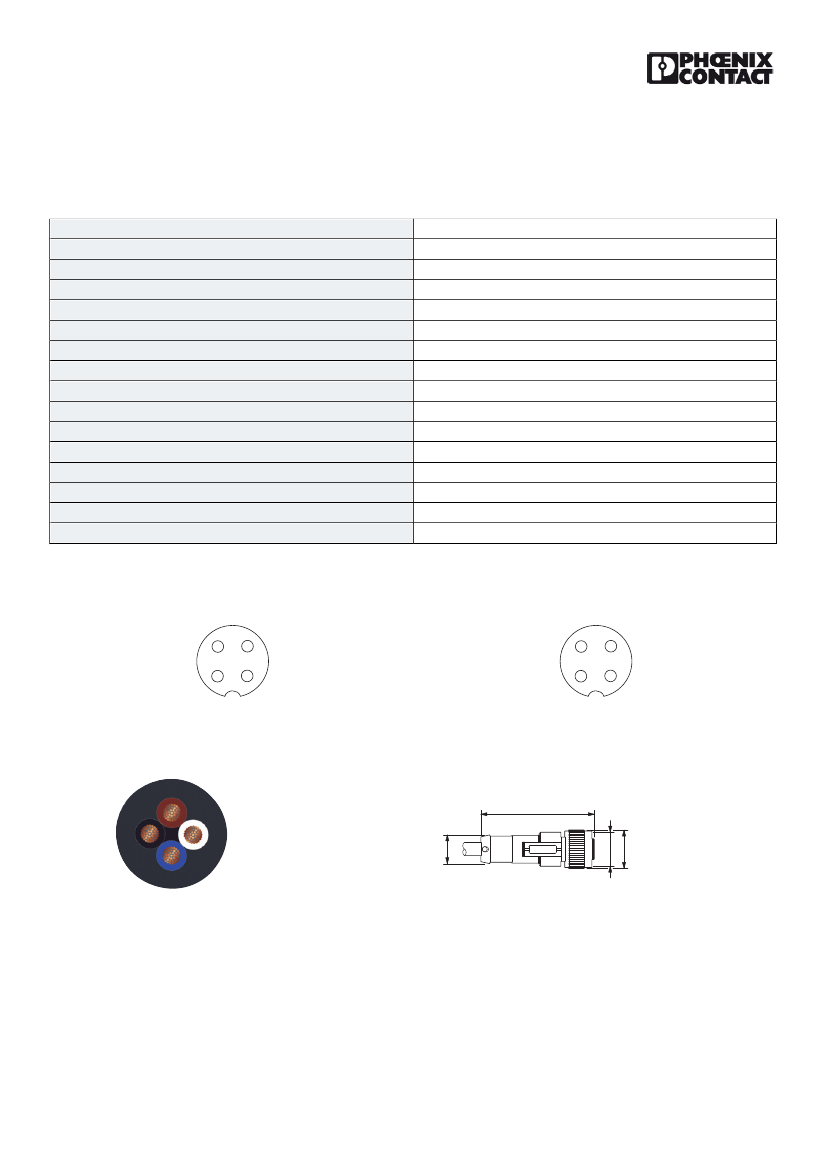

Drawings
Schematic diagram
3
4
Schematic diagram
3
4
2
1
2
1
Pin assignment M12 socket, 4-pos., A-coded, view female side
Pin assignment M12 socket, 4-pos., A-coded, view female side
Cable cross section
Dimensional drawing
44
PUR halogen-free black [PUR]
M12 x 1 socket, straight
Ø14,8
Ø11
M12
11/13/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/1574645
Sensor/Actuator cable - SAC-4P-M12FS/ 3,0-PUR/M12FS T - 1574645
Dimensional drawing
44
M12 x 1 socket, straight
Approvals
Approvals
Approvals
UL Listed / cUL Listed / cULus Listed
Ex Approvals
Approval details
UL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 221474
4A
300 V
Nominal current IN
Nominal voltage UN
cUL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 221474
4A
300 V
Nominal current IN
Nominal voltage UN
cULus Listed
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/13/2016 Page 4 / 4
