Cables and
Mating Connectors
Test & Measurement Sensors
DESCRIPTION
Cable assemblies and mating connectors for Honeywell’s
pressure, load and torque catalog products are offered through
Honeywell’s online configurator in standard cable lengths of 15
ft [4.5 m], 50 ft [15.2 m] and 100 ft [30.5 m]. Other lengths are
available by consulting the factory. Mating connectors offered
for pressure, load, and torque sensors are available for general
duty. Honeywell also offers optional connectors for environmental
protection and high temperature applications. Contact
Honeywell to discuss a modification or a custom order to meet a
specific application and/or operating environment.
Honeywell’s default-type cable offer is PVC, with an optional
choice of Teflon , neoprene, or polyurethane. Other types are
®
with Honeywell cable assemblies. This datasheet and website
configurator will help determine the proper cable assembly for
specific product applications.
Mating connectors are available to connect to pressure, load,
torque, and accelerometer transducer electrical terminations
for general duty, as well as, for environmental protection or high
temperatures. These include, but are not limited to, connectors:
PT06A-10-6A, PC06A-10-6S, MS3106A-14S-6S (SR), MS3106A-
14S-5S, MS3106A-14S-2S, MS3476L-10-6S, PG9, PG11, and
DP-4S-1.
For special configurations and/or requirements, please contact
Honeywell.
available upon request. Depending on the model and options
chosen, there are various wiring configurations that can be used
CABLE ASSEMBLY FEATURES
•
•
•
•
•
Cable assemblies in 15 ft [4.5 m], 50 ft [15.2 m] and 100 ft
[30.5 m] lengths of various 3, 4, 5, or 6 conductor cable
PVC (std.) or teflon, neoprene, polyurethane ( optional)
Cables made with various wiring options that are compatible
with several different conductor cables
Cable assemblies match directly with both the sensor and
our instrument
Custom lengths and configurations – Contact Honeywell
MATING CONNECTOR FEATURES
•
•
•
•
•
MS, PT or PC series types
General duty applications
Environmental protection (optional)
High temperature (optional)
For custom connectors – Contact Honeywell
Cables and Mating Connectors
ONLINE
CONFIGURATOR
Honeywell has devel-
oped an online con-
figurator for standard
catalog pressure, load
and torque products.
The following pages of
information with Model
cross references to
the CABLE ASSEMBLY
BASE ORDER CODES
and WIRING OPTIONS
can be used when
working with the online
configurator.

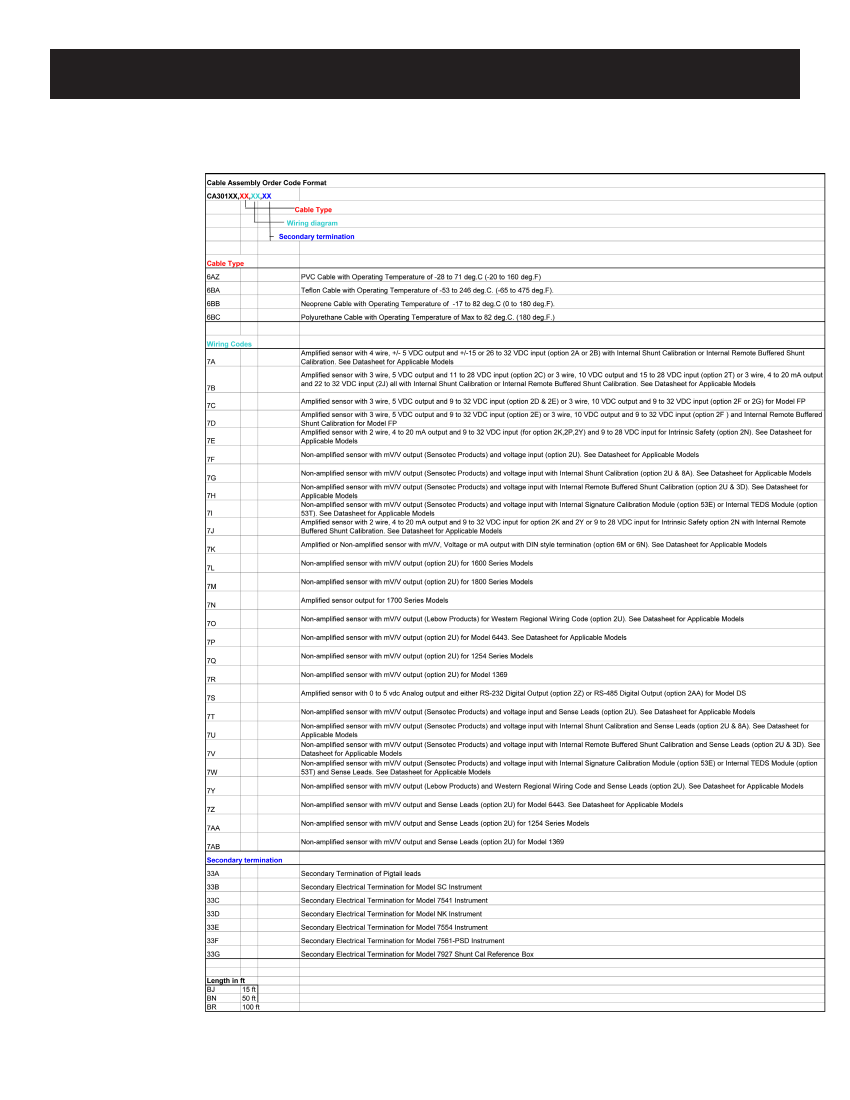

A sample of the web-
site’s cable assembly
configurator can be
found to the right.
There is a set of Cable
Assembly Base Order
Codes to first select from
(Model cross references
can be found in this data
sheet). The user is then
walked through a series
of options which include,
range or cable length
choice, type of cable,
a wiring option (model
cross references can be
found in this data sheet),
and finally an option for
secondary termination
choice. Please check out
the Honeywell Test and
Measurement website
(http://measurementsen-
sors.honeywell.com) for
an interactive session .
2 Honeywell • Sensing and Control
Test & Measurement Sensors
BASE ORDER CODE DESCRIPTIONS
Order Code Description
CA301
CA302
CA303
CA304
CA305
CA306
CA307
CA308
CA309
CA310
CA311
CA312
CA313
Cable assembly with Bendix PT Series, straight plug, 6 socket, shell size 10. See datasheet for applicable models
Cable assembly with Amphenol MS Series, straight plug, 5 socket, shell size 14. See datasheet for applicable models
Cable assembly with Amphenol MS Series, straight plug, 6 socket, shell size 14. See datasheet for applicable models
Cable assembly with Bendix PC Series, straight plug, 6 socket, shell size 10. See datasheet for applicable models
Cable assembly with DIN 43650 straight plug, 4 socket. See datasheet for applicable models
Cable assembly with Bendix PT Series, straight plug, 10 socket, shell size 12. See datasheet for applicable models
Cable assembly with Bendix PT Series, straight plug, 8 socket, shell size 12. See datasheet for applicable models
Cable assembly with Binder 12 socket, KV120. See datasheet for applicable models
Cable assembly with Amphenol MS Series, 4 socket, shell size 14 for Wing Union Pressure Transducer See datasheet
for applicable models
Cable assembly with Bendix Receptacle, PT01 Series, 10 socket, shell size 12. See datasheet for applicable models
Cable assembly with Amphenol MS Series, Wall Mounting (Bulk) Plug, 5 socket, shell size 14. See datasheet for ap-
plicable models
Cable assembly for high temperature with Amphenol MS Series, 6 socket, shell size 10 (MS-3476L-10-6S(SR)). See
datasheet for applicable models
Cable assembly with DIN 40050 straight plug, 4 socket. See datasheet for applicable models
Honeywell • Sensing and Control
3
Super
TJE
DS
A-5
440
425
424
415
355
A-205
A-105
Model
AS17A
AS19G
A-205a
A-105a
Sensor
Reference
Information
Order
code
AP162
AP161
AP312
AP311
BP425
BP424
BP313
AP141/
AP142
AP415/
AP416
AP411/
AP412
AP611-
AP614
AP314-
AP316
AP313-
AP318
FP2000
(6a)
FP2000
(6m)
FP2000
(6n)
PRESSURE SENSORS
Z
HP
TJE
FPA,
FPG,
FPB,
FPV,
FPW
AP121
BP521
AP131/
AP132
AP111/
AP112
Cables and Mating Connectors
4 Honeywell • Sensing and Control
Base order code
description for Online
Configurator
Cable assembly with DIN
40050 straight plug, 4
socket
Cable assembly with DIN
43650 straight plug, 4
socket
Cable assembly with
Amphenol MS Series, 4
socket, shell size 14 (MS-
3106F-14-2S)
Cable assembly with
Bendix PT Series, straight
plug, 8 socket, shell size
12
Cable assembly with
Bendix PT Series, straight
plug, 6 socket, shell size
10
Cable assembly with
Bendix PT Series, straight
plug, 6 socket, shell size
10
Cable assembly with DIN
43650 straight plug, 4
socket
Wiring Options for Cable/Online Configurator
â
Cable assembly with
Bendix PT Series, straight
plug, 6 socket, shell size
10
Cable assembly with
Bendix PT Series, straight
plug, 6 socket, shell size
10
SENSOR OPTIONS
â
CA301
Cable
assembly
base order code
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
CA301
CA301
CA301
CA313
CA305
CA307
CA305
CA309
7A
(2A or 2B)
x
x
x
x
Amplified sensor with 4 wire, ±5 Vdc
output and ±15 Vdc or 26 Vdc to 32 Vdc
input (option 2A or 2B) with internal shunt
calibration or internal remote buffered
shunt calibration.
7B
(2C 2J or 2T)
x
x
x
x
Amplified sensor with 3 wire, 5 Vdc output
and 11 to 28 Vdc input (option 2C) or 3
wire, 10 Vdc output and 15 Vdc to 28 Vdc
input (option 2T) or 3 wire, 4 to 20 mA
output and 22 to 32 Vdc input (2J) all with
internal shunt calibration or internal remote
buffered shunt calibration.
7C
(2D, 2E, 2F
or 2G)
x
Amplified sensor with 3 wire, 5 Vdc output
and 9 to 32 Vdc input (option 2D & 2E)
or 3 wire, 10 Vdc output and 9 to 32 Vdc
input (option 2F or 2G) for Model FP
7D
(2E & 3D
2F & 3D)
x
Amplified sensor with 3 wire, 5 Vdc output
and 9 to 32 Vdc input (option 2E) or 3
wire, 10 Vdc output and 9 to 32 Vdc input
(option 2F ) and internal remote buffered
shunt calibration for Model FP
7E
(2K, 2N,
2P, 2Y)
x
x
x
x
x
Amplified sensor with 2 wire, 4 to 20 mA
output and 9 to 32 Vdc input (for option
2K,2P,2Y) and 9 to 28 Vdc input for intrin-
sic Safety (option 2N).
Non-amplified sensor with mV/V output
(Sensotec Prod.) & voltage input (option 2U).
7F
(2U)
x
x
x
x
x
7G
(2U &
8A)
x
x
x
x
Non-amplified sensor with mV/V output
and voltage input with internal shunt cali-
bration (option 2U & 8A).
7H
(2U &
3D)
x
Non-amplified with mV/V output (Sensotec
Prod.) & voltage input with internal remote
buffered shunt calibr. (option 2U & 3D).
7I
(2U & 53E,
53T)
x
x
x
x
Non-amplified sensor with mV/V output
(Sensotec Products) and voltage input
with internal Signature calibration module
(option 53E) or internal TEDS Module
(option 53T).
7J
(2K, 2N or 2Y
& 3D)
x
7K
(DIN)
Amplified sensor with 2 wire, 4 to 20 mA
output and 9 to 32 Vdc input for option 2K
and 2Y or 9 to 28 Vdc input for intrinsic
Safety option 2N with internal remote
buffered shunt calibration.
x
7L
Non-amplified sensor with mV/V output
(option 2U) for 1600 Series models
x
(1600)
x
7M
Non-amplified sensor with mV/V output
(option 2U) for 1800 Series models
x
(1800)
Amplified or non-amplified sensor with
mV/V, Voltage or mA output with DIN style
termination (option 6M or 6N).
7N
Amplified sensor output for 1700 Series
models
(1700)
(WRC)
7O
Non-amplified sensor with mV/V output
(Lebow Products) for western regional wir-
ing code (option 2U).
Non-amplified sensor with mV/V output
(option 2U) for Model 6443.
Non-amplified sensor with mV/V output
(option 2U) for 1254 Series Models
7P
7Q
7R
(1254E)
(6443)
Non-amplified sensor with mV/V output
(option 2U) for Model 1369
(1369)
7S
(DS)
x
Amplified sensor with 0 to 5 vdc Analog
output and either RS-232 Digital Output
(option 2Z) or RS-485 Digital Output (op-
tion 2AA) for Model DS
7T
(2U/
Sense
Leads)
x
x
x
x
x
x
x
x
x
x
x
x
x
x
Non-amplified sensor with mV/V output
(Sensotec Products) and voltage input and
Sense Leads (option 2U).
7U
(2U & 8A/
Sense
Leads)
x
x
x
x
Non-amplified sensor with mV/V output
(Sensotec Products) and voltage input with
internal shunt calibration and Sense Leads
(option 2U & 8A).
7V
(2U & 3D/
Sense
Leads)
x
Non-amplified sensor with mV/V output
(Sensotec Products) and voltage input with
internal remote buffered shunt calibration
and sense leads (option 2U & 3D).
7W
(2U & 53E,
53T/Sense
Leads)
x
x
x
x
Non-amplified sensor with mV/V output
(Sensotec Products) & voltage input with
internal signature calibration mod. (option
53E) or internal TEDS module (option 53T)
and sense leads.
Non-amplified sensor with mV/V output
(Lebow Products) and western regional
wiring code and sense leads (option 2U).
Non-amplified sensor with mV/V output
and Sense Leads (option 2U) for Model
6443.
Non-amplified sensor with mV/V output
and Sense Leads (option 2U) for 1254
Series models
7Y
7Z
7AA
(1254E/
Sense
Leads)
(6443/
Sense
Leads)
(WRC/
Sense
Leads)
Test & Measurement Sensors
Honeywell • Sensing and Control
7AB
(1369/
Sense
Leads)
5
Non-amplified sensor with mV/V output
and Sense Leads (option 2U) for Model
1369
