CCSMA642-MM-086F-12 datasheet, PDF

Datasheet> All Categories > Wire/cable> CCSMA642-MM-086F-12

CCSMA642-MM-086F-12: DescriptionRF Cable Assemblies 12 GHz M/M RA/RA IL 0.83dB @ 12GHz; CategoryWire/cable; File Size996KB，4 Pages; ManufacturerCrystek; Environmental Compliance

Download Datasheet Parametric View All

CCSMA642-MM-086F-12 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CCSMA642-MM-086F-12	-	-	View	Buy Now

CCSMA642-MM-086F-12 Overview

RF Cable Assemblies 12 GHz M/M RA/RA IL 0.83dB @ 12GHz

CCSMA642-MM-086F-12 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Crystek
Product Category	RF Cable Assemblies
RoHS	Details
Connector A Series	SMA
Connector A Gender	Plug (Male)
Connector A Body Style	Right Angle
Connector B Series	SMA
Connector B Gender	Plug (Male)
Connector B Body Style	Right Angle
Length	12 in
Impedance	50 Ohms
Frequency Range	DC to 6.4 GHz
Cable Type	0.086 Coax
Packaging	Reel
Color	Blue
Contact Plating	Gold
Contact Material	Brass
Connector A Polarity	Normal
Connector B Polarity	Normal
Polarity	Normal
Factory Pack Quantity	1

Preview

Download Datasheet

View All

FLEXIBLE .086 PRECISION

12.6 GHZ RIGHT ANGLE

RF COAX CABLE ASSEMBLIES

086 Flexible 50 Ohm 12.6 GHz Right Angle Coaxial Cables

Features:

Strain Relief:

Heavy duty adhesive strain relief

Center Conductor:

SCCS (Silver-Plated Copper Clad Steel)

Inner Braid:

Flat silver-plated copper strip

Outer Braid:

PC (Round Silver-Plated Copper Braid)

Dielectric:

PTFE (Polytetrafluoroethylene)

Jacket:

FEP (Fluorinated Ethylene Propylene)

Cable Outer Diameter:

0.100” (2.54mm)

Connectors:

Gold-plated brass

Center Pin:

Gold-plated brass

Jacket Color:

Blue

Operating Temperature:

-45°C to +85°C

Static Bend Radius:

0.3” Min.

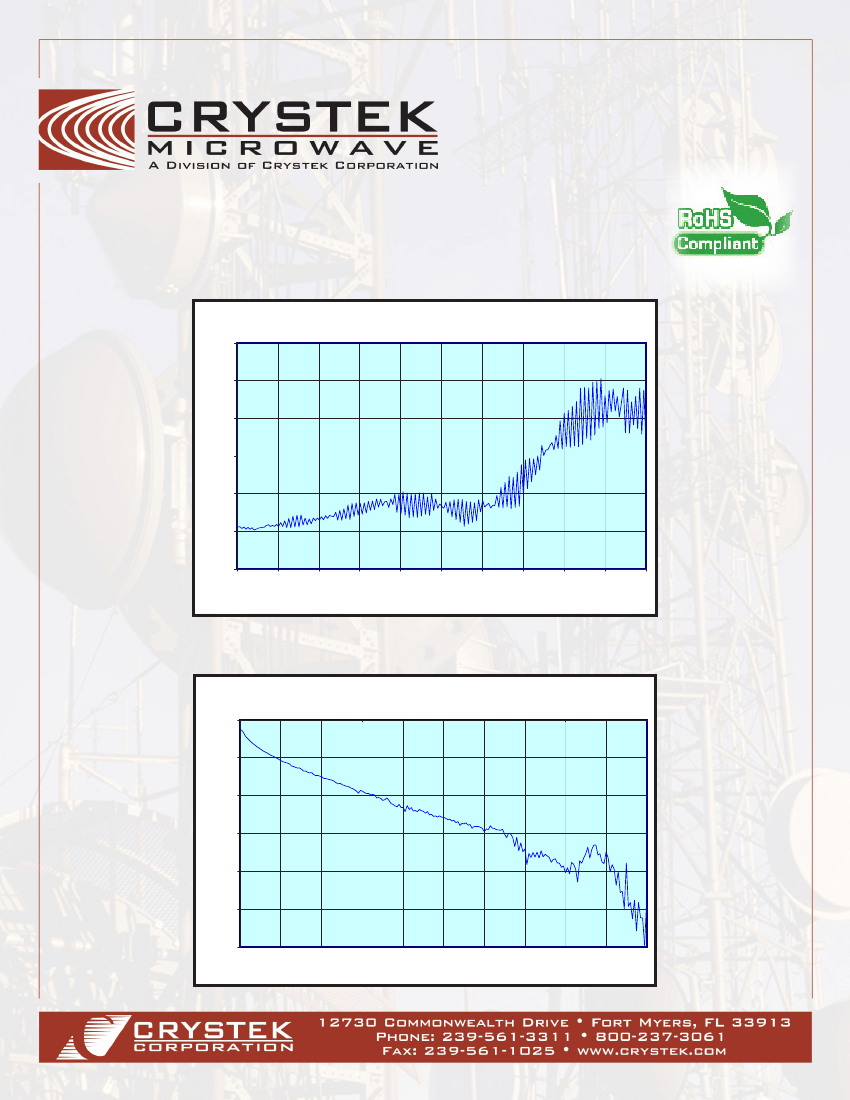

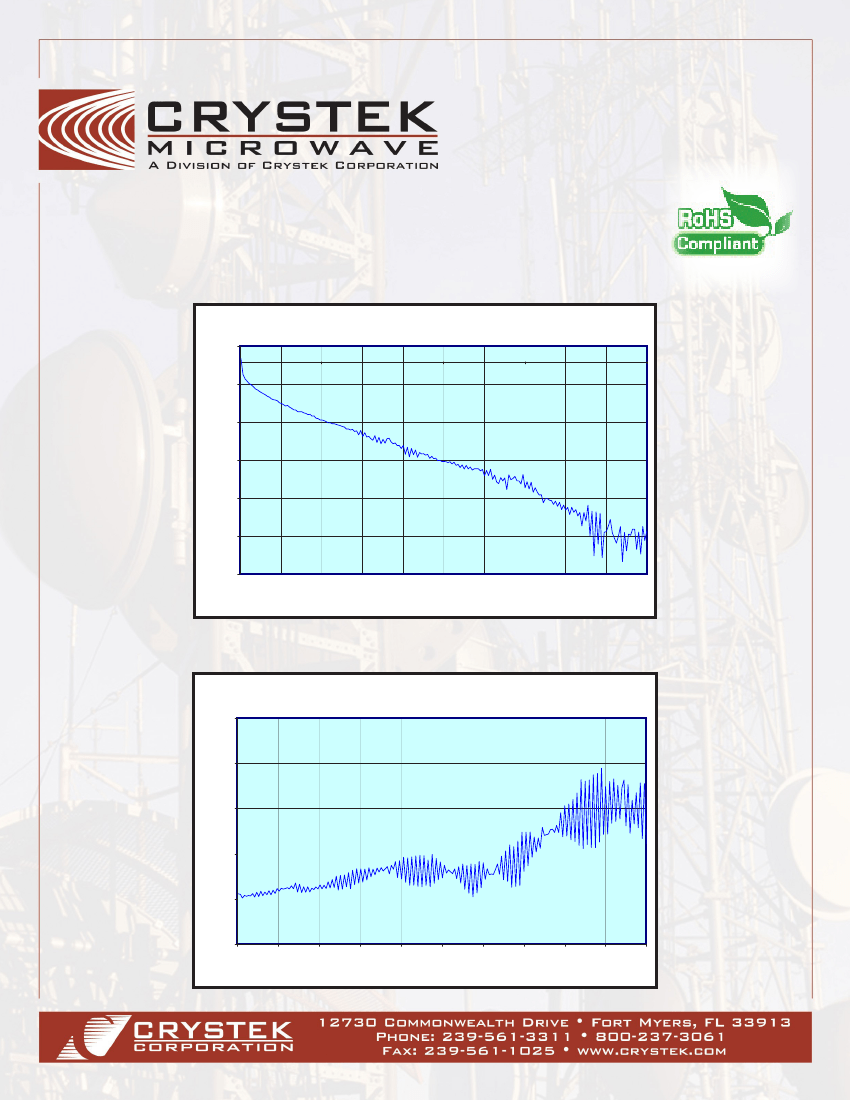

Electrical Specifications:

Impedance:

Frequency:

Insertion Loss:

VSWR:

SMA Male/RA

RA/RA

Nominal Capacitance:

Velocity of Propagation:

Shield Effectiveness:

Attenuation (dB/ft):

*connector loss not included

50 Ohms

Up to 12.6 GHz

0.83 dB/ft Typ at 12 GHz

<1.40 to 12.6 GHz

<1.35 to 6.4 GHz

31 pF/ft

70%

Greater than 100 dB

0.15 Typical at 500 MHz

0.21 Typical at 1 GHz

0.38 Typical at 3 GHz

0.56 Typical at 6 GHz

0.83 Typical at 12 GHz

Max Power in (Kwatts):

0.18 @ 500 MHz

*as specified at 25°C/sea level

0.13 @ 1 GHz

0.08 @ 3 GHz

0.05 @ 6 GHz

0.04 @ 12 GHz

Available Connector Terminations:

SMA Male / SMA Male Right Angle (DC to 12.6 GHz)

SMA Male Right Angle / SMA Male Right Angle (DC to 6.4 GHz)

Custom Lengths Available

Rev.: E

Date: 06-14-16
