400/800/2300 Series
™
Raceway
WIREMOLD
®
Low Profile Design Combines Functionality With Aesthetics
Ideal for Low Voltage and Power Applications
400, 800, 2300 and 2300BACD Series
™
Raceway, are
a family of low-profile raceways that are designed
for communication or power applications. 400, 800
and 2300 Raceway offer a single channel for either
communication or power. And when power and low
voltage services are both needed in a single raceway,
the divided 2300BACD Raceway with it’s low-profile
design, is an easy-to-install option.
400,800,2300 and 2300BACD Raceways are an
ideal solution for use in classrooms, offices, hospitality
applications, or anywhere a small, secure, low profile
raceway is needed.
2300D Series Raceway in a
typical office application.
FEATURES & BENEFITS
n
Accommodates communication and/or power wiring.
Can be used for communications, computer lines,
surveillance systems, fire alarms, outlets, and more.
n
Available in three sizes.
400, 800, and 2300 sizes provide
flexibility for meeting a variety of capacity and space
requirements. Perfect for most small drops and horizontal
runs to work stations.
n
Durable, textured PVC construction.
Available in ivory or
white finish to blend with any decor. Also paintable using
latex paint. Consult factory for custom color options.
n
Single- and dual-compartment low profile design.
Provides functionality and flexibility with aesthetics for
single- or dual-service applications.
n
Adhesive backing for low voltage (under 50V)
applications.
Allows base to be pressed onto mounting
surface. Speeds installation.
n
Lightweight and easy to handle.
Saves time and labor
costs. Standard 5' (1.525m) raceway lengths can be easily
installed by one person. Custom lengths up to 10' (3.05m)
are also available.
n
Divided FiberReady
®
fittings.
For use with 2300BAC
and 2300BACD. Full capacity fittings provide 2" (51mm)
bend radius.
n
Over-the-raceway box for 2300 and 2300D.
Boxes
mount over continuous run of raceway base eliminating
the need to cut raceway when locating devices.
n
Sure-Snap
®
boxes for 2300BACD.
Provides flush look
and ease of installation.
n
Snap-on cover.
Provides security with access to wiring
for changes or additions.
n
Datacom connectivity options.
Accepts industry standard
and proprietary devices from a wide range of manufacturers
to provide a seamless and aesthetically pleasing interface
for voice, data, audio, and video applications at the point
of use.
n
cULus Listed.
File E90378 Raceway, E90377 Fittings.
Download this product’s PEP ecopasport
®
environmental product declaration at
www.legrand.us/resources-and-downloads.
This declaration conforms with ISO 14025 and
14040 and is in alignment with EN 15804.
ED296R18 – Updated January 2016 – For latest specs visit www.legrand.us/wiremold
400, 800, 2300, 2300D Series Raceway System Layout
2338A, 2337A
417, 817, 2317
2344, 2347, 2348
418, 818, 2318,
2318DFO
810A2, 2310A,
2310DFO
417, 817, 2317,
2317DFO
411, 811, 2311,
2311DFO
406, 806, 2306
415, 815, 2315
NOTE: Illustration shows product applications only. 2315 Tee Fitting cannot be used with 2300D Divided Raceway.
400, 800, 2300, 2300D Raceway Series Wire Fill Capacities for Power
WIRE SIZE
THHN/THWN
14 AWG
12 AWG
10AWG
Inches
0.111
0.130
0.164
O.D.
(mm)
(2.8)
(3.3)
(4.2)
400BAC
5
3
0
NUMBER OF CONDUCTORS
800BAC
2300BAC
6
5
4
15
14
12
2300BACD
†
7
6
5
400, 800, 2300, 2300D Raceway Series Wire Fill Capacities for Communications
CABLE/WIRE SIZE
UNSHIELDED
TWISTED PAIR
4-Pair,
4-Pair,
4-Pair,
4-Pair,
25-Pair,
RG6/U
Zip Cord 0.118 x 0.157
Round 4 Strand Fiber
Round 6 Strand Fiber
24
24
24
24
24
AWG
AWG
AWG
AWG
AWG
Cat.
Cat.
Cat.
Cat.
3
5e
6
6a**
O.D.
inches
0.190
0.210
0.250
0.354
0.410
0.270
(3 x 6)
0.187
0.256
(mm)
(4.8)
(5.3)
(6.3)
(9.0)
(10.4)
(6.9)
1
(4.8)
(6.5)
400
1
1
1
0
0
0
3
1
1
800
3
3
2
1
0
1
12
3
2
40% FILL*
2300
11
9
6
3
2
5
6
12
6
2300D
†
5
4
3
1
1
2
6
3
COAXIAL
FIBER
* Wire capacity is reduced to allow for proper conductor bend radius and maximum permissible heat rise.
** Category 6 augmented (6a) cable for 10 gigabit ethernet – max allowed cable diameter per addenda No. 11 ANSI TIA/EIA 568-B.2.
†
each compartment.
400BAC, 800BAC, 2300BAC, 23000BACD Series Raceway Ordering Information
Catalog No./Item
400BAC
800BAC
2300BAC
2300BACD
400BAC-WH
800BAC-WH
2300BAC-WH
2300BACD-WH
Description/Specifications
Low profile, two-piece raceway with snap-on cover
– Available in 5' (1.525m and length.
Supplied with wide adhesive tape along entire length of base.
400BAC
7/16"
(11.1mm)
7/8"
(22.2mm)
7/16"
(11.1mm)
800BAC
(17.5mm)
1 5/16"
(33mm)
11/16"
2300BAC
11/16"
(17.5mm)
2 1/4"
(57mm)
2300BACD
2 1/4"
(57mm)
2

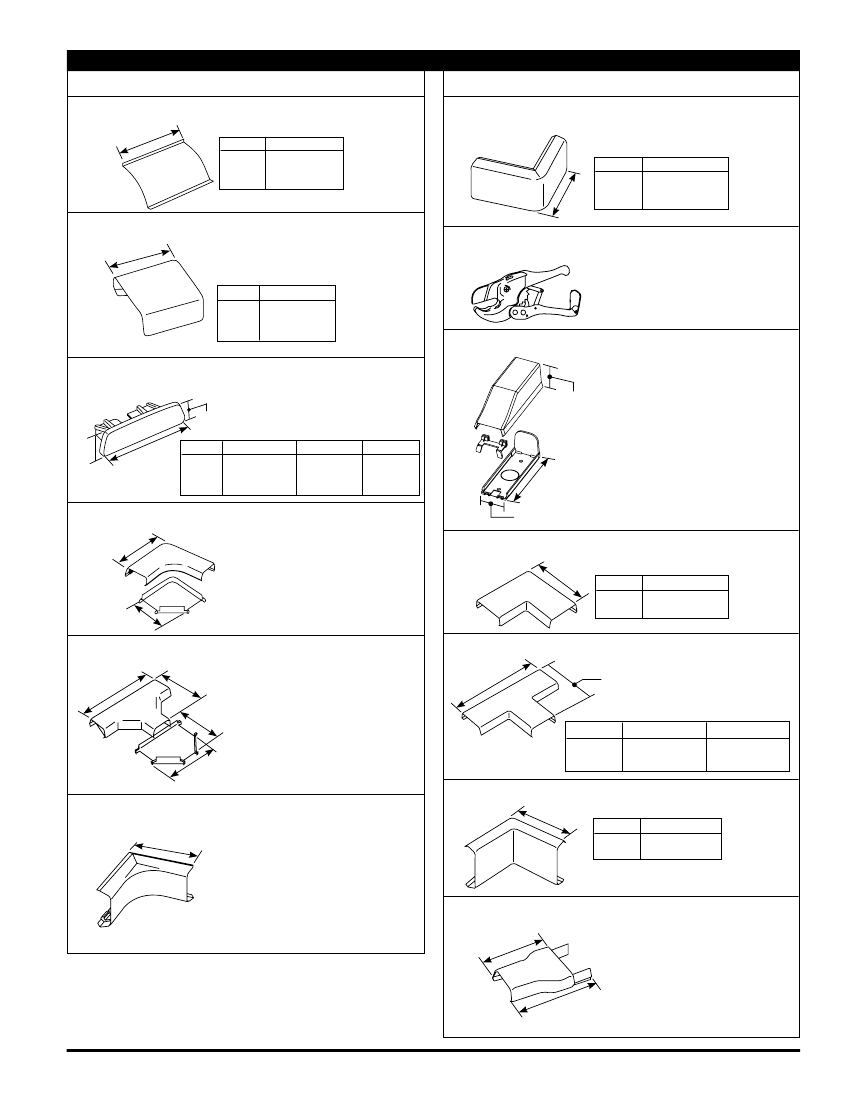

400, 800, 2300, 2000D Series Fittings Ordering Information
Catalog No./Item
400WC
800WC
2300WC
Description/Specifications
Wire Clip
– For holding conductors
in place.
A
CAT NO.
400WC 1/2"
800WC 1"
2300WC 1"
A
(12.7mm)
(25mm)
(25mm)
Catalog No./Item
418
818
2318*
Description/Specifications
90˚ External Elbow
– For
right angle turns around
external corners.
CAT NO.
418
818
2318
A
11/2 (38mm)
2" (51mm)
2 1/2" (64mm)
A
406
806
2306
A
Cover Clip
– For covering joint
where two pieces of 400BAC,
800BAC or 2300BAC Series
Raceway cover come together.
CAT NO.
406
806
2306
A
13/16" (20.6mm)
1" (25mm)
2" (51mm)
PVC-1
PVC Cutter
– Regular duty
cutter. Ideal for use with small
nonmetallic raceway.
810A2
410B
810B
2310B
B
C
Blank End Fitting
– For closing
open end of 400BAC, 800BAC, or
2300BAC Raceway Series.
1 1/2"
(38mm)
Entrance End Fitting
– For
connecting 400 or 800 Series
Raceway with 1/2" trade size
conduit or armored cable. 1/2"
trade size KO on end and bottom.
A
CAT NO.
410B
810B
2310B
13/16"
1 1/4"
2 1/4"
A
(20.6mm)
(32mm)
(57mm)
B
1/2" (12.7mm)
1/2" (12.7mm)
1" (25mm)
3/8
3/8
3/8
C
(9.5mm)
(9.5mm)
(9.5mm)
4 1/4"
(108mm)
1 7/16"
(37mm)
411*
2 1/16"
(53mm)
90˚ Flat Elbow
– For right angle
turns on same surface.
811
2311* **
A
90º Flat Elbow
– For right angle
turns on same surface.
CAT NO.
811
2311
A
2 1/2" (64mm)
4 3/16" (106mm)
1 3/8"
(35mm)
415*
3 3/16"
(81mm)
2"
(51mm)
Tee
– For branches at right angles.
815
2315* **
A
Tee
– For right angles turns on
same surface.
B
1 3/8"
(35mm)
CAT NO.
815
2315
A
4 1/8" (105mm)
6" (152mm)
B
2 3/4" (70mm)
4 1/8" (105mm)
2 5/32"
(55mm)
417*
1 1/2"
(38mm)
Internal Elbow
– For surfaces at
right angles.
817
2317*
A
Internal Elbow
– For surfaces at
right angles.
CAT NO.
817
2317
A
2" (51mm)
2 1/2" (64mm)
889A
1 1/2"
(38mm)
Reducing Connector (800-400)
–
For transitioning from 800 to
400 Series Raceway.
NOTE: No suffix denotes ivory finish. Add “–WH” suffix for
white finish.
* For 2300BAC and 2300BACD Raceway must be mitered to
use 2311 and 2318. 2315 cannot be used in divided raceway.
2"
(51mm)
3

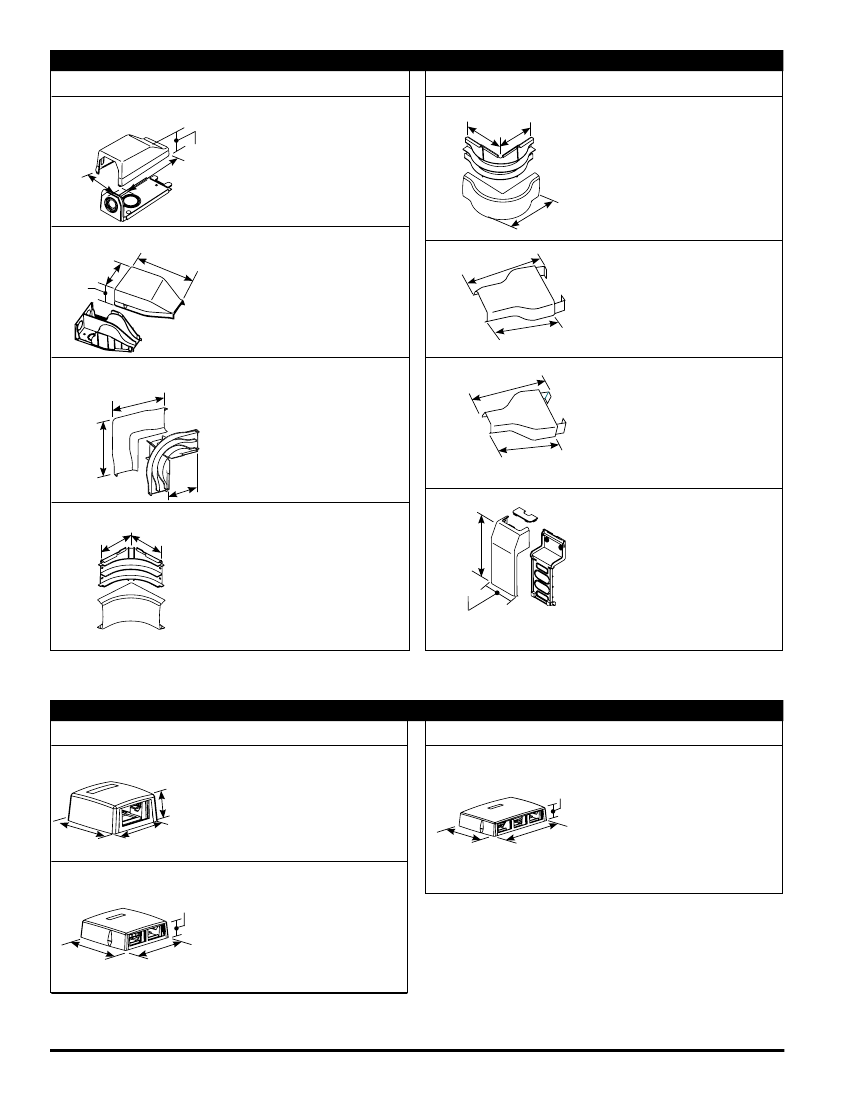

400, 800, 2300, 2000D Series Fittings Ordering Information
(continued)
Catalog No./Item
2310A
Description/Specifications
Entrance End Fitting
– 1/2", 3/4",
and 1" trade size KOs for feeding
2300 Series Raceway.
1 15/16"
(49mm)
4 1/2"
(115mm)
5"
(127mm)
Catalog No./Item
2318DFO
3 3/4"
(95mm)
3 3/4"
(95mm)
Description/Specifications
Bend Radius Divided External
Elbow
– A 90° external corner with
integral dividers to provide 2"
(51mm) cable bend radius for
UTP and fiber optic installations.
2 7/16"
(62mm)
2310DFO
4"
(102mm)
2 3/16"
(56mm)
6 1/2"
(165mm)
Bend Radius Divided Entrance
End Fitting
– Divided fitting to
feed 2300BAC and 2300BACD
Series Raceway. Includes 1/2",
3/4" and 1" trade size KOs on
back and top.
2389
3"
(76mm)
Reducing Connector
(2300BAC-800BAC)
–
For transitioning from 2300BAC
to 800BAC Series Raceway.
2 1/2"
(64mm)
2311DFO
5 1/2"
(140mm)
Bend Radius Divided Flat Elbow
–
A 90° flat corner with integral
dividers to provide 2" (51mm)
cable bend radius for UTP and
fiber optic installations.
2389A
3"
(76mm)
Reducing Connector
(2300BAC-400BAC)
–
For transitioning from 2300BAC
to 400BAC Series Raceway.
5 1/2"
(140mm)
3 1/4"
(83mm)
2 1/2"
(64mm)
2317DFO
3 1/2"
(89mm)
3 1/2"
(89mm)
Bend Radius Divided Internal
Elbow
– A 90° internal corner with
integral dividers to provide 2"
(51mm) cable bend radius for
UTP and fiber optic installations.
5474
7 9/16"
(192mm)
3 3/16"
(81mm)
Transition Tap Fitting
– Makes
transition from 5400 Raceway to
400BAC, 800BAC, 2300BAC
Series Raceway.
NOTE: No suffix denotes ivory finish. Add “–WH” suffix for white finish.
400, 800, 2300, 2000D Series Communications Boxes Ordering Information
(continued)
Catalog No./Item
CM-MMB-231
1 1/2"
(38mm)
3 1/4"
(83mm)
3 1/4"
(83mm)
Description/Specifications
One Insert Multimedia Box
-
Compatible with 400BAC and
800BAC Series Raceway.
Accepts Pass & Seymour
®
Activate
Inserts and Wiremold Open
System Communication Modules.
Catalog No./Item
CM-MMB-233
1 1/2"
(38mm)
Description/Specifications
Three-Insert FiberReady
®
Multimedia Box
–
Compatible with 400BAC,
800BAC and 2300BAC
Series Raceway. Accepts Pass &
Seymour
®
Activate Inserts and
Wiremold Open System
Communications Modules
5.19"
(132mm)
7 3/4"
(197mm)
CM-MMB-232
1 1/2"
(38mm)
5.19"
(132mm)
5.19"
(132mm)
Two Insert FiberReady
®
Multimedia Box
- Compatible with
400BAC, 800BAC, and 2300BAC
Series Raceway. Accepts Pass &
Seymour
®
Activate Inserts and
Wiremold Open System
Communications Modules.
4

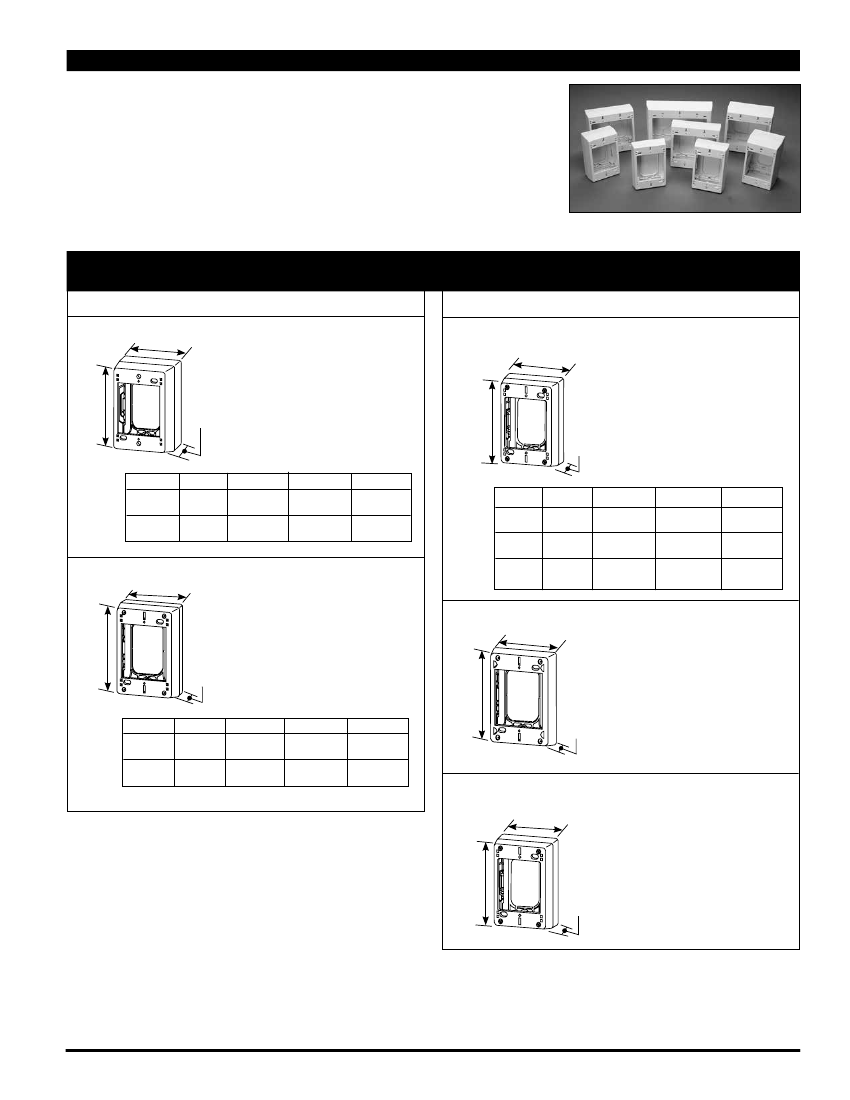

400, 800, 2300 Series Raceway Sure-Snap
®
Device Boxes
n
Interchangeable covers and bases.
Provides installation flexibility.
n
Large knockout.
Accommodates many cable types and quantities.
n
Cover removes easily.
One twist of a screwdriver removes the cover for
fast changes.
n
No screws to assemble.
The secure snap assembly requires fewer tools
and parts, which means a shorter installation time.
Sure-Snap Device Boxes are available
in a variety of sizes and depths.
400, 800, 2300 Series Raceway Sure-Snap
®
Device Boxes Ordering Information
(For Non-Divided Raceways)
2348
2348-2
2348-3
Catalog No./Item
2344
2344-2
B
Description/Specifications
Extra Deep Device Box
–
2344 one-gang, 2344-2 two-gang.
2344-2 base has rectangular KO
to enable extension from existing
single-gang flush wall box and 1/2"
and 1" trade size concentric KOs.
Accepts NEMA Faceplates
Catalog No./Item
Description/Specifications
Deep Device Box
– 2348 one-gang,
2348-2 two-gang, 2348-3 three-gang.
For deeper switches and devices.
2348, 2348-2, and 2348-3 Bases
have rectangular KO to enable
extension from existing flush wall
box and 1/2" and 1" concentric
KOs. Accepts NEMA Faceplates.
C
B
A
C
A
CAT #
2344
2344-2
GANG(s)
1
2
A
4 3/4"
(121mm)
4.3/4"
(121mm)
B
3"
(76mm)
4 7/8"
(124mm)
C
2 3/4"
(70mm)
2 3/4"
(70mm)
CAT #
2348
2348-2
2348-3
GANG(S)
1
2
3
2347
2347-2
B
A
Device Box
– 2347 one-gang,
2347-2 two-gang. For standard
switches and devices. 2347 and
2347-2 Bases have rectangular
KO to enable extension from
existing flush wall box and 1/2"
and 1" trade size concentric KOs.
Accepts NEMA Faceplates
C
A
4 3/4"
(121mm)
4 3/4"
(121mm)
4 3/4"
(121mm)
B
3"
(76mm)
4 7/8"
(124mm)
7"
(178mm)
C
1 3/4"
(35mm)
1 3/4"
(44mm)
1 3/4"
(44mm)
2348S/51
3"
(76mm)
4 3/4"
(121mm)
7/8"
(22mm)
Shallow Device Box/
Extension Box
– For shallow
switches and receptacles. Base
has rectangular KO. Accepts
NEMA Faceplates.
CAT #
2347
2347-2
GANG(S)
1
2
A
4 3/4"
(121mm)
4 3/4"
(121mm)
B
3"
(76mm)
4 7/8"
(124mm)
C
1 3/8"
(35mm)
1 3/8"
(35mm)
2348AMP
3"
(76mm)
NOTE: No suffix denotes ivory finish. Add “–WH” suffix for
white finish.
All single-gang bases have a rectangular knockout on
the base.
4 3/4"
(121mm)
Magnetic Deep Device Box
(with Grommet)
– For deeper
switches and devices. Magnetic
backing. Base has rectangular KO.
Accepts NEMA Faceplates
1 3/8"
(35mm)
5
京公网安备 11010802033920号
EEWORLD
