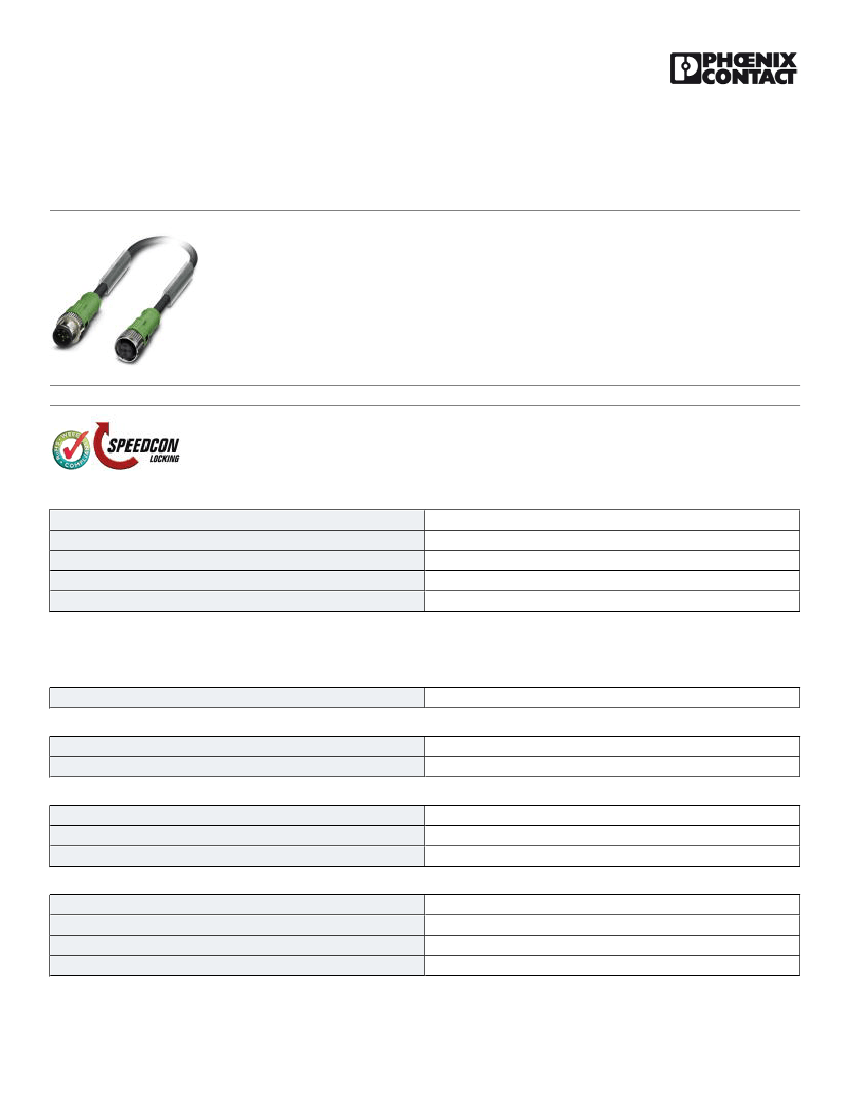

Sensor/Actuator cable - SAC-17P-MS/10,0-PUR/FS SCO - 1402497
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/Actuator cable, 17-position, PUR halogen-free, black RAL 9005, Plug straight M12 SPEEDCON, A-coded,
on Socket straight M12 SPEEDCON, A-coded, Cable length: 10 m
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
25 pc
780.0 g
85444290
Germany
Technical data
Environmental Product Compliance
REACh SVHC
DOTE 15571-58-1
Dimensions
Length of cable
Stripping length of the free conductor end
10 m
35 mm
Ambient conditions
Degree of protection
IP65
IP67
IP68
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
1.5 A
30 V
17
≥ 100 MΩ
04/25/2016 Page 1 / 3
https://www.phoenixcontact.com/us/products/1402497
Sensor/Actuator cable - SAC-17P-MS/10,0-PUR/FS SCO - 1402497
Technical data
General
Coding
Status display
Overvoltage category
Degree of pollution
A - standard
No
II
3
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
V0
CuZn
Ni/Au
PA 66
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
Standards and Regulations
Resistance to oil
Other resistance
Flammability rating according to UL 94
DIN VDE 0472 Part 803, test type B
Hydrolysis and microbe resistant as per VDE 0282 section 10
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27060306
27060306
27061801
27061801
27061801
27061801
27279218
27060311
ETIM
ETIM 4.0
ETIM 5.0
EC001855
EC001855
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
31251501
31251501
31251501
31251501
04/25/2016 Page 2 / 3
https://www.phoenixcontact.com/us/products/1402497
Sensor/Actuator cable - SAC-17P-MS/10,0-PUR/FS SCO - 1402497
Classifications
UNSPSC
UNSPSC 13.2
31251501
Drawings
Schematic diagram
13 3 2 12
4
17
1
5
11
14
10
6
15
9
7 8 16
Schematic diagram
3 13
4
17
1
5
11
14
10
6
15
9
16 8 7
12
2
Pin assignment M12 male connector, 17-pos., male side view
Pin assignment M12, 17-pos., socket side view
Dimensional drawing
Dimensional drawing
46,7
45
14,1
14,1
M12 SPEEDCON plug, straight, shielded
14,8
Socket M12-SPEEDCON, straight, shielded
