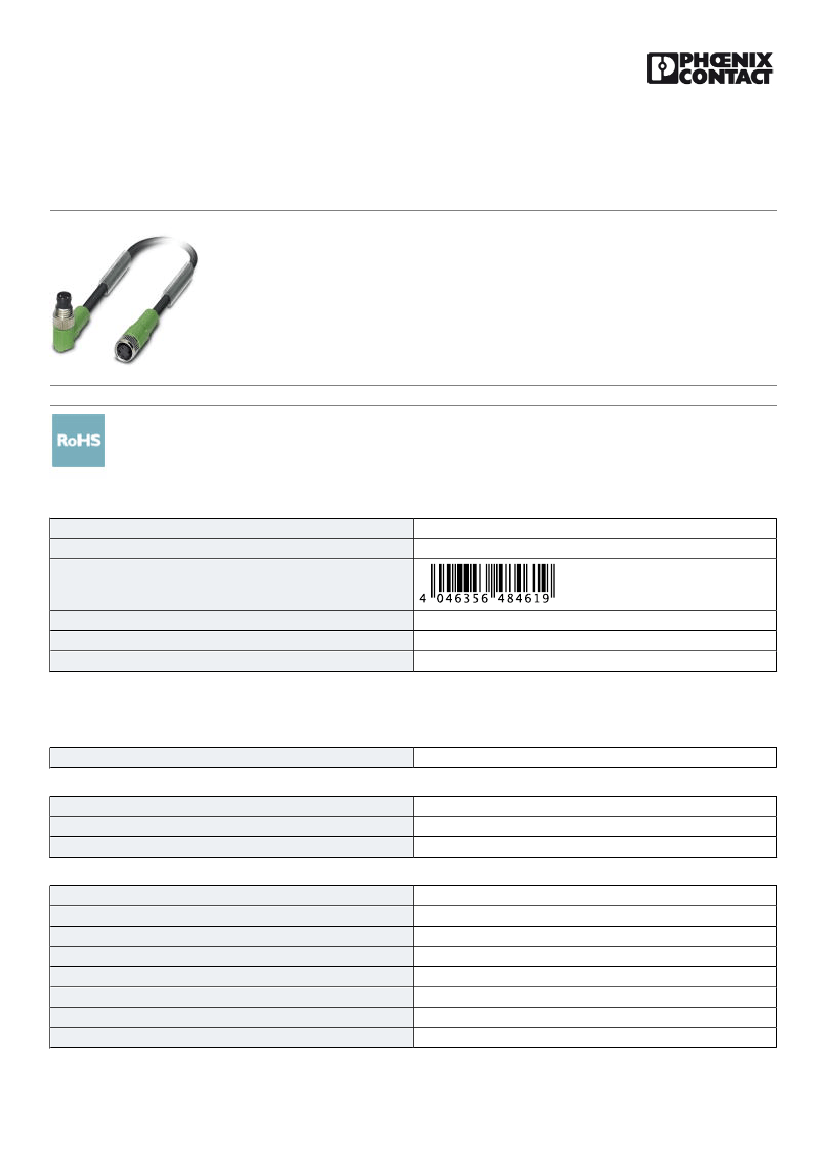

Sensor/Actuator cable - SAC-3P-M 8MR/10,0-PVC/4P-M 8FS - 1400331
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/Actuator cable, 3-position, PVC, black RAL 9005, Plug angled M8, on Socket straight M8, Cable
length: 10 m
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
Note
4046356484619
85444290
Made to Order (non-returnable)
1 STK
50 STK
Technical data
Dimensions
Length of cable
10 m
Ambient conditions
Degree of protection
IP65
IP67
IP68
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
Status display
Overvoltage category
Degree of pollution
4A
30 V
3
≥ 100 MΩ
A - standard
No
II
3
11/13/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/1400331
Sensor/Actuator cable - SAC-3P-M 8MR/10,0-PVC/4P-M 8FS - 1400331
Technical data
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
HB
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
Standards and Regulations
Flammability rating according to UL 94
HB
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
External sheath, color
External cable diameter D
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Flame resistance
Ambient temperature (operation)
PVC black
PVC
LiYY
4x 0.25 mm² (Signal line)
24
14x 0.15 mm
1.17 mm ±0.05 mm
≥ 0.23 mm (Core insulation)
≥ 0.76 mm (Outer cable sheath)
brown, white, blue, black
4 wires, twisted
black RAL 9005
4.4 mm ±0.15 mm
33 kg/km
PVC
PVC
Bare Cu litz wires
≥ 100 MΩ*km (at 20 °C)
max. 79 Ω/km (at 20 °C)
≤ 300 V
≥ 3000 V
As per UL-Style 2464
-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)

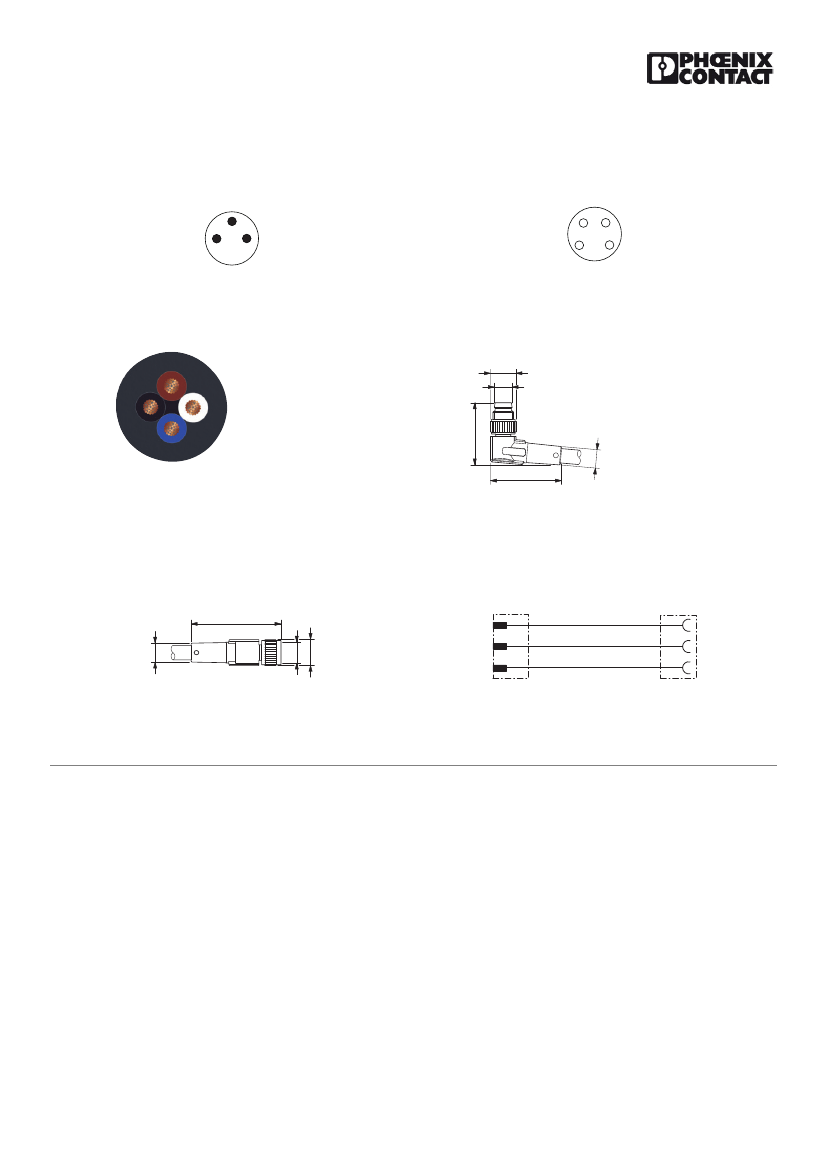

Drawings
11/13/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/1400331
Sensor/Actuator cable - SAC-3P-M 8MR/10,0-PVC/4P-M 8FS - 1400331
Schematic diagram
4
4
1
3
3
1
2
Schematic diagram
Pin assignment M8 plug, 3-pos., view male side
Pin assignment M8 socket, 4-pos., view female side
Cable cross section
Dimensional drawing
Ø10
M8
23,9
27,9
PVC black [PVC]
M8 x 1 male plug, angled version
Dimensional drawing
Circuit diagram
33,7
1
Ø7,5
1
4
3
Ø7,5
Ø10
M8
4
3
Socket M8 x 1, straight
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/13/2016 Page 3 / 3
