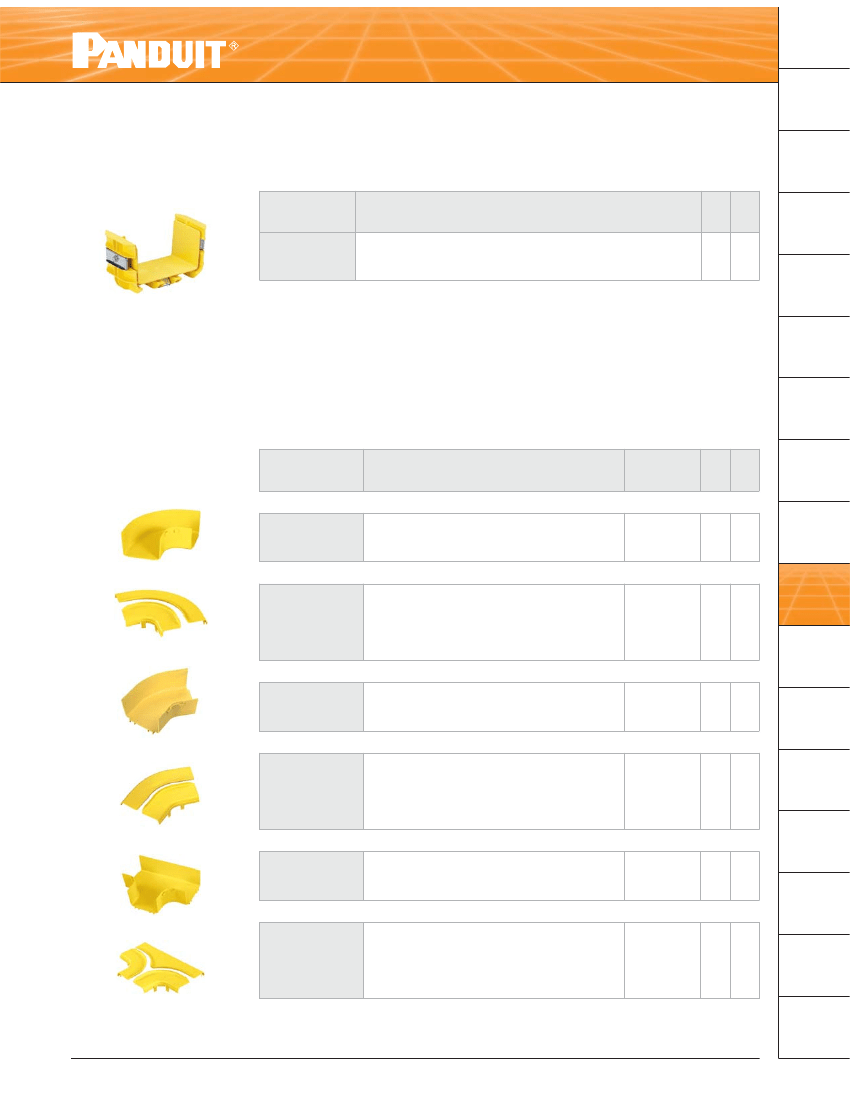

6x4 FiberRunner
®
QuikLock
™
Coupler
• Pre-assembled to provide fast mechanical assembly
of components
• No tools required for installation; bolts loosen for
component disassembly
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
5
A.
System
Overview
B.
Copper
Systems
C.
Fiber
Optic
Systems
D.
Power
over
Ethernet
E.
Zone
Cabling
Part Number
FRBC6X4YL
Part Description
Pre-assembled coupler quickly joins two sections of channel and/or
fittings. Mechanically attaches without tightening bolts. Bolts release
using 3/8" nut driver to allow coupler to be removed if necessary.
For a bulk package of 20 couplers, order FRBC6X4YL-E.
For other colors replace suffix YL (Yellow) with OR (Orange) or BL (Black).
6x4 FiberRunner System Fittings
®
F.
Wireless
• Minimum 2" (50.8mm) bend radius control fittings
• Protect against signal loss and performance degradation
• Assemble using FRBC QuikLock
™
Couplers
• Optional split covers snap onto each fitting
• Covers feature 3/4" (19mm) gap to allow cable to be
laid in
Std. Std.
Pkg. Ctn.
Qty. Qty.
G.
Outlets
Part Number
Part Description
Couplers
Required
H.
Media
Distribution
I.
Physical
Infrastructure
Management
J.
Overhead &
Underfloor
Routing
K.
Surface
Raceway
6x4 Horizontal Right Angle Fitting
FRRA6X4YL
Attaches to 6x4 channel and/or fittings to create a
90° horizontal turn from a straight horizontal run.
Accepts optional split cover FRRASC6YL.
(2 pcs.)
FRBC6X4YL
1
5
FRRA6X4
Split Cover for 6x4 Horizontal Right Angle Fitting
FRRASC6YL
Optional split cover for the horizontal right angle
fitting FRRA6X4YL. Snap-on feature allows cover
to be installed and removed with no tools required.
Creates radiused 3/4" (19mm) opening for easy
access to add or remove cables.
—
1
5
FRRASC6
6x4 Horizontal 45° Angle Fitting
FRH456X4YL
Attaches to 6x4 channel and/or fittings to create a
45° horizontal turn from a straight horizontal run.
Accepts optional split cover FRH45SC6YL.
(2 pcs.)
FRBC6X4YL
1
5
FRH456X4
Split Cover for 6x4 Horizontal 45° Angle Fitting
FRH45SC6YL
Optional split cover for the horizontal 45° angle
fitting FRH456X4YL. Snap-on feature allows cover
to be installed and removed with no tools required.
Creates radiused 3/4" (19mm) opening for easy
access to add or remove cables.
—
1
5
L.
Cabinets,
Racks &
Cable
Management
M.
Grounding &
Bonding
FRH45SC6
6x4 Horizontal Tee Fitting
FRT6X4YL
Attaches to 6x4 channel and/or fittings to create a
90° horizontal branch from a straight horizontal
run. Accepts optional split cover FRTSC6YL.
(3 pcs.)
FRBC6X4YL
1
5
N.
Industrial
FRT6X4
Split Cover for 6x4 Horizontal Tee Fitting
FRTSC6YL
Optional split cover for the horizontal tee fitting
FRT6X4YL. Snap-on feature allows cover to be
installed and removed with no tools required.
Creates radiused 3/4" (19mm) opening for easy
access to add or remove cables.
—
1
5
O.
Labeling &
Identification
P.
Cable
Management
Accessories
FRTSC6
For other colors replace suffix YL (Yellow) with OR (Orange) or BL (Black).
Q.
Index
www.panduit.com
Table continues on
next page
For service and technical support, call 866-405-6654 (outside the U.S. and Canada, see
catalog
back cover).
J.25
A.
System
Overview

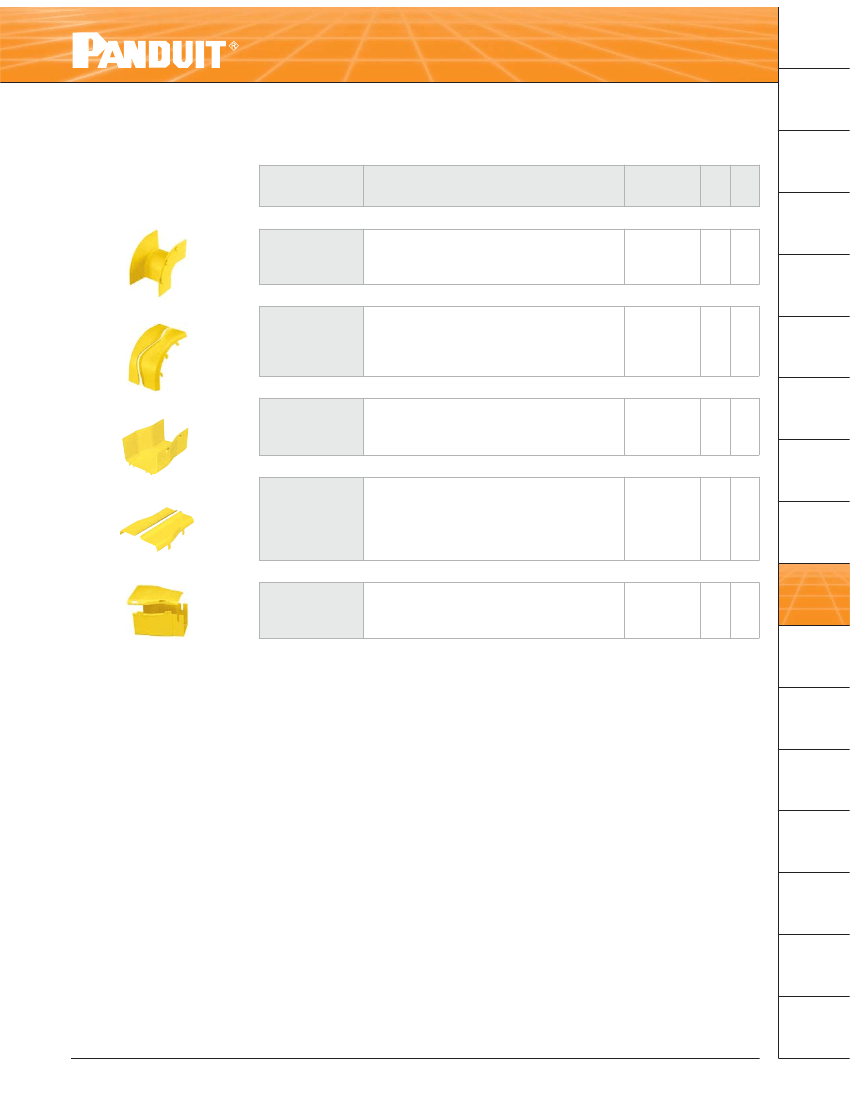

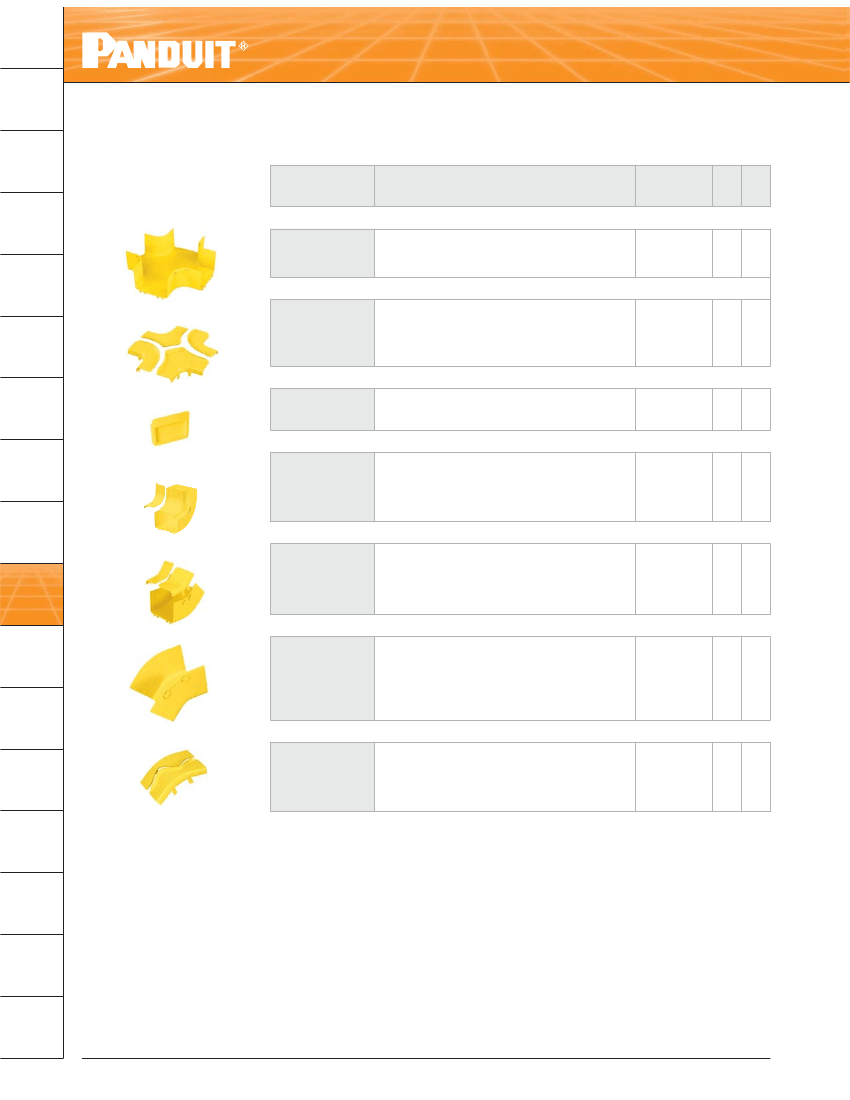

PHYSICAL INFRASTRUCTURE SYSTEMS
6x4 FiberRunner
®
System Fittings (continued)
B.
Copper
Systems
C.
Fiber
Optic
Systems
D.
Power
over
Ethernet
E.
Zone
Cabling
Part Number
Part Description
Couplers
Required
Std. Std.
Pkg. Ctn.
Qty. Qty.
6x4 Four Way Cross Fitting
FRFWC6X4YL
Attaches to 6x4 channel and/or fittings to create a
horizontal four way cross intersection. Accepts
optional split cover FRFWCSC6YL.
(4 pcs.)
FRBC6X4YL
1
5
Split Cover for 6x4 Four Way Cross Fitting
FRFWC6X4
FRFWCSC6YL
Optional split cover for the four way cross fitting
FRFWC6X4YL. Snap-on feature allows cover to be
installed and removed with no tools required.
Creates radiused 3/4" (19mm) opening for easy
access to add or remove cables.
—
1
5
F.
Wireless
6x4 End Cap Fitting
FRFWCSC6
G.
Outlets
FREC6X4YL
Used for closing off open ends of the channel or
fittings. No coupler required. Push-on installation.
—
1
5
6x4 Inside Vertical 90° Angle Fitting
H.
Media
Distribution
I.
Physical
Infrastructure
Management
J.
Overhead &
Underfloor
Routing
FREC6X4
FRIVRA6X4YL
Attaches to 6x4 channel and/or fittings to create a
90° upward angle from a straight horizontal run.
Used with outside vertical 90° angle fitting
FROVRA6X4YL to change level of a straight
horizontal run. Includes split cover.
(2 pcs.)
FRBC6X4YL
1
5
FRIVRA6X4
6x4 Inside Vertical 45° Angle Fitting
FRIV456X4YL
Attaches to 6x4 channel and/or fittings to create a
45° upward angle from a straight horizontal run.
Used with outside vertical 45° angle fitting
FROV456X4YL to change level of a straight
horizontal run. Includes split cover.
(2 pcs.)
FRBC6X4YL
1
5
FRIV456X4
K.
Surface
Raceway
L.
Cabinets,
Racks &
Cable
Management
M.
Grounding &
Bonding
6x4 Outside Vertical 45° Angle Fitting
FROV456X4YL
Attaches to 6x4 channel and/or fittings to create a
45° downward angle from a straight horizontal run.
Used with inside vertical 45° angle fitting
FRIV456X4YL to change level of a straight
horizontal run. Accepts optional split cover
FROV45SC6YL.
(2 pcs.)
FRBC6X4YL
1
5
FROV456X4
Split Cover for 6x4 Outside Vertical 45° Angle Fitting
FROV45SC6YL
Optional split cover for the outside vertical 45°
angle fitting FROV456X4YL. Snap-on feature
allows cover to be installed and removed with no
tools required. Creates radiused 3/4" (19mm)
opening for easy access to add or remove cables.
—
1
5
FROV45SC6
N.
Industrial
For other colors replace suffix YL (Yellow) with OR (Orange) or BL (Black).
O.
Labeling &
Identification
P.
Cable
Management
Accessories
Q.
Index
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in
BOLD.
PHYSICAL INFRASTRUCTURE SYSTEMS
6x4 FiberRunner
®
System Fittings (continued)
Couplers
Required
Std. Std.
Pkg. Ctn.
Qty. Qty.
A.
System
Overview
B.
Copper
Systems
C.
Fiber
Optic
Systems
D.
Power
over
Ethernet
E.
Zone
Cabling
Part Number
Part Description
6x4 Outside Vertical Right Angle Fitting
FROVRA6X4YL
Attaches to 6x4 channel and/or fittings to create a
90° vertical turn down from a straight horizontal
run. Accepts optional split cover FROVRASC6YL.
(2 pcs.)
FRBC6X4YL
1
5
FROVRA6X4
Split Cover for 6x4 Outside Vertical Right Angle Fitting
FROVRASC6YL
Optional split cover for the outside vertical right
angle fitting FROVRA6X4YL. Snap-on feature
allows cover to be installed and removed with no
tools required. Creates radiused 3/4" (19mm)
opening for easy access to add or remove cables.
—
1
5
F.
Wireless
FROVRASC6
6x4 to 4x4 FiberRunner
®
Reducer Fitting
FRRF6FR4YL
Attaches any 6x4 FiberRunner
®
Fitting or Channel
to any 4x4 FiberRunner
®
Fitting or Channel.
Accepts split cover FRRF6FR4SCYL.
(1 pc.)
FRBC6X4YL
(1 pc.)
FRBC4X4YL
1
5
G.
Outlets
Split Cover for 6x4 to 4x4 FiberRunner
®
Reducer Fitting
FRRF6FR4
FRRF6FR4SCYL
Optional split cover for the 6x4 FiberRunner
®
to
4x4 FiberRunner
®
Reducer Fitting FRRF6FR4YL.
Snap-on feature allows cover to be installed and
removed with no tools required. Creates radiused
3/4" (19mm) opening for easy access to add or
remove cables.
—
1
5
H.
Media
Distribution
I.
Physical
Infrastructure
Management
J.
Overhead &
Underfloor
Routing
K.
Surface
Raceway
L.
Cabinets,
Racks &
Cable
Management
M.
Grounding &
Bonding
FRRF6FR4SC
6x4 FiberRunner
®
System to 4x4 Fiber-Duct
™
Reducer Fitting
FRRF64YL
Attaches any 6x4 FiberRunner
®
Fitting or Channel
to the 4x4 Fiber-Duct
™
Channel S4X4YL6 or
E4X4YL6. Includes solid cover.
(1 pc.)
FRBC6X4YL
1
5
FRRF64
For other colors replace suffix YL (Yellow) with OR (Orange) or BL (Black).
N.
Industrial
O.
Labeling &
Identification
P.
Cable
Management
Accessories
Q.
Index
www.panduit.com
For service and technical support, call 866-405-6654 (outside the U.S. and Canada, see
catalog
back cover).
J.27
