84130108 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 84130108

84130108: DescriptionI/O Modules 17.55mm Out Module 280Vac/5A Rand. Fire; CategoryTopical application Mechanical and electrical/engineering/automation; File Size517KB，4 Pages; ManufacturerSensata; Environmental Compliance

Download Datasheet Parametric Compare View All

84130108 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	84130108	-	-	View	Buy Now

84130108 Overview

I/O Modules 17.55mm Out Module 280Vac/5A Rand. Fire

84130108 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Sensata
Product Category	I/O Modules
RoHS	Details
Product	AC Output Modules
Input Voltage	4 VDC to 32 VDC
Input Current	22 mA
Output Voltage	12 VAC to 280 VAC
Output Current	5 A
Case Color	Black
Output Type	AC
Factory Pack Quantity	10
Unit Weight	1.100548 oz

Preview

Download Datasheet

View All

Datasheet

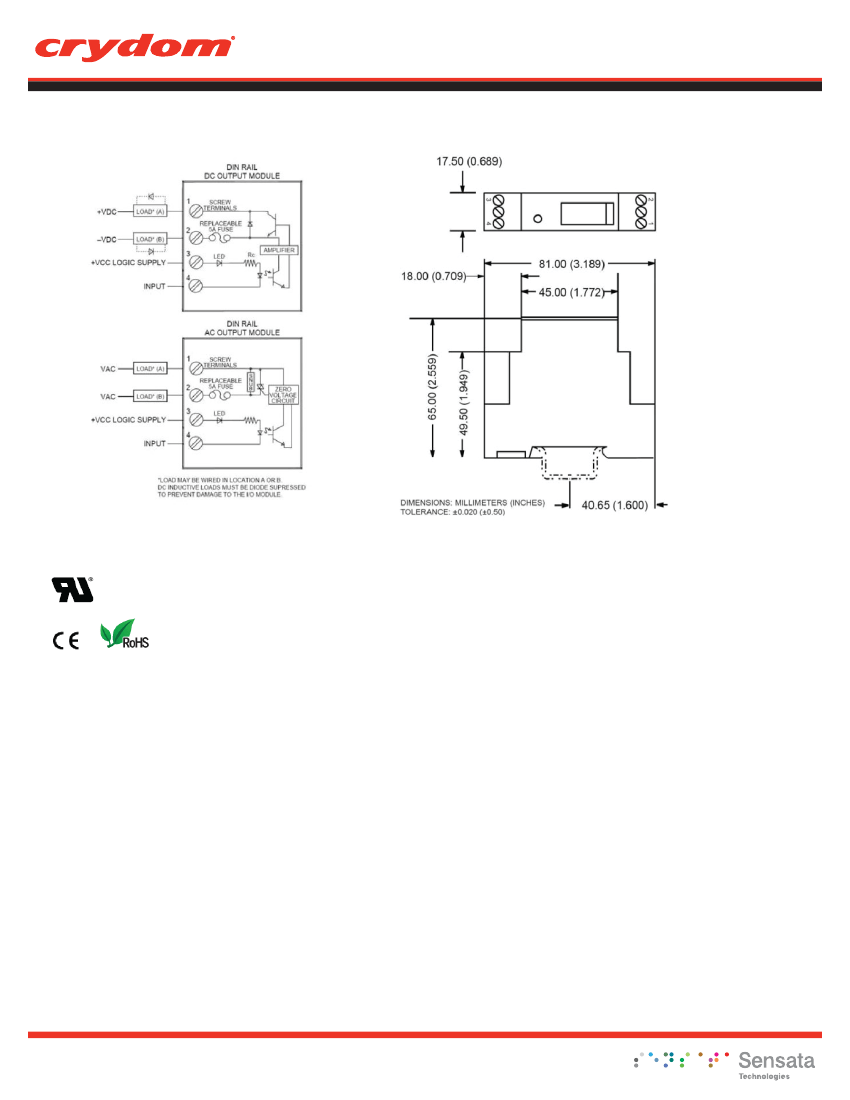

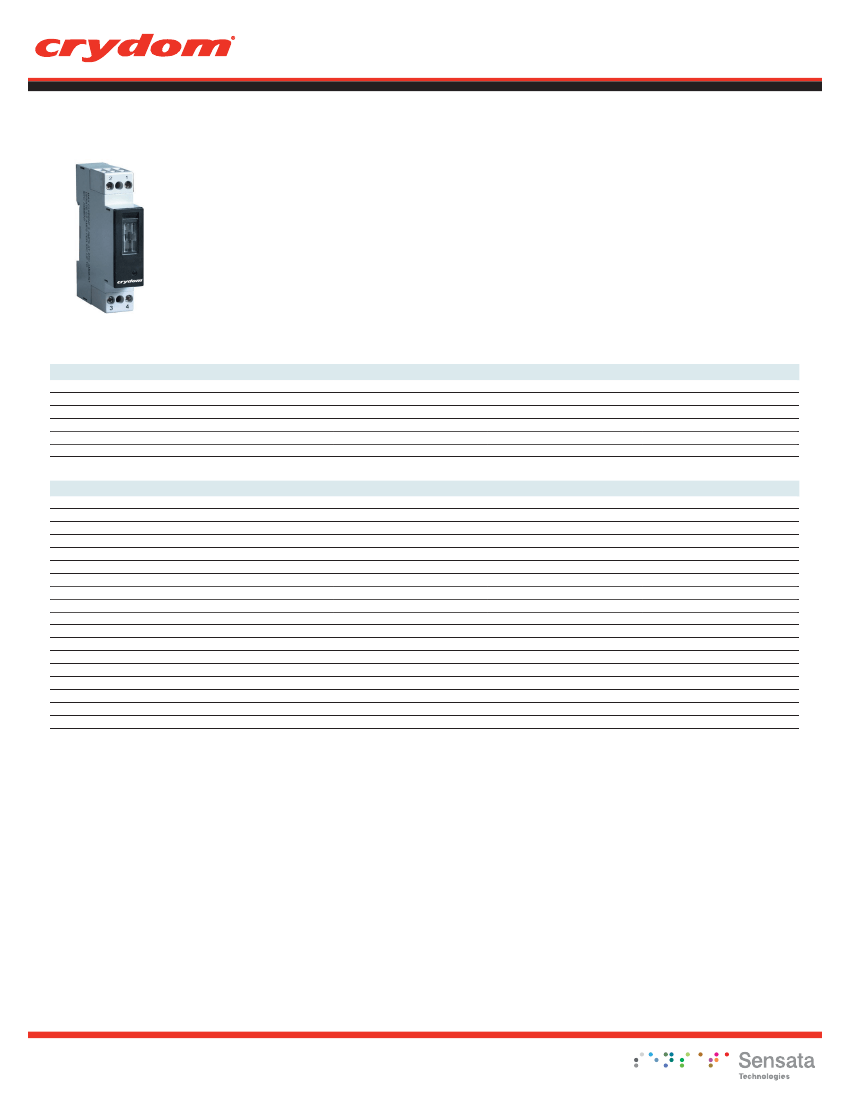

GMS SERIES 17.5mm OUTPUT MODULES

•

DIN Rail Mountable Single Point Output Modules (35mm DIN)

•

UL and cUL Recognized, CE Compliant

•

Zero Voltage or Random Turn-On for AC Modules

•

4kV Optical isolation with LED Indicator

•

AC Ratings 12-280 VAC, 5A. DC Output 5-60 VDC, 3A

•

Industry standard Color Coding Black (AC Output) Red (DC Output)

•

Barrier Strips Accept 14 to 28 AWG Wire.

I/O Modules

SPECIFICATIONS

Input

Nominal Voltage [VDC]

Minimum Voltage [VDC]

Maximum Voltage [VDC]

Drop-out Voltage [VDC]

Maximum Current [mA]

(2)

Resistance

(1)

Part Number

4-32

1.0

Current Regulated

84130105

4-32

1.0

Current Regulated

84130108

4-32

1.0

Current Regulated

84130104

Output

Nominal Line Voltage

Minimum Line Voltage

Maximum Line Voltage

Max Off-State Voltage

(3)

Max Off-State Leakage

(4)

Static Off-State dv/dt

(5)

Maximum Rated On-State Current

(6)

Minimum On-State Current

Max Surge Current

(7)

On-State Voltage Drop or Resistance

(8)

Maximum Turn-On Time [msec]

(9)

Maximum Turn-Off Time [msec]

(9)

Input/Output Isolation Voltage

(10)

Input/Output Capacitance

Operating Temperature Range

Storage Temperature Range

Line Frequency Range

Weight

240 VAC

12 VAC

280 VAC

800 Vpeak

0.1mArms

50 V/usec

5.0 Arms

50 mArms

350 Apeak

1.85 V

8.33

4000 Vrms

6 pF

-30 to 80°C

-40 to 100°C

47 to 63 Hz

1.1 oz. (31.2g)

84130105

240 VAC

12 VAC

280 VAC

800 Vpeak

0.1mArms

50 V/usec

5.0 Arms

50 mArms

350 Apeak

1.85 V

0.1

8.33

4000 Vrms

6 pF

-30 to 80°C

-40 to 100°C

47 to 63 Hz

1.1 oz. (31.2g)

84130108

5-60 VDC

5 VDC

60 VDC

10 uA

N/A

3.0 A

10 mA

5.0 A

1.6 V

0.05

4000 Vrms

4 pF

-30 to 80°C

-40 to 100°C

1.1 oz. (31.2g)

84130104

(1)

Specifications apply to an ambient temperature of -30 to 80 °C unless otherwise noted.

(2)

Modules are current limited +/- 10% at 25°C.

(3)

Maximum 1 minute duration for AC modules when applied as a DC voltage rather than

(4)

At maximum line voltage, 25°C for AC modules and 80°C for DC module.

(5)

Minimum dv/dt per EIA/NARM RS443, method RS397. dv/dt ratings do not apply to DC module.

(6)

At 25°C, derate AC modules by 50 mA/°C to 80°C; derate DC module by 21.5mA/°C to 80°C.

(7)

At 25°C, maximum duration: 1 AC cycle for AC modules, 1 second for DC module.

(8)

At maximum rated on-state current and 25°C.

(9)

At maximum line voltage, maximum rated output current, nominal input voltage, 25°C.

(10)

At 25°C for 1 second maximum duration.

Peak AC voltage.

GENERAL NOTES

Do not forget to visit us at:

www.crydom.com

84130108 Related Products

	84130108
Description	I/O Modules 17.55mm Out Module 280Vac/5A Rand. Fire
Product Attribute	Attribute Value
Manufacturer	Sensata
Product Category	I/O Modules
RoHS	Details
Product	AC Output Modules
Input Voltage	4 VDC to 32 VDC
Input Current	22 mA
Output Voltage	12 VAC to 280 VAC
Output Current	5 A
Case Color	Black
Output Type	AC
Factory Pack Quantity	10
Unit Weight	1.100548 oz
