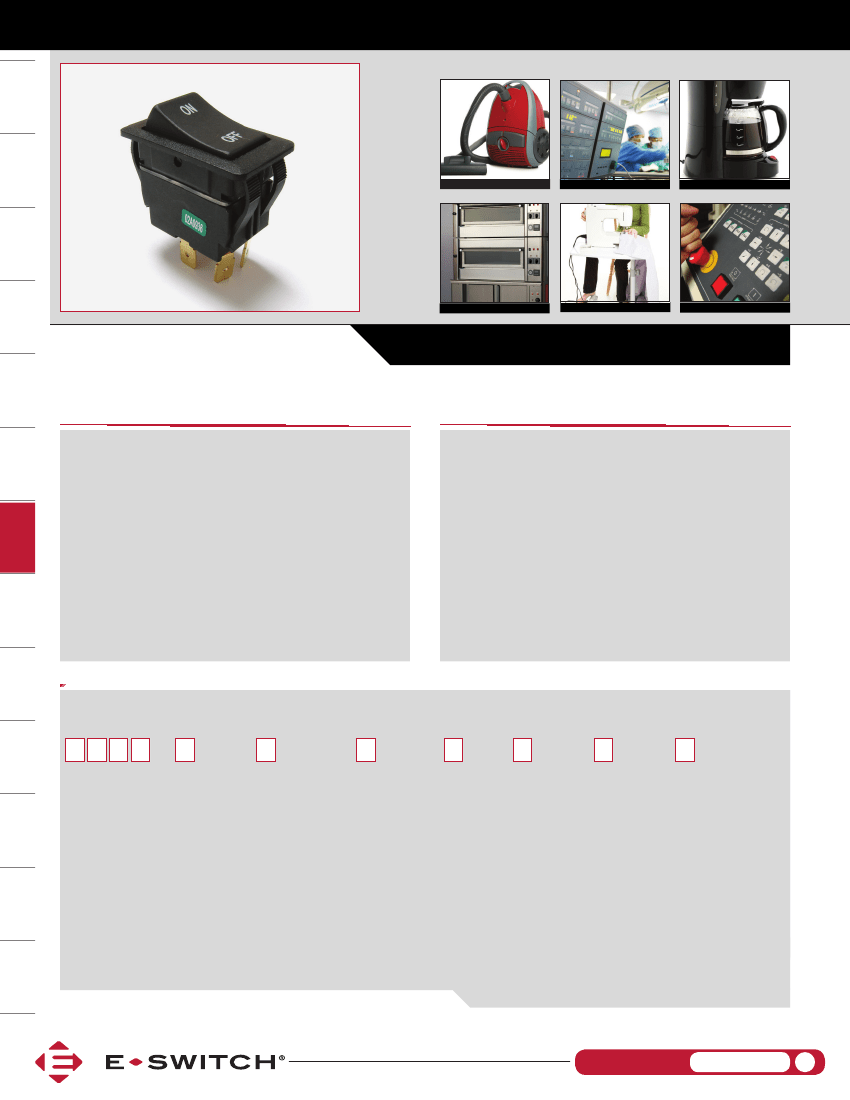

RVW S
eRieS
R
ockeR
S
Witch
ANTI-VANDAL
SWITCHES
a
pplicationS
/ m
arketS
DETECTOR
SWITCHES
Floor Care Appliances
Medical Equipment
Electrical Houseware
KEYLOCK
SWITCHES
DIP
SWITCHES
Commercial Appliances
Home Appliances
Industrial Controls
NAVIGATION
SWITCHES
RoHS
S
pecificationS
Rating:
Maintained Switches:
20A 125VAC [cURus UL508]
15A 277VAC [cURus UL508]
2HP 110/250VAC [cURus UL508]
Momentary Switches:
20A 125VAC [cURus UL508]
15A 277VAC [cURus UL508]
1.5HP 110/250VAC [cURus UL508]
Operating Temperature:
0°C to 55°C
Electrical Life:
6,000 cycles
Contact Resistance:
50 mΩ Max.
Insulation Resistance:
800 MΩ Min. at 500VDC
Dielectric Strength:
1,500VAC for 1 minute
Ingress Protection:
IP54 Standard
f
eatureS
& b
enefitS
•
•
•
•
•
•
Up to 20A, 125VAC 2HP rating
37.5mm x 21mm panel cutout
IP54 rated
Agency Approvals: cURus
SP or DP Options
2 or 3 position Circuit Functions
SLIDE
SWITCHES
ROTARY
SWITCHES
ROCKER
SWITCHES
PUSHBUTTON
SWITCHES
p
art
n
umber
c
onfigurator
Series
Terminal
Function
Rating
Body
Color
Actuator
Color
Marking
Color
Marking
Type
SNAP ACTION
SWITCHES
RVW
- Matte Finish
RVWG
- Glossy Finish
TOGGLE
SWITCHES
TACTILE
SWITCHES
1
- 4.8mm Tabs
4
- 6.3mm Tabs
5
- Solder
6
- Screw
1
- 1 Pole Off-On
D
- 20A 125VAC
2
- 2 Pole Off-On
3
- 1 Pole On-On
4
- 1 Pole Off-(On)
5
- 1 Pole On-Off-On
A
- 1 Pole On-(Off)
B
- 1 Pole On-(On)
C
- 1 Pole On-Off-(On)
D
- 1 Pole (On)- Off- (On)
6
- 2 Pole On-Off-On
E
- 2 Pole Off-(On)
F
- 2 Pole On-(Off)
G
- 2 Pole On-On
H
- 2 Pole On-(On)
J
- 2 Pole On-Off-(On)
K
- 2 Pole (On)-Off-(On)
1
- Black
2
- White
3
- Almond
4
- Grey
9
- Red
1
- Black
2
- White
3
- Almond
4
- Grey
5
- Orange
7
- Blue
8
- Green
9
- Red
0
- None
1
- Black
2
- White
8
- Red
0
- None
1
- I/O Vertical
2
- On-Off-On Vertical
3
- ON-OFF Vertical
4
- On-Off Horizontal
9
- I/O/II Horizontal
R
- I/O Horizontal
S
- I/O/II Vertical
CAP
OPTIONS
Specifications subject to change without notice
NOTE:
Custom Colors and Markings Available Upon Request.
Specifications subject to change without notice 2.15.2018
www.e-switch.com
800.867.2717
