CSX750FJC-106.250M-UT: DescriptionStandard Clock Oscillators 106.25MHz 3.3V 5X7 3.3V CERAMIC; CategoryPassive components; File Size502KB，2 Pages; ManufacturerCITIZEN; Websitehttp://ce.citizen.co.jp/e/index.html; Environmental Compliance

Download Datasheet Parametric View All

CSX750FJC-106.250M-UT Overview

Standard Clock Oscillators 106.25MHz 3.3V 5X7 3.3V CERAMIC

CSX750FJC-106.250M-UT Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	CITIZEN
Product Category	Standard Clock Oscillators
RoHS	Details
Frequency	106.25 MHz
Frequency Stability	50 PPM
Load Capacitance	30 pF
Operating Supply Voltage	3.3 V
Termination Style	SMD/SMT
Package / Case	7 mm x 5 mm
Minimum Operating Temperature	- 20 C
Maximum Operating Temperature	+ 70 C
Length	7 mm
Height	5 mm
Packaging	Reel
Current Rating	25 mA
Type	XO - Crystal Clock Oscillators
Mounting Style	SMD/SMT
Factory Pack Quantity	2000

Preview

Download Datasheet

View All

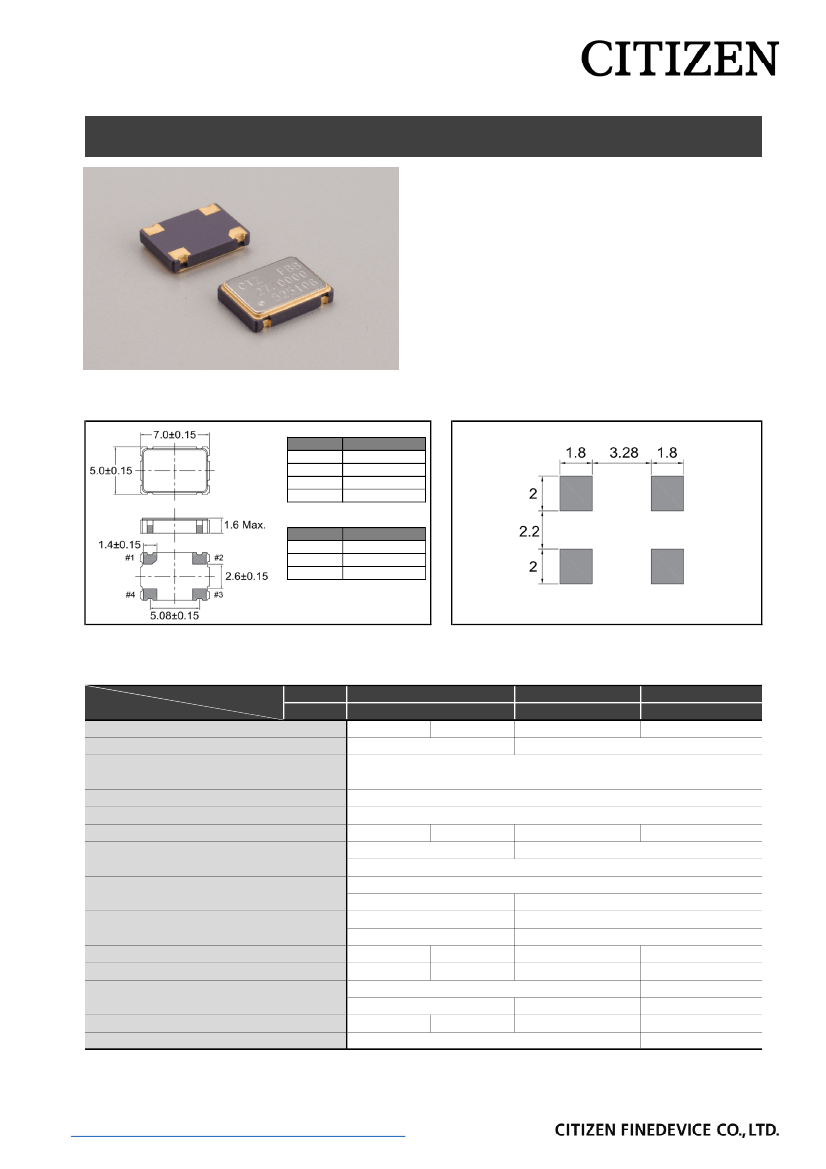

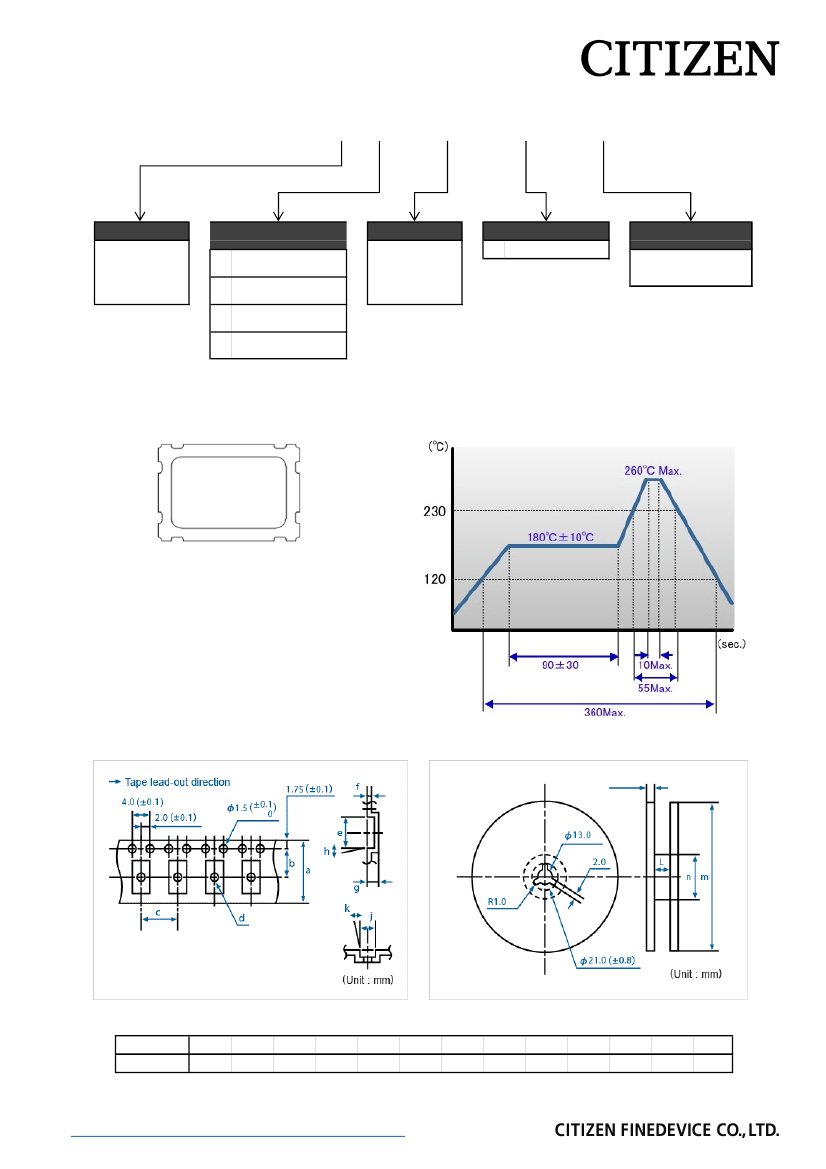

CRYSTAL CLOCK OSCILLATORS

RoHS compliant

(SMD

・

Ceramic Package)

CSX-750F

■

FEATURES

1,000pcs/reel

● Frequency range : 1.0 ½ 80.0MH½

● External dimensions (mm)

　 L : 7.2 x W : 5.2 x H : 1.6

● Applications

　　Consumer products

■

DIMENSION

[mm]

Pin Assignment

Terminal

Connection

#1

OE or Stand By

#2

GND

#3

OUTPUT

#4

Vdd

Function

#1 Input

High

Open

Low

■

SOLDER PAD LAYOUT

[mm]

#3 Output Condition

Oscillation out

Oscillation stop

■

STANDARD SPECIFICATIONS

Model

Item

Frequency Range

Supply Voltage

Frequency Stability

Operating Temperature Range

Storage Temperature Range

Current consumption

TTL level (1.4V)

Duty

CMOS level (1/2 Vdd)

V

OH

Output Voltage

V

OL

TTL

Output Load

CMOS

Rise and Fall Time

Start-up time

V

IH

Input Voltage

V

IL

Disable current

Stand-by current

0.8V Max.

10mA Max.

20mA Max.

－

0.4V Max.

5mA Max.

0.3Vdd Max.

－

10μA Max.

50pF Max.

8 nsec Max.

4 msec Max.

6 nsec Max.

10 msec Max.

2.0V Min.

8 nsec Max.

4 msec Max.

30pF Max.

6 nsec Max.

10 msec Max.

0.7Vdd Min.

0.4V Max.

10TTL Max.

0.1Vdd Max.

－

45½55%

0.9Vdd Min.

25mA Max.

45mA Max.

(＊)

E：±50ppm（-40℃ ½ +85℃), F：±100ppm（-40℃ ½ +85℃)

-20℃ ½ +70℃ / （-40℃ ½ +85℃)

-55℃ ½ +125℃

15mA Max.

－

25mA Max.

*Model is determined by selection of OE/ST functions, frequency stability, and supply voltage.

OE

CSX-750FC (＊)

CSX-750FB (＊)

＊

STAND-BY

CSX-750FJ (＊)

＊

1.8432½39.999MH½ 40.000½75.000MH½

1.8432½39.999MH½

40.000½80.000MH½

Vdd：5.0V±0.5V

Vdd：3.3V±0.3V

B：±50ppm（-20℃ ½ +70℃), C：±100ppm（-20℃ ½ +70℃)

40½60%

http://cfd.citizen.co.jp/english/prod-tech/product/cvo_top.html
