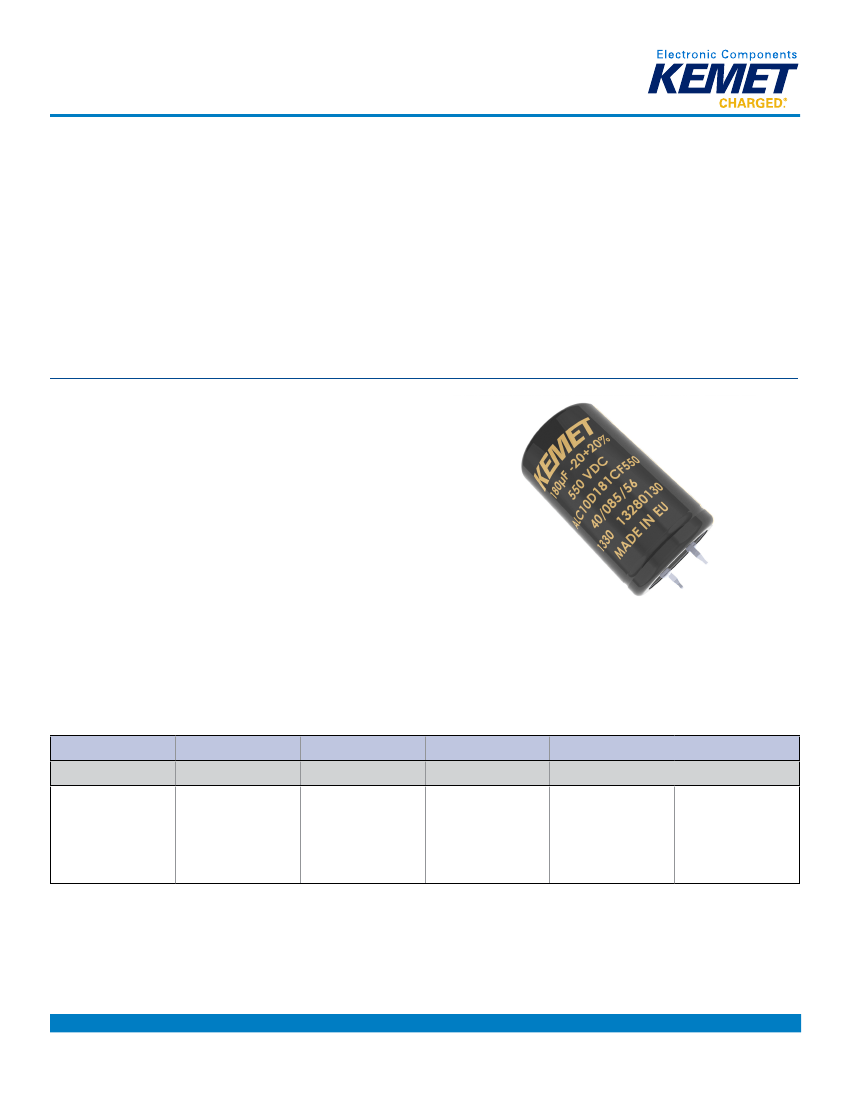

Snap-In Aluminum Electrolytic Capacitors
ALC10, +85°C
Overview
Applications
The KEMET ALC10 capacitors are ideally suited for
industrial and commercial applications demanding high
reliability and long life expectancy. Typical applications
include frequency converters, uninterruptible power supply
(UPS) systems and switch mode power supplies (SMPS).
The KEMET ALC10 snap-in capacitors covers a wide range
of case sizes and voltage ratings. The ALC10 is designed
for high voltage, it is up to 600 VDC, has high ripple current
applications and features surge voltage capability and very
long-life performance.
Benefits
•
•
•
•
•
•
Compact size
Long life, up to 18,000 hours at +85°C (V
R
, I
R
applied)
High ripple current
High voltage
Excellent surge voltage capability
Optimized designs available upon request
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Part Number System
ALC10
Series
Snap-In type
Aluminum Electrolytic
A
Termination
See Termination Table
392
Capacitance Code (µF)
First two digits
represent significant
figures. Third digit
specifies number of
zeros.
BB
Size Code
See Dimension Table
035 = 35
040 = 40
063 = 63
100 = 100
200 = 200
250 = 250
040
Rated Voltage (VDC)
350 = 350
400 = 400
450 = 450
500 = 500
550 = 550
600 = 600
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4020_ALC10 • 4/5/2018
1
Snap-In Aluminum Electrolytic Capacitors – ALC10, +85ºC
Performance Characteristics
Item
Capacitance Range
Rated Voltage
Operating Temperature
Capacitance Tolerance
47 – 100,000 µF
35 – 600 VDC
−40 to +85°C
±20% at 100 Hz/+20°C
D (mm)
25
Operational Lifetime
30
35
40 – 50
End of Life Requirement
Shelf Life
Leakage Current
Rated Voltage and Ripple
Current at +85°C (hours)
10,000
13,000
15,000
18,000
Rated Voltage at +85°C (hours)
16,000
21,000
24,000
29,000
Performance Characteristics
∆ C/C < ±10%, ESR < 2 x initial ESR value, IL < initial specified limit
2,000 hours at +85°C or 30,000 hours at +40°C 0 VDC
I = 0.006 CV or 6,000 (µA, whichever is smaller)
C = rated capacitance (µF), V = rated voltage (VDC). Voltage applied for 5 minutes at +20°C.
Procedure
0.75 mm displacement amplitude
or 10 g maximum acceleration.
Vibration applied for three
2-hour sessions at 10 – 500 Hz
(capacitor clamped by body).
0.35 mm displacement amplitude
or 5 g maximum acceleration.
Vibration applied for three
0.5-hour sessions at 10 – 55 Hz
(capacitor clamped by body).
Requirements
D ≤ 40 mm
Vibration Test Specifications
D > 40 mm
No leakage of electrolyte
or other visible damage.
Deviations in capacitance from
initial measurements must not
exceed: ∆ C/C < 5%
Standards
IEC 60384–4 long life grade 40/85/56
Surge Voltage
Condition
≤ 30s Surge followed by a no load
period of 330s, 1,000 cycles at +85°C
≤ 500 ms surge, 100 cycles at 20°C,
occurring randomly throughout the
life of the capacitor
Voltage (VDC)
35
40.25
40
46
63
72.5
100
115
200
230
350
250
288
400
350
385
500
400
440
520
450
495
550
500
550
600
550
605
620
600
660
670
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4020_ALC10 • 4/5/2018
2
Snap-In Aluminum Electrolytic Capacitors – ALC10, +85ºC
Test Method & Performance
Endurance Life Test
Conditions
Temperature
Test Duration
Ripple Current
Voltage
+85°C
2,000 hours
Rated ripple current in specified table
The sum of DC voltage and the peak AC voltage must not exceed the rated voltage of the capacitor
Performance
Performance
Capacitance Change
Equivalent Series Resistance
Leakage Current
The following specifications will be satisfied when the capacitor is tested at +20°C:
≤ 160 V
≥ 160 V
Does not exceed 200% of the initial value
Does not exceed leakage current limit
Within 15% of the initial value
Within 10% of the initial value
Dimensions – Millimeters
Size Code
BB
BC
BD
CB
CC
CD
CE
CF
DB
DC
DD
DE
DF
DG
DH
DL
EB
EC
ED
EE
EF
EG
Dimensions in mm
D
L
−0/+1
25
25
25
30
30
30
30
30
35
35
35
35
35
35
35
35
40
40
40
40
40
40
±2
30
35
40
30
35
40
45
50
30
35
40
45
50
55
60
80
30
35
40
45
50
55
Approximate
Weight
Grams
28
30
35
35
40
45
50
55
42
50
55
65
70
75
80
105
49
57
65
80
82
95
Size Code
EH
EJ
EL
EP
FB
FC
FD
FE
FF
FG
FH
FL
FP
KB
KC
KD
KE
KF
KG
KH
KL
KP
Dimensions in mm
D
L
−0/+1
40
40
40
40
45
45
45
45
45
45
45
45
45
50
50
50
50
50
50
50
50
50
±2
60
70
80
105
30
35
40
45
50
55
60
80
105
30
35
40
45
50
55
60
80
105
Approximate
Weight
Grams
98
113
131
170
62
72
82
92
103
113
123
164
215
75
88
100
113
126
138
151
201
264
Note: Dimensions include sleeving
Note: Dimensions include sleeving
A4020_ALC10 • 4/5/2018
3
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
Snap-In Aluminum Electrolytic Capacitors – ALC10, +85ºC
Termination Tables
Termination
Code
Diameter (mm)
25
30
35
40
45
50
A
•
•
•
•
D
•
•
•
•
F
•
•
•
•
C
E
G
H
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Mounting: These capacitors are designed to be mounted by their terminations alone and may be used in any
position. Dummy pins must be isolated on 4 and 5 pin styles.
Termination
Code
A
G (D ≥ 45)
D
F
C
E
H
Termination
Style
Standard Termination Option
2 Pin
5 Pin
Other Termination Options
2 Pin
3 Pin
4 Pin
4 Pin
5 Pin
LL
±1
6.3
6.3
4
4
6.3
4
4
Dimensions in mm
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4020_ALC10 • 4/5/2018
4
Snap-In Aluminum Electrolytic Capacitors – ALC10, +85ºC
Termination Tables cont'd

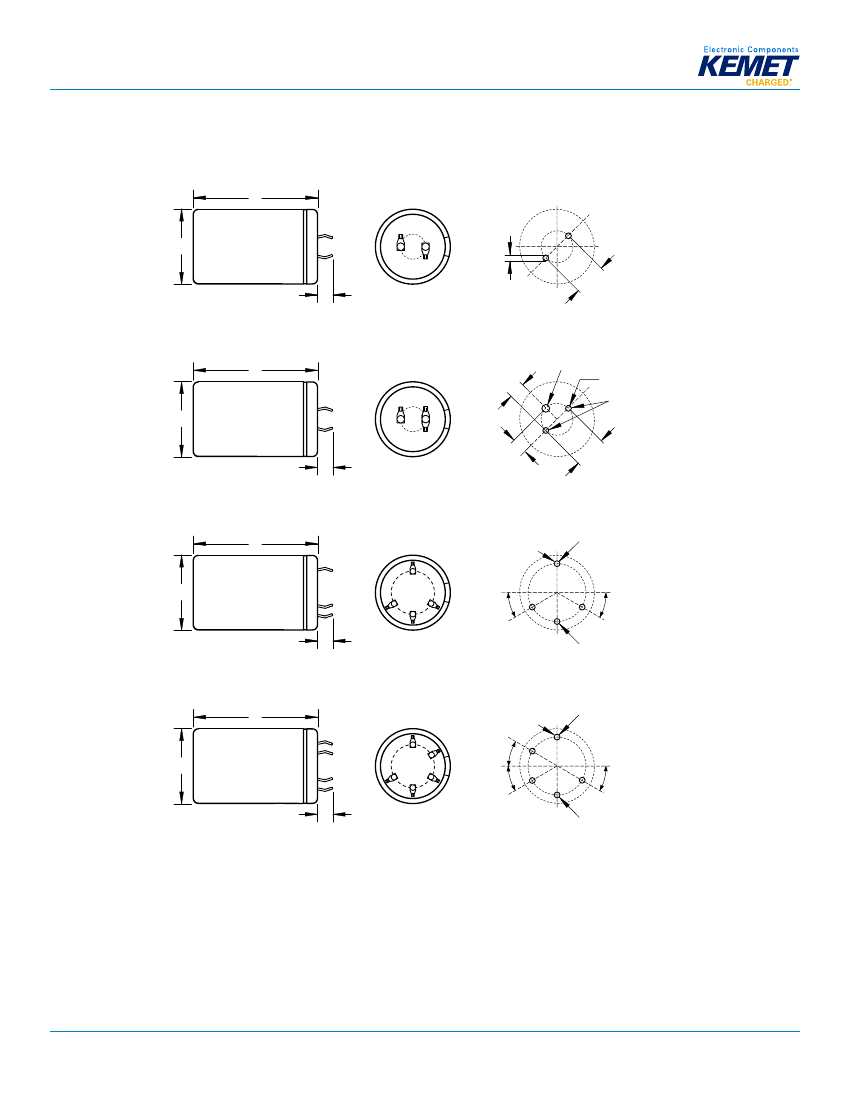

Style A/D
SIDE VIEW
L
D
LL
2 ±0.1
10 ±0.1
TERMINAL
END VIEW
PCB LAYOUT
Style F
SIDE VIEW
L
D
LL
TERMINAL
END VIEW
3.3 ±0.1
+
-
PCB LAYOUT
Ø2.5 Minimum
+ ve
Ø2 ±0.1 Typical
4.75 ±0.1
10 ±0.1
Style C/E
SIDE VIEW
L
D
TERMINAL
END VIEW
-
PCB LAYOUT
4 Holes Ø2 ±0.1
on a Ø22.5 PCD
- ve
+
30°
+ ve
30°
LL
Style G/H
SIDE VIEW
L
D
TERMINAL
END VIEW
-
PCB LAYOUT
5 Holes Ø2 ±0.1
on a Ø25.0 PCD
30°
30°
+ ve
30°
- ve
+
LL
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4020_ALC10 • 4/5/2018
5
