B1047AS-180M=P3

Description
Fixed Inductors 18uH 110mOhms 2.2A +/-20%
CategoryPassive components    inductor
File Size989KB,2 Pages
ManufacturerMurata
Websitehttps://www.murata.com
Environmental Compliance
Download Datasheet Parametric View All

B1047AS-180M=P3 Online Shopping

Suppliers Part Number Price MOQ In stock
B1047AS-180M=P3 - - View Buy Now

B1047AS-180M=P3 Overview

Fixed Inductors 18uH 110mOhms 2.2A +/-20%

B1047AS-180M=P3 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMurata
package instructionCHIP, 2929
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time12 weeks
core materialFERRITE
DC Resistance0.11 Ω
Nominal inductance(L)18 µH
Inductor typeGENERAL PURPOSE INDUCTOR
Number of functions1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Maximum rated current1.9 A
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldYES
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency0.1 MHz
Tolerance20%
Base Number Matches1
B1047AS-180M#
< List of part numbers with package codes >
“#” indicates a package specification code.

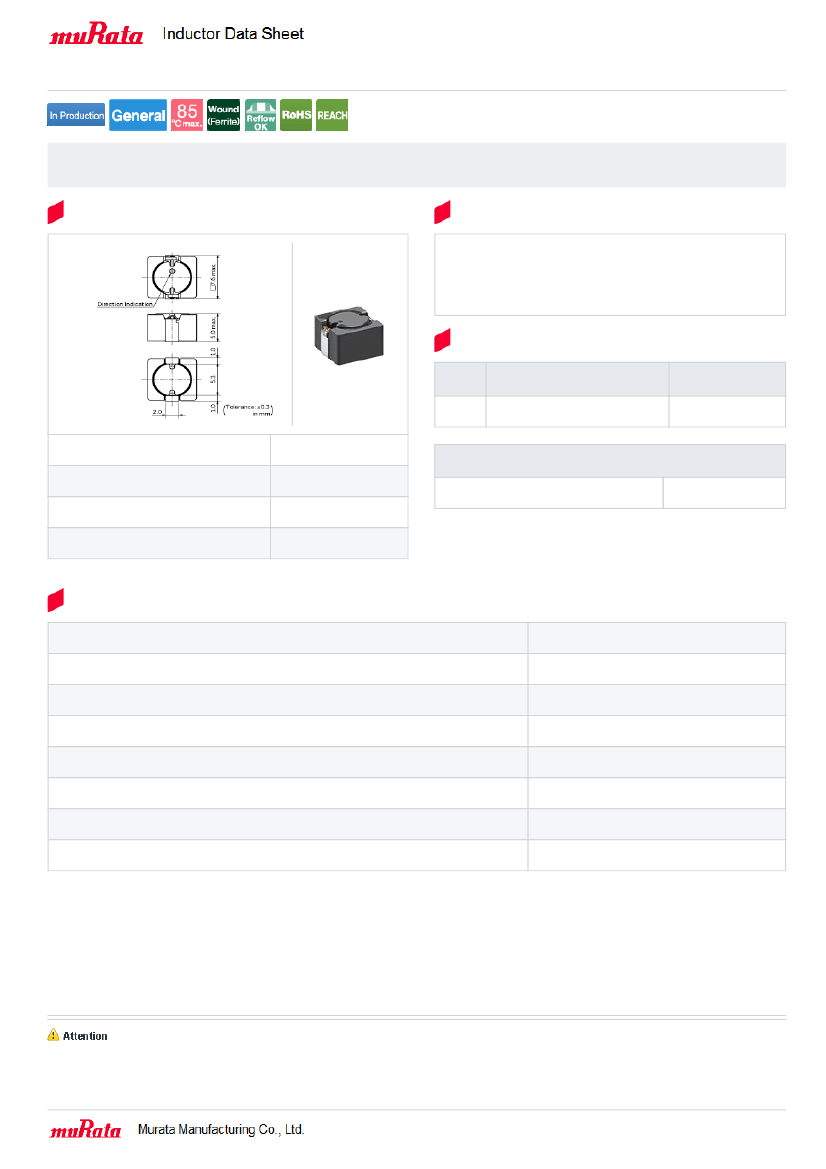

B1047AS-180M=P3
Shape
Notes
Rated current (Isat) is specified when the decrease of the initial
inductance value at 30%. (The ambient reference temperature is 20℃.)
Rated current (Itemp) is specified when temperature of inductor the is
raised 40℃ by DC current. (The ambient reference temperature is 20℃.)
References
Packaging
code
=P3
Specifications
φ330mm
Embossed taping
Minimum quantity
1000
L size
W size
T size
Size code in inch (mm)
7.3 ±0.3mm
7.3 ±0.3mm
5.0 mm
2929 (7373)
Mass (Typ.)
1 piece
0.975g
Specifications
Inductance
Inductance test frequency
Rated current (Isat) (Based on Inductance change)
Rated current (Itemp) (Based on Temperature rise)
Max. of DC resistance
Operating temperature range (Self-temperature rise is included)
Class of magnetic shield
Series
18µH ±20%
0.1MHz
2200mA
1900mA
0.110Ω
-40〜85℃
Ferrite Core
DS75LC
1 of 2
1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.This datasheet has only typical specifications because there is no space for detailed specifications.
Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
URL : https://www.murata.com/
Last updated: 2018/05/19
