CK05BX682K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> CK05BX682K

CK05BX682K: DescriptionMultilayer Ceramic Capacitors MLCC - Leaded MONO CAP 100V 6800PF; CategoryPassive components; File Size612KB，6 Pages; ManufacturerCornell Dubilier

Download Datasheet Parametric View All

CK05BX682K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CK05BX682K	-	-	View	Buy Now

CK05BX682K Overview

Multilayer Ceramic Capacitors MLCC - Leaded MONO CAP 100V 6800PF

CK05BX682K Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Cornell Dubilier
Product Category	Multilayer Ceramic Capacitors MLCC - Leaded
RoHS	N
Termination Style	Radial
Capacitance	6800 pF
Voltage Rating DC	100 VDC
Dielectric	X7R
Tolerance	10 %
Lead Spacing	5.1 mm
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Product	High Reliability MLCCs
Length	4.8 mm
Width	2.3 mm
Height	4.8 mm
Packaging	Bulk
Operating Temperature Range	- 55 C to + 125 C
Voltage Rating	100 V
Capacitance - nF	6.8 nF
Capacitance - uF	0.0068 uF
Lead Diameter	0.64 mm
Lead Style	Outside Bend
Factory Pack Quantity	100
Temperature Coefficient / Code	X7R

Preview

Download Datasheet

View All

MIL-C-11015 & 39014

Multilayer Ceramic Capacitors

CK and CKR Military Grade Capacitors

MIL-C-11015 & 39014 - CK and CKR - military grade ca-

pacitors are available as radial and axial leaded

ca-

pacitors with the option of hot solder dipped leads

on the CKRs.

Highlights

•

Available on tape and reel

Molded case construction

CKR available with stand-of

Hot solder dip leads on Type CKR

Specifcations

Capacitance Range:

Voltage Range:

Temperature Coefcient:

10 pF to 3.3 µF

50, 100, 200 Vdc

X7R (Mil BX or BR)

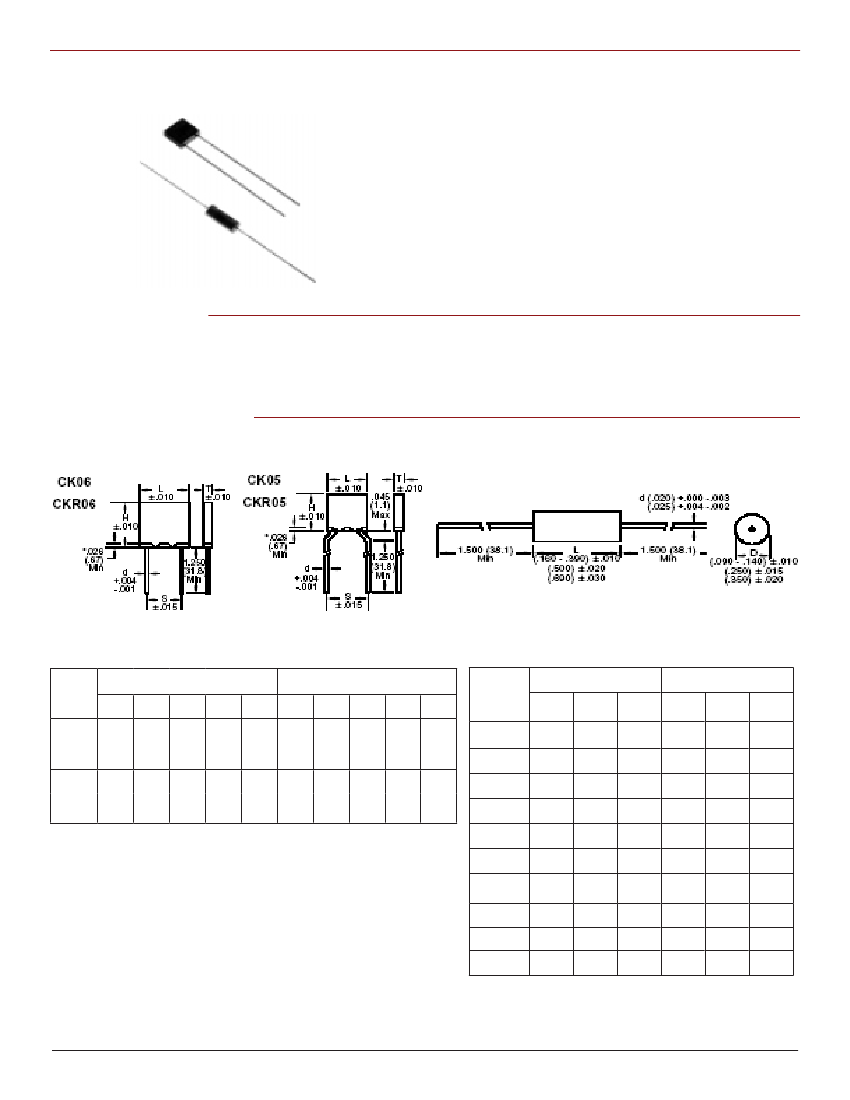

Outline Drawings

MIL-C-11015/20, MIL-C-39014/05

Radial

Type

CK05

CKR05

CK06

CKR06

Inches

.190

.290

.190

.290

.090

.200

Axial

5.1

.64

Type

CK12

CKR11

CK13

CKR12

CK14

CKR14

CK15

CKR15

CK16

CKR16

Inches

.090

.140

.250

.350

.160

.250

.390

.500

.690

.020

.025

2.3

3.6

6.4

8.9

4.0

6.4

9.9

12.7

17.5

.51

.64

4.8

7.4

2.3

.025

4.8

7.4

Order by CK part number shown in Ratings Table

Example: CK05BX104M

TO ORDER MIL-C-39014 PARTS:

Indicate the prefix M39014/-- followed by the applicable

MIL dash number. Example: For M39014/01-1594

(CKR05BX104MS); order M39014/011594
