LFXTAL062383Cutt datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> LFXTAL062383Cutt

Preview

LFXTAL062383Cutt: DescriptionCrystals 16MHz 12pF -40C 85C; CategoryPassive components; File Size198KB，1 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFXTAL062383Cutt Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFXTAL062383Cutt	-	-	View	Buy Now

LFXTAL062383Cutt Overview

Crystals 16MHz 12pF -40C 85C

LFXTAL062383Cutt Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	IQD Frequency Products
Product Category	Crystals
RoHS	Details
Termination Style	SMD/SMT
Package / Case	2.5 mm x 2 mm
Load Capacitance	12 pF
Frequency	16 MHz
Tolerance	10 PPM
Frequency Stability	25 PPM
Drive Level	100 uW
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Length	2.5 mm
Width	2 mm
Height	0.6 mm
Packaging	Cut Tape
Product	Crystals
Type	Quartz Crystal
ESR	100 Ohms
Mounting Style	SMD/SMT
Lead Spacing	-
Factory Pack Quantity	500

Preview

Download Datasheet

View All

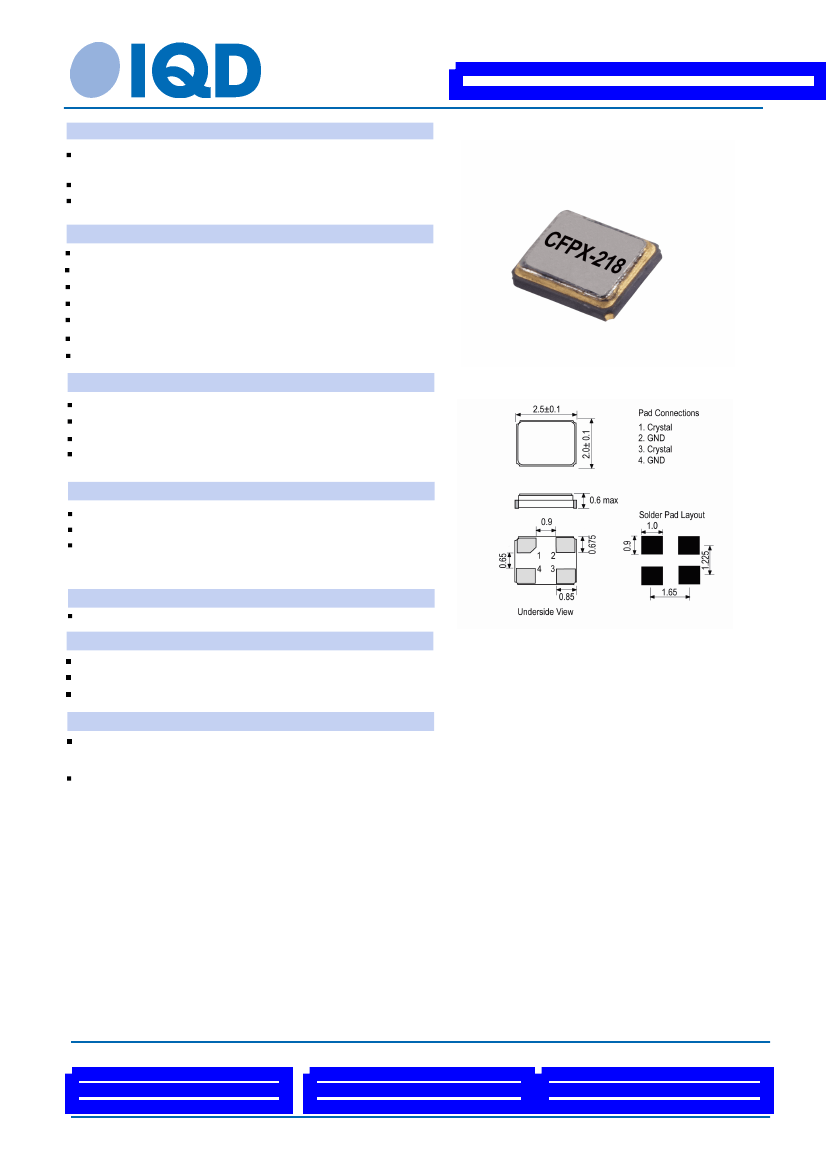

Quartz Crystal Specification

Part No. + Packaging:

LFXTAL062383Bulk

Description

2.5 x 2mm SMD crystal in a hermetically sealed ceramic

package with a seam sealed metal lid.

Model

CFPX-218

Model Issue number

4

Frequency Parameters

Frequency

Frequency Tolerance

Tolerance Condition

Frequency Stability

Operating Temperature Range

Overtone Order

Ageing

Electrical Parameters

16.0MHz

±10.00ppm

@ 25°C

±25.00ppm

-40.00 to 85.00°C

Fundamental

±3ppm max per year @ 25°C

Outline (mm)

Load Capacitance (CL)

Shunt Capacitance (C0)

Drive Level

ESR

Environmental Parameters

12.00pF

5pF max

100µW max

100.00Ω max

Storage Temperature Range: -55 to 125°C

Drop: 100cm drop (3 times) onto hard wooden board.

Vibration: MIL-STD-883F, Method 2007.3: 20G

(20Hz-2000Hz), 1.52mm amplitude, 20mins in 3 mutually

perpendicular planes (total 4hrs).

Manufacturing Details

Maximum Process Temperature: 260°C (10secs max)

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 100

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 1

Printed on 4 Oct 16 13:04 using Part Data Sheet V1.00014
