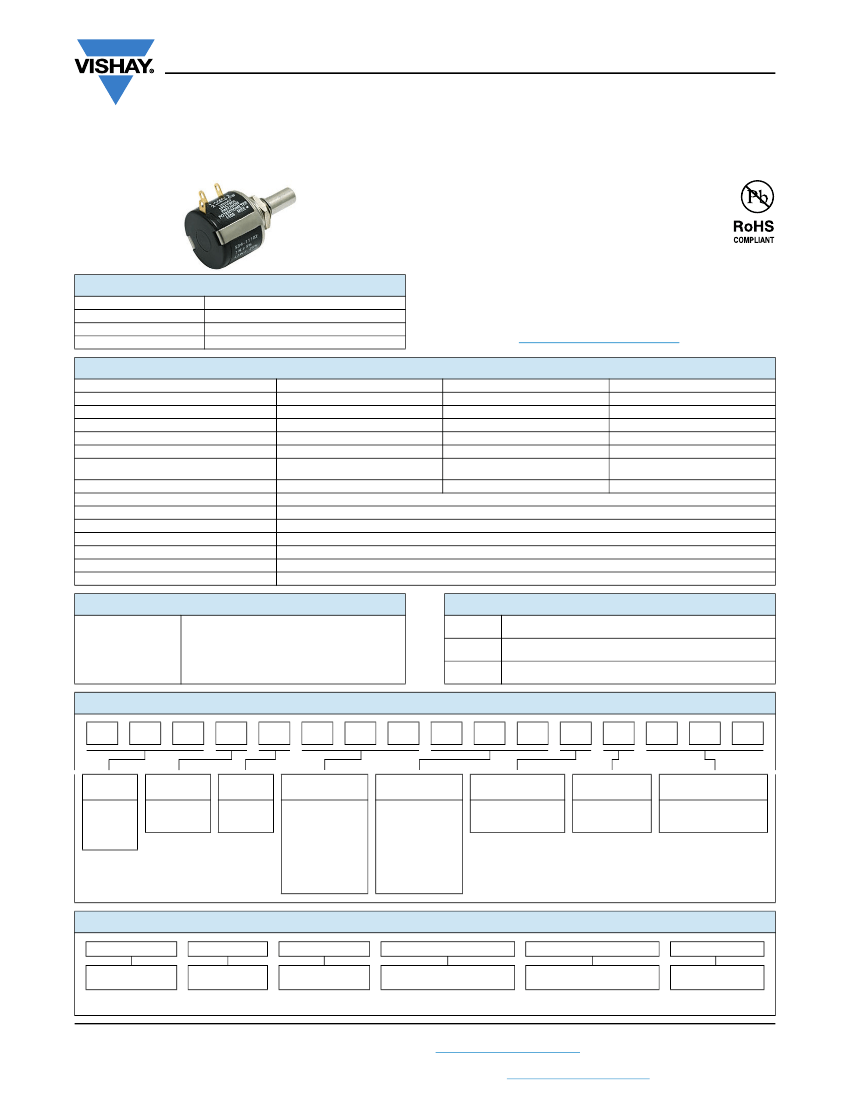

Model 533, 534, 535
www.vishay.com
Vishay Spectrol
7
/
8
"
(22.2 mm) Multi Turn Wirewound Potentiometer -
533: 3 Turns / 534: 10 Turns / 535: 5 Turns
FEATURES
•
•
•
•
•
•
•
•
•
Bushing and servo mount designs available
Linearitry ± 0.25 %, down to 0.05 % on request
Special resistance tolerances to 1 %
Rear shaft extensions and support bearing
Metric shaft available
Dual gang configuration and concentric shafts
High torque, center tap, slipping clutch on request
Special markings and front shaft extensions
Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
QUICK REFERENCE DATA
Sensor type
Output type
Market appliance
Dimensions
ROTATIONAL, multi turn wirewound
Output by turrets
Industrial
7
/ " (22.2 mm)
8
ELECTRICAL SPECIFICATIONS
PARAMETER
Resistance range - standard values
Capability range
Standard tolerance
Linearity (independent)
Noise
Rotation (electrical and mechanical)
Power rating (at 70 °C)
Insulation resistance
Dielectric strength
Absolute minimum resistance
Temperature coefficient
End voltage
Phasing
Taps
MODEL 533
50
to 20 k
5
to 60 k
±5%
± 0.25 %
100
ENR
1080°
+10°
-0°
MODEL 534
100
to 100 k
10
to 200 k
±5%
± 0.25 %
100
ENR
3600°
+10°
-0°
MODEL 535
50
to 50 k
5
to 100 k
±5%
± 0.25 %
100
ENR
1800°
+10°
-0°
1.0 W
2.0 W
1.5 W
1000 M minimum 500 V
DC
1000 V
RMS
minimum 60 Hz
Not to exceed linearity x total resistance or 1
,
whichever is greater
20 ppm/°C (standard values, wire only)
0.25 % of total applied voltage, maximum
CCW end points - section 2 phased to section 1 within ± 2°
Center tap only
MARKING
Unit identification
Manufacturer’s name and model number,
resistance value and tolerance, linearity
specification date code and terminal
identification.
Example of a marking for a standard part:
534-11103
RESISTANCE VALUES
533
(
534
(
535
(
50, 100, 200, 500, 1K, 2K, 5K, 10K, 20K
100, 200, 500, 1K, 2K, 5K, 10K, 20K, 50K, 100K
50, 100, 200, 500, 1K, 2K, 5K, 10K, 20K, 50K
ORDERING INFORMATION
5
3
4
B
2
1
0
3
2
0
3
J
C
4
7
0
MODEL
533
534
535
STYLE
B:
Bushing
S:
Servo
GANGS
1
2
OHMIC VALUE
GANGS N
o
1
470
= 47
222
= 2.200
103
= 10 k
For ohmic value
range see
electrical
specification
OHMIC VALUE
GANGS N
o
2
470
= 47
222
= 2.200
103
= 10 k
For ohmic value
range see
electrical
specification
TOLERANCE ON
OHMIC VALUE
J
=±5%
F
=±1%
LINEARITY
C
= ± 0.25 %
L
= ± 0.2 %
SPECIAL REQUEST
Special code
xxxx
PART NUMBER DESCRIPTION
(for information only)
534-
MODEL
1
STYLE
B:
1
S:
2
Revision: 25-Sep-17
Document Number: 57065
1
For technical questions, contact:
sferprecisionpot@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
2
GANGS
103
OHMIC VALUE
GANGS N
o
1
203
OHMIC VALUE
GANGS N
o
2
xxxx
SPECIAL
Model 533, 534, 535
www.vishay.com
Vishay Spectrol

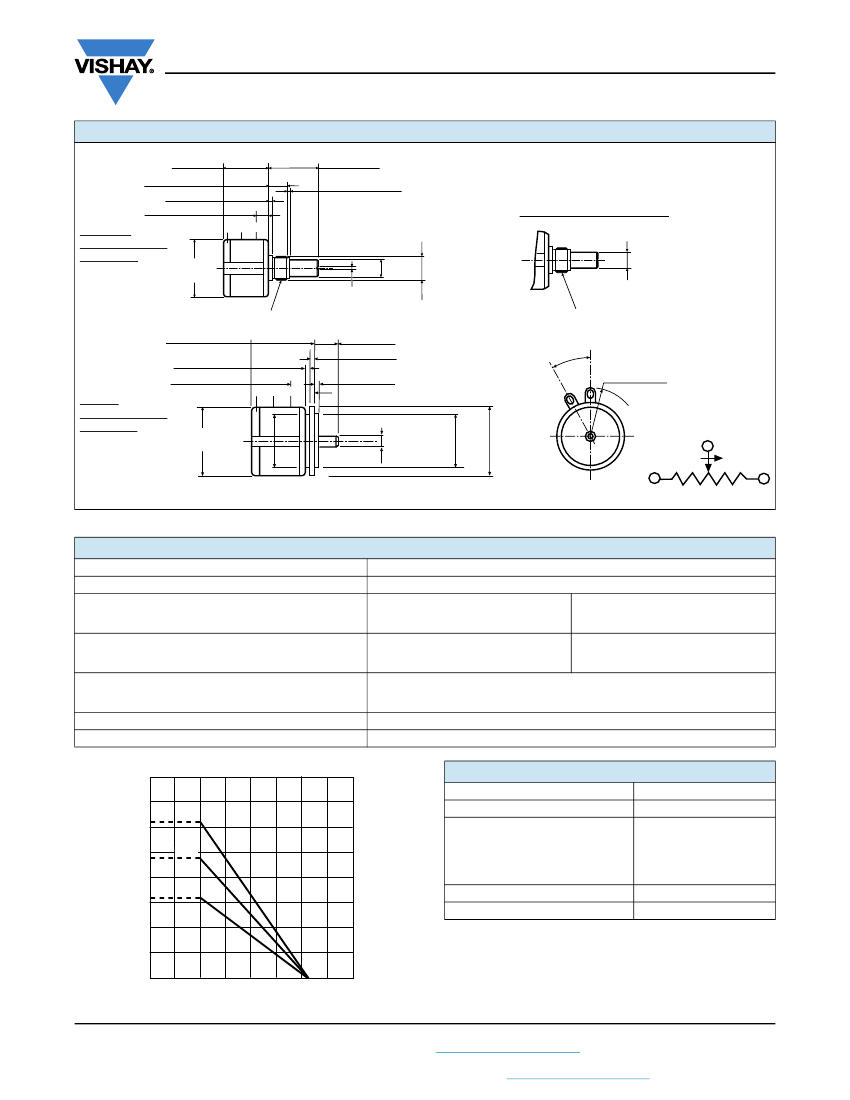

SINGLE SECTION DIMENSIONS
in inches (millimeters)
0.750 (19.05)
0.312 (7.92)
± 0.015
± 0.015
0.812 (20.62)
± 0.031
0.030 MAX. (0.76)
0.062 (1.57)
0.200 MIN. (5.08)
METRIC SHAFT: 534B...8872
2
1
3
BUSHING
MOUNT MODEL:
534B/534-1
Ø 0.2497 (6.34)
- 0.0003
± 0.015
+ 0.0000
+ 0.0000
- 0.0020
+ 0.000
Ø 0.875
(22.22)
0.032 x 0.032
(0.81) x (0.81) DP
3
/
8
± 0.010
Ø 0.4062
(10.32)
Ø 6.00 mm
- 0.0003
9 mm x 0.75 P
- 32UNEF - 2A
SCREWDRIVER SLOT
± 0.031
0.850 (21.59)
± 0.015
0.375 (9.52)
0.062 (1.57)
0.057 (1.45) MIN.
0.300 (7.62) MIN.
0.062 (1.57)
2
1
30°
TYP.
Ø 0.7500 (19.05)
- 0.0005
+ 0.0000
R 0.625 MAX.
(15.88)
SERVO
MOUNT MODEL:
534S/534-2
3
Ø 0.875
(22.22)
± 0.015
Ø 0.1248 (3.17)
+ 0.0000
- 0.0003
2
CW
Ø 0.750 (19.05) MAX.
Ø 0.875 (22.22)
1
3
SCHEMATIC
Mounting hardware, washer and panel nut, nickel plated
MECHANICAL SPECIFICATIONS
PARAMETER
Bearing type
Torque (maximums): starting
Section 1
Section 2
Torque (maximums): running
Section 1
Section 2
Weight (maximums)
Section1
Section 2
Stop strength
Ganging
Bushing: Sleeve bearing
534
0.5 oz. - in (36 g - cm)
0.9 oz. - in (65 g - cm)
534
0.4 oz. - in (28.80 g - cm)
0.7 oz. - in (50.40 g - cm)
Servo: Ball bearing
533/535
0.7 oz. - in (50 g - cm)
1.1 oz. - in (79 g - cm)
533/535
0.6 oz. - in (43.20 g - cm)
0.9 oz. - in (64.8 g - cm)
0.75 oz. (21.26 g)
1.25 oz. (35.44 g)
75 oz. - in (static) (5.4 kg - cm)
2 sections maximum
POWER RATING CHART
4
ENVIRONMENTAL SPECIFICATIONS
Vibration
15
g
thru 2000 Hz
50
g
300 000
1 000 000
> 1 000 000
500 000
900 h
-55 °C to +125 °C
Shock
Rotational life (shaft revolution)
533
534
534 (servo)
535
Load life
Temperature range
534
RATED POWER IN W
3
535
2
533
1
Note
• Nothing stated herein shall be construed as a guarantee of
quality or durability.
0
20
40
60
80
100
120
140
160
0
AMBIENT TEMPERATURE IN °C
Revision: 25-Sep-17
Document Number: 57065
2
For technical questions, contact:
sferprecisionpot@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Model 533, 534, 535
www.vishay.com
Vishay Spectrol
MAXIMUM CURRENT
AT 70 °C AMBIENT
(mA)
533
141.0
100.0
70.7
44.7
31.6
22.4
14.1
10.0
7.07
-
-
-
-
534
-
141.0
100.0
63.2
44.7
31.6
20.0
14.1
10.0
6.32
4.47
-
-
535
173.0
122.0
86.6
54.7
38.7
27.4
17.3
12.2
8.66
5.47
-
-
-
MAXIMUM VOLTAGE
ACROSS COIL
(V)
533
7.07
10.0
14.1
22.4
31.6
44.7
70.7
100.0
141.0
-
-
-
-
534
-
14.1
20.0
31.6
44.7
63.2
100.0
141.0
200.0
316.0
447.0
-
-
535
8.66
12.2
17.3
27.4
38.7
54.8
86.6
122.0
173.0
274.0
-
-
-
RESISTANCE ELEMENT DATA
RESISTANCE VALUE
()
533
50
100
200
500
1K
2K
5K
10K
20K
-
-
-
-
534
-
100
200
500
1K
2K
5K
10K
20K
50K
100K
-
-
535
50
100
200
500
1K
2K
5K
10K
20K
50K
-
-
-
533
0.149
0.111
0.097
0.069
0.063
0.041
0.044
0.034
0.031
-
-
-
-
RESOLUTION
(%)
534
-
0.060
0.037
0.031
0.025
0.021
0.016
0.017
0.015
0.009
0.007
-
-
535
0.120
0.075
0.061
0.049
0.041
0.031
0.034
0.030
0.020
0.015
-
-
-
OHMS PER TURN
533
0.0746
0.1114
0.1954
0.3424
0.6331
0.8206
2.2330
3.4510
6.1790
-
-
-
-
534
-
0.0603
0.0746
0.1520
0.2459
0.4113
0.8206
1.7230
3.0160
4.6690
7.4560
-
-
535
0.0603
0.0746
0.1220
0.2459
0.4113
0.6331
1.7230
3.0160
3.9910
7.4560
-
-
-
Revision: 25-Sep-17
Document Number: 57065
3
For technical questions, contact:
sferprecisionpot@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
