CX2520DB27000D0FLJC1

Description
Crystals AEC-Q200 27MHz 8pF 2.5x2mm
CategoryPassive components
File Size63KB,2 Pages
ManufacturerAVX
Environmental Compliance
Download Datasheet Parametric Compare View All

CX2520DB27000D0FLJC1 Online Shopping

Suppliers Part Number Price MOQ In stock
CX2520DB27000D0FLJC1 - - View Buy Now

CX2520DB27000D0FLJC1 Overview

Crystals AEC-Q200 27MHz 8pF 2.5x2mm

CX2520DB27000D0FLJC1 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerAVX
Product CategoryCrystals
RoHSDetails
Termination StyleSMD/SMT
Package / Case2.5 mm x 2 mm
Load Capacitance8 pF
Frequency27 MHz
Tolerance10 PPM
Frequency Stability15 PPM
Drive Level10 uW
Minimum Operating Temperature- 30 C
Maximum Operating Temperature+ 85 C
Length2.5 mm
Width2 mm
Height0.5 mm
PackagingCut Tape
PackagingMouseReel
PackagingReel
Mounting StyleSMD/SMT
QualificationAEC-Q200
Factory Pack Quantity3000
Unit Weight0.000459 oz

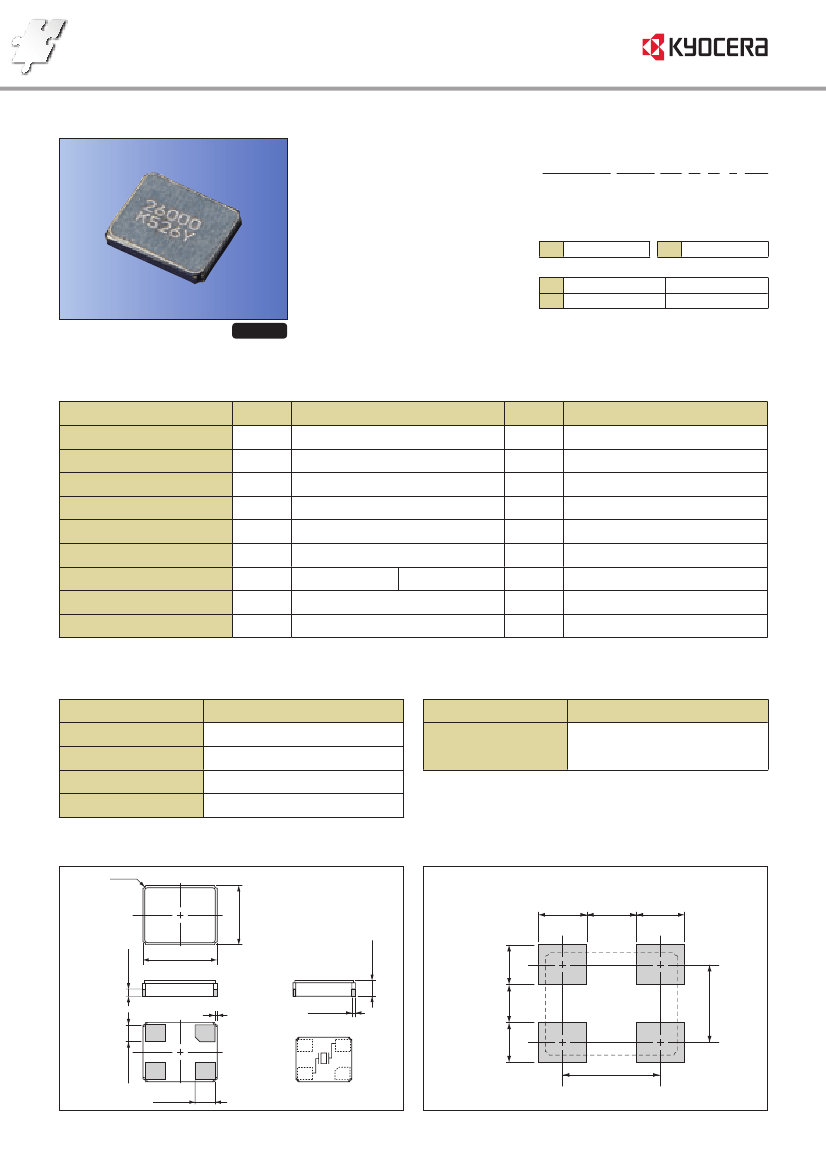

Crystal Units
Surface Mount Type CX2520DB
2.5
×
2.0mm for Consumer Products/ Mobile Communications
Features
• Crystal unit for Consumer Products
• Ceramic package
• Reflow compatible
How to Order
CX2520DB 27000
D0 G □ J CC
③ ④⑤⑥ ⑦
Frequency Tolerance
G
±
15
×
10
6
±
15
×
10
6
±
15
×
10
6
Applications
• Digital Electronics
• Consumer Products
• Mobile Communications, Bluetooth
®
,
Wireless LAN
*
Bluetooth
®
Trademarks are owned by
Bluetooth SIG Inc.
Series
Frequency
Load Capacitance
D0
EJ
LJ
8 pF
10 to
+
70
°
C
30 to
+
85
°
C
Operating Temp. Range
Frequency Temp. Stability
RoHS Compliant
Individual Specification
(STD Specification is “CC”)
Packaging (Tape & Reel 1000/ 3000/ 12000 pcs./ reel)
Specifications
Item
Frequency Range
Overtone Order
Load Capacitance
Frequency Tolerance
Motional Series Resistance
Drive Level
Operating Temp. Range
Storage Temp. Range
Frequency Temp. Characteristics
Please contact us for other specifications.
Symbol
f
_nom
OT
CL
f
_tol
R1
DL
T
_use
T
_stg
f
_tem
Specification
12000 to 54000
Fundamental
8
±
15
Table 1
Table 2
10 to
+
70
40 to
+
85
±
15
30 to
+
85
Units
kHz
pF
×
10
6
ohm
μ
W
°
C
°
C
×
10
6
Remarks
Please contact us for other Load Capacitance.
25
°
C
±
3
°
C
Freq. deviation from the value at 25
°
C
Table1 Motional Series Resistance
Frequency Range
12000
f
_nom
<
16000kHz
16000
f
_nom
<
26000kHz
26000
f
_nom
<
30000kHz
30000
f
_nom
54000kHz
Motional Series Resistance
150
Ω
max.
80
Ω
max.
60
Ω
max.
50
Ω
max.
Table2 Level of Drive
Frequency Range
12000
f
_nom
54000kHz
Level of Drive
10
μ
W (100
μ
W max.)
Dimensions
4 R0.15
#4
#3
(Unit: mm)
Recommended Land Pattern
(Unit: mm)
2.0 0.1
1.2
0.5
1.2
0.20 0.05
#1
2.5 0.1
#2
0.50 0.05
0.3
1.0
4 0.15 0.1
#1
#2
#4
4 0.56 0.1
0.115
#3
HOT
HOT
#4
4 0.66 0.1
#3
#1
CONNECTION
(TOP VIEW)
GND
#2
1.7
1.0
As of March 2018
1.3

CX2520DB27000D0FLJC1 Related Products

CX2520DB27000D0FLJC1 CX2520DB38400D0GPSC1 CX2520DB19200D0GPSC1 CX2520DB25000D0GPSC1 CX2520DB24576D0GPSC1 CX2520DB24576D0FLJC1 CX3225GB48000D0HPQZ1 CX3225SB25000D0FLJCC
Description Crystals AEC-Q200 27MHz 8pF 2.5x2mm Crystals AEC-Q200 38.4MHz 8pF 2.5x2mm Crystals AEC-Q200 19.2MHz 8pF 2.5x2mm Crystals AEC-Q200 25MHz 8pF 2.5x2mm Crystals AEC-Q200 24.576MHz 8pF 2.5x2mm Crystals AEC-Q200 24.576MHz 8pF 2.5x2mm Crystals 48000kHz 8pF With Thermistor Crystals AEC-Q200 25MHz 8pF 3.2x2.5mm
Product Attribute Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value
Manufacturer AVX AVX AVX AVX AVX AVX AVX AVX
Product Category Crystals Crystals Crystals Crystals Crystals Crystals Crystals Crystals
RoHS Details Details Details Details Details Details Details Details
Termination Style SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT
Package / Case 2.5 mm x 2 mm 2.5 mm x 2 mm 2.5 mm x 2 mm 2.5 mm x 2 mm 2.5 mm x 2 mm 2.5 mm x 2 mm 3.2 mm x 2.5 mm 3.2 mm x 2.5 mm
Load Capacitance 8 pF 8 pF 8 pF 8 pF 8 pF 8 pF 8 pF 8 pF
Frequency 27 MHz 38.4 MHz 19.2 MHz 25 MHz 24.576 MHz 24.576 MHz 48 MHz 25 MHz
Tolerance 10 PPM 15 PPM 15 PPM 15 PPM 15 PPM 10 PPM 20 PPM 10 PPM
Frequency Stability 15 PPM 50 PPM 50 PPM 50 PPM 50 PPM 15 PPM 30 PPM 15 PPM
Drive Level 10 uW 10 uW 10 uW 10 uW 10 uW 10 uW 10 uW 10 uW
Minimum Operating Temperature - 30 C - 40 C - 40 C - 40 C - 40 C - 30 C - 40 C - 30 C
Maximum Operating Temperature + 85 C + 85 C + 85 C + 85 C + 85 C + 85 C + 85 C + 85 C
Length 2.5 mm 2.5 mm 2.5 mm 2.5 mm 2.5 mm 2.5 mm 3.2 mm 3.2 mm
Width 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2.5 mm 2.5 mm
Height 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.8 mm 0.55 mm
Mounting Style SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT
Factory Pack Quantity 3000 3000 3000 3000 3000 3000 3000 3000
Unit Weight 0.000459 oz 0.000459 oz 0.000459 oz 0.000459 oz 0.000459 oz 0.000459 oz 0.000564 oz 0.000564 oz
Packaging Reel Reel Reel Reel Reel Reel Reel Reel
Qualification AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200 - AEC-Q200
